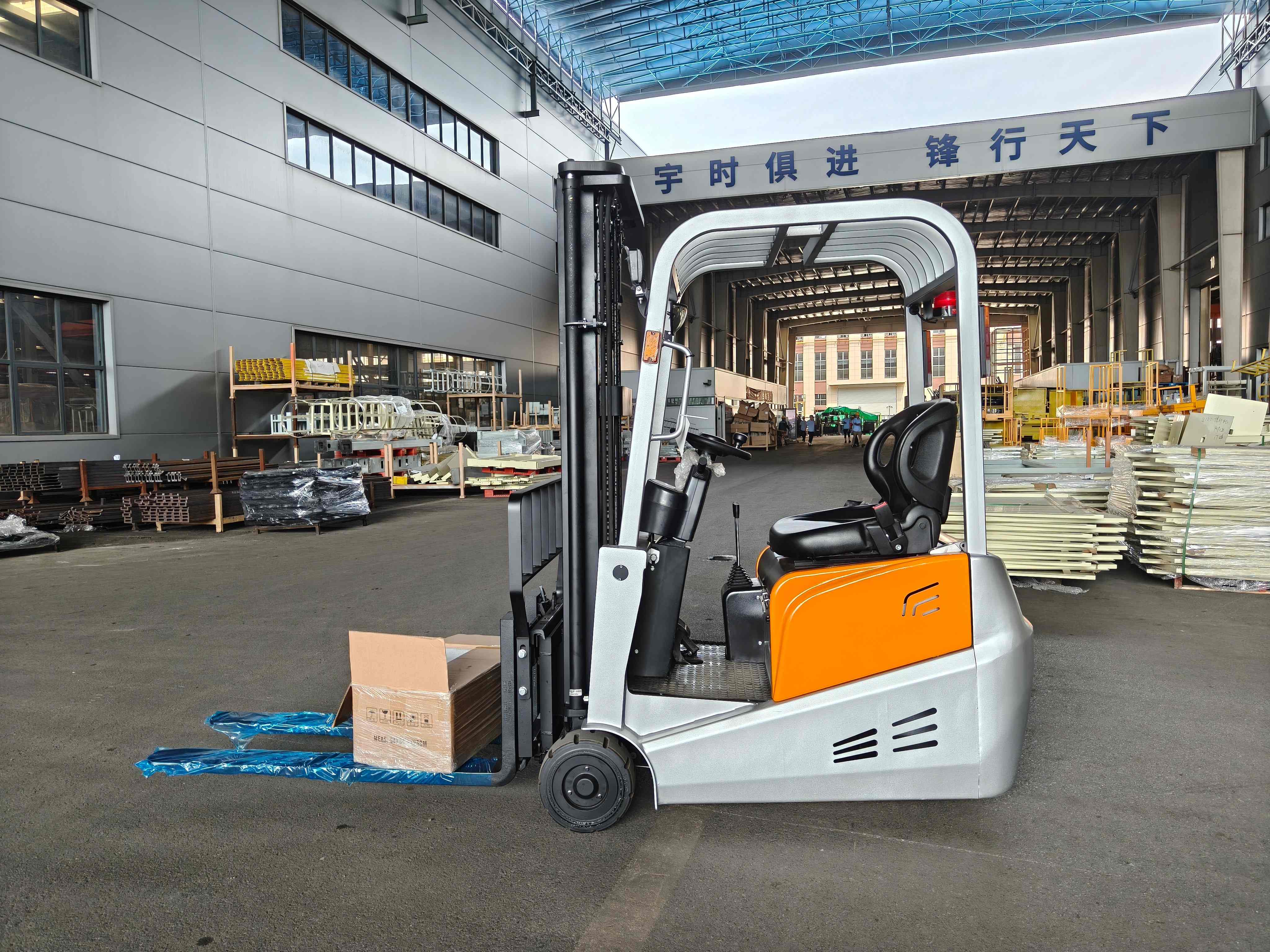

3-Wheel Electric Forklift Suitable For Working In Narrow Spaces

Power Type: Electric, equipped with a 24V battery (270Ah for CPDA10-30, 300Ah for CPDA15-30) and ACI drive control mode.
Operation Mode: Seated type, with EPS steering system that reduces energy consumption by 20%.
Key Dimensions:
- Both models share the same overall width (920mm), minimum turning radius (1425mm), and lift height (3000mm).
- Rated load capacity: 1000kg (CPDA10-30) and 1500kg (CPDA15-30), with a uniform load center distance of 500mm (200kg load reduction when using a side-shifter).
- Front wheels: Rubber material (305×127mm); rear drive wheels: 230×110mm (full rubber for CPDA15-30).

Safety Systems: Lift overload protection, hydraulic anti-explosion design (mast lowers steadily even if hoses burst), and dual temporary parking controls (electric + foot brake) for ramps.
Efficiency & Durability: Full AC drive system (small size, lightweight, maintenance-free, no carbon-brush replacement); gear meshing technology (low noise, high efficiency).
Comfort & Flexibility: Mast with buffering system and 2° forward/4° backward tilting; 75dB(A) low noise at the driver’s ear (compliant with EN12053); adjustable fork outer width (210-580mm).

Space Efficiency: Small volume, lightweight, and small turning radius enable easy access to elevators, between floors, and inside carriages, maximizing space utilization.
Energy & Cost Savings: EPS steering cuts energy use by 20%; maintenance-free AC drive system reduces long-term upkeep costs.
Reliable Safety: Multi-layer protection (overload, anti-explosion, dual parking brakes) minimizes operational risks.
Consistent Performance: Stable travel (5.2km/h unladen, 5km/h loaded) and lift/lower speeds, suitable for continuous daily operations.

Narrow Space Operations: Warehouses, workshops, or logistics centers with limited aisle space (stacking aisle width: 2931mm for 1000×1200mm pallets).
Multi-Floor Logistics: Ideal for goods transfer between floors via elevators, thanks to its compact size and lightweight design.
Indoor & Enclosed Environments: Electric power (zero exhaust emissions) and low noise make it suitable for indoor warehouses, supermarkets, or manufacturing facilities requiring clean, quiet operations.
Medium-Load Handling: Daily lifting and stacking of goods weighing up to 1000-1500kg (e.g., cartons, small pallets, or light industrial parts).
