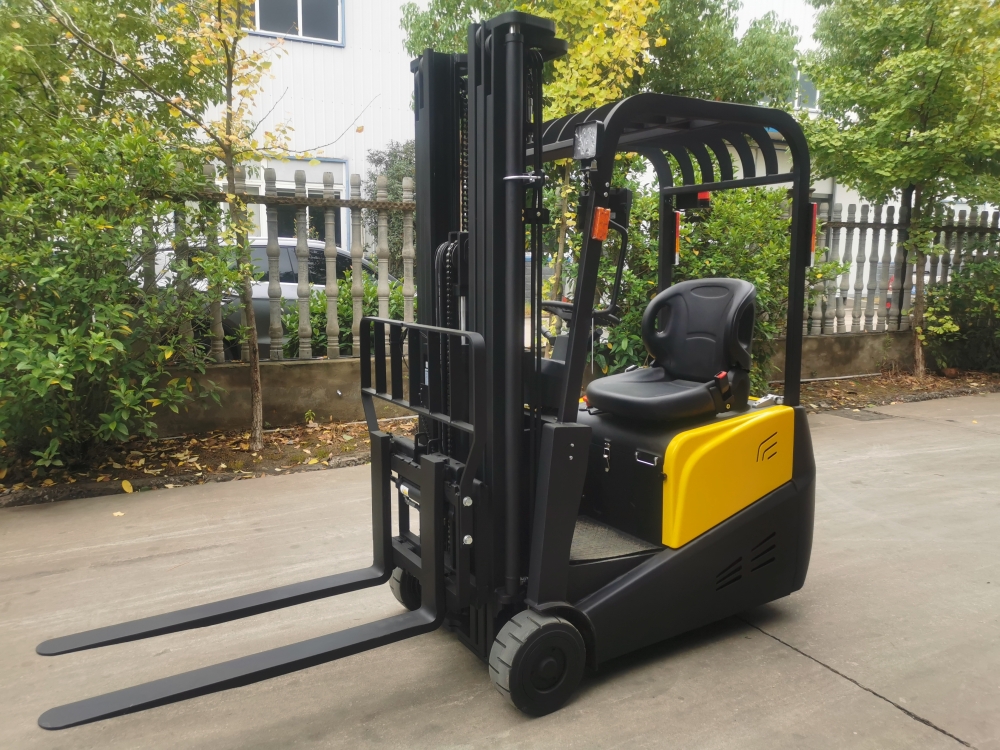

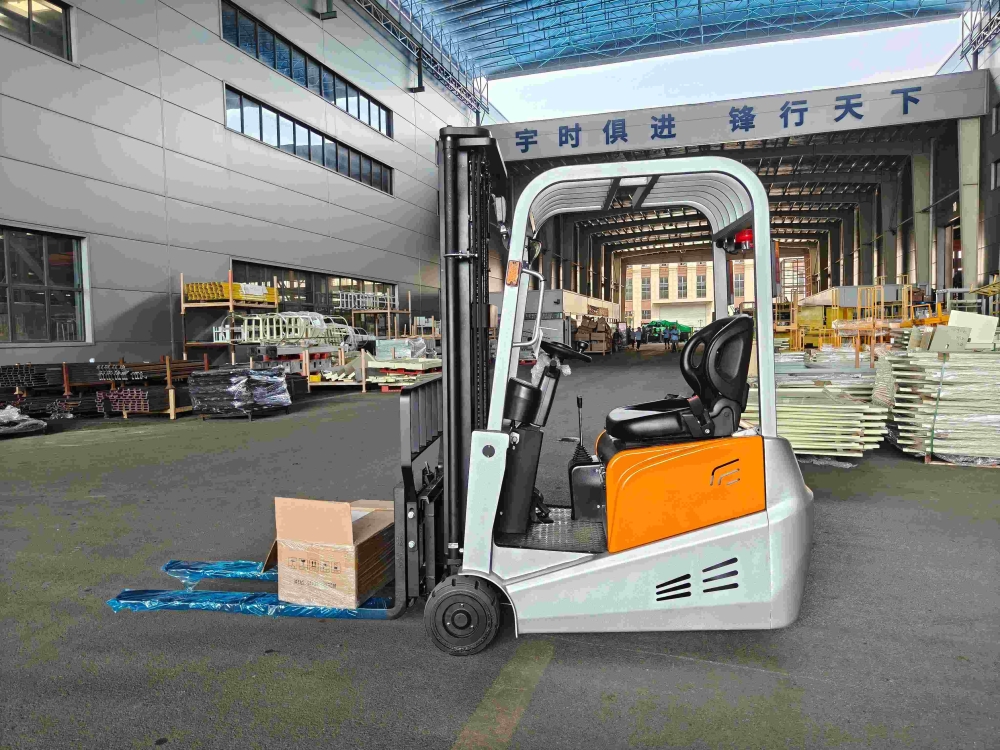

Viwint CPDA15-40 Electric Forklift Three Wheel Warehouse Equipments_Electric Counterbalance Forklift_Warehouse Equipment_Products

Description
Inquiry

Product Description

Model	CPDA10-30	CPDA15-30	CPDA20
Power	Electric	Electric	Electric
Operation	Seated type	Seated type	Seated type
Rated load capacity	1000kg	1500kg	2000KG
Load center distance	500mm	500mm	500mm
The front overhang distance	196mm	196mm	196mm
Wheelbase	1130mm	1130mm	1130mm
Service weight	1760kg	2010kg	2900kg
Wheel type	Rubber/PU	Rubber/PU	Rubber/PU
The front wheel specification	φ305×127	φ305×127	φ305×127
The rear wheel specification	φ230×110	φ230×110	φ230×110
The front wheel distance	752mm	752mm	752mm
Vehicle height, mast retracted	2035mm	2035mm	2035mm
Mast tilting angle	2/4°	2/4°	2/4°
Lift height	3000mm	3000mm	3000mm
Mast height, extended	3918mm	39180mm	39180mm
Overhead guard height	1930mm	1930mm	1930mm
Forks height, mast retracted	35mm	35mm	35mm
Vehicle body length	1610/2756mm
Vehicle body width	920mm	920mm	920mm
Forks dimensions	35/100/1070mm		40/100/1070mm
Forks adjustment dimensions	210-580mm	210-580mm	210-580mm
The min. ground clearance	60mm	60mm	60mm
Stacking aisle width, pallet 1000*1200 (1200 cross forks)	2931mm	2931mm	2931mm
The min. turning radius	1425mm	1425mm	1425mm
Travelling speed, unladed/ full loaded	5.2/5 km/h	5.2/5 km/h	9/11km/h
Lifting speed, unladed/ full loaded	0.135/0.095 m/s	0.135/0.090 m/s	0.24/0.3m/s
Lower speed, unladed/ full loaded	0.085/0.120 m/s		0.39/0.34m/s
The max. gradability,unladed/ full loaded	6/4%	6/4%	15%
Service brake	Hydraulic+Electromagnetic
Drive motor power	1.5AC kw	2.5AC kw	5.5kw
Lift motor power	3.0AC kw	3.0AC kw	5.5kw
Battery voltage/capacity	24V270Ah	24V300Ah	24V300AH
Battery charger	24V40A	24V40A	24A40A
Battery weight	730kg	850kg	900kg
Drive control mode	AC	AC	AC
Noise level at driver ears according to En12053	75dB(A)	75dB(A)	75dB(A)

Q：What is the MOQ?
A： One set.

Q：Can I customize the equipment?

A：Yes, we offer customization service, including load capacity, lifting height, battery, color and others.

Q: Can I get spare parts or technical support after purchase?
A: Yes, we provide lifetime support and spare parts supply. We can ship parts globally and assist via video call.

Q：How long is the warranty time?
A： 12 months or 2000 hours whichever comes first.

Q：What is the payment terms?
A： T/T, 30% pre-payment in advance, and 70% balance before delivery.
