Electric Counterbalance Forklift

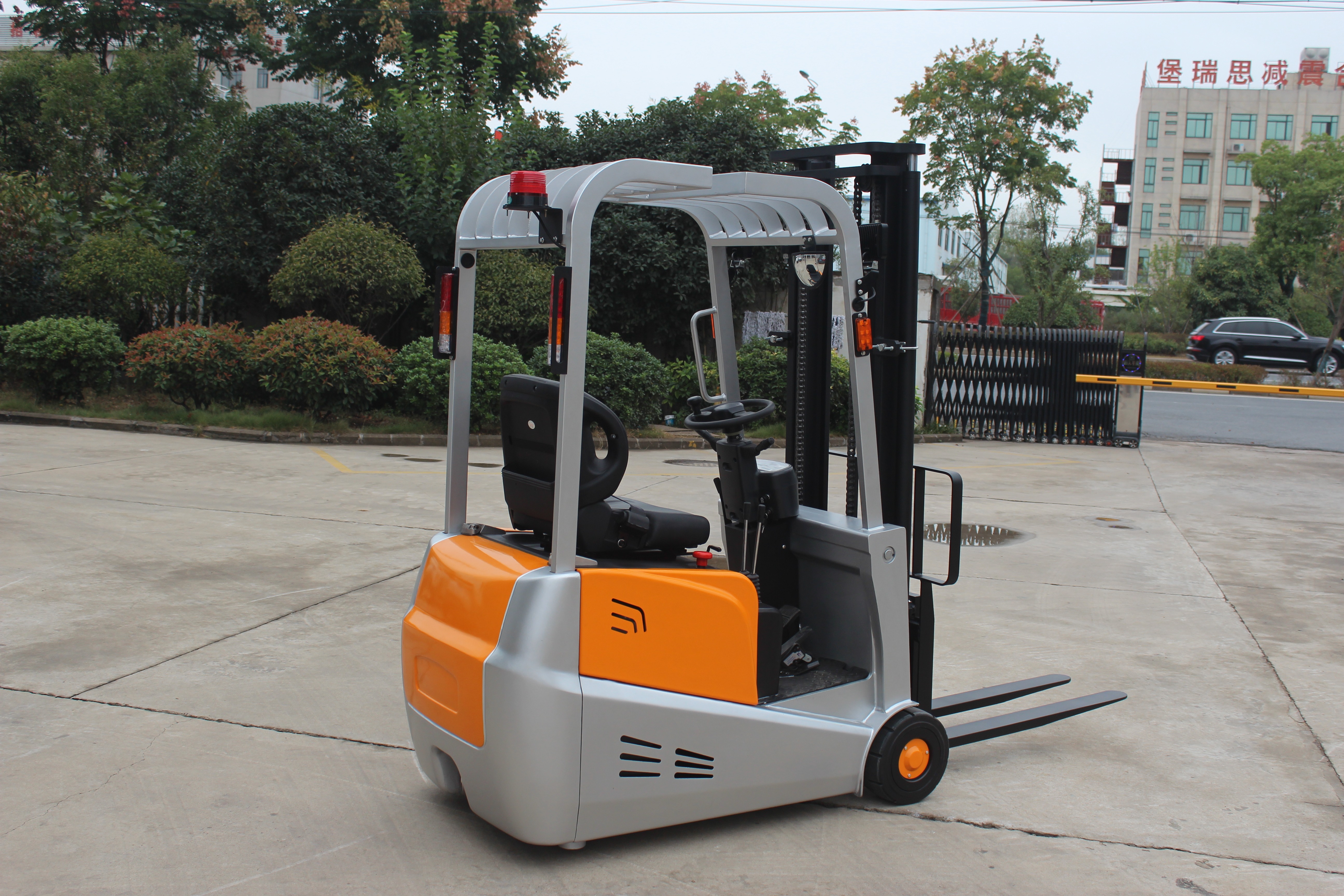

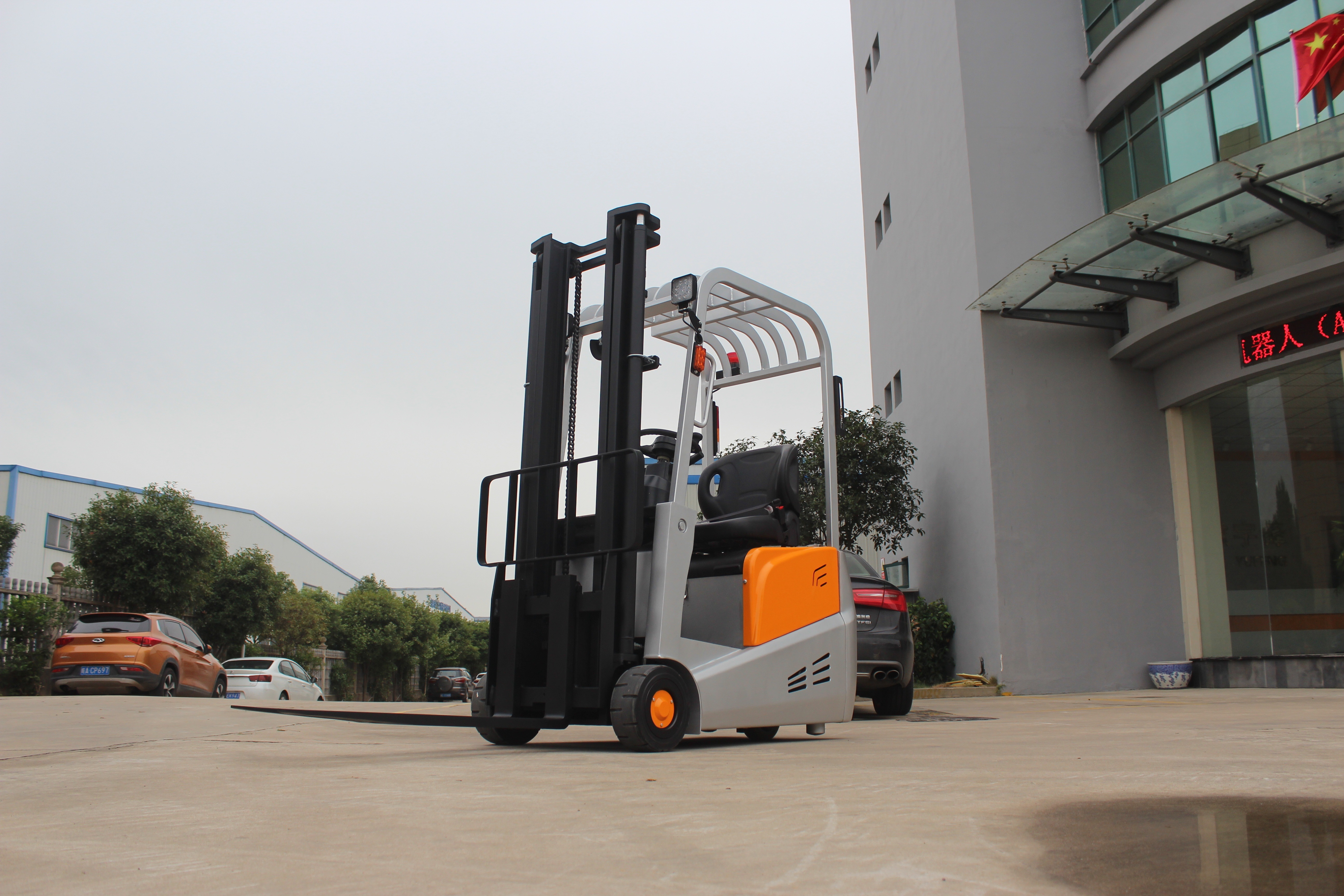

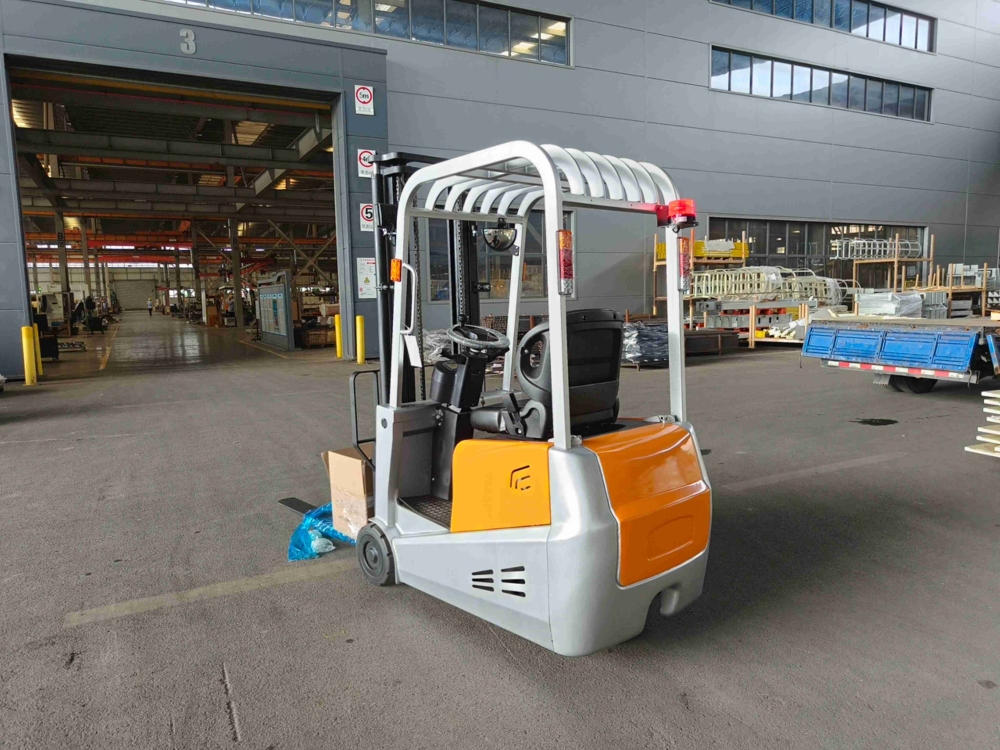

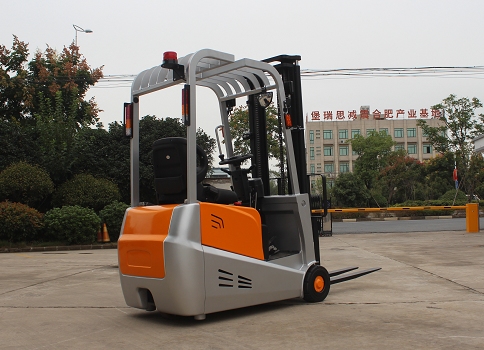

3-wheel Electric Forklift CPDA15-30 Electric Forklift Lifting Truck CE Certificate With Side Shifter Warehouse Used Forklift Stacking

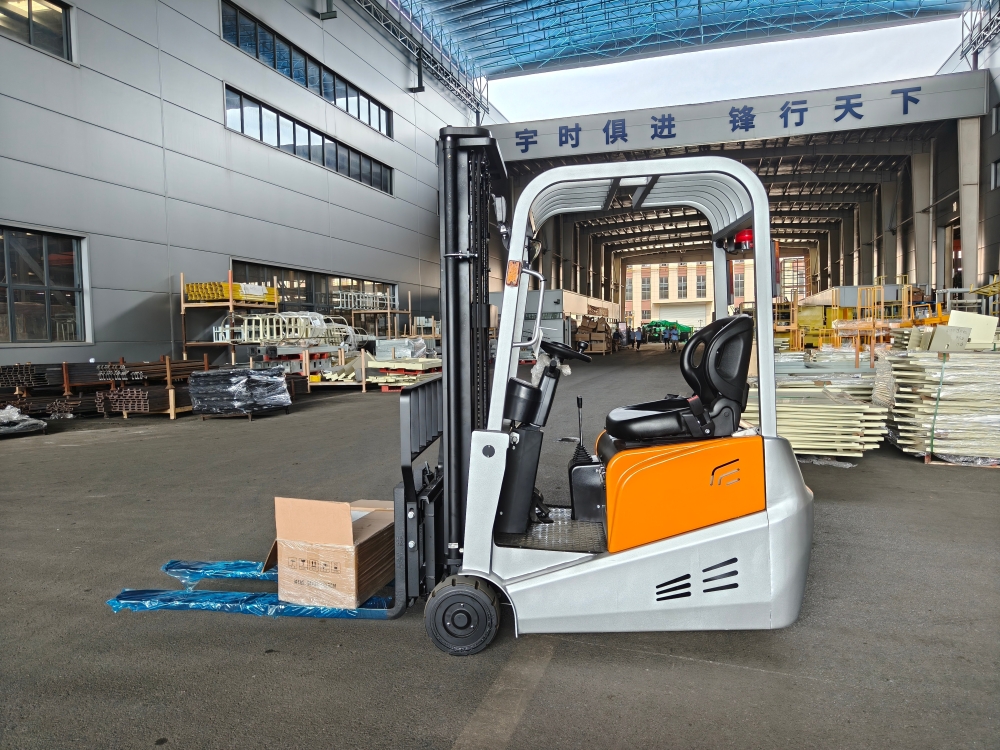

CPDA15-40S electric forklift
  • Description
  • Inquiry

Product Description


Small volume, light weight, small turning radius. Easy to enter into  lift,  it  suits  operation  between  floors  and  carriages, improving the accessibility and space utility;

Equipped with branded control system and multi-functional protection system, offering a high- level functional safety;

Equipped with vertical  branded gear  box,  multi-functional solutions and flexible module construction system. Optimized gear meshing technology can reduce the noise and offer high performance and efficiency;

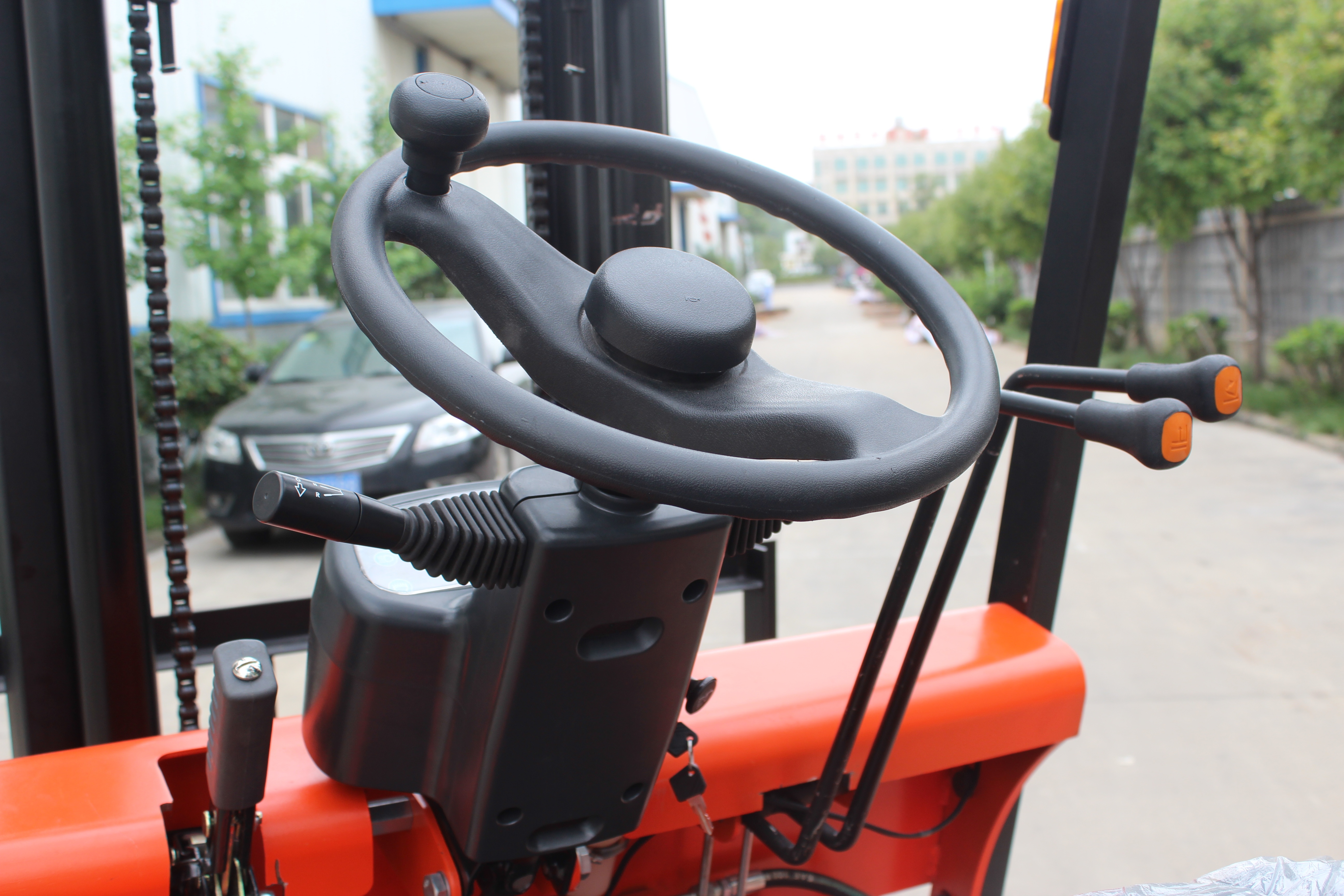

EPS steering energy reduces 20% with accurate operation, flexible steering, relieving operators pressures and greatly improving the production ability;

Equipped with full AC drive system, small volume, light weight, high efficiency, free-maintenance and carbon-brush replacement. No more maintenance and protection;

Equipped with lift overload system, hydraulic anti-explosion design. In spite of exploded  hoses, mast can still lower steadily to improve the safety;

The front wheel adopts rubber material with strong grip and steady operation;

Mast is equipped with buffering system and tilting up or down function;

Temporary parking in forklifts ramp adopts electrical control and foot brake modes, offering the safety protection to its limit.

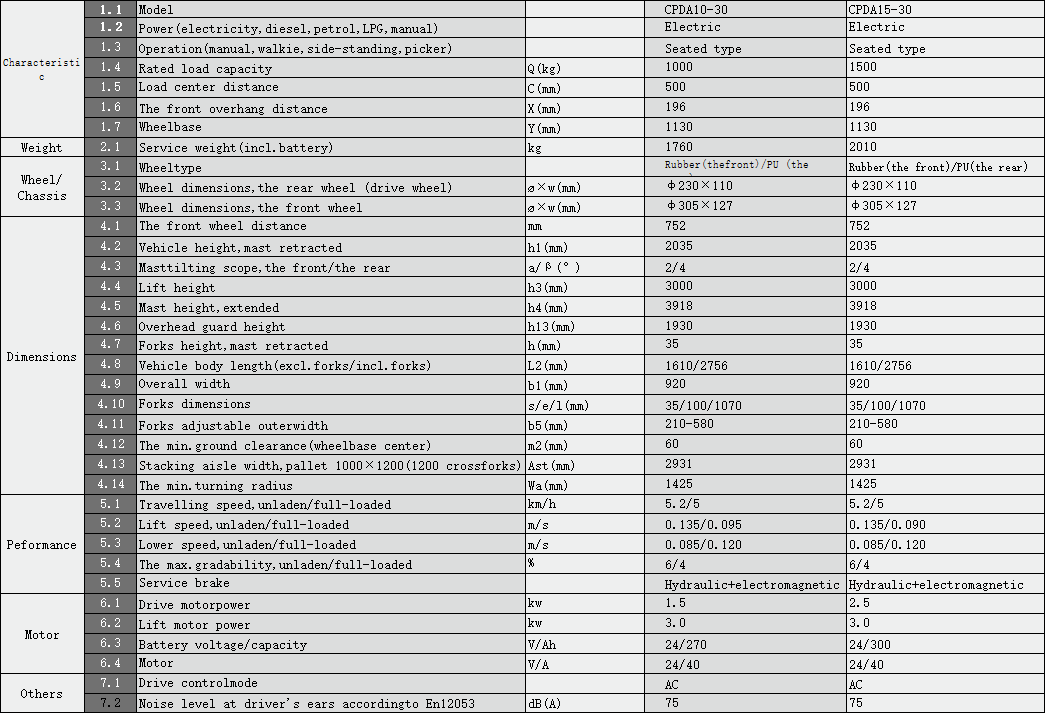

Model
CPDA10-30
CPDA15-30
CPDA20
Power
Electric
Electric
Electric
Operation
Seated type
Seated type
Seated type
Rated load capacity
1000kg
1500kg
2000KG
Load center distance
500mm
500mm
500mm
The front overhang distance
196mm
196mm
196mm
Wheelbase
1130mm
1130mm
1130mm
Service weight
1760kg
2010kg
2900kg
Wheel type
Rubber/PU
Rubber/PU
Rubber/PU
The front wheel specification
φ305×127
φ305×127
φ305×127
The rear wheel specification
φ230×110
φ230×110
φ230×110
The front wheel distance
752mm
752mm
752mm
Vehicle height, mast retracted
2035mm
2035mm
2035mm
Mast tilting angle
2/4°
2/4°
2/4°
Lift height
3000mm
3000mm
3000mm
Mast height, extended
3918mm
39180mm
39180mm
Overhead guard height
1930mm
1930mm
1930mm
Forks height, mast retracted
35mm
35mm
35mm
Vehicle body length
1610/2756mm
Vehicle body width
920mm
920mm
920mm
Forks dimensions
35/100/1070mm
40/100/1070mm
Forks adjustment dimensions
210-580mm
210-580mm
210-580mm
The min. ground clearance
60mm
60mm
60mm
Stacking aisle width, pallet 1000*1200 (1200 cross forks)
2931mm
2931mm
2931mm
The min. turning radius
1425mm
1425mm
1425mm
Travelling speed, unladed/ full loaded
5.2/5 km/h
5.2/5 km/h
9/11km/h
Lifting speed, unladed/ full loaded
0.135/0.095 m/s
0.135/0.090 m/s
0.24/0.3m/s
Lower speed, unladed/ full loaded
0.085/0.120 m/s
0.39/0.34m/s
The max. gradability,unladed/ full loaded
6/4%
6/4%
15%
Service brake
Hydraulic+Electromagnetic
Drive motor power
1.5AC kw
2.5AC kw
5.5kw
Lift motor power
3.0AC kw
3.0AC kw
5.5kw
Battery voltage/capacity
24V270Ah
24V300Ah
24V300AH
Battery charger
24V40A
24V40A
24A40A
Battery weight
730kg
850kg
900kg
Drive control mode
AC
AC
AC
Noise level at driver ears according to En12053
75dB(A)
75dB(A)
75dB(A)

Anhui Viwint Intelligent Technology Co.,Ltd.,a scientific and technological innovationenterprise focusing on the R&D,manufacturing and service of industrial vehicles,andits core business covers the R&D and production of electric forklifts,diesel forklifts,AGV automatic guided vehicles and narrow aisle three-way electric forklifts.With 1000customer service cases and export experience covering the Americas,Europe andother global markets,the company aims to build a leading brand in the field of logisticsequipment.

FAQ

Q:What is the MOQ?
A: One set.


Q:Can I customize the equipment?
A:Yes, we offer customization service, including load capacity, lifting height, battery, color and others.

Q: Can I get spare parts or technical support after purchase?
A: Yes, we provide lifetime support and spare parts supply. We can ship parts globally and assist via video call.


Q:How long is the warranty time?
A: 12 months or 2000 hours whichever comes first.

Q:What is the payment terms?
A: T/T, 30% pre-payment in advance, and 70% balance before delivery.
