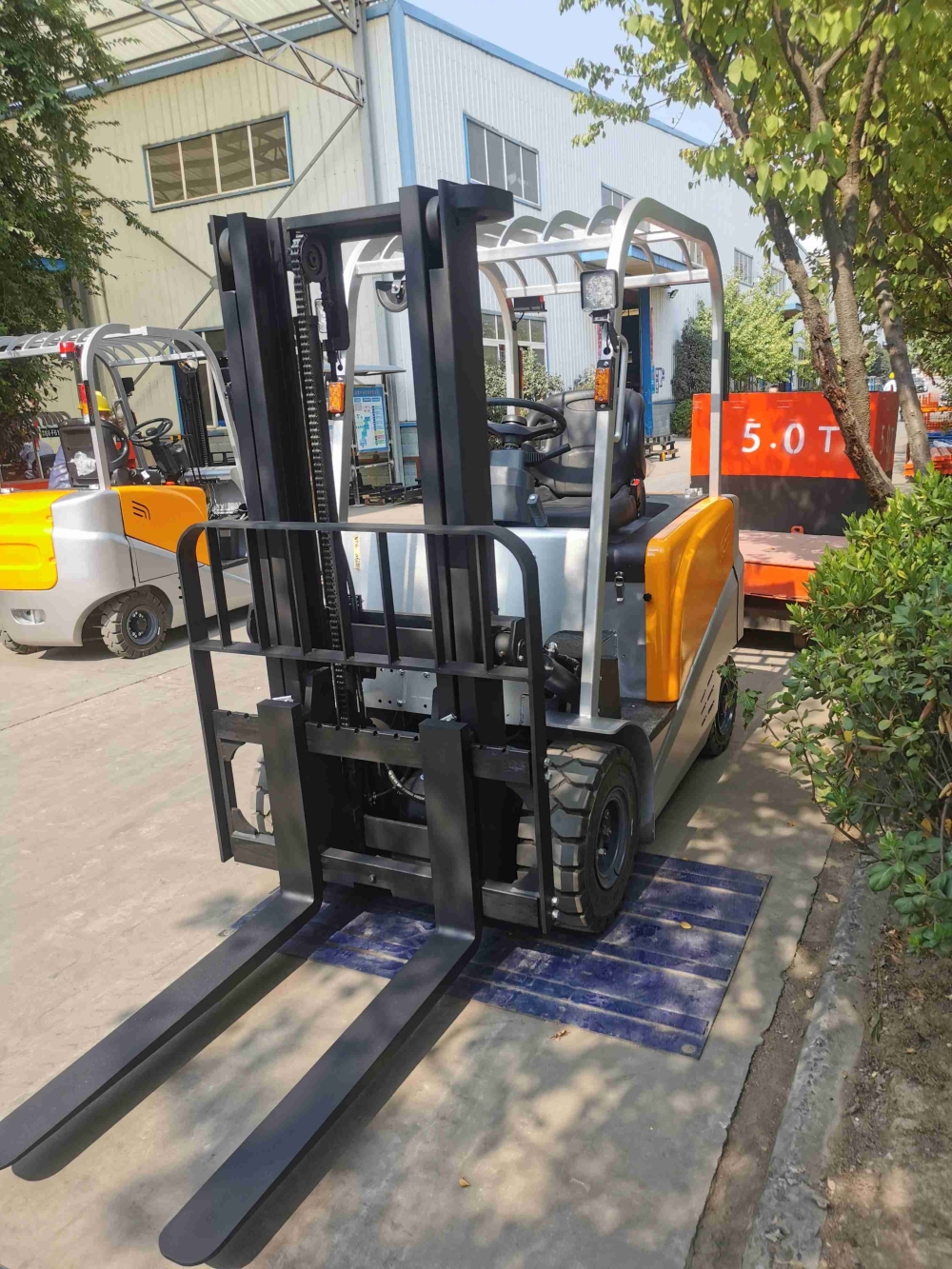

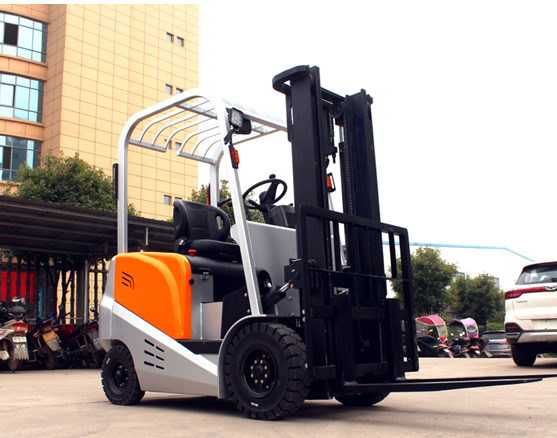

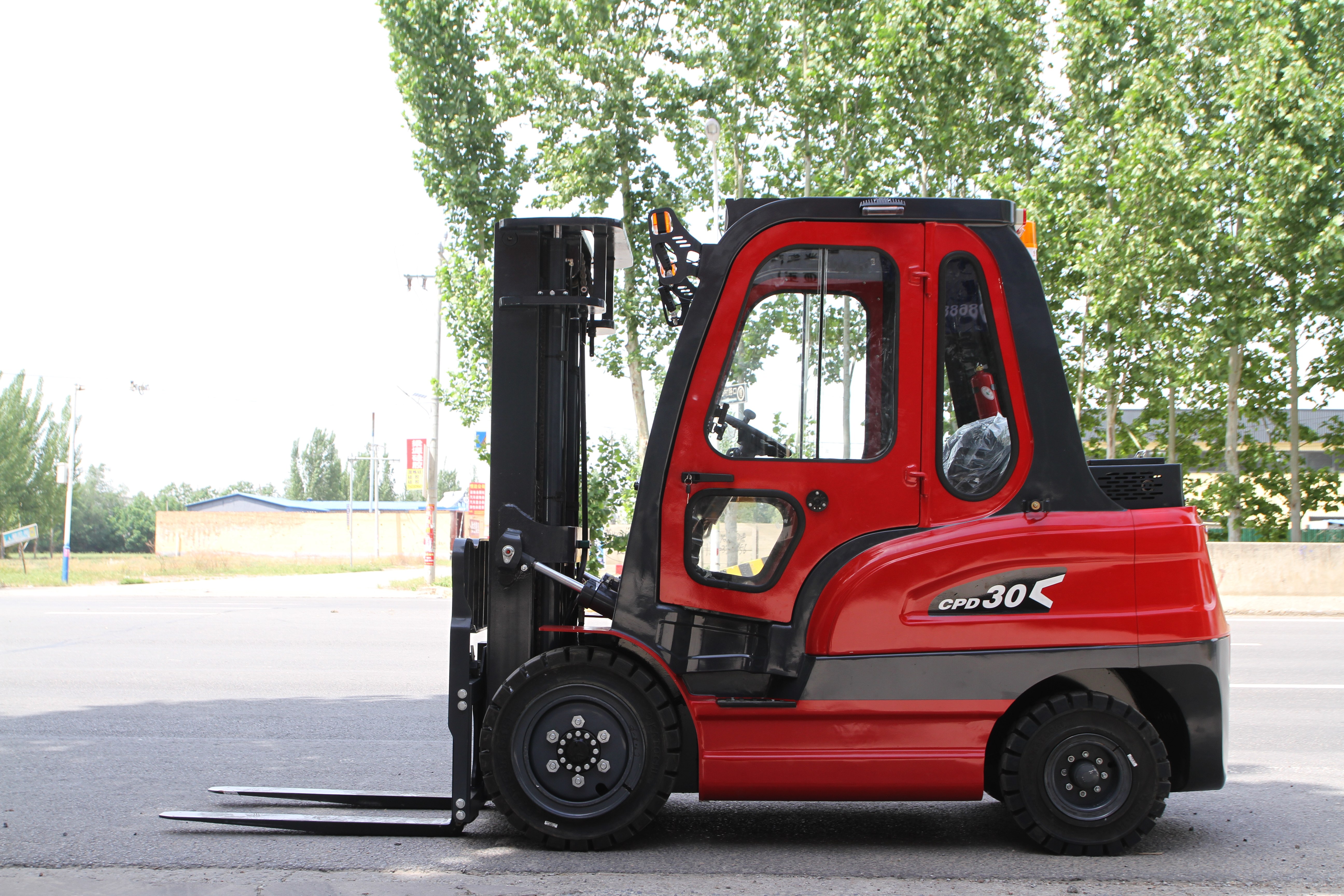

Model | CPD15-30 | CPD20-30 | CPD25-30 | CPD30-30 |
Power | Electric | Electric | Electric | Electric |
Operation | Seated type |
Rated load capacity | 1500kg | 2000kg | 2500kg | 3000kg |
Load center distance | 500mm | 500mm | 500mm | 500mm |
The front overhang distance | 447mm | 447mm | 495mm | 495mm |
Wheelbase | 1460mm | 1460mm | 1600mm | 1600mm |
Service weight | 3050kg | 3420kg | 4210kg | 4410kg |
Wheel type | Inflatable | solid | solid | solid |
The front wheel specification | 6.50-10 | 6.50-10 | 23*9-10 | 23*9-10 |
The rear wheel specification | 5.00-8 | 5.00-8 | 18*7-8 | 18*7-8 |
Thread, front | 910mm | 910mm | 970mm | 970mm |
Thread, rear | 930mm | 930mm | 980mm | 980mm |
Vehicle height, mast retracted | 2095mm | 2095mm | 2095mm | 2095mm |
Free lifting height | 80mm | 80mm | 80mm | 80mm |
Lift height | 3000mm | 3000mm | 3000mm | 3000mm |
Mast height, extended | 4010mm | 4010mm | 4150mm | 4150mm |
Overhead guard height | 2190mm | 2190mm | 2185mm | 2185mm |
Forks height, mast retracted | 40mm | 40mm | 45mm | 45mm |
Mast/forks tilting angle | 6/10° | 6/10° | 6/12° | 6/12° |
Vehicle body length | 2330/3400mm | 2530/3600mm |
Vehicle body width | 1105mm | 1105mm | 1200mm | 1200mm |
Forks dimensions | 35/100/1070mm | 40/122/1070mm | 45/125/1070mm |
Forks adjustment dimensions | 244-1042mm | 250-1070mm |
The min. ground clearance | 130mm | 130mm | 130mm | 130mm |
Stacking aisle width, pallet 1000*1200 (1200 cross forks) | 3857mm | 3857mm | 4015mm | 4015mm |
Stacking aisle with, pallet 1000*1200 (1000 cross forks) | 4015mm | 4015mm | 4170mm | 4170mm |
The min. turning radius | 2090mm | 2090mm | 2200mm | 2200mm |
Travelling speed, unladed/ full loaded | 12/11 km/h | 12/11 km/h | 12/11 km/h | 12/11 km/h |
Lifting speed, unladed/ full loaded | 0.350/0.260 m/s | 0.350//0.240 m/s | 0.330/0.260 m/s | 0.330/0.250m/s |
Lower speed, unladed/ full loaded | 0.360/0.400 m/s | 0.380/0.450 m/s |
The max. gradability,unladed/ full loaded | 20/15% | 20/15% | 20/12% | 20/12% |
Service brake | Hydraulic | Hydraulic | Hydraulic | Hydraulic |
Drive motor power | 8AC kw | 8AC kw | 11AC kw | 11AC kw |
Lift motor power | 8.6AC kw | 8.6AC kw | 12AC kw | 12AC kw |
Battery type | Lead-acid | Lead-acid | Lead-acid | Lead-acid |
Battery voltage/capacity | 48V400Ah | 48V450Ah | 48V480Ah | 48V550Ah |
Battery charger | 48V50A | 48V60A | 48V60A | 48V70A |
Battery weight | 645kg | 710kg | 730kg | 850kg |
Drive control mode | AC | AC | AC | AC |
Noise level at driver ears according to En12053 | 75dB(A) | 75dB(A) | 75dB(A) | 75dB(A) |
Anhui Viwint Intelligent Technology Co.,Ltd.,a scientific and technological innovationenterprise focusing on the R&D,manufacturing and service of industrial vehicles,andits core business covers the R&D and production of electric forklifts,diesel forklifts,AGV automatic guided vehicles and narrow aisle three-way electric forklifts.With 1000customer service cases and export experience covering the Americas,Europe andother global markets,the company aims to build a leading brand in the field of logisticsequipment.

FAQ
Q:What is the MOQ?
A: One set.
Q:Can I customize the equipment?
A:Yes, we offer customization service, including load capacity, lifting height, battery, color and others.
Q: Can I get spare parts or technical support after purchase?
A: Yes, we provide lifetime support and spare parts supply. We can ship parts globally and assist via video call.
Q:How long is the warranty time?
A: 12 months or 2000 hours whichever comes first.
Q:What is the payment terms?
A: T/T, 30% pre-payment in advance, and 70% balance before delivery.
