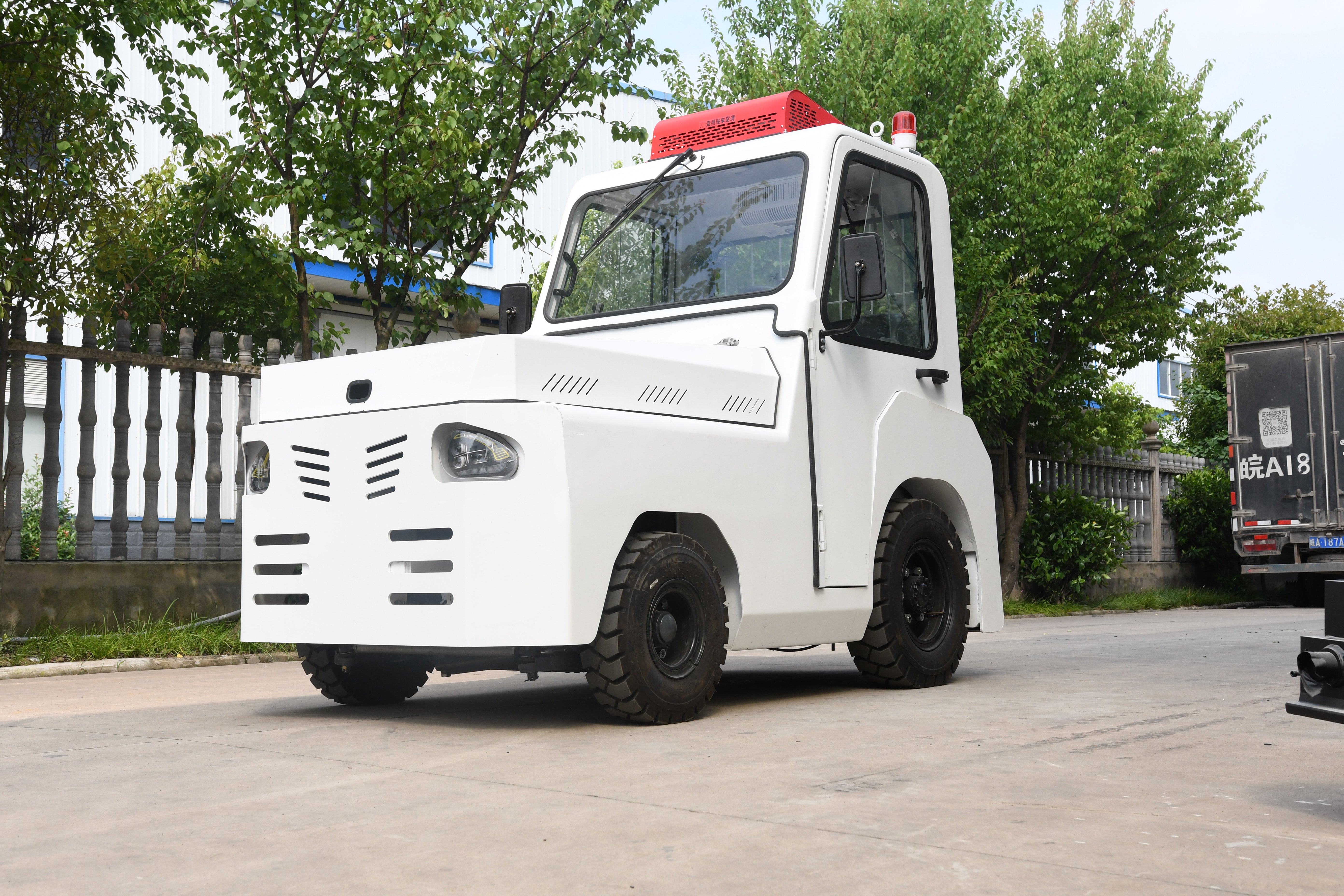

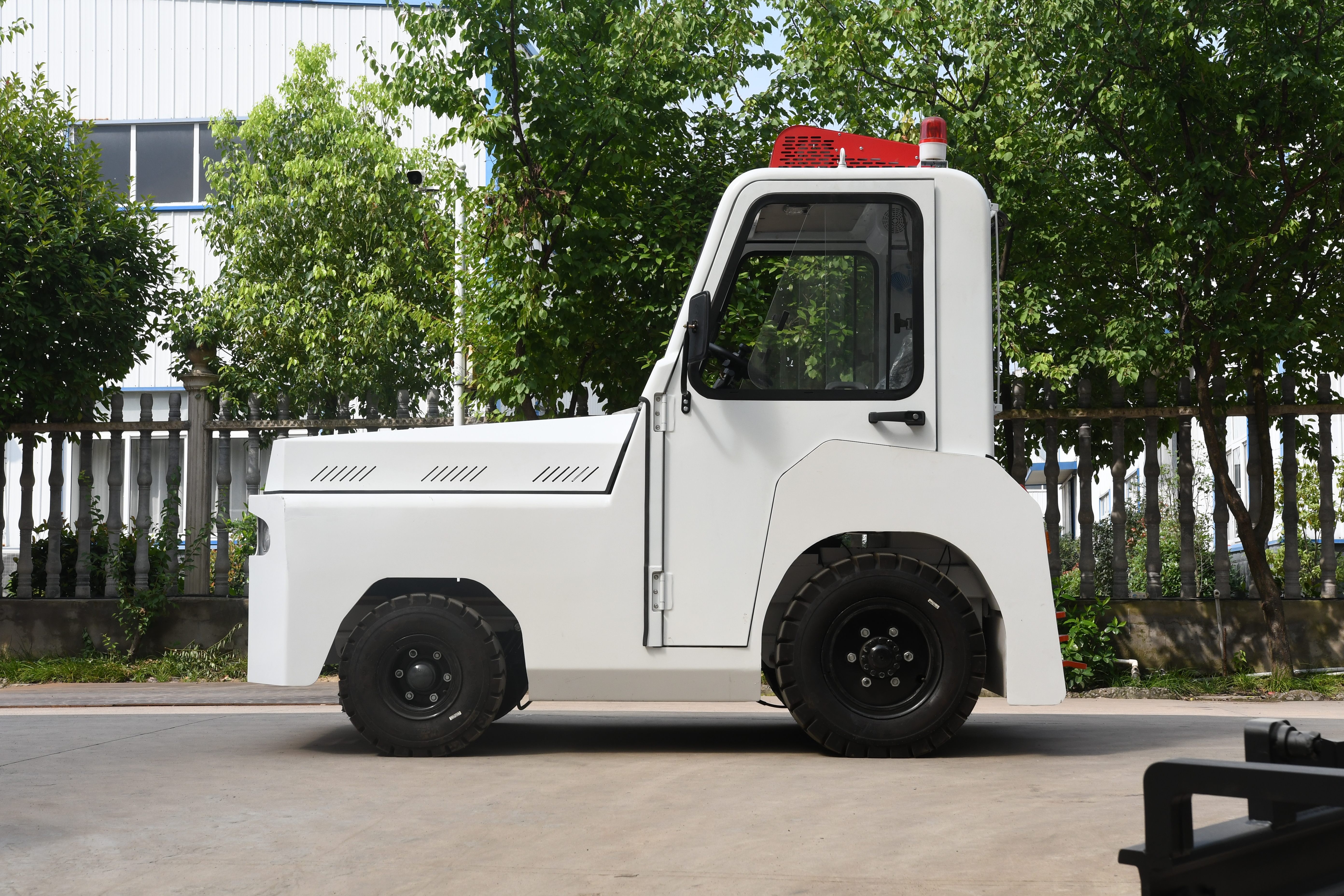

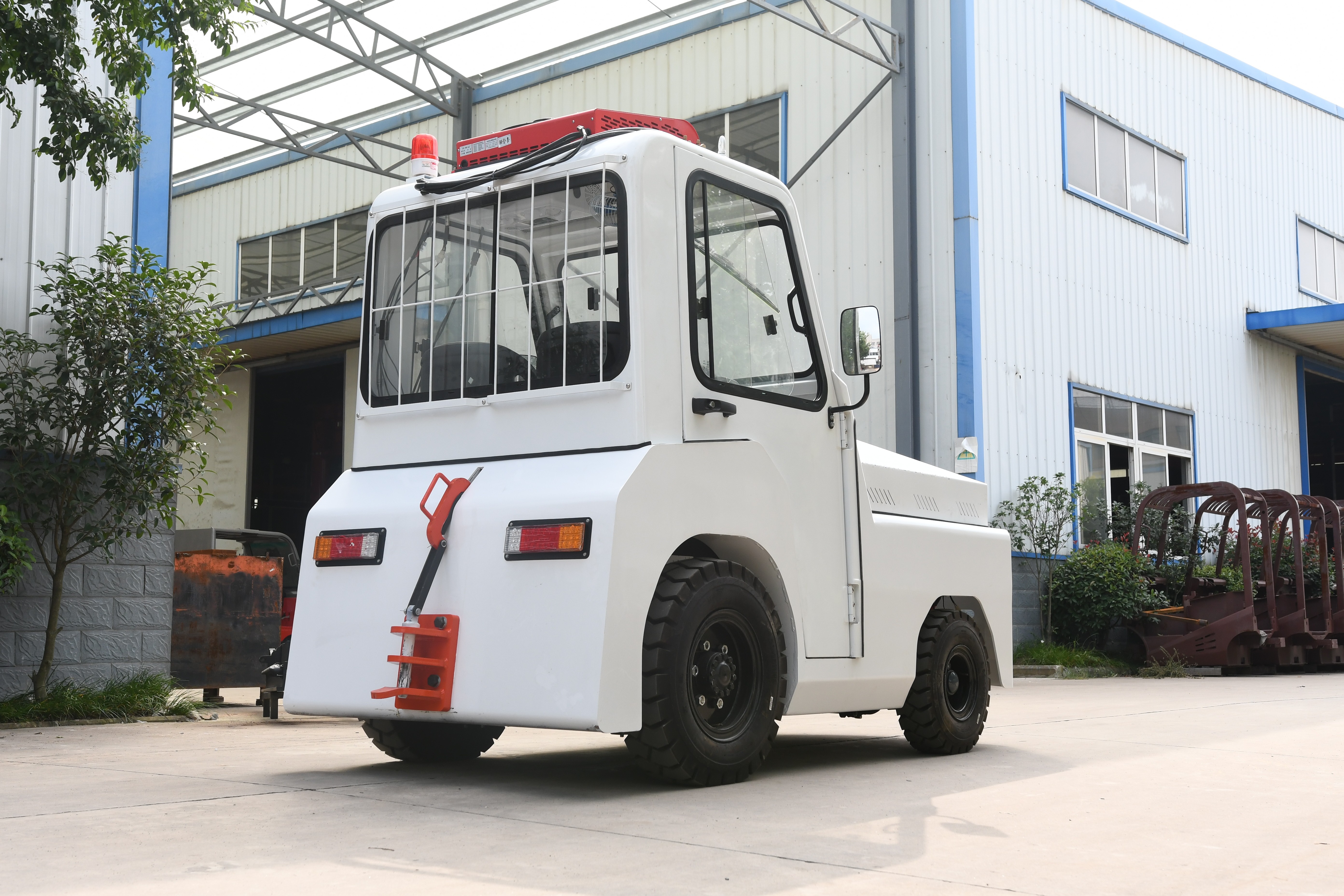

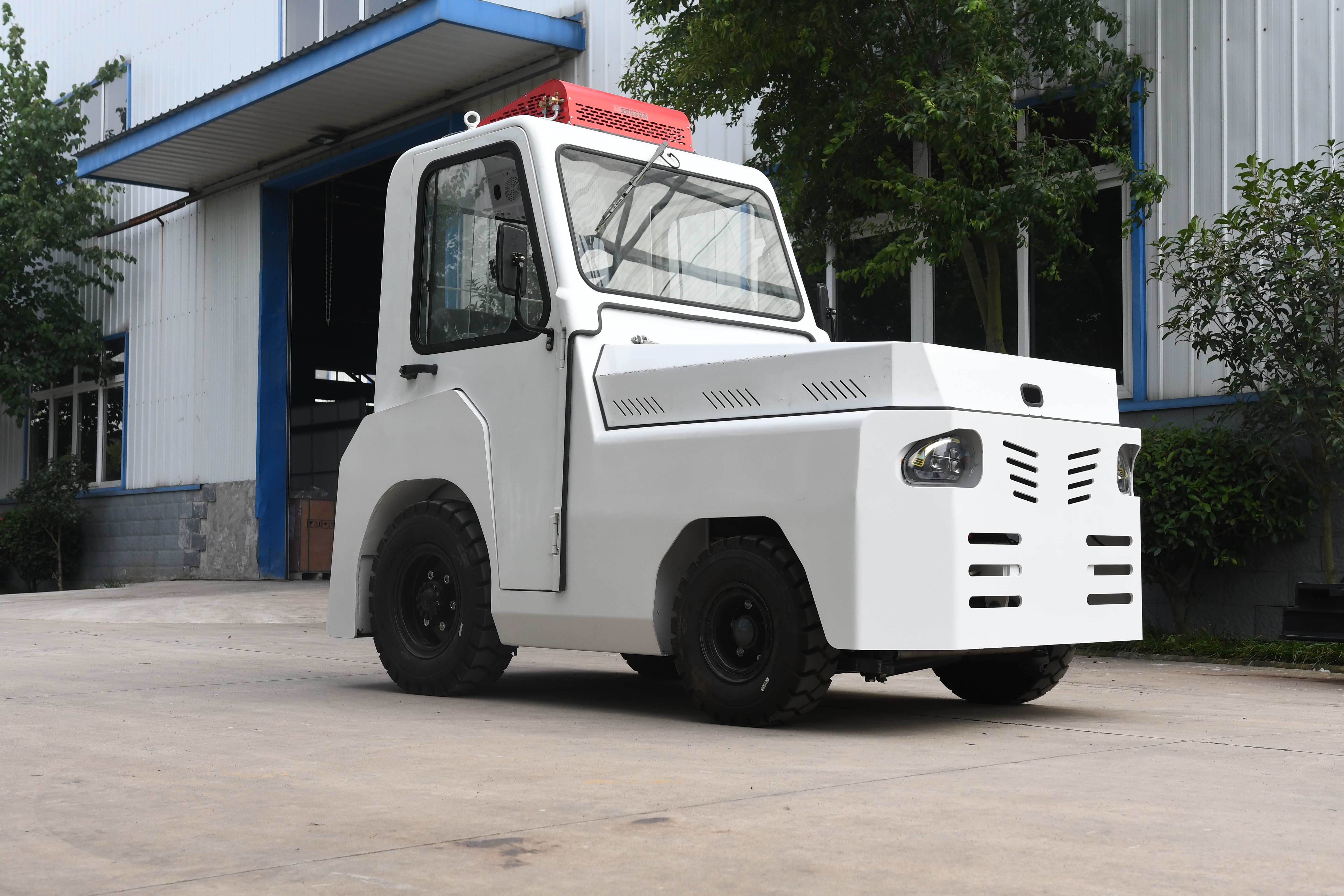

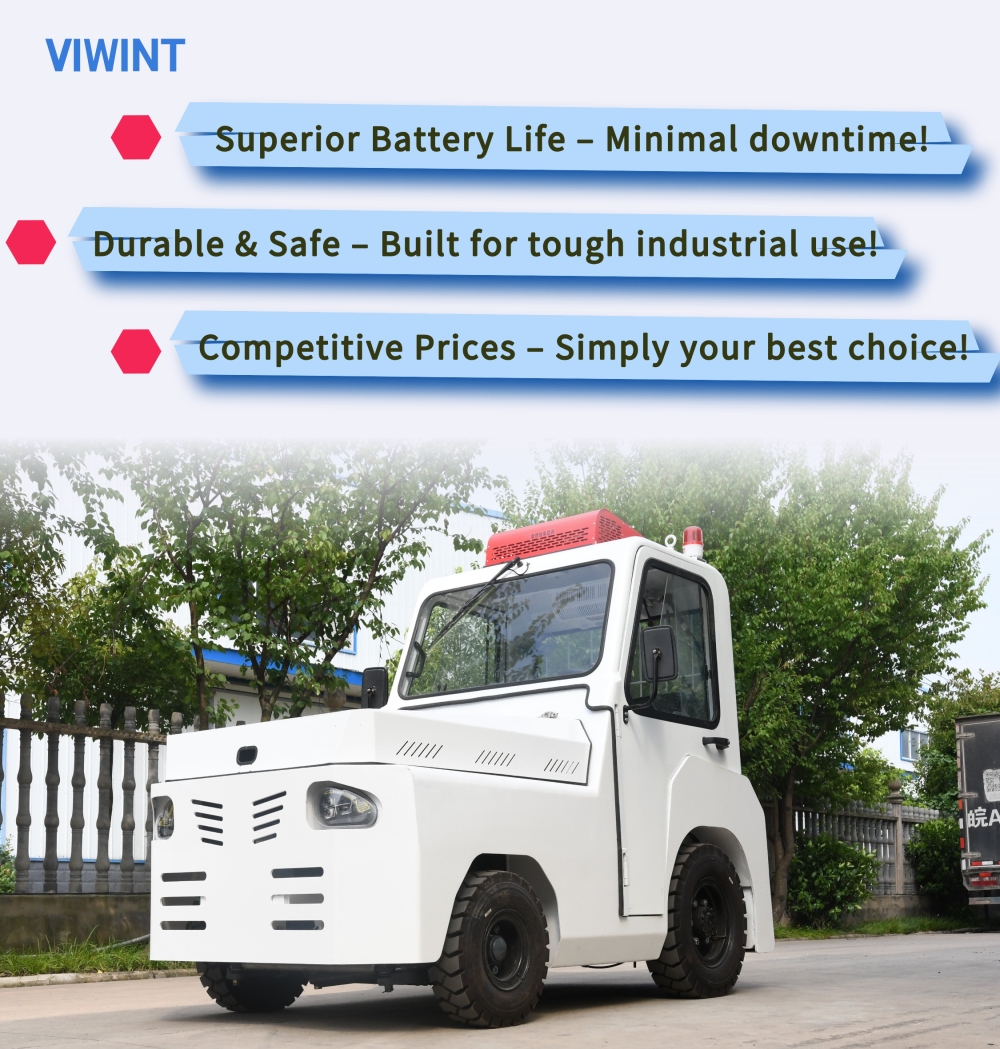

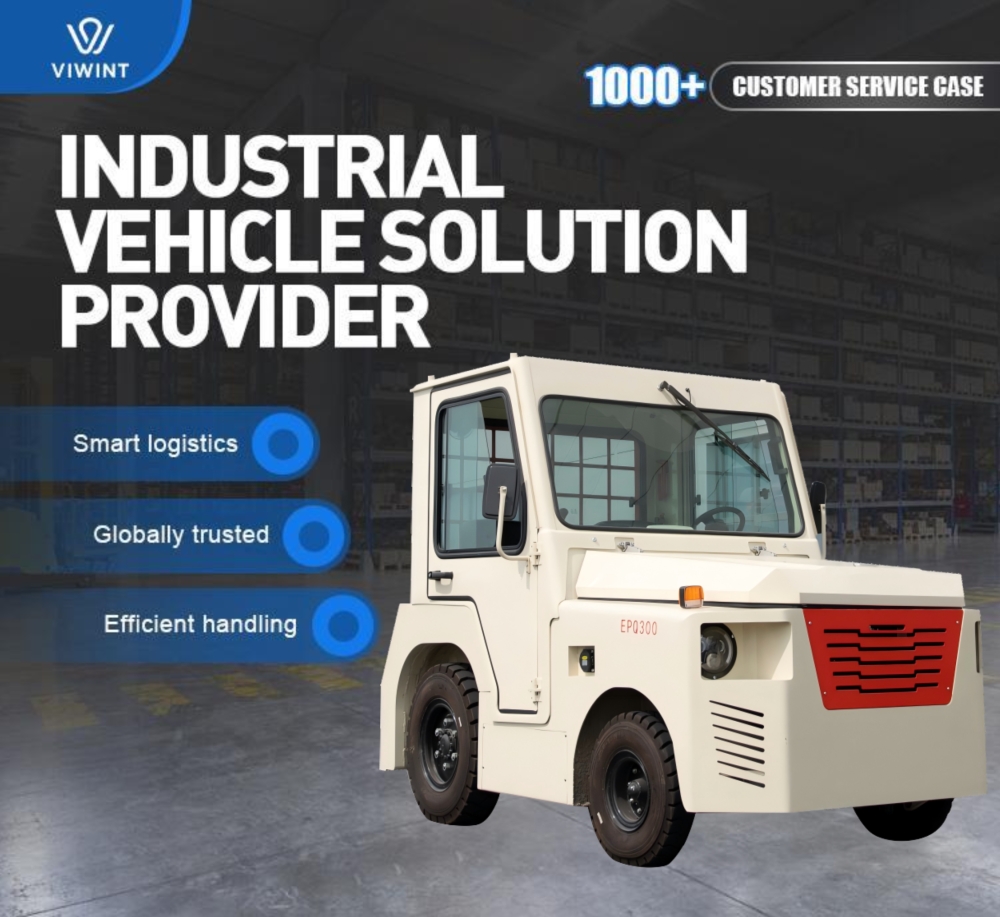

Airport Baggage Towing Tug Tractor Electric Luggage Tow Tractor EPQ300_Towing tractor_Products

Description
Inquiry

Product Description

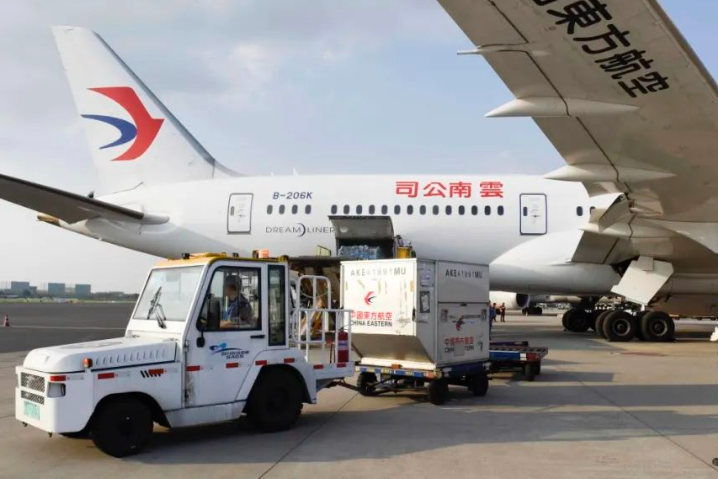

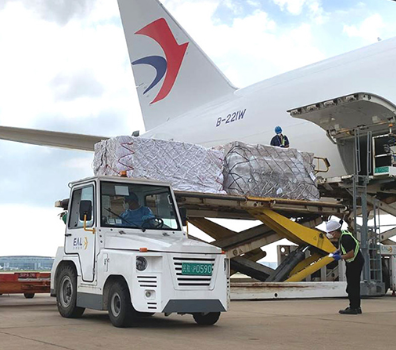

Low noise, pollution free, large towing capacity, widely suitable for airport, freight service spot, yard, wharf, warehouse and other industries;

The front and rear axles utilize a suspension system with torsion beam structure with shock absorbers, leaf spring and damping devices;

Special high-strength arch-design cab. Double rows seating layout,two doors design. Fans, parking air conditioner are optional.

Type				EPQ300
Power				Lithium iron phosphate battery
Performance	Max.hitch towing capacity		KN	28.8
	Rated hitch towing capacity			13.2
	Rated towing capacity	Single unit towing capacity	Kg	30000
	Max.drive speed	Movingforward(unladen/full-loaded)	Km/h	25
		Moving backward		10
	Min.turning radius Wa		mm	3200
	Max.gradability when unladen		%	30
	Max.brake distance	Without trailer	m	5.7
		Rated towing capacity		4.7
Appearance dimensions	Overall length (Tow pin included) l1		mm	3135
	Overall width b1			1440
	Overall height(With cab,siren light) h1			2185
	The front wheelbase b2			1220
	The rear wheelbase b3			1190
	Wheelbase Y			1600
	Tow pin hitch height up/down h3			310/400
	Min.ground clearance m2			165
Tyre	Tyre specifications	The frontwheel		6.50-10 PR
		The rearwheel		7.00-15 PR
Weight	Overallvehicle weight(with cab)		Kg	4030
Motor	Rated power		kW	23
Battery	Voltage/capacity		V/Ah	80V/600Ah
Charger	Voltage/current		V/A	80V/80A
Steering	Hydraulic power steering
Brake	Vacuum powerbrake system
	Drive brake			Drum brake therear),Disc brake(thefront)
	Parkingbrake			Mechanical rear wheel brake

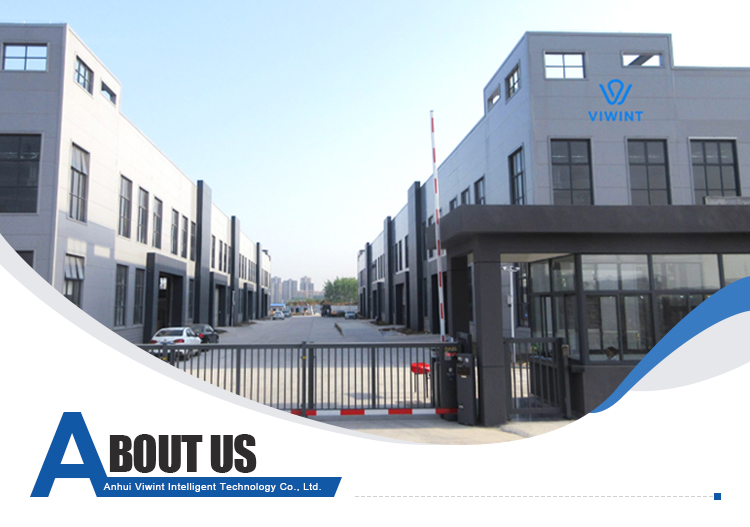

Anhui Viwint Intelligent Technology Co.,Ltd.,a scientific and technological innovationenterprise focusing on the R&D,manufacturing and service of industrial vehicles,andits core business covers the R&D and production of electric forklifts,diesel forklifts,AGV automatic guided vehicles and narrow aisle three-way electric forklifts.With 1000customer service cases and export experience covering the Americas,Europe andother global markets,the company aims to build a leading brand in the field of logisticsequipment.

FAQ

Q：What is the MOQ?
A： One set.

Q：Can I customize the equipment?

A：Yes, we offer customization service, including load capacity, lifting height, battery, color and others.

Q: Can I get spare parts or technical support after purchase?
A: Yes, we provide lifetime support and spare parts supply. We can ship parts globally and assist via video call.

Q：How long is the warranty time?
A： 12 months or 2000 hours whichever comes first.

Q：What is the payment terms?
A： T/T, 30% pre-payment in advance, and 70% balance before delivery.
