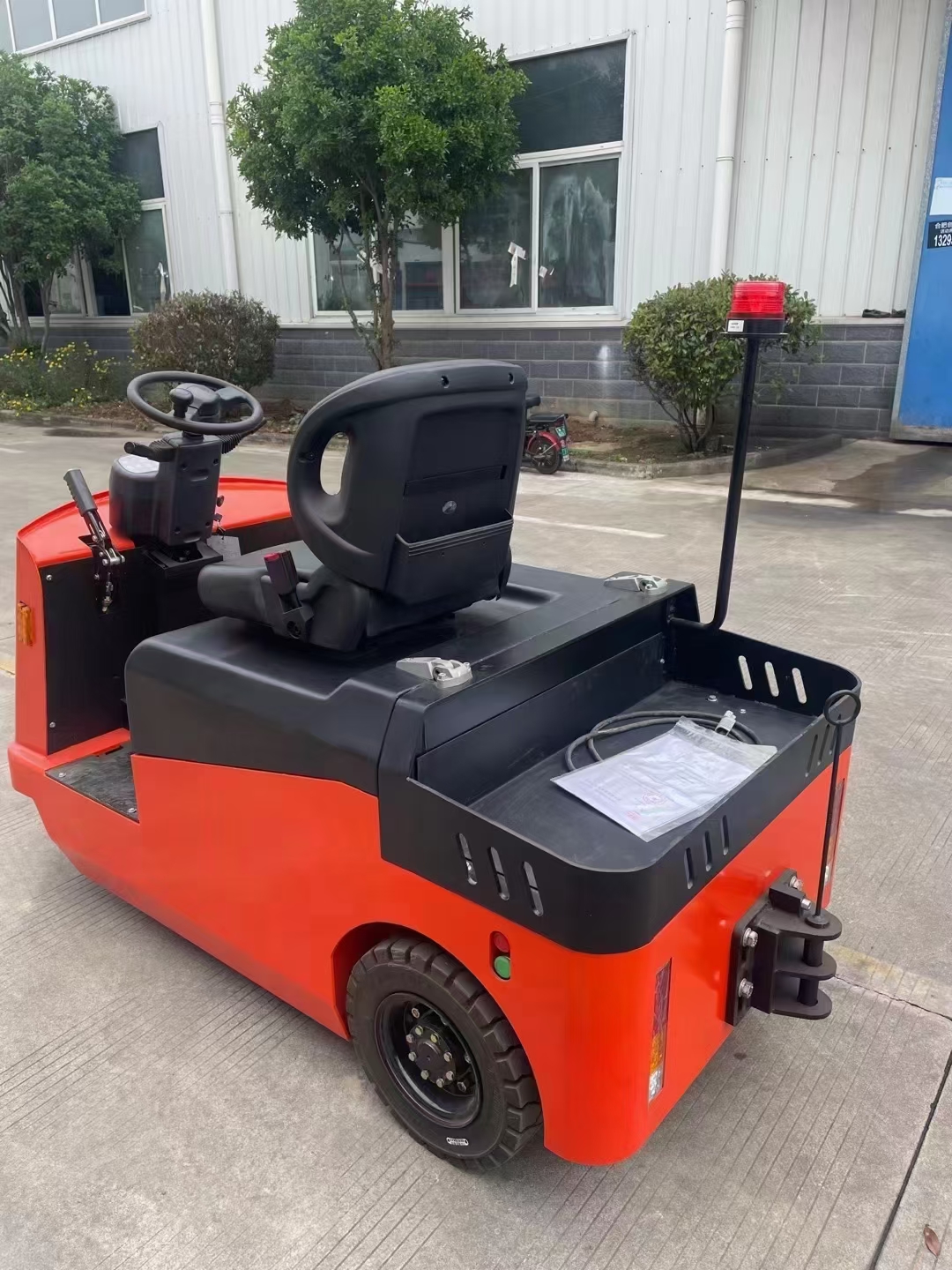

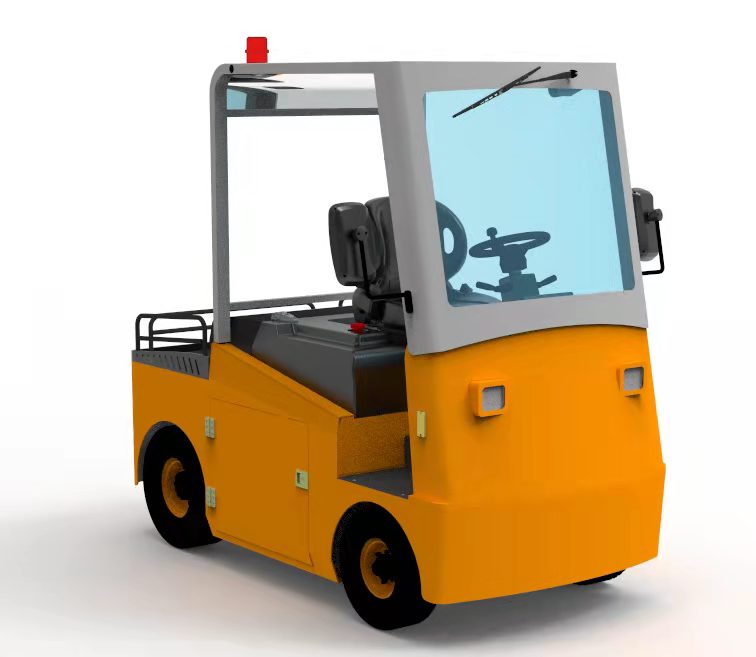

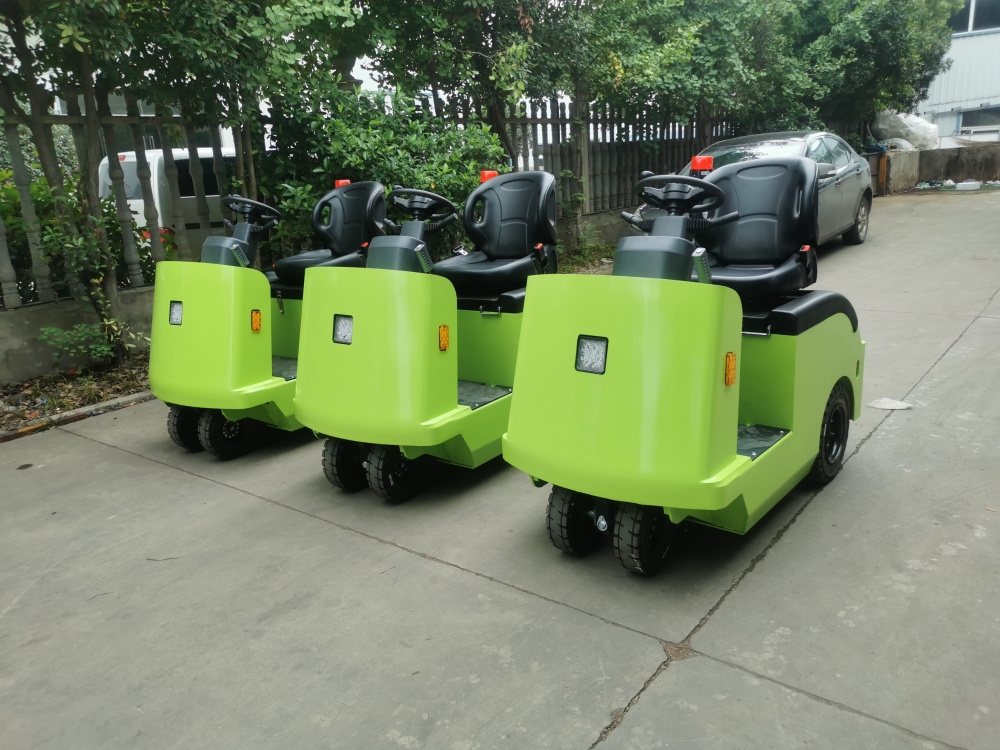

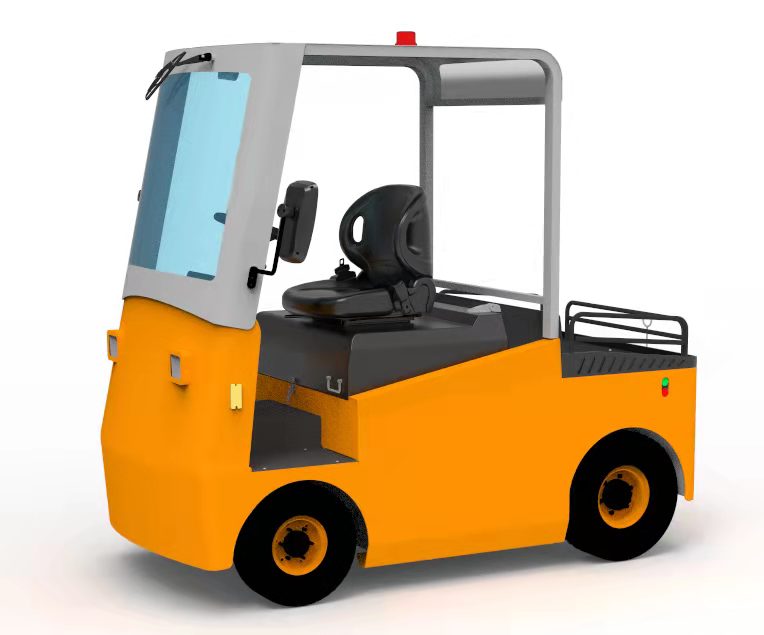

Towing tractor

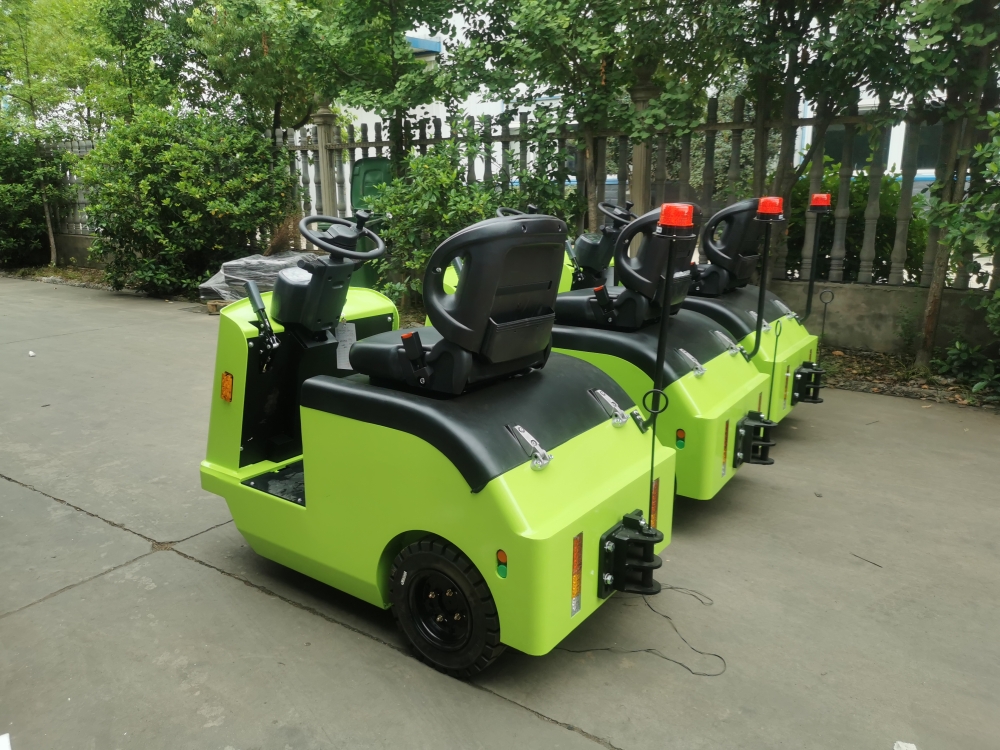

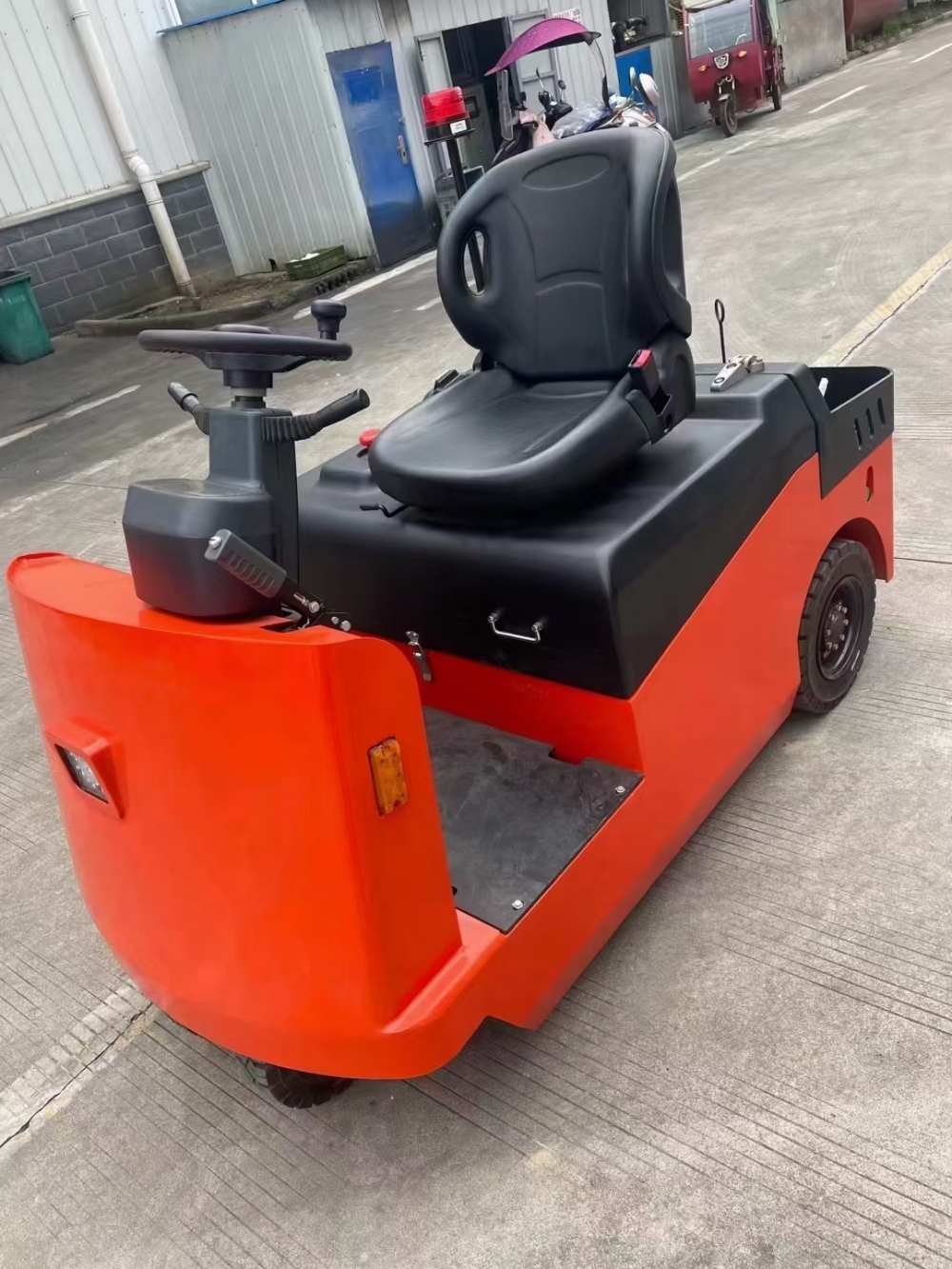

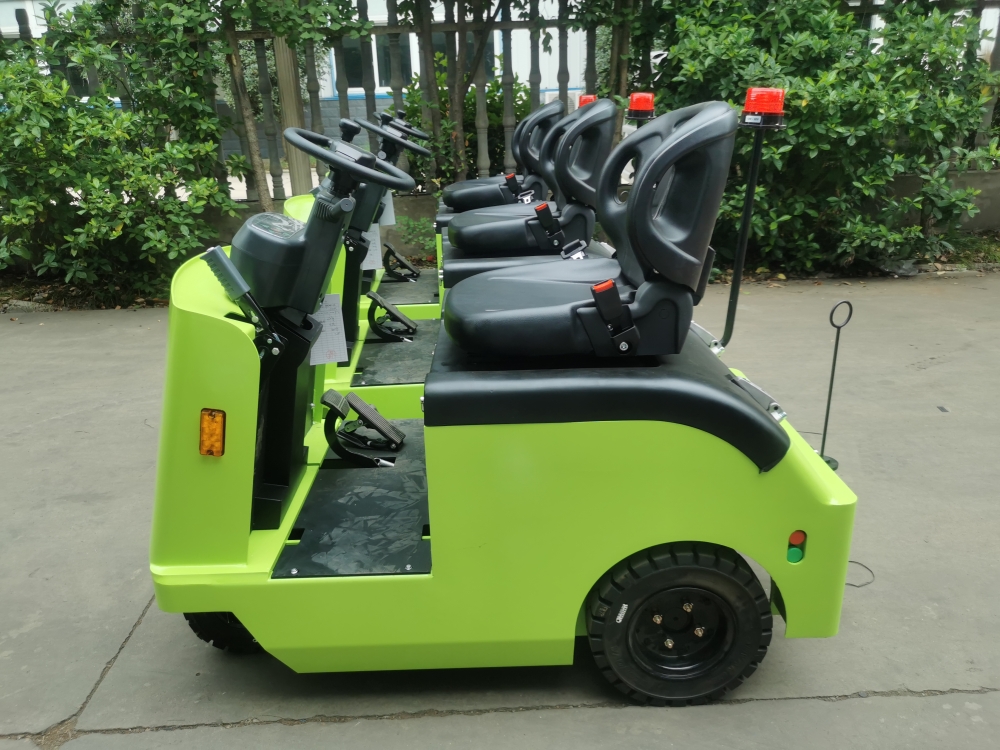

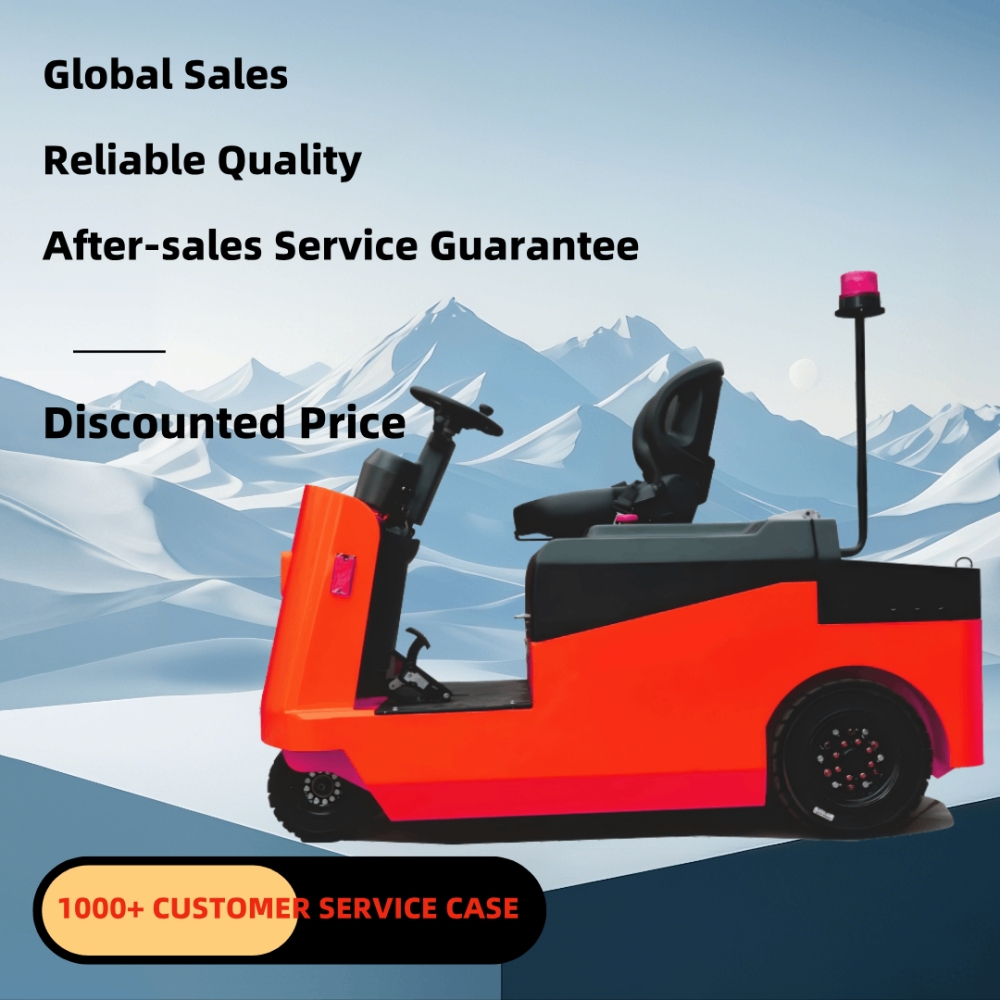

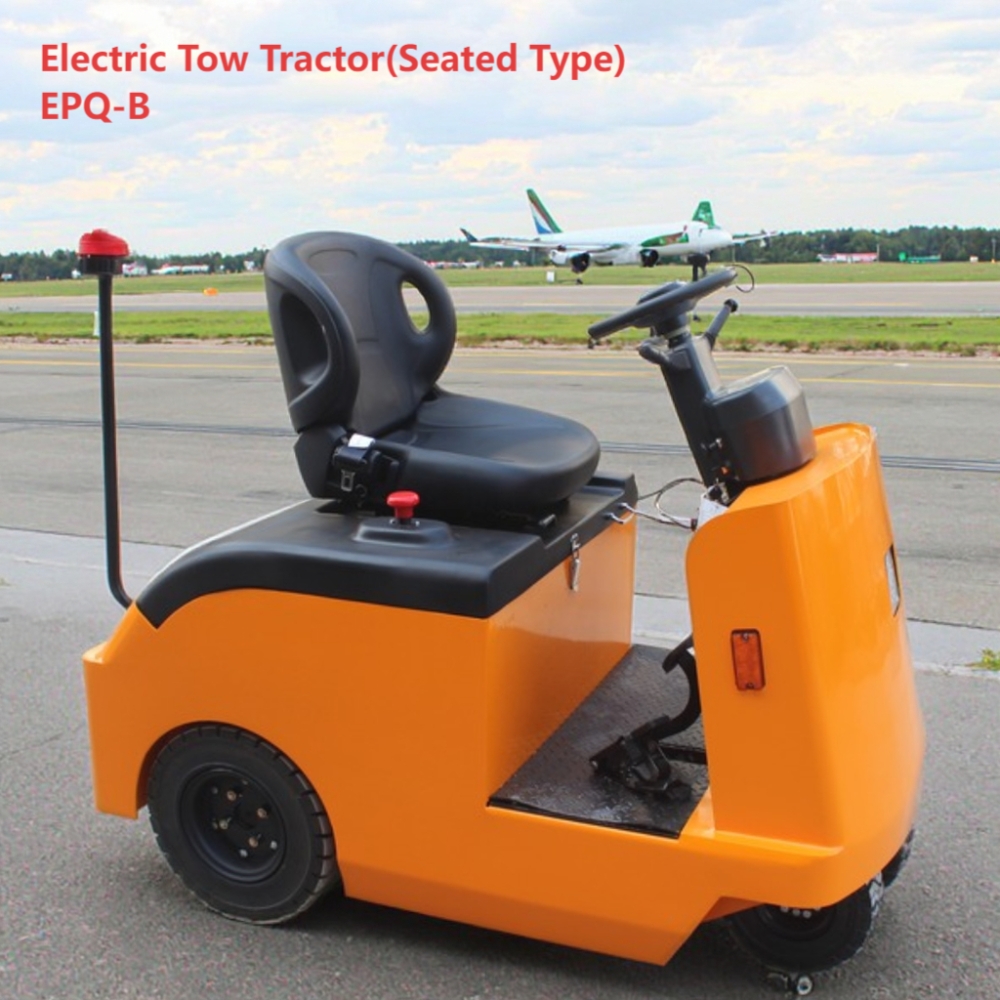

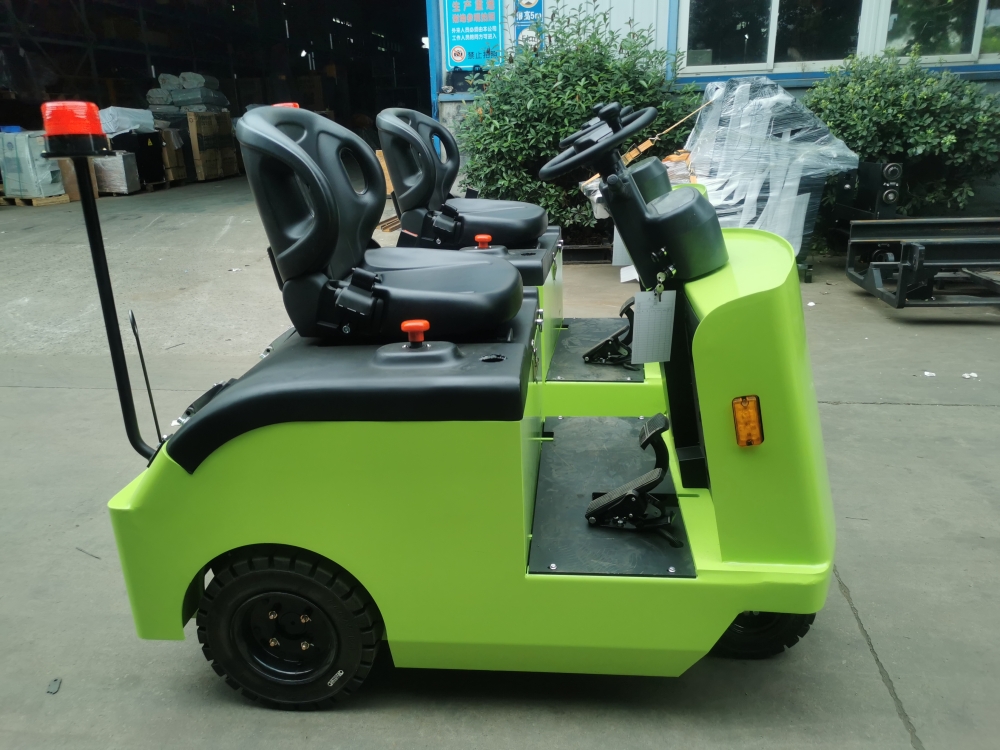

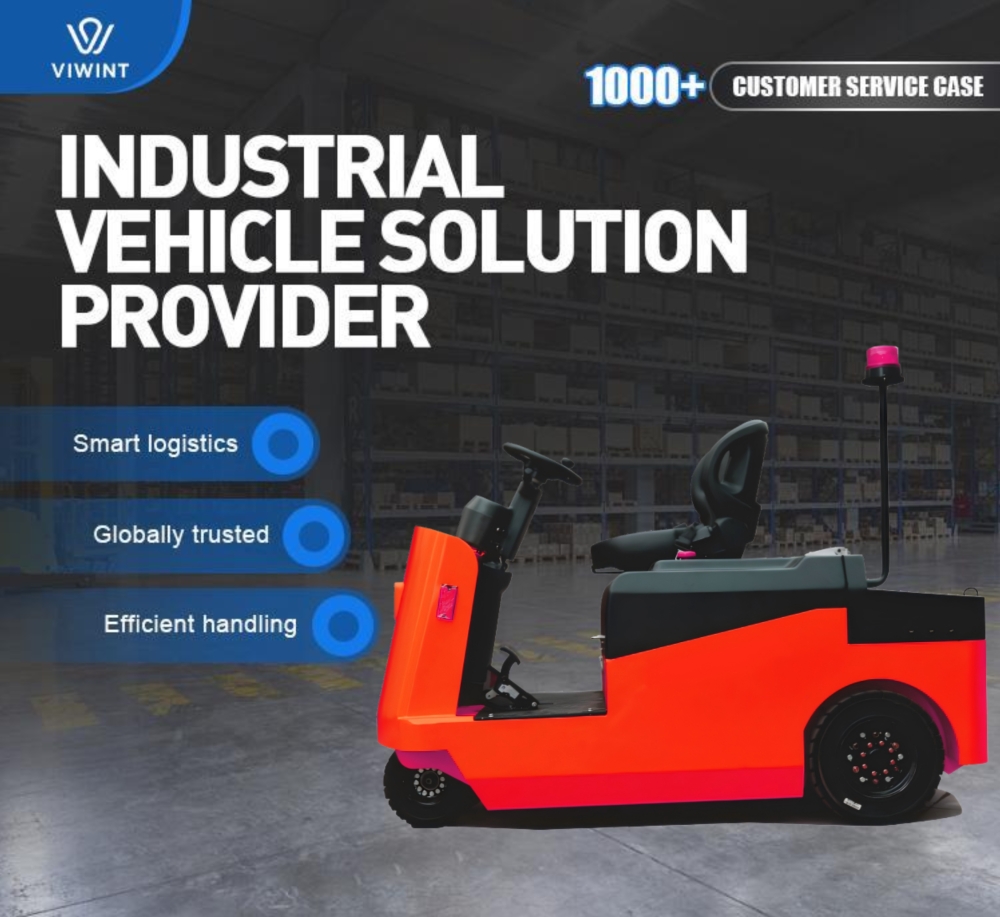

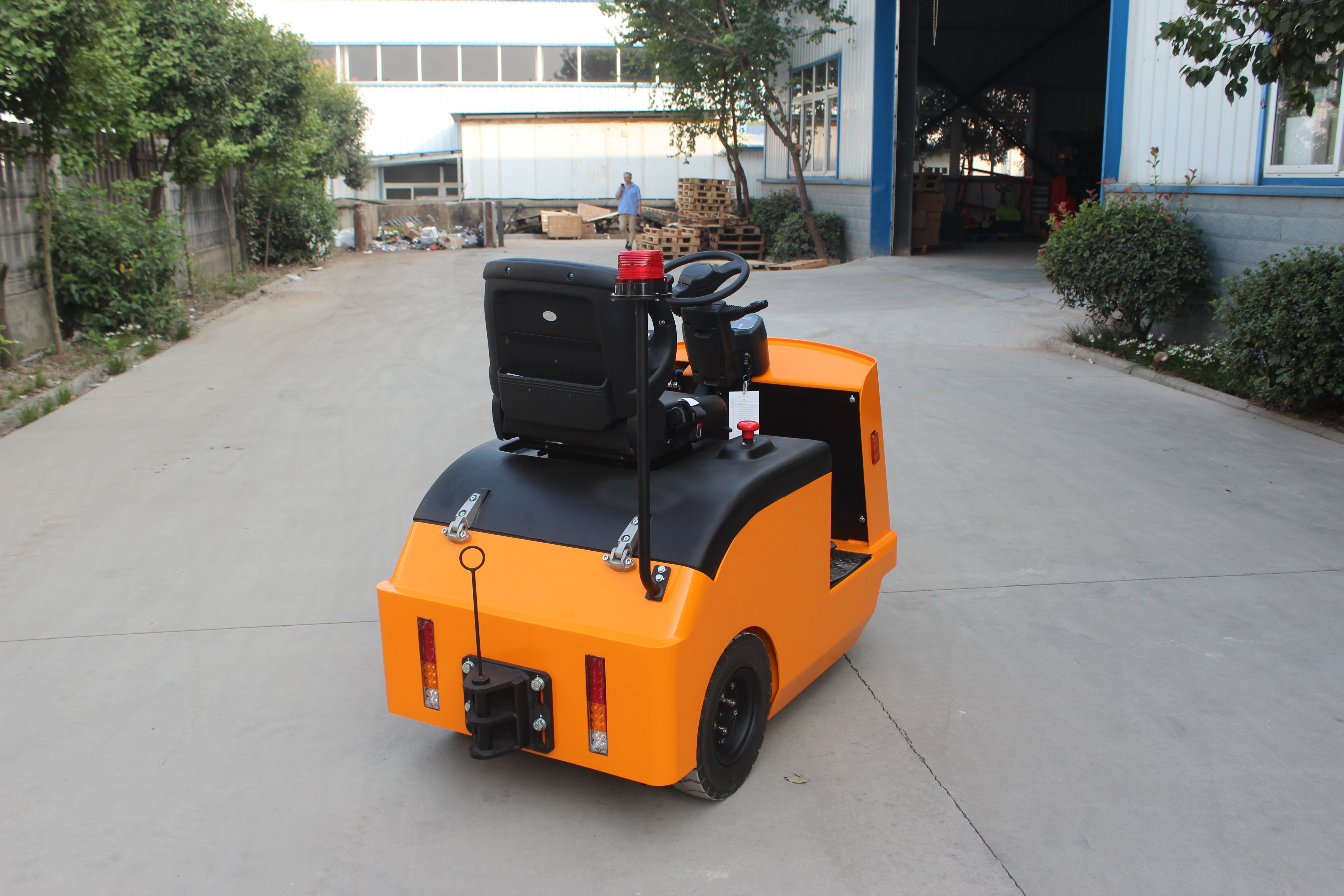

VIWINT Direct Sale Heavy Duty Baggage Mover 2-6ton Capacity Electric Tow Tractor With AC Motor

Customizable
  • Description
  • Inquiry

Product Description

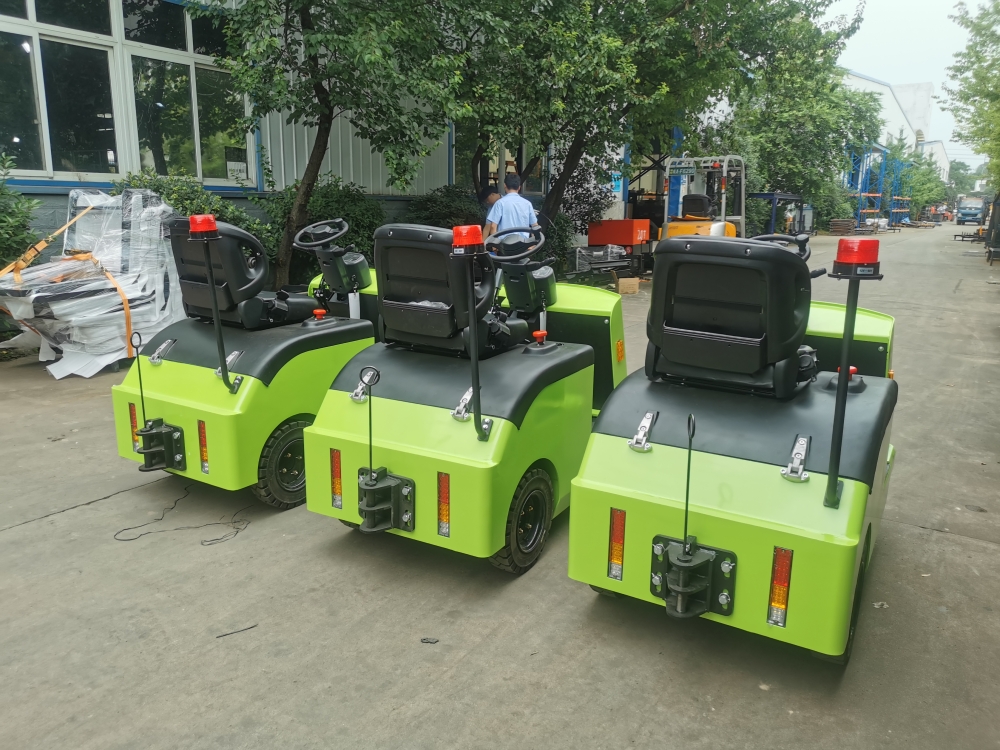

Equipped with adjustable towing pin, it meets various towing needs;

4-6t luggage compartment offers towing services for cargo loading or unloading from the aircraft;

Equipped with branded control system and multi-functional protection system, it offers higher level functional safety;

EPS steering energy reduces 20% with accurate operation, flexible steering, greatly improving the production ability; AC driving system, large torsion. Strong gradability and strong  power ensures steady driving even in uneven road and slope;  Large diameter solid tyre, suitable for various road conditions;

Emergency power off switch, as a standard configuration, is pressed to cut off all power. The vehicle immediately stops by power cutting off to ensure secure protection;

Battery gauge configuration reminds user to charge promptly for battery protection;

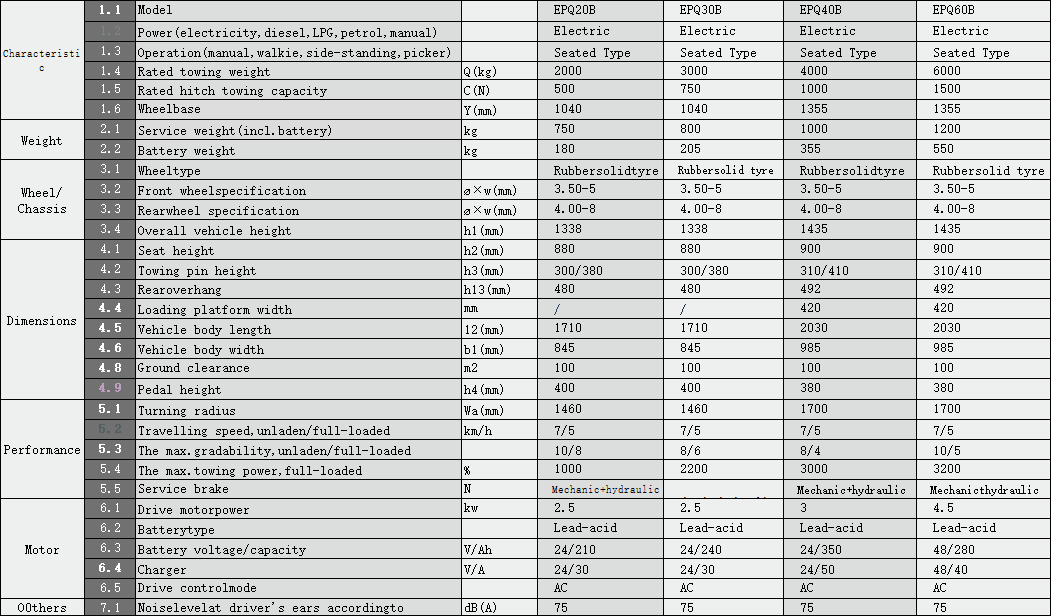

Characteristic
1.1
Model
EPQ20B
EPQ30B
EPQ40B
EPQ60B
1.2
Power(electricity,diesel,LPG,petrol,manual)
Electric
Electric
Electric
Electric
1.3
Operation(manual,walkie,side-standing,picker)
Seated Type
Seated Type
Seated Type
Seated Type
1.4
Rated towing weight
Q(kg)
2000
3000
4000
6000
1.5
Rated hitch towing capacity
C(N)
500
750
1000
1500
1.6
Wheelbase
Y(mm)
1040
1040
1355
1355


Weight
2.1
Service weight(incl.battery)
kg
750
800
1000
1200
2.2
Battery weight
kg
180
205
355
550



Wheel/
Chassis
3.1
Wheeltype
Rubbersolidtyre
Rubbersolid tyre
Rubbersolidtyre
Rubbersolid tyre
3.2
Front wheelspecification
ø×w(mm)
3.50-5
3.50-5
3.50-5
3.50-5
3.3
Rearwheel specification
ø×w(mm)
4.00-8
4.00-8
4.00-8
4.00-8
3.4
Overall vehicle height
h1(mm)
1338
1338
1435
1435








Dimensions
4.1
Seat height
h2(mm)
880
880
900
900
4.2
Towing pin height
h3(mm)
300/380
300/380
310/410
310/410
4.3
Rearoverhang
h13(mm)
480
480
492
492
4.4
Loading platform width
mm
/
/
420
420
4.5
Vehicle body length
12(mm)
1710
1710
2030
2030
4.6
Vehicle body width
b1(mm)
845
845
985
985
4.8
Ground clearance
m2
100
100
100
100
4.9
Pedal height
h4(mm)
400
400
380
380






Performance
5.1
Turning radius
Wa(mm)
1460
1460
1700
1700
5.2
Travelling speed,unladen/full-loaded
km/h
7/5
7/5
7/5
7/5
5.3
The max.gradability,unladen/full-loaded
10/8
8/6
8/4
10/5
5.4
The max.towing power,full-loaded
%
1000
2200
3000
3200
5.5
Service brake
N
Mechanic+hydraulic
Mechanicthydraulic
Mechanic+hydraulic
Mechanicthydraulic





Motor
6.1
Drive motorpower
kw
2.5
2.5
3
4.5
6.2
Batterytype
Lead-acid
Lead-acid
Lead-acid
Lead-acid
6.3
Battery voltage/capacity
V/Ah
24/210
24/240
24/350
48/280
6.4
Charger
V/A
24/30
24/30
24/50
48/40
6.5
Drive controlmode
AC
AC
AC
AC
Others
7.1
Noiselevelat driver's ears accordingto En12053
dB(A)
75
75
75
75

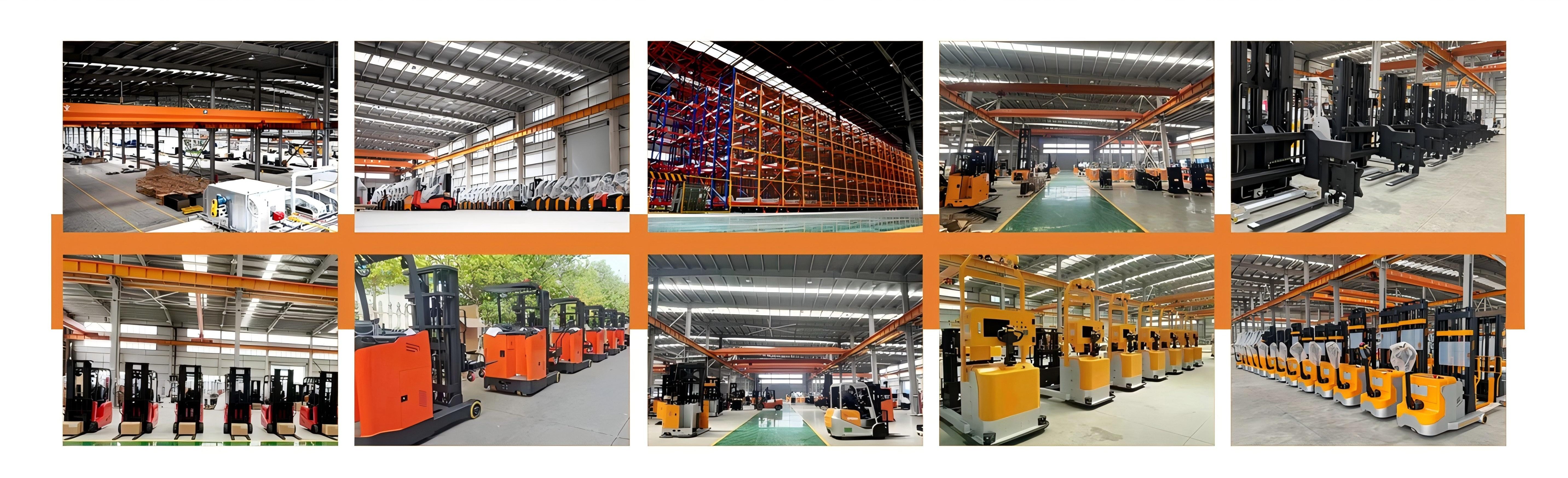

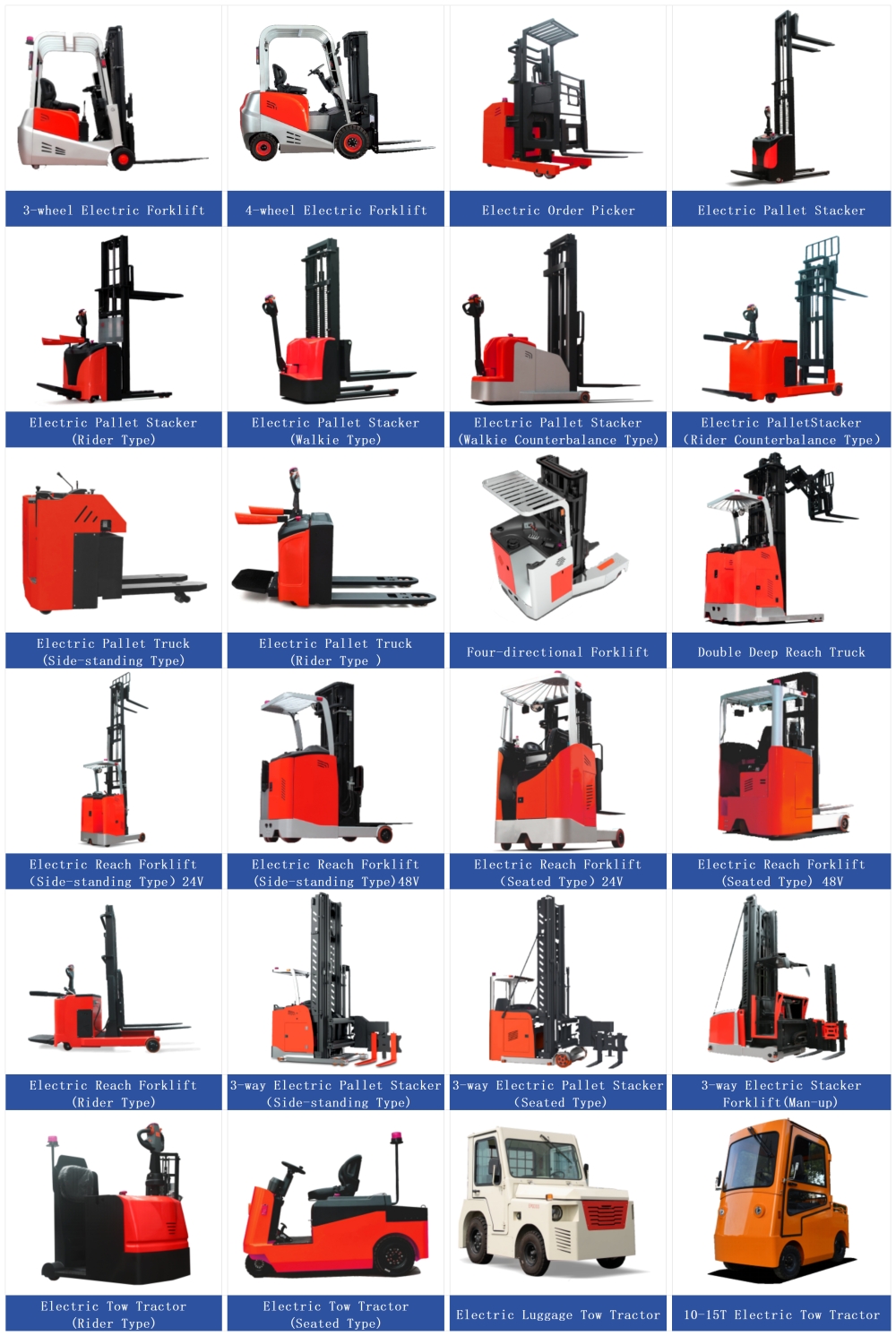

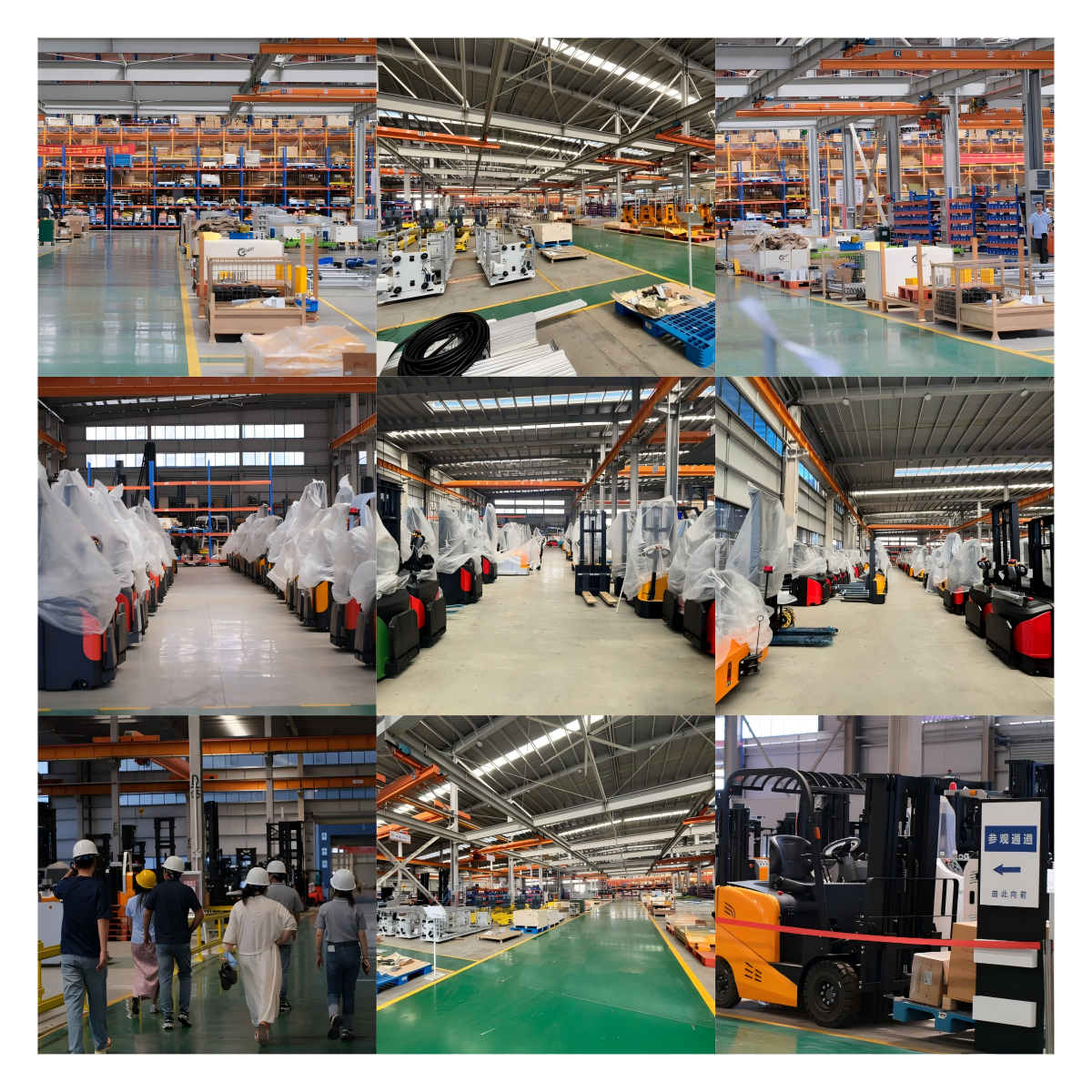

Anhui Viwint Intelligent Technology Co.,Ltd.,a scientific and technological innovationenterprise focusing on the R&D,manufacturing and service of industrial vehicles,andits core business covers the R&D and production of electric forklifts,diesel forklifts,AGV automatic guided vehicles and narrow aisle three-way electric forklifts.With 1000customer service cases and export experience covering the Americas,Europe andother global markets,the company aims to build a leading brand in the field of logisticsequipment.

FAQ

Q:What is the MOQ?
A: One set.

Q:Can I customize the equipment?

A:Yes, we offer customization service, including load capacity, lifting height, battery, color and others.

Q: Can I get spare parts or technical support after purchase?
A: Yes, we provide lifetime support and spare parts supply. We can ship parts globally and assist via video call.

Q:How long is the warranty time?
A: 12 months or 2000 hours whichever comes first.

Q:What is the payment terms?
A: T/T, 30% pre-payment in advance, and 70% balance before delivery.
