The width of steps increases by 55%,making it more secure to geton and off the forklift.

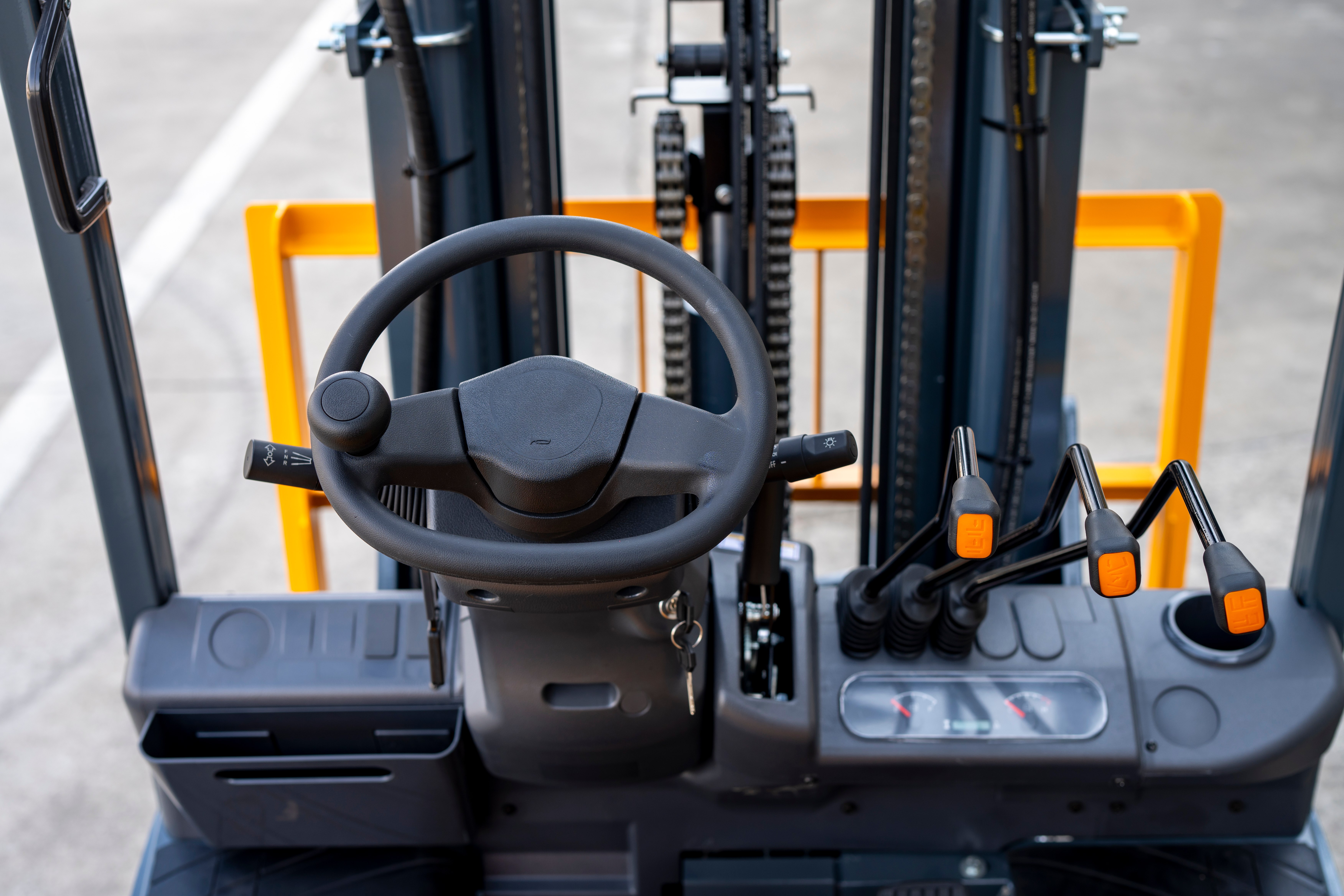

The external diameter of the steering wheel reduces to 300 mm,which reduces operator's fatigue and improves the operatingcomfortability.
The integrated front leg,headguard unit and rear leg improve thestrength of the headguard.
The engine hood can be opened by 82°maximumly,which increasesthe view space and operation efficiency enormously.
The tilting cylinder is placed under the floor,increasing the floorarea by 45%.and making it easier to get on and off the forklift.

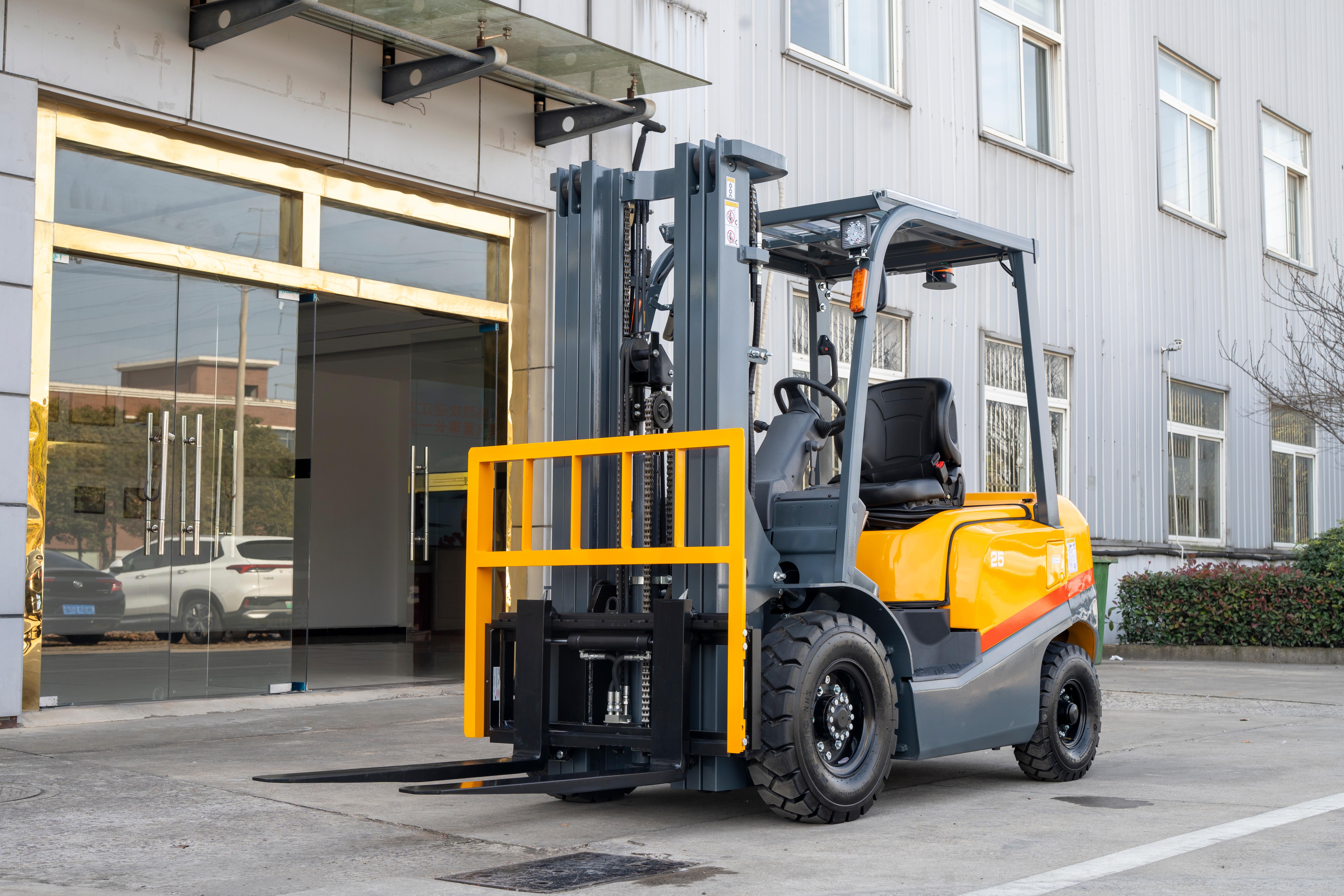

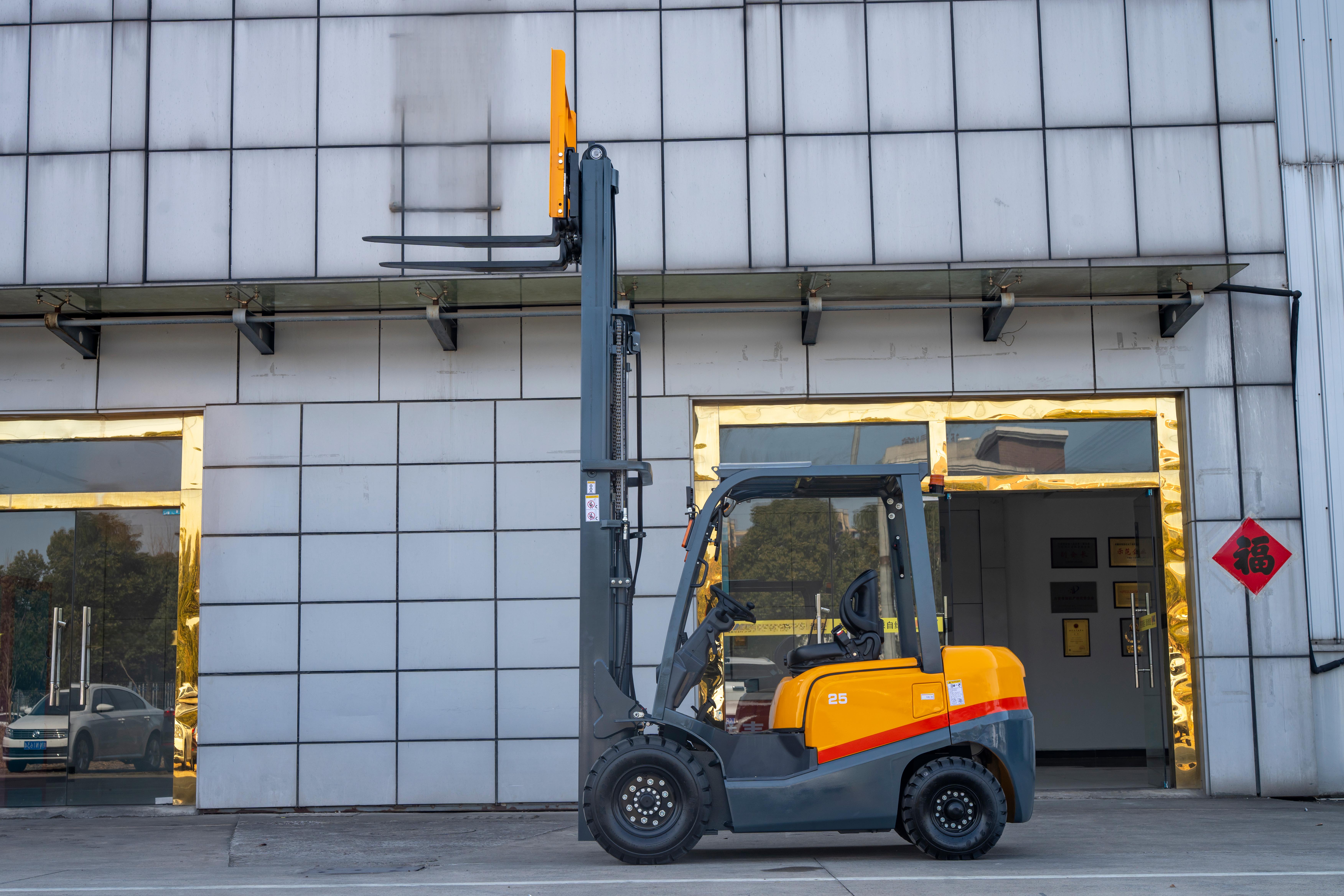

Thanks to the standard wide-view and 3-stage free iftingmast,the rear chain enhances the operation vision by 12%.

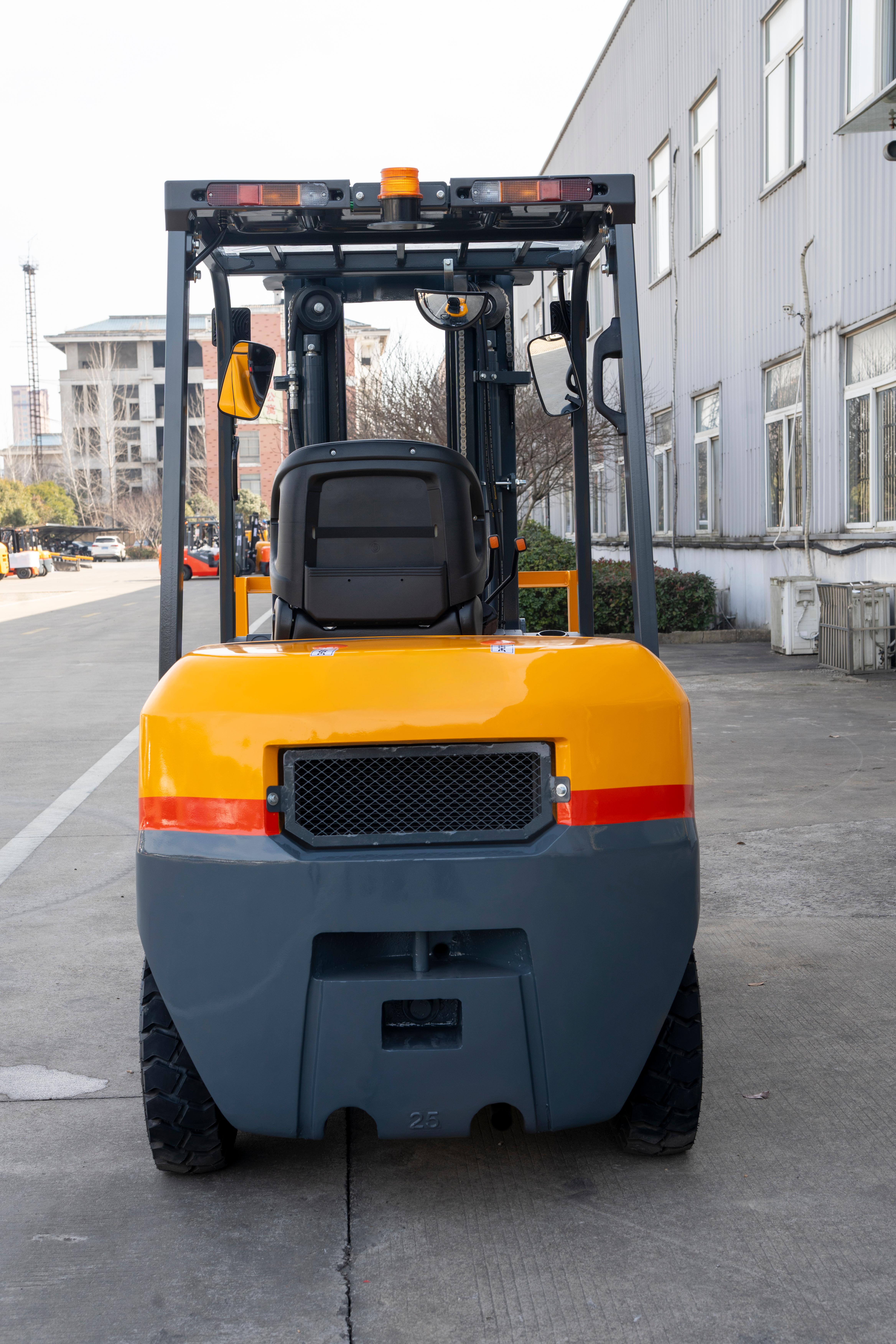

The forklift is equipped with standard astern handrail(withhorn button),as well as long-life high brightness LED lights.
Manufacturer | | | |
Model | | | CPCD20 | CPCD25 | CPCD30 | CPCD35 |
Rated capacity | Q | kg | 2000 | 2500 | 3000 | 3500 |
Load center distance | C | mm | 500 | 500 | 500 | 500 |
Power type | | | Diesel | Diesel | Diesel | Diesel |
Driving type | | | Seated | Seated | Seated | Seated |
Wheel base | L1 | mm | 1600 | 1600 | 1700 | 1700 |
Tyres |
Tyre type | | | Pneumatic | Pneumatic | Pneumatic | Pneumatic |
Wheel number(front/rear) | | | 2/2 | 2/2 | 2/2 | 2/2 |
Front tread | W3 | mm | 970 | 970 | 1000 | 1000 |
Rear tread | W2 | mm | 970 | 970 | 970 | 970 |

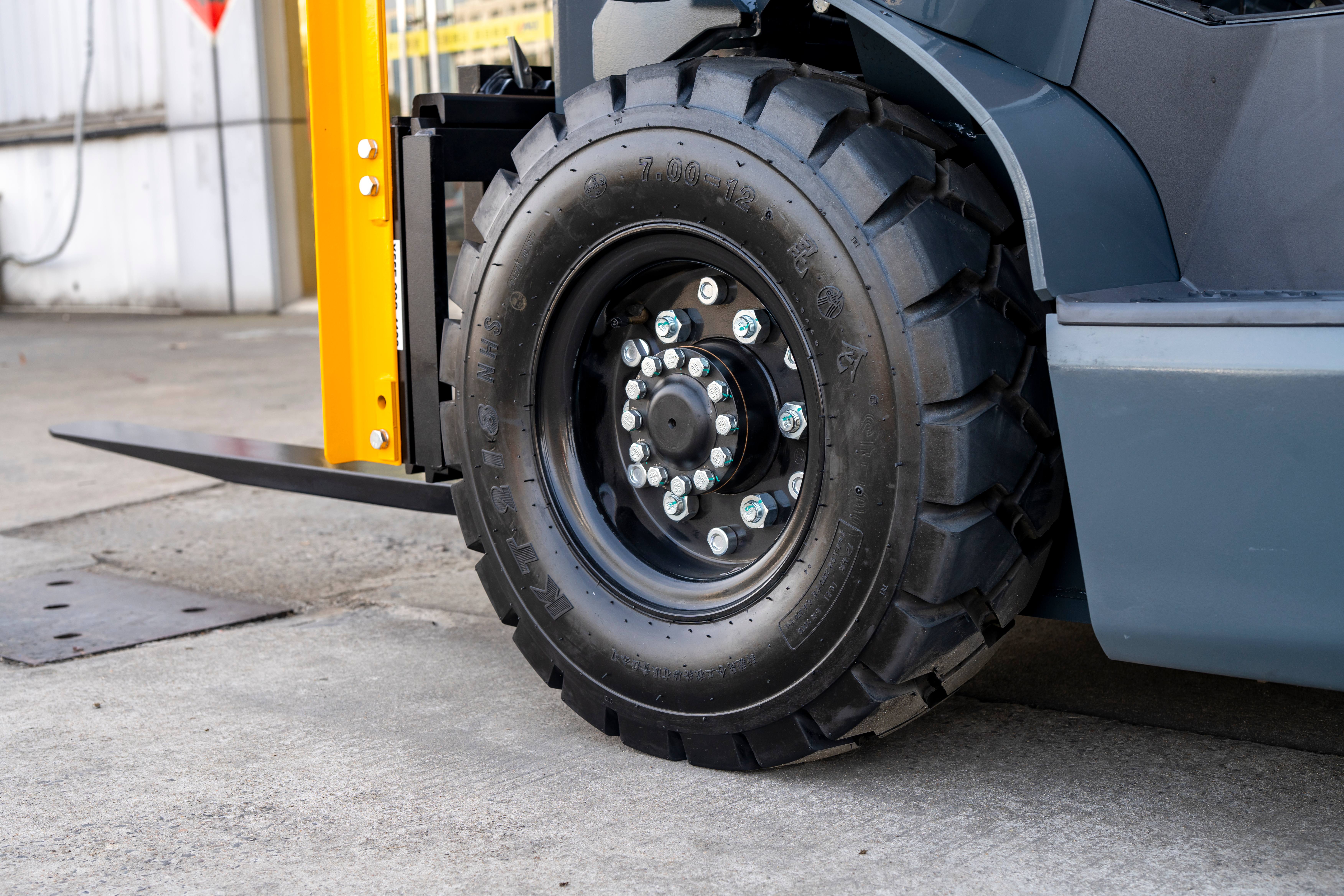

Tyre(front) | | | 7.00-12-12PR | 7.00-12-12PR | 28×9-15-12PR | 28×9-15-12PR |
Tyre(rear) | | | 6.00-9-10PR | 6.00-9-10PR | 6.50-10-10PR | 6.50-10-10PR |
Size |
Front overhang | L2 | mm | 469 | 469 | 487 | 489 |
Mast tilting angle,front/rear | α/β | o | 6/12 | 6/12 | 6/12 | 6/12 |
Height with mast retraction | H1 | mm | 2000 | 2000 | 2065 | 2180 |
Free lifting height | H3 | mm | 150 | 150 | 150 | 150 |
Max.lifting height | H | mm | 3000 | 3000 | 3000 | 3000 |
Max.height after lifting | H2 | mm | 4030 | 4030 | 4242 | 4237 |
Overallguard height | H4 | mm | 2070 | 2070 | 2090 | 2090 |
Fork size:length×width×thickness | LxWxT | mm | 1070×100×40 | 1070×100×40 | 1070×122x45 | 1070×122x50 |
Fork carriage,DIN standard | | | 2A | 2A | 3A | 3A |
Overall length(fork excluded) | L' | mm | 2505 | 2505 | 2720 | 2750 |
Overall width | W1 | mm | 1150 | 1150 | 1220 | 1220 |
Turning radius | r | mm | 2170 | 2170 | 2460 | 2500 |
Ground clearance of mast | H5 | mm | 110 | 110 | 120 | 120 |
Ground clearance of wheel base center(loaded) | H6 | mm | 150 | 150 | 160 | 160 |
Right angle stacking aisle width
(pallet 1000×1000mm,clearance 200mm) | Ast | mm | 3910 | 3980 | 4260 | 4300 |
Right angle stacking aisle width
(pallet 1200×1200mm,clearance 200mm) | Ast | mm | 4110 | 4180 | 4460 | 4500 |
Lateral fork adjustment
Max./Min. | W5 | mm | 1024/200 | 1024/200 | 1060/250 | 1060/250 |
Performance |
Travelling speed (loaded/unloaded) | | km/h | 17/19 | 17/19 | 18/19 | 18/19 |
Lifting speed (loaded/unloaded) | | mm/s | 530/550 | 530/550 | 470/520 | 370/400 |
Lowering speed | | mm/s | 450 | 450 | 450 | 350 |
Gradeability(loaded) | | % | 27 | 27 | 22 | 20 |
Max.traction force(loaded) | | KN | 19 | 19 | 18 | 19 |
Acceleration time(10m)(loaded/unloaded) | | S | | | 6/5 | 7/6 |
Weight |
Total weight | | Kg | 3270 | 3270 | 4300 | 4550 |
Axle load(unloaded),front/rear | | Kg | 1470/1800 | 1470/1800 | 1600/2700 | 1710/2840 |
Axle load(loaded),front/rear | | Kg | 4655/615 | 4655/615 | 6385/915 | 7130/920 |
Combustion -engine |

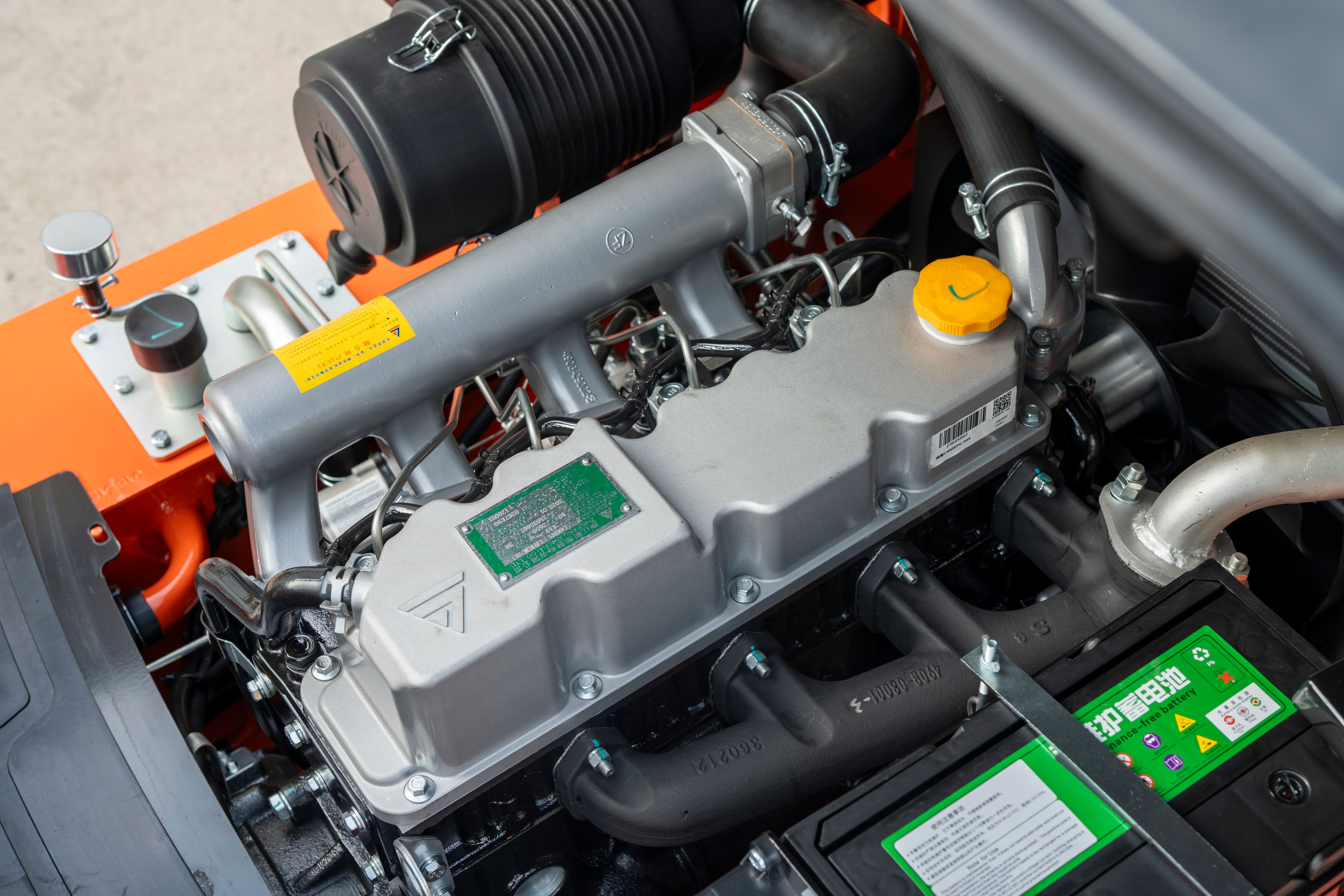

Engine manufacturer/Model | | | XINCHAI C490BPG | XINCHAI C490BPG | XINCHAI C490BPG | XINCHAI A495BPG |
Rated power/Speed | | Kw/rpm | 40/2650 | 40/2650 | 40/2650 | 42/2500 |
Max.torque/Speed | | Nm/rpm | 160/1800-2000 | 160/1800-2000 | 160/1800-2000 | 174/1800-2000 |
Cylinder number-bore×stroke | | | 4-90×105 | 4-90×105 | 4-90×105 | 4-95×105 |
Engine displacement | | L | 2.67 | 2.67 | 2.67 | 2.977 |
Emission | | | Stage ll | Stage ll | Stage ll | Stage Il |
Transmission gears(front/rear) | | | 1/1 Power Shift | 1/1 Power Shift | 1/1 Power Shift | 1/1 Power Shift |
Fuel tank capacity | | L | 60 | 60 | 60 | 60 |
Additional data |
Service brake/parking brake | | | Hydraulic/Mechanical | Hydraulic/Mechanical | Hydraulic/Mechanical | Hydraulic/Mechanical |
Hydraulic system working pressure | | Mpa | 17.5 | 17.5 | 17.5 | 17.5 |
FAQ
Q：What is the MOQ?
A： One set.
Q：Can I customize the equipment?
A：Yes, we offer customization service, including load capacity, lifting height, battery, color and others.
Q: Can I get spare parts or technical support after purchase?
A: Yes, we provide lifetime support and spare parts supply. We can ship parts globally and assist via video call.
Q：How long is the warranty time?
A： 12 months or 2000 hours whichever comes first.
Q：What is the payment terms?
A： T/T, 30% pre-payment in advance, and 70% balance before delivery.
