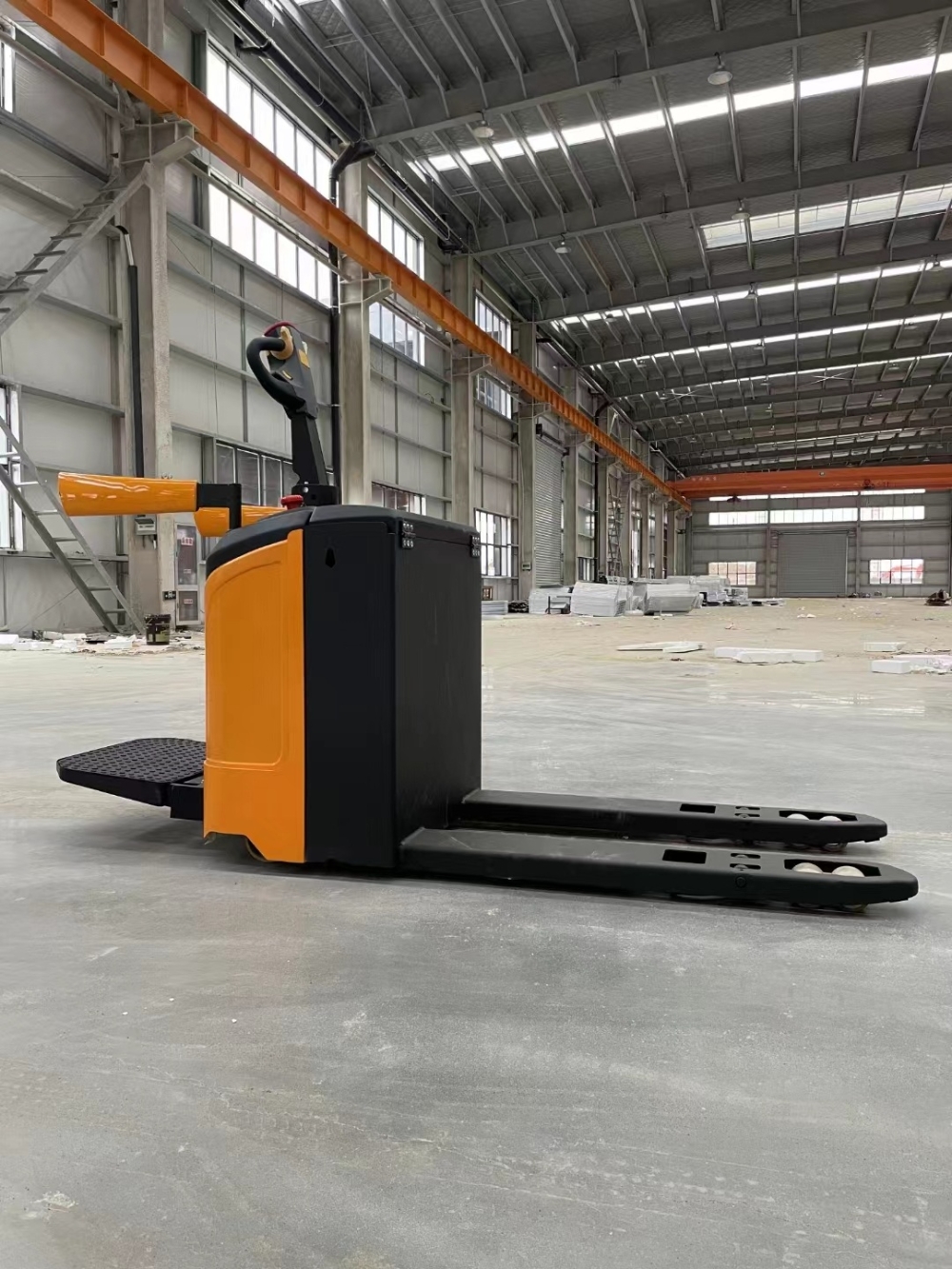

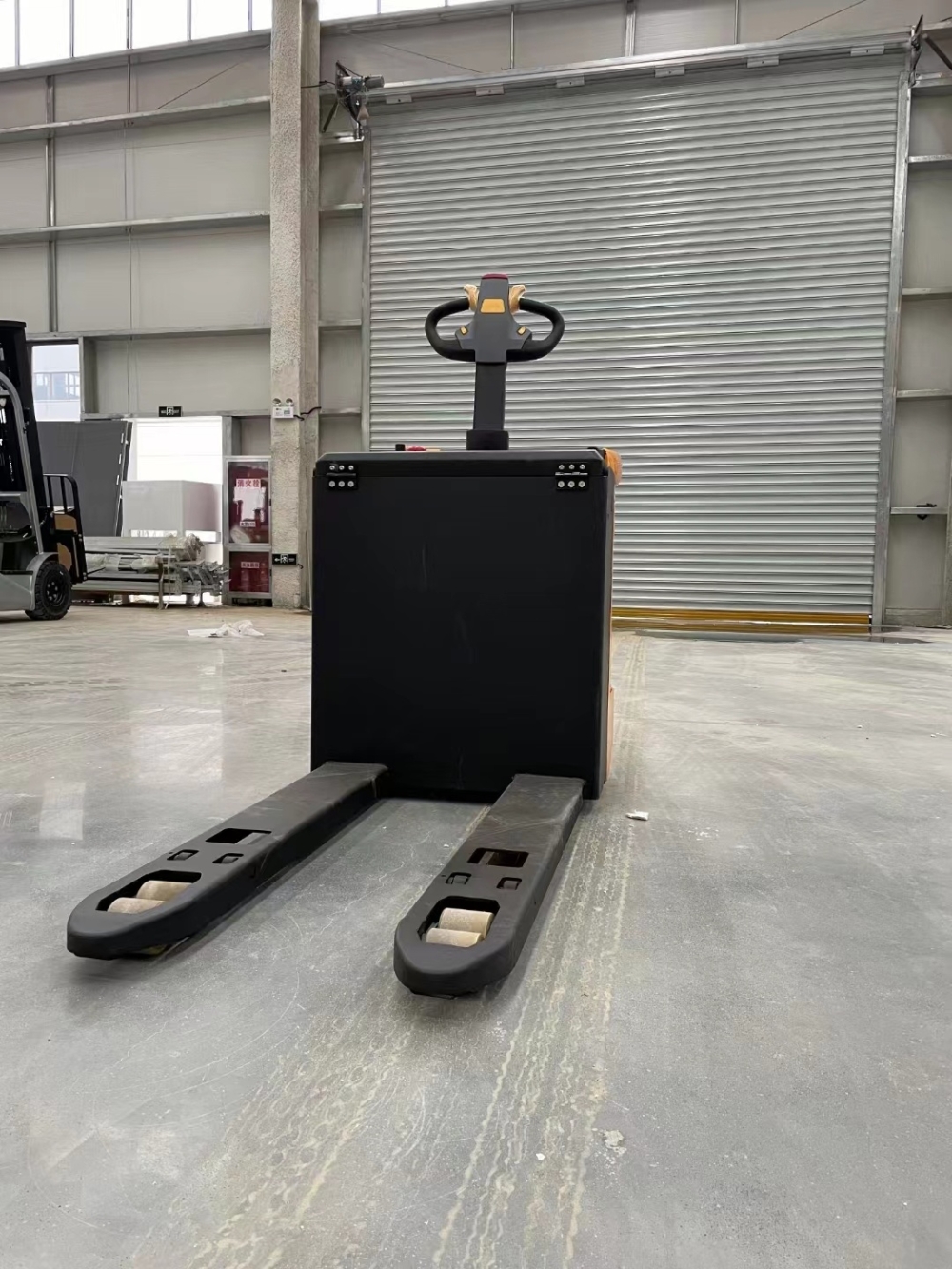

Factory Supply Pallet Jack 2500kg CBD25III Electric Pallet Truck Warehouse Handling Equipments_Electric Pallet Truck_Warehouse Equipment_Products

Description
Inquiry

Product Description

1) The branded control system features multiple automatic protection systems, providing a higher level of functional safety.

2) The vertical branded gearbox, with its multi-functional solutions and flexible modular system, utilizes optimized gear technology to reduce operating noise, providing customers with a high-performance and highly efficient user experience.

3) Equipped with a full AC drive system, it boasts features such as compact size, light weight, high efficiency, and maintenance-free operation, eliminating the hassle of replacing carbon brushes in DC motors and requiring no further maintenance or upkeep.

Model		CBD20II	CBD25ⅢI	CBD30III
Power(electricity,diesel,LPG,petrol,manual)		Electric	Electric	Electric
Operation(manual,walkie,side-standing,picker)		Ridertype	Ridertype	Ridertype
Steering way		EPS	EPS	EPS
Rated load capacity	Q(kg)	2000	2500	3000
Load center distance	C(mm)	600	600	600
Wheelbase	Y(mm)	1380	1380	1380
Service weight(incl.battery)	kg	710	730	750
Wheeltype(The front/rear)		PU	PU	PU
Front wheelspecification	ø×w(mm)	φ80*80	φ80*80	φ80*80
The rearwheel specification	ø×w(mm)	φ230*75	φ230*75	φ230*75
Balance Wheel specification	ø×w(mm)	φ125*50	φ125*50	φ125*50
Mast height,extended	H(mm)	205	205	205
Forks surface height from the ground when lowering	H1(mm)	85	85	85
Forks outer width	S1(mm)	685/540	685/540	685/540
Vehicle length(pedal folded/unfolded)	L(mm)	1825/2240	1825/2240	1825/2240
Vehicle width	S(mm)	760	760	760
Forks dimensions	s/e/l(mm)	55/175/1150	55/175/1150	55/175/1150
Stacking aisle width,pallet 1m×1.2m (1.0m cross forks)(pedal folded/unfolded)	Ast(mm)	2220/2620	2220/2620	2220/2620

Load bearing distance	X(mm)	970	970	970
The min.turning radius	Wa(mm)	1670/2070	1670/2070	1670/2070
Travelling speed,unladen/full-loaded	km/h	6/5.5	6/5.5	6/5
Lift speed unladen/full-loaded	m/s	0.043/0.040	0.043/0.040	0.043/0.040
Lower speed unladen/full-loaded	m/s	0.035/0.445	0.035/0.445	0.035/0.445
The max.gradability,unladen/full-loaded	%	10/8	10/8	10/6
Service brake		Electromagnetic	Electromagnetic	Electromagnetic
Drive motor power	kw	1.5	1.5	1.5
Lift motor power	kw	0.8	0.8	0.8
Batterytype		Lead-acid	Lead-acid	Lead-acid
Battery voltage/capacity	V/Ah	24/210	24/210	24/210
Charger	V/A	24/30	24/30	24/30
Drive control mode		AC	AC	AC
Noise level at driver's ears according to En12053	dB(A)	75	75	75

Q：What is the MOQ?

A： One set.

Q：Can I customize the equipment?

A：Yes, we offer customization service, including load capacity, lifting height, battery, color and others.

Q: Can I get spare parts or technical support after purchase?

A: Yes, we provide lifetime support and spare parts supply. We can ship parts globally and assist via video call.

Q：How long is the warranty time?

A： 12 months or 2000 hours whichever comes first.

Q：What is the payment terms?

A： T/T, 30% pre-payment in advance, and 70% balance before delivery.
