Electric Pallet Truck

Mini Portable Pallet Truck SL20L3E-E Pallet Jacks Electric Powered Warehouse Equipments

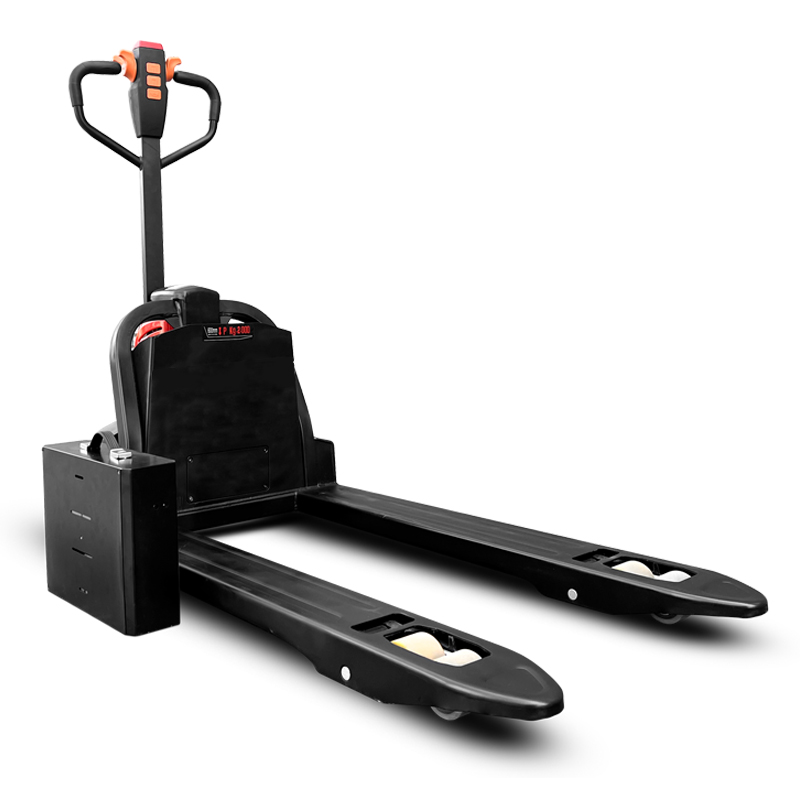

SL20L3E-E Electric Pallet Truck
  • Description
  • Inquiry

Product Description

1.Products comply with CE safety certification, equippedwith anti-collision switch, able to walk upright;

2.The combination of permanent magnet brush-less driveand high-efficiency domestic controller gives goodpassability and easily go up on a 10% ramp;
3. Electric lift, drop and walking;
4.The frame structure is reasonable and durable, theturning radius is small to allow flexible use ofspace, andthe small roller under the standard fork allows the vehicleto easily enter and exit the double-sided tray;

5.The simple assembly structure makes the maintenance ofthe whole machine more convenient and efficient.

Model designation


SL15L3
SL20L3
Drive unit


Electric
Electric
Operator type


Pedestrian
Pedestrian
rated capacity
Q
kg
1500
2000
Load center distance
c
mm
600
600
Axle centre to fork face
X
mm
944
944
Wheelbase
y
mm
1243
1243
Service weight(include battery)

kg
129 130 132 135
147 148 150 153
Axle loading,laden driving side/loading side

kg
600/1029     600/1030 601/1031     602/1033
649/1498    649/1499 650/1500    651/1502
Axle loading,unladen driving side/loading side

kg
100/29      100/30 101/31      102/33
119/28      119/29 120/30      121/32
Tyre type driving wheels/loading wheels


PU
PU
Tyre size,driving wheels(diameter×width)

mm
φ210x75
φ210x75
Tyre size,loading wheels(diameter×width)

mm
φ80x60
φ80x60
Tyre size,caster wheels(diameter×width)

mm
φ50x30
φ50x30
Wheels,number driving,caster/loading
(x=drive wheels)

mm
1x,2/4
1x,2/4
Track width,rear,loading side
b₁1
mm
400/535
400/535
Lit height
h₃
mm
200
200
Height drawbar in driving position min./max
h₁4
mm
740/1160
740/1160
Lowered height
h13
mm
85
85
Overall length
l₁
mm
1603
1603
Length to face of forks
I2
mm
453
453
Overall width
b₁/b₂
mm
550/685
550/685
Fork dimensions
s/e/1
mm
55/150/1150
55/150/1150
Distance between fork-arms
b₅
mm
550/685
550/685
Ground clearance,center of wheelbase
m₂
mm
35
35
Aisle width for pallets 1000×1200 crossways
Ast
mm
1804
1804
Aisle width for pallets 800×1200 lengthways
Ast
mm
1854
1854
Turning radius
Wa
mm
1398
1398
Travel speed,laden/unladen

km/h
4.2/4.5
4.2/4.5
Q:What is the MOQ?
A: One set.


Q:Can I customize the equipment?
A:Yes, we offer customization service, including load capacity, lifting height, battery, color and others.

Q:   Can I get spare parts or technical support after purchase?
A:   Yes, we provide lifetime support and spare parts supply. We can ship parts globally and assist via video call.


Q:How long is the warranty time?
A: 12 months or 2000 hours whichever comes first.

Q:What is the payment terms?
A: T/T, 30% pre-payment in advance, and 70% balance before delivery.




If you have questions or suggestions, please leave us a message,we will reply you as soon as we can!
