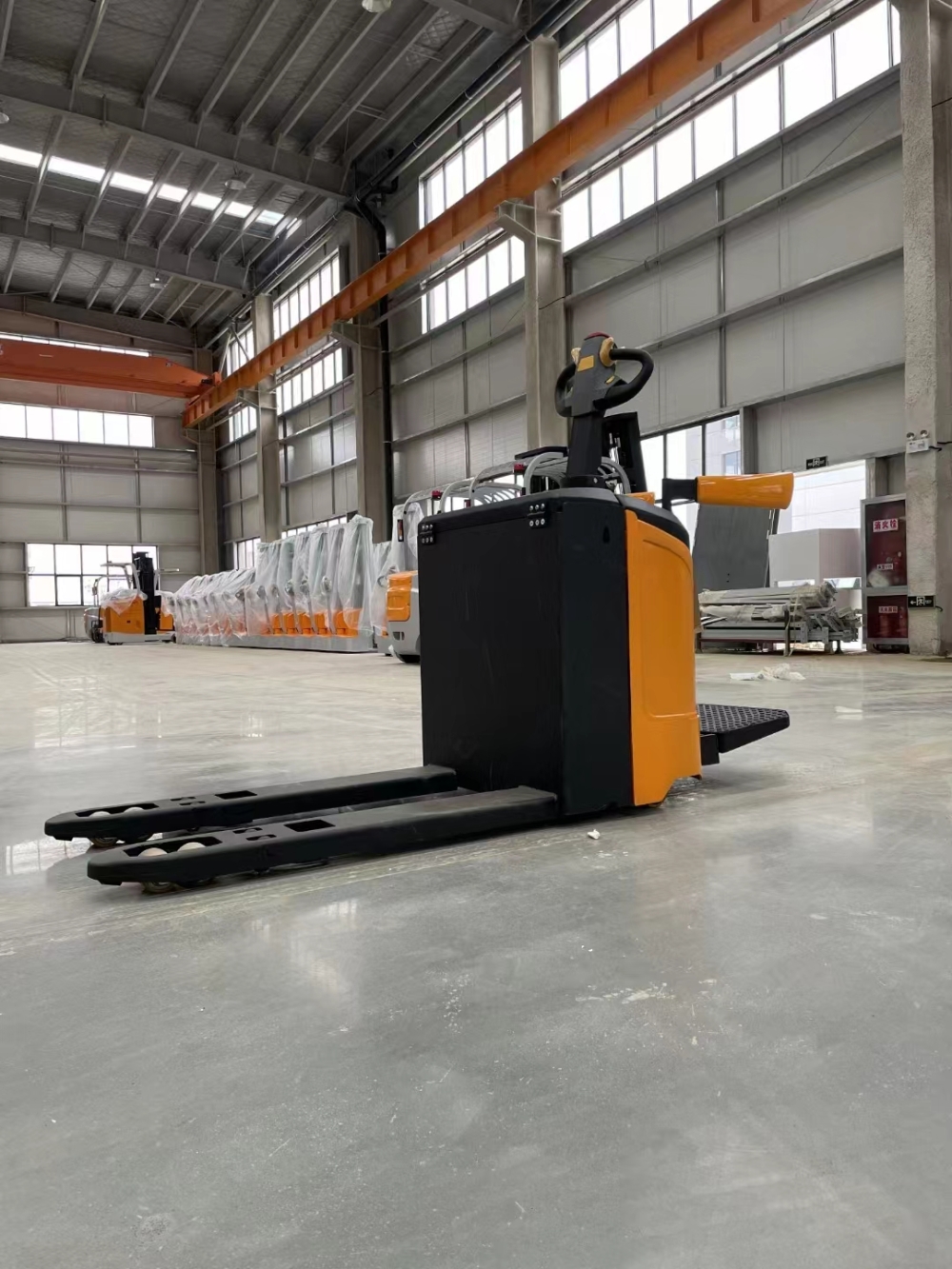

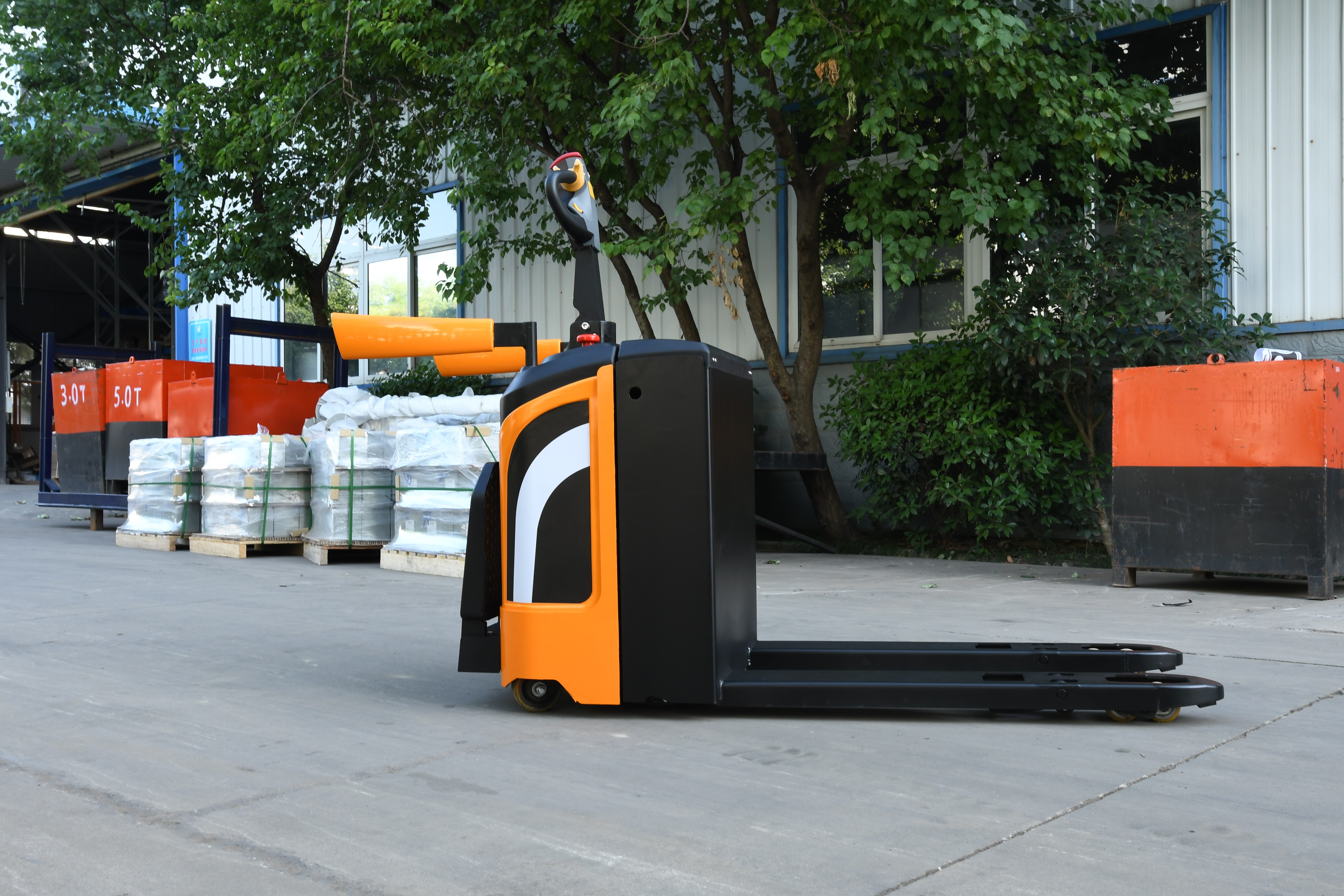

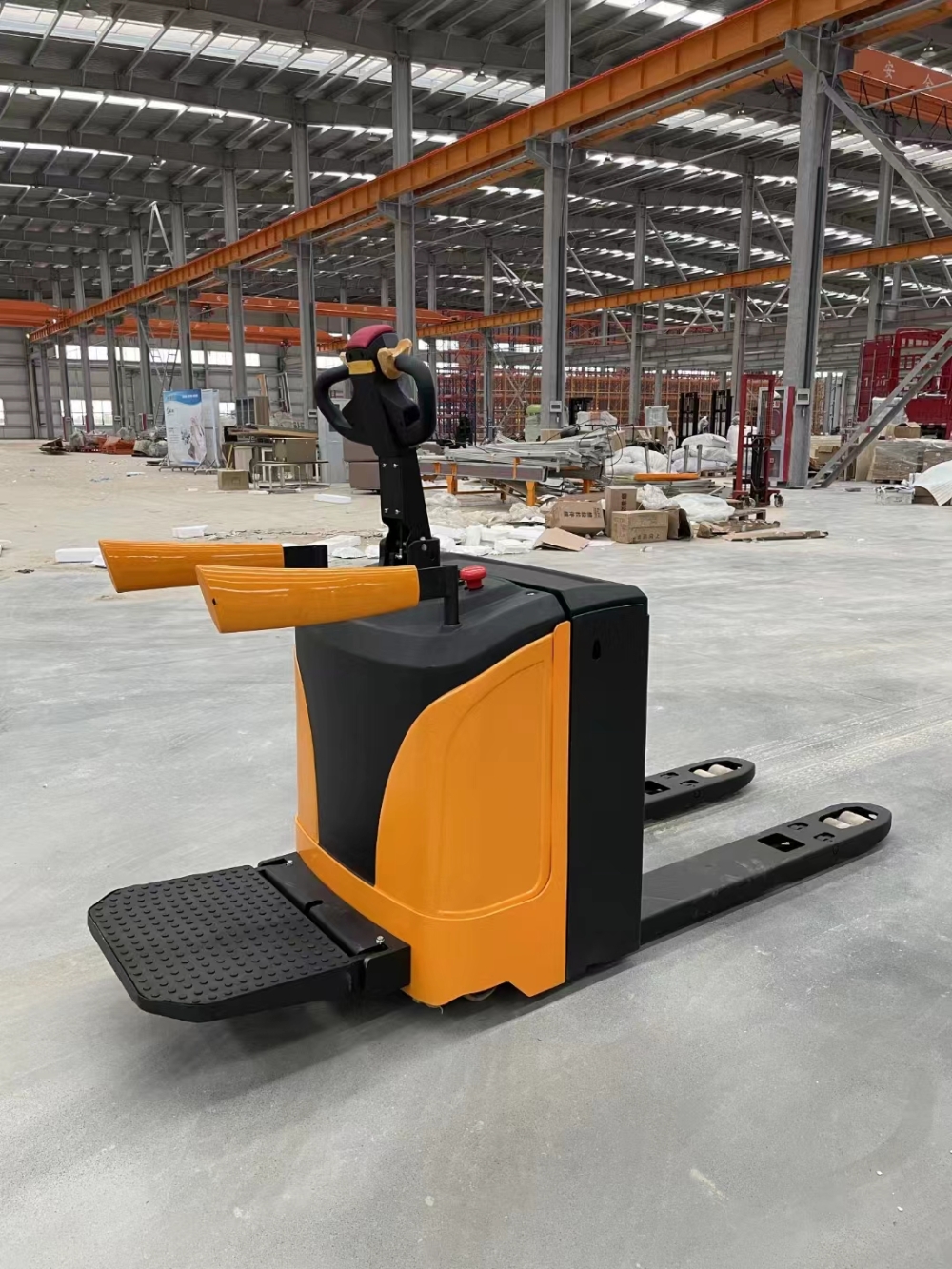

Portable All-Electric Self-Lifting Pallet Stacker Multi-Purpose 1.5 Tons & 2 Ton Higher Load Truck Standing Type Forklifts_Electric Pallet Truck_Warehouse Equipment_Products

Description
Inquiry

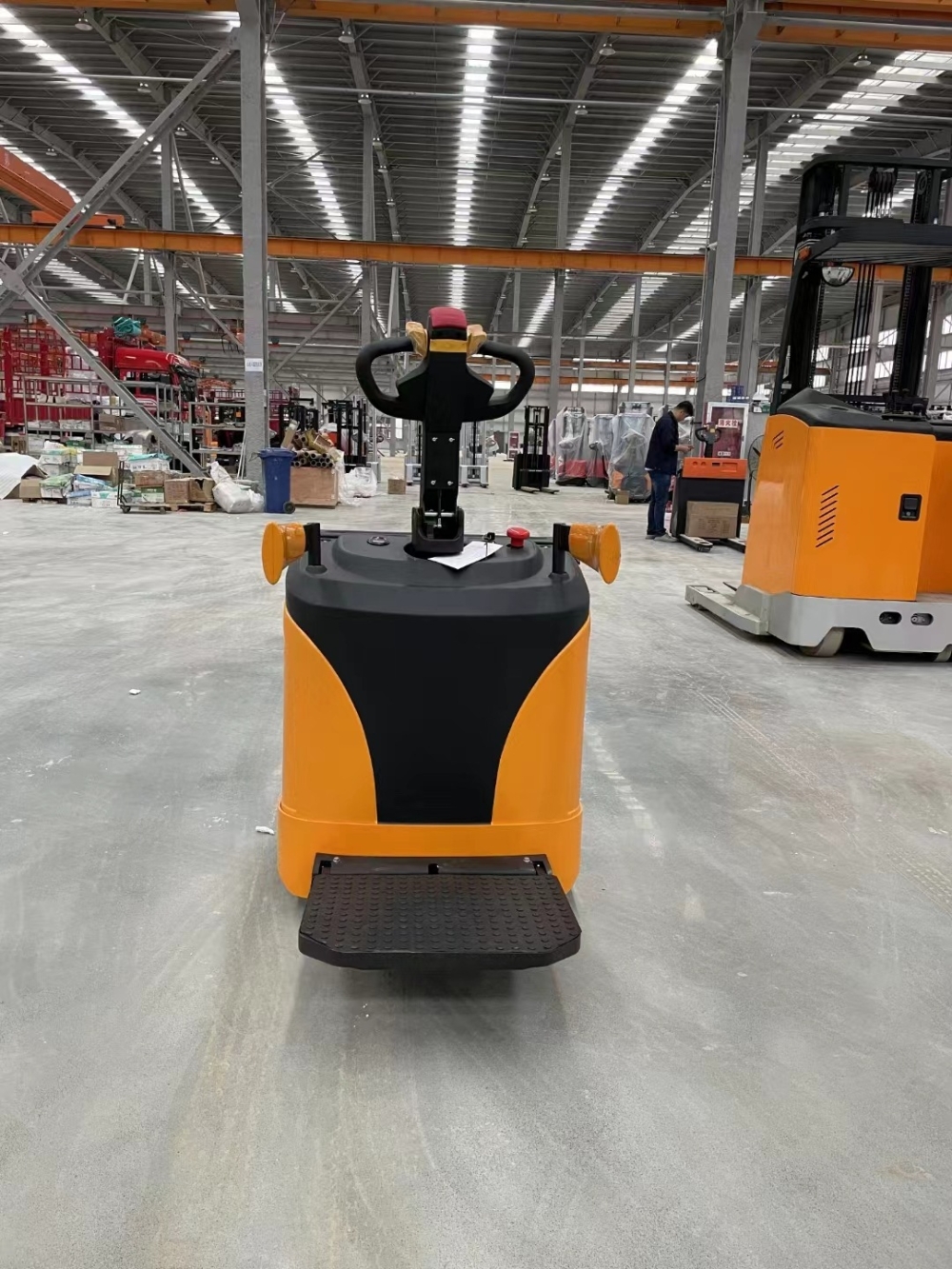

Product Description

Equipped with branded control system and multi-functional protection system, it offers higher level functional safety;

Equipped with vertical branded gear box, multi-functional solutions and flexible module construction system.Optimized gear meshing technology can reduce the noise and offer high performance and efficiency.

Equipped with full AC drive system, small volume, light weight, high efficiency, free-maintenance and carbon-brush replacement. No more maintenance and protection.

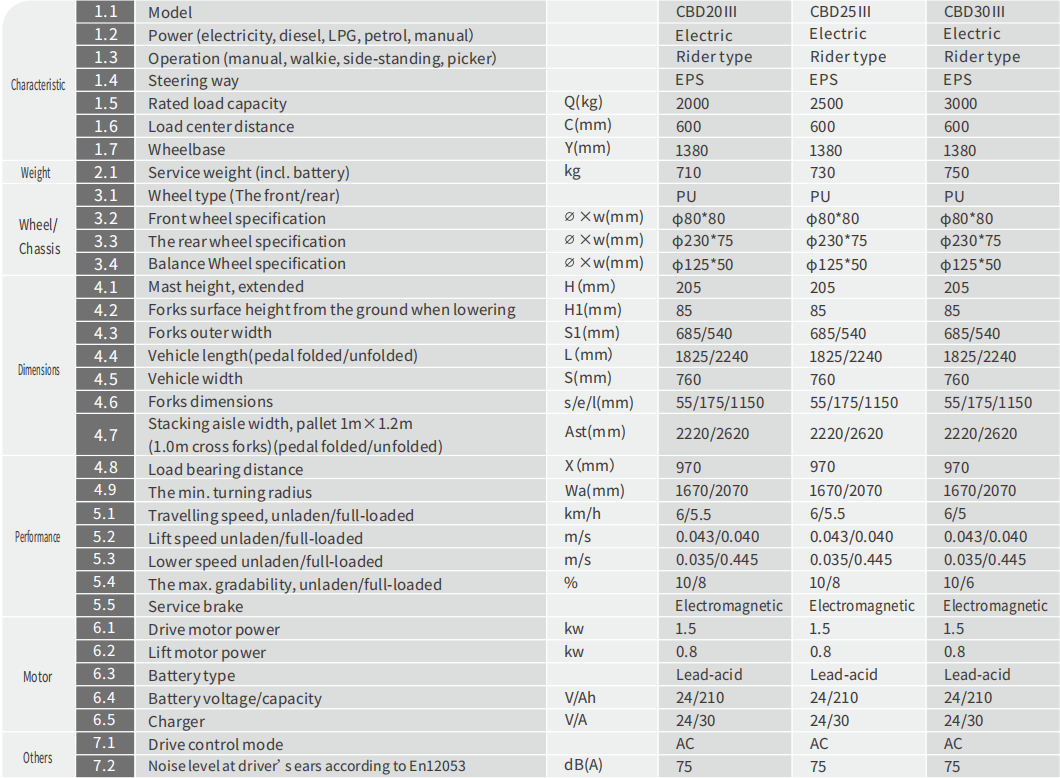

Model		CBD20II	CBD25ⅢI	CBD30III
Power(electricity,diesel,LPG,petrol,manual)		Electric	Electric	Electric
Operation(manual,walkie,side-standing,picker)		Ridertype	Ridertype	Ridertype
Steering way		EPS	EPS	EPS
Rated load capacity	Q(kg)	2000	2500	3000
Load center distance	C(mm)	600	600	600
Wheelbase	Y(mm)	1380	1380	1380
Service weight(incl.battery)	kg	710	730	750
Wheeltype(The front/rear)		PU	PU	PU
Front wheelspecification	ø×w(mm)	φ80*80	φ80*80	φ80*80
The rearwheel specification	ø×w(mm)	φ230*75	φ230*75	φ230*75
Balance Wheel specification	ø×w(mm)	φ125*50	φ125*50	φ125*50
Mast height,extended	H(mm)	205	205	205
Forks surface height from the ground when lowering	H1(mm)	85	85	85
Forks outer width	S1(mm)	685/540	685/540	685/540
Vehicle length(pedal folded/unfolded)	L(mm)	1825/2240	1825/2240	1825/2240
Vehicle width	S(mm)	760	760	760
Forks dimensions	s/e/l(mm)	55/175/1150	55/175/1150	55/175/1150
Stacking aisle width,pallet 1m×1.2m (1.0m cross forks)(pedal folded/unfolded)	Ast(mm)	2220/2620	2220/2620	2220/2620

photobank

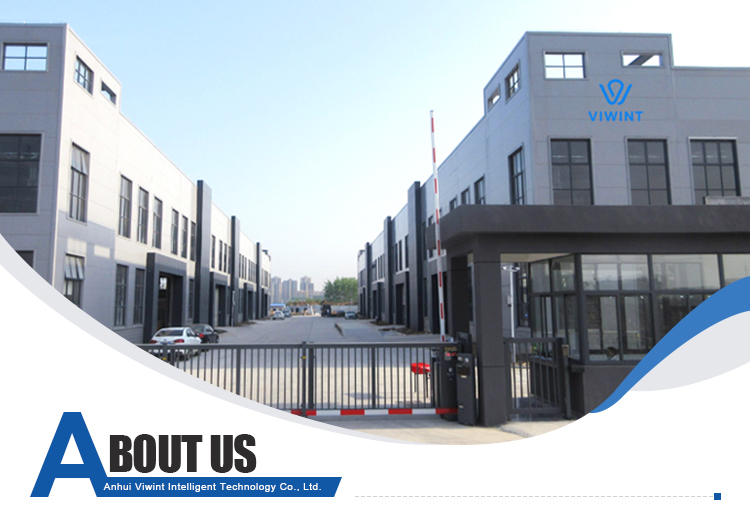

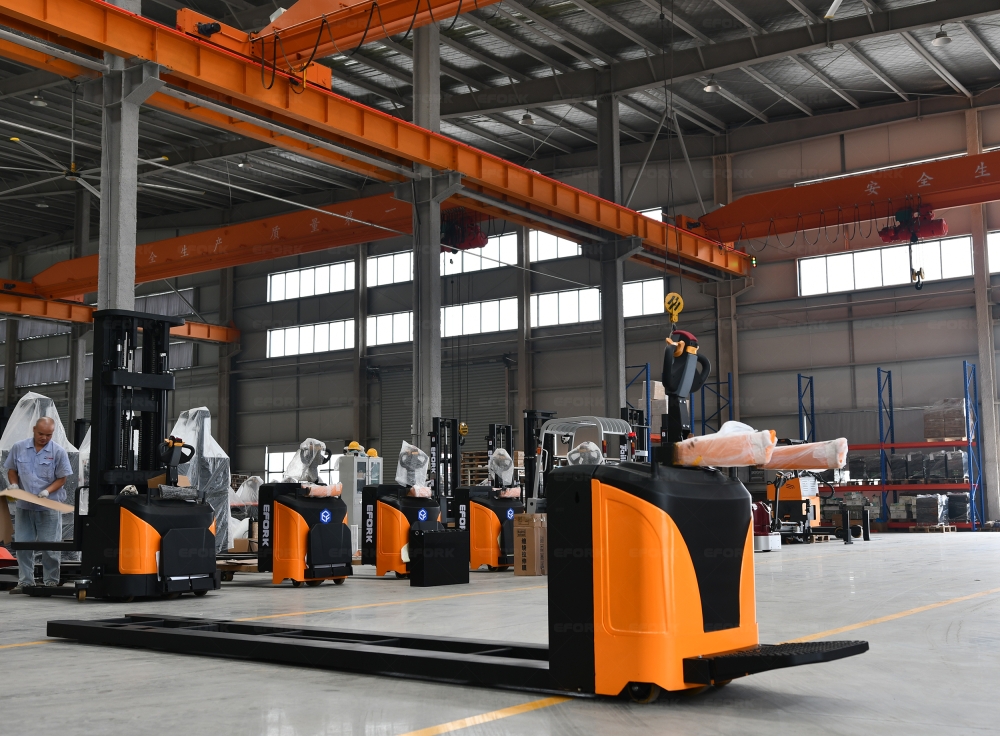

Anhui Viwint Intelligent Technology Co.,Ltd.,a scientific and technological innovationenterprise focusing on the R&D,manufacturing and service of industrial vehicles,andits core business covers the R&D and production of electric forklifts,diesel forklifts,AGV automatic guided vehicles and narrow aisle three-way electric forklifts.With 1000customer service cases and export experience covering the Americas,Europe andother global markets,the company aims to build a leading brand in the field of logisticsequipment.

FAQ

Q：What is the MOQ?
A： One set.

Q：Can I customize the equipment?

A：Yes, we offer customization service, including load capacity, lifting height, battery, color and others.

Q: Can I get spare parts or technical support after purchase?
A: Yes, we provide lifetime support and spare parts supply. We can ship parts globally and assist via video call.

Q：How long is the warranty time?
A： 12 months or 2000 hours whichever comes first.

Q：What is the payment terms?
A： T/T, 30% pre-payment in advance, and 70% balance before delivery.
