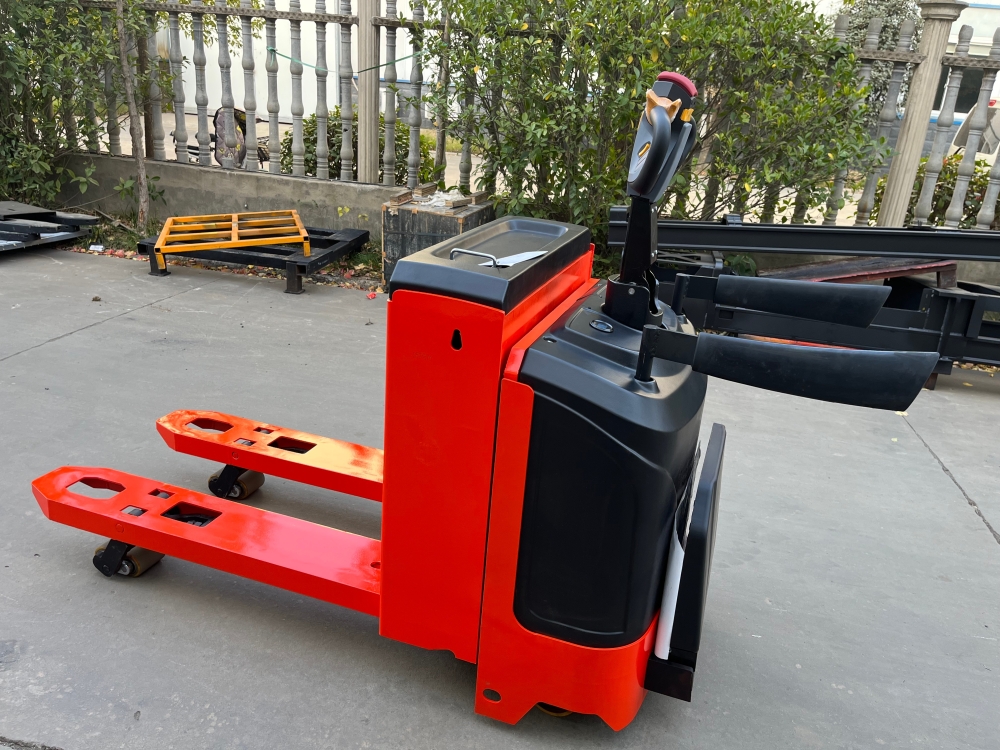

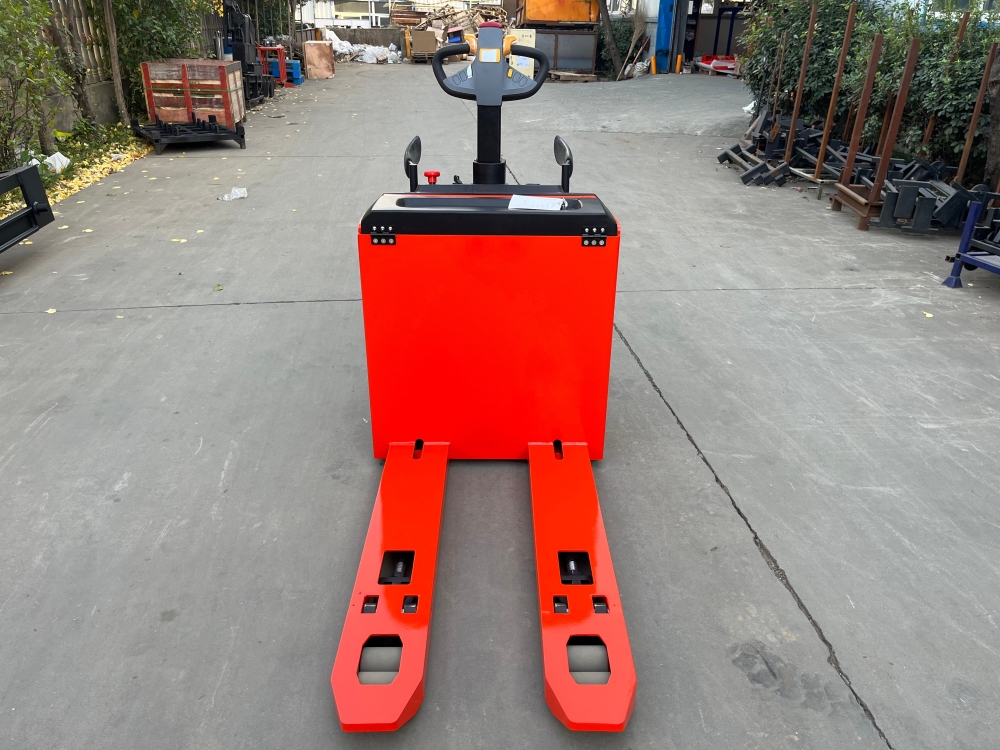

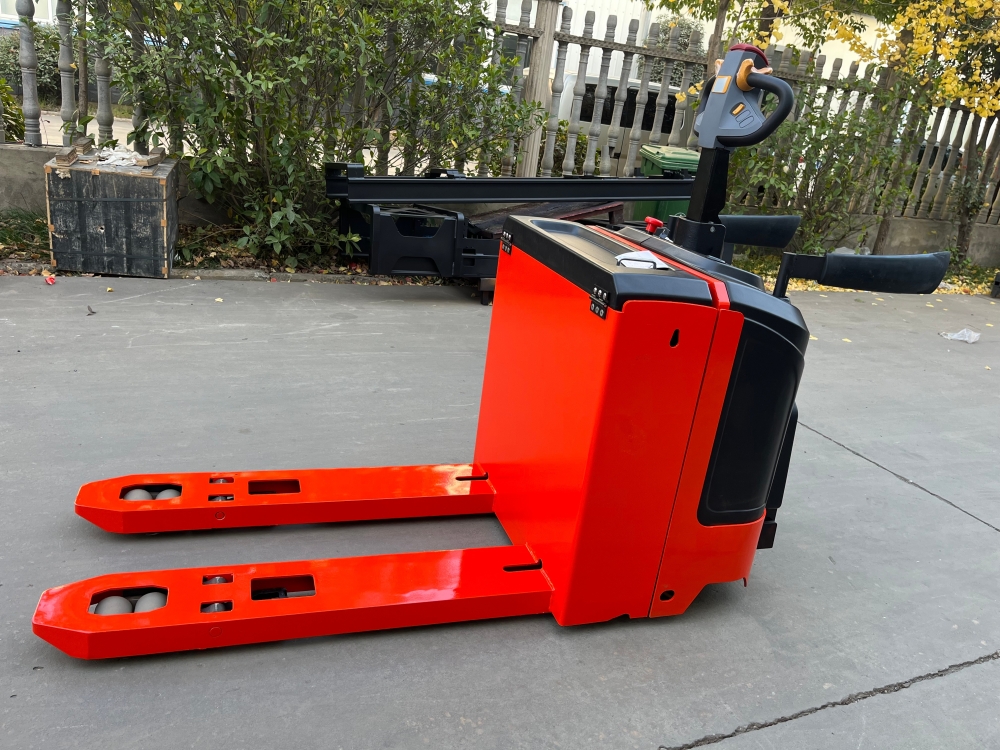

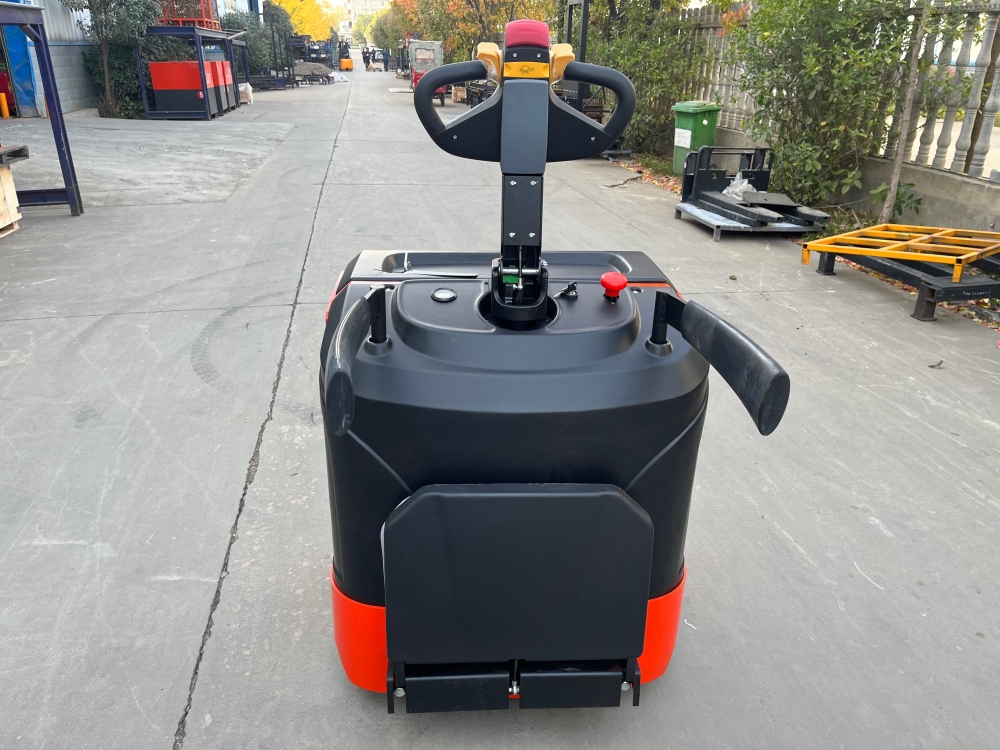

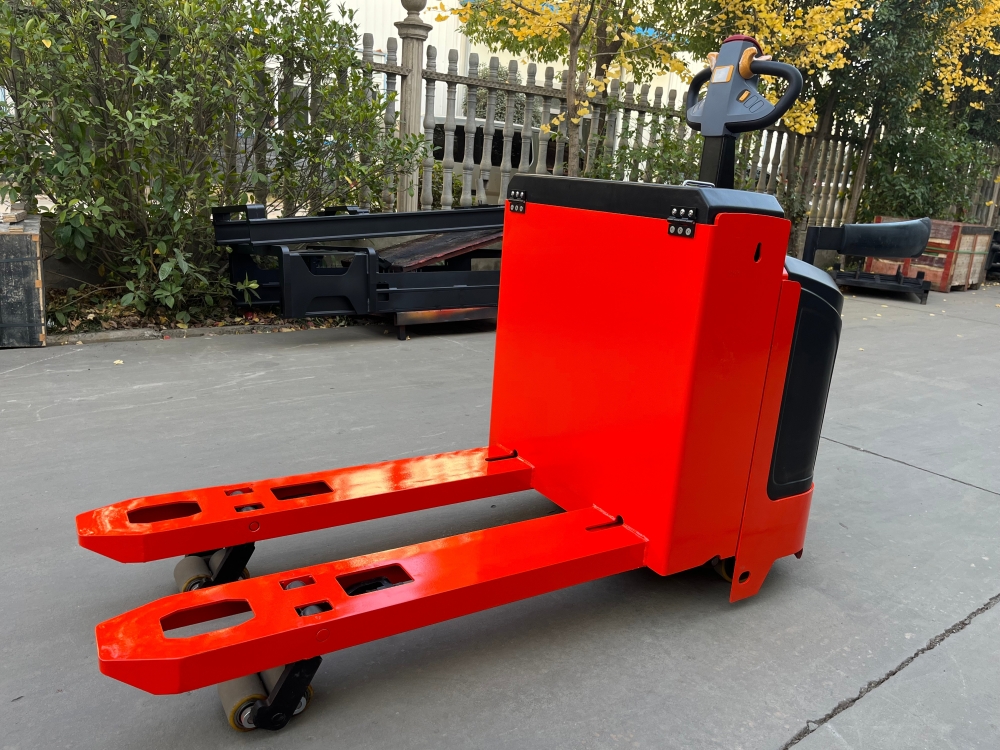

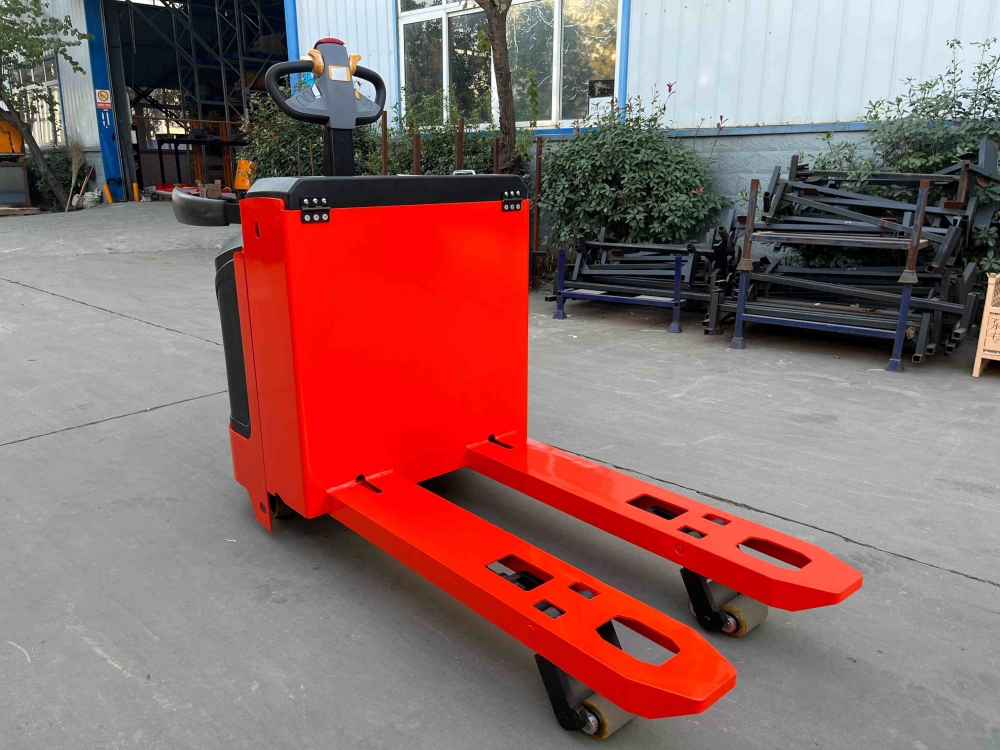

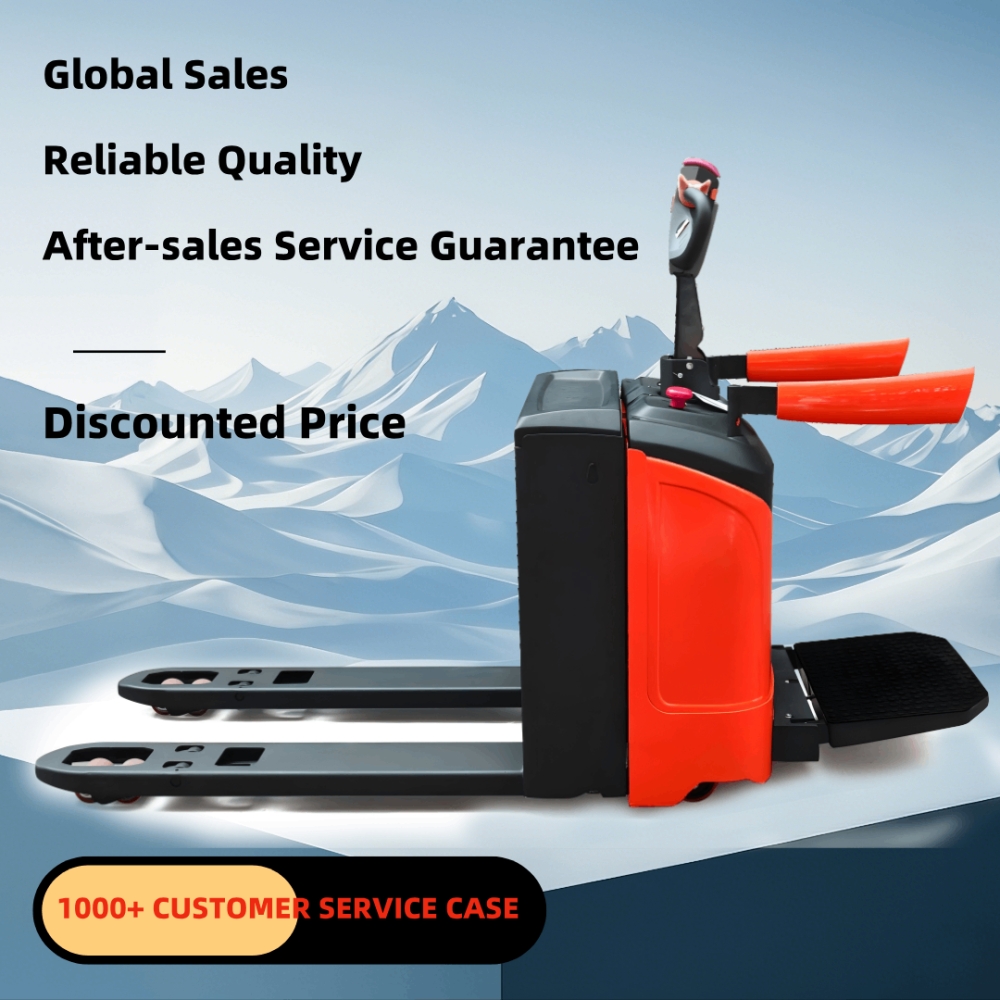

Product Description


Equipped with branded control system and multi-functional protection system, it offers higher level functional safety;

Equipped with vertical  branded gear  box,  multi-functional solutions and flexible module construction system.Optimized gear meshing technology can reduce the noise and offer high performance and efficiency. Equipped with full AC drive system, small volume, light weight, high efficiency, free-maintenance and carbon-brush replacement. No more maintenance and protection.

Model

CBD20II
CBD25ⅢI
CBD30III
Power(electricity,diesel,LPG,petrol,manual)

Electric
Electric
Electric
Operation(manual,walkie,side-standing,picker)

Ridertype
Ridertype
Ridertype
Steering way

EPS
EPS
EPS
Rated load capacity
Q(kg)
2000
2500
3000
Load center distance
C(mm)
600
600
600
Wheelbase
Y(mm)
1380
1380
1380
Service weight(incl.battery)
kg
710
730
750
Wheeltype(The front/rear)

PU
PU
PU
Front wheelspecification
ø×w(mm)
φ80*80
φ80*80
φ80*80
The rearwheel specification
ø×w(mm)
φ230*75
φ230*75
φ230*75
Balance Wheel specification
ø×w(mm)
φ125*50
φ125*50
φ125*50
Mast height,extended
H(mm)
205
205
205
Forks surface height from the ground when lowering
H1(mm)
85
85
85
Forks outer width
S1(mm)
685/540
685/540
685/540
Vehicle length(pedal folded/unfolded)
L(mm)
1825/2240
1825/2240
1825/2240
Vehicle width
S(mm)
760
760
760
Forks dimensions
s/e/l(mm)
55/175/1150
55/175/1150
55/175/1150
Stacking aisle width,pallet 1m×1.2m
(1.0m cross forks)(pedal folded/unfolded)
Ast(mm)
2220/2620
2220/2620
2220/2620

FAQ

Q:What is the MOQ?
A: One set.


Q:Can I customize the equipment?
A:Yes, we offer customization service, including load capacity, lifting height, battery, color and others.

Q:   Can I get spare parts or technical support after purchase?
A:   Yes, we provide lifetime support and spare parts supply. We can ship parts globally and assist via video call.


Q:How long is the warranty time?
A: 12 months or 2000 hours whichever comes first.

Q:What is the payment terms?
A: T/T, 30% pre-payment in advance, and 70% balance before delivery.
