Narrow Aisle Forklift

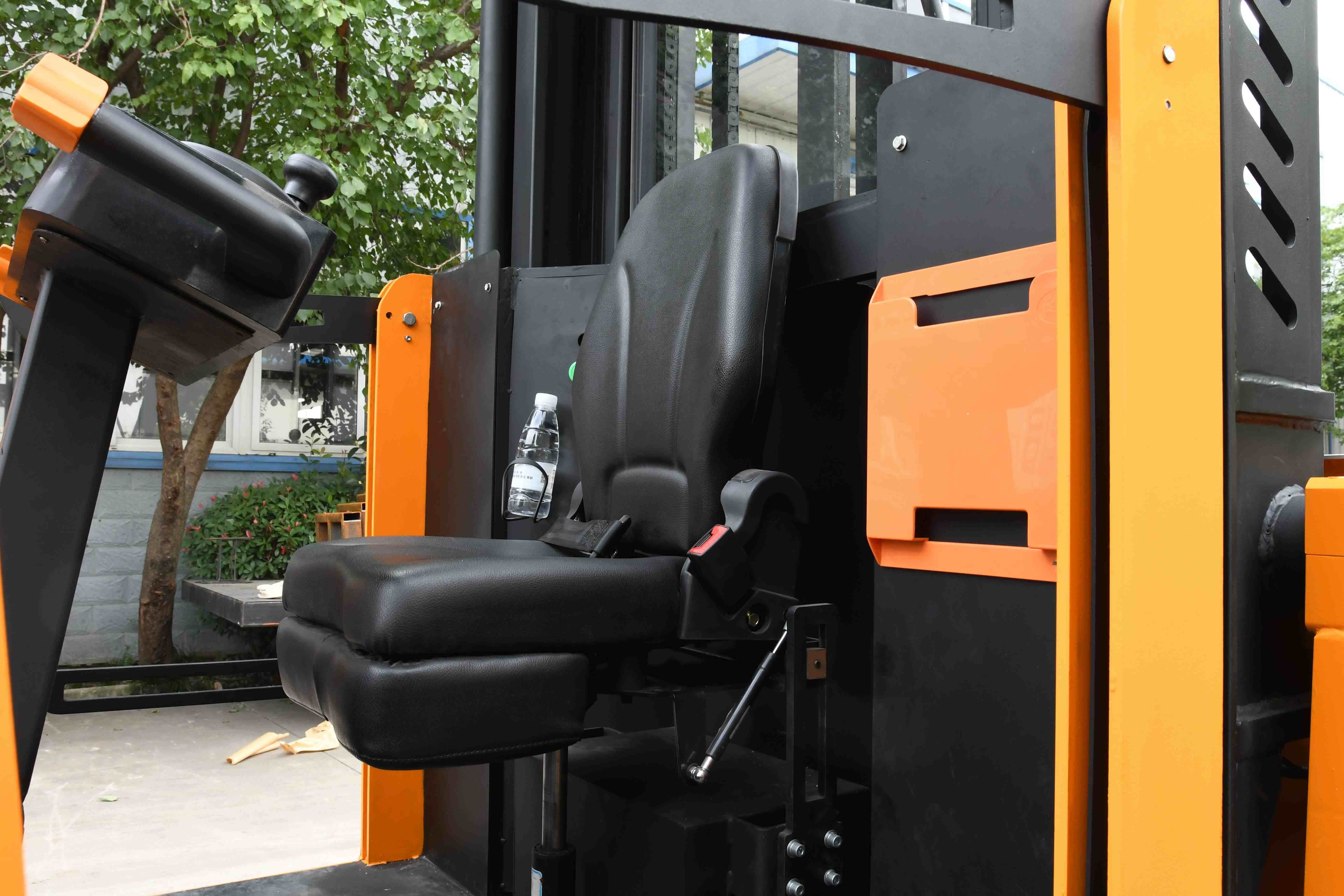

Warehouse Full Electric Motor 1.5ton Forklift Truck CDMX15-105S 3 Way Electric Pallet Stacker

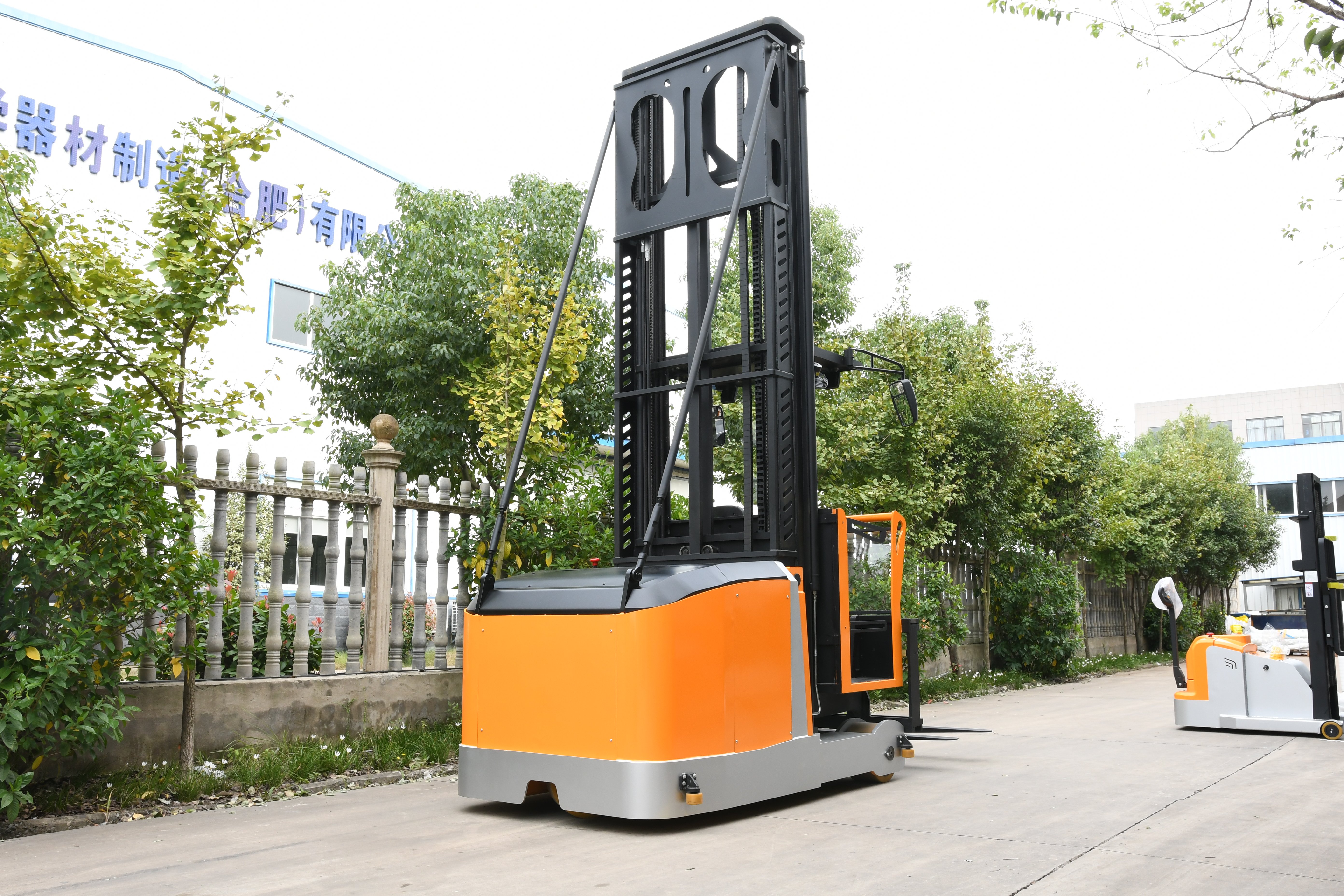

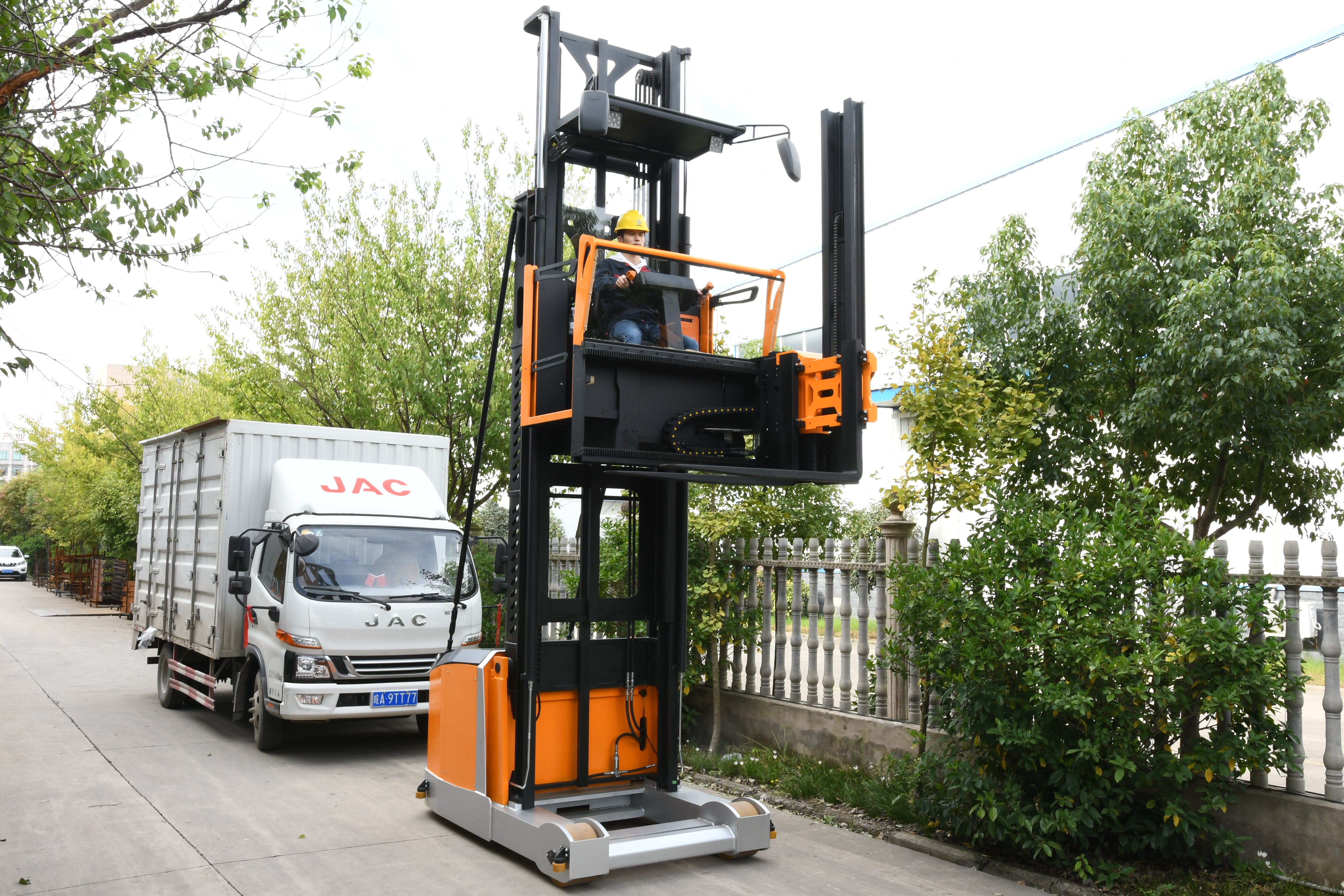

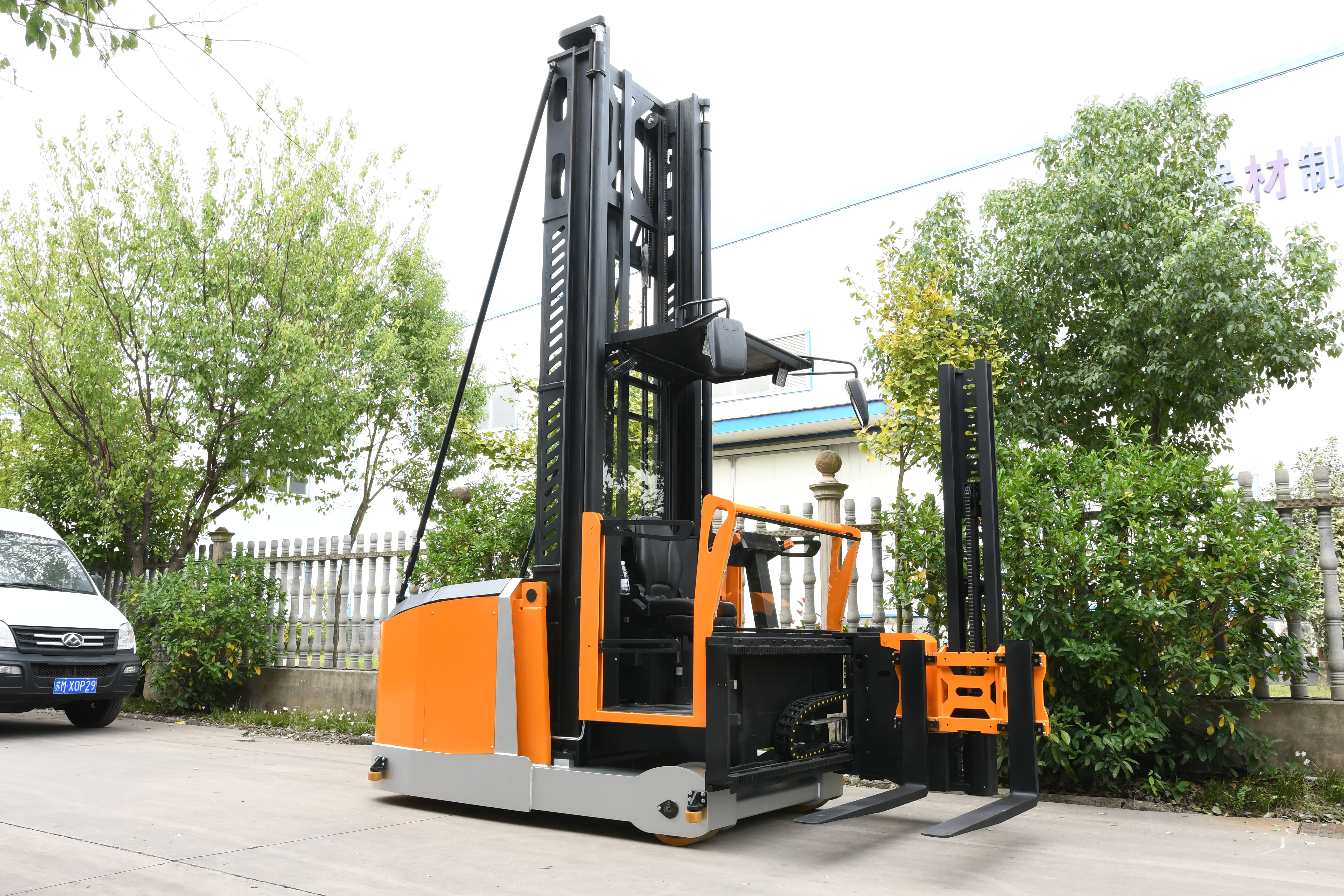

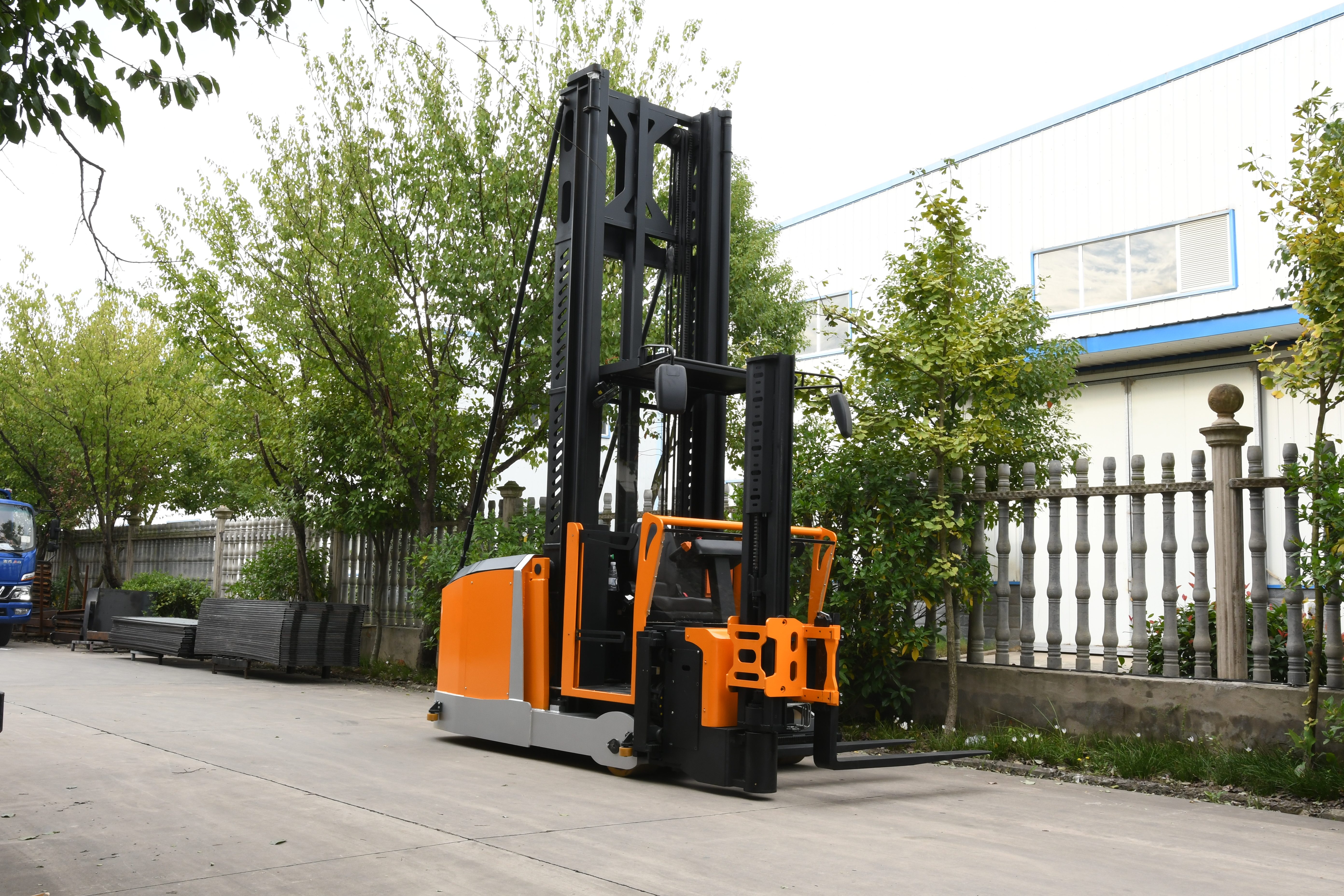

CDMX15-105S 3-way electric pallet stacker man-up type
  • Description
  • Inquiry

Product Description

1) Without turning the vehicle body, it can access goods in rotation, in side- shifting, to left, right, front to load or unload the goods.

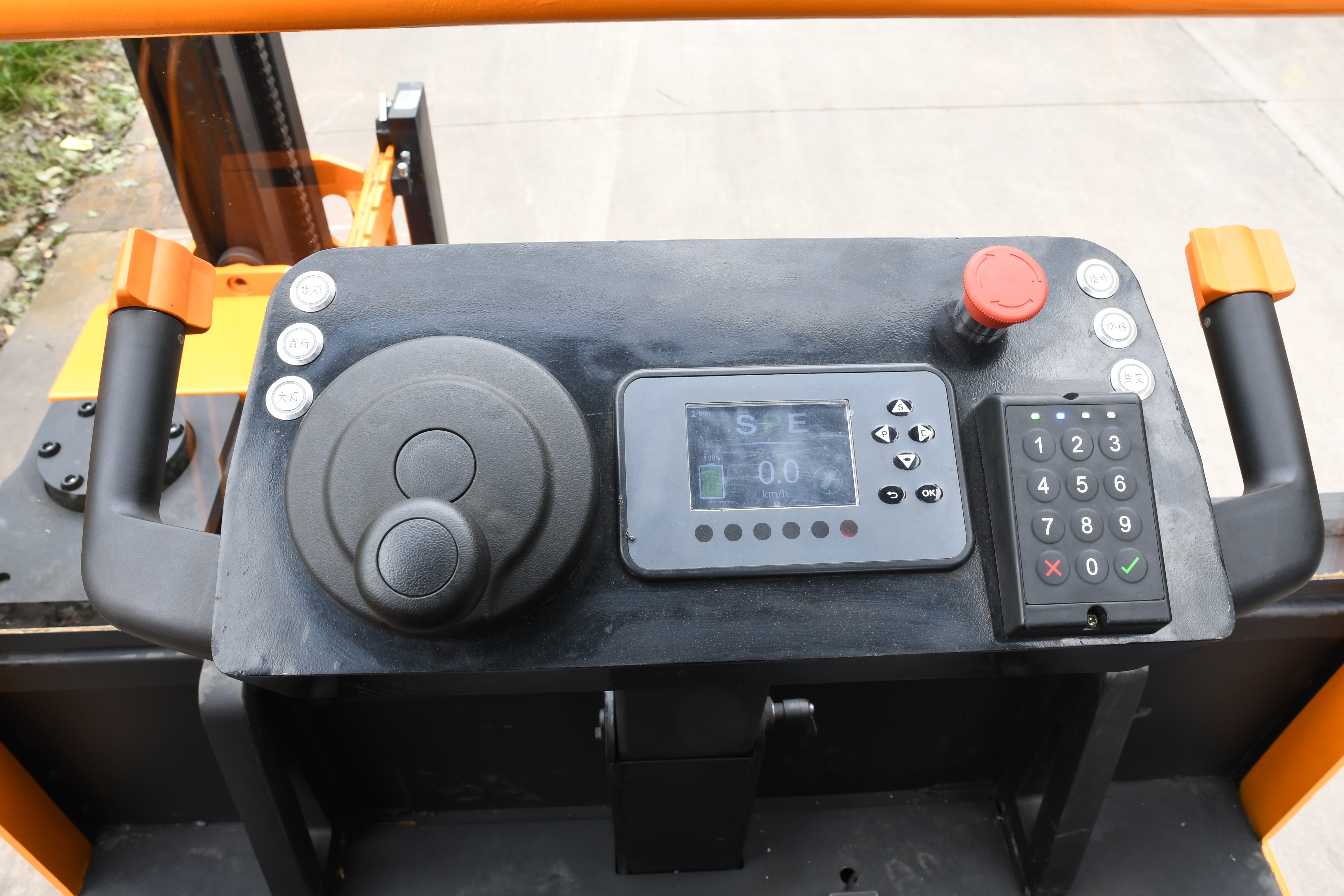

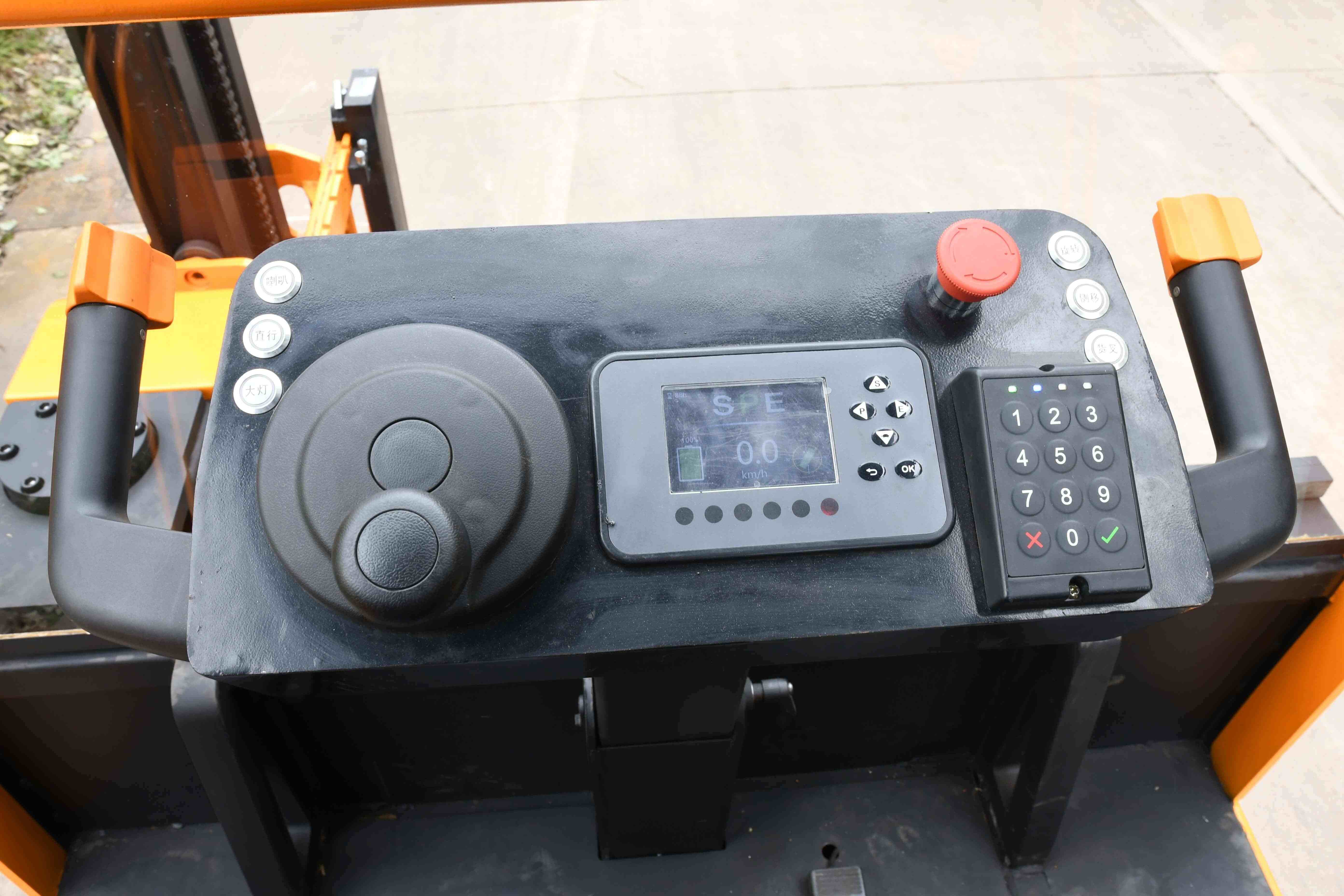

2) Equipped with AC controller, operational handler, and instrument.


3) Equipped with high-strength German Krupp steel mast, light weight and good craft skill. Steady lifting operation and good manuverability; Gravity center is greatly reduced.


4) Lifting classification control with main mast and side mast working sepe- rately.


5) Electrolyte proportional hydraulic control unit.

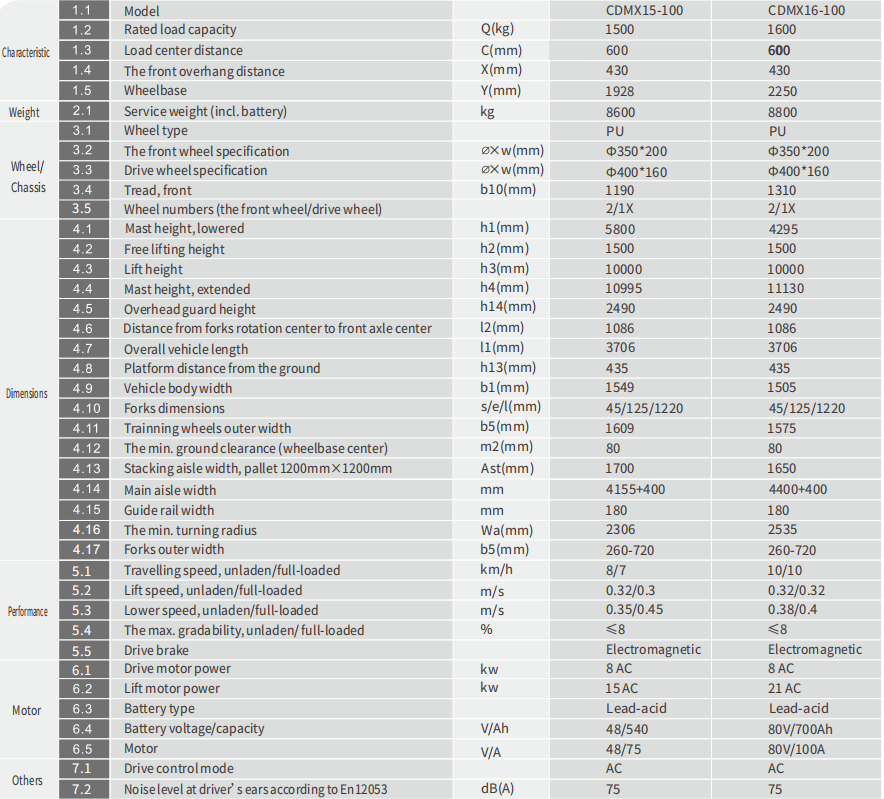

Model

CDDM10-60S
CDDM12-60S
CDDM15-60S
CDDM16-60S
Power

Electric
Operation

Side-standing
Rated load
Q(kg)
1000
1200
1500
1600
Load centerdistance
C(mm)
500
500
600
600
Service weight(incl.battery)
kg
5100
5200
6300
6500
Wheel type

PU
PU
PU
PU
Drivewheel specifications
×w(mm)
Ф382*142
The front wheelspecification
Xw(mm)
φ145*100
φ145*100
φ145*100
φ145*100
The balance wheel specification
×w(mm)
φ180*76
φ180*76
φ180*76
φ180*76
Tread,front
b10(mm)
1210
1210
1305
1305
Mast height,lowered
h1(mm)
3400
3400
3400
3400
Free lifting height
h2(mm)
2235
2235
2235
2235
Lift height
h3(mm)
6000
6000
6000
6000
Mastheight,extended
h4(mm)
7125
7125
7125
7125

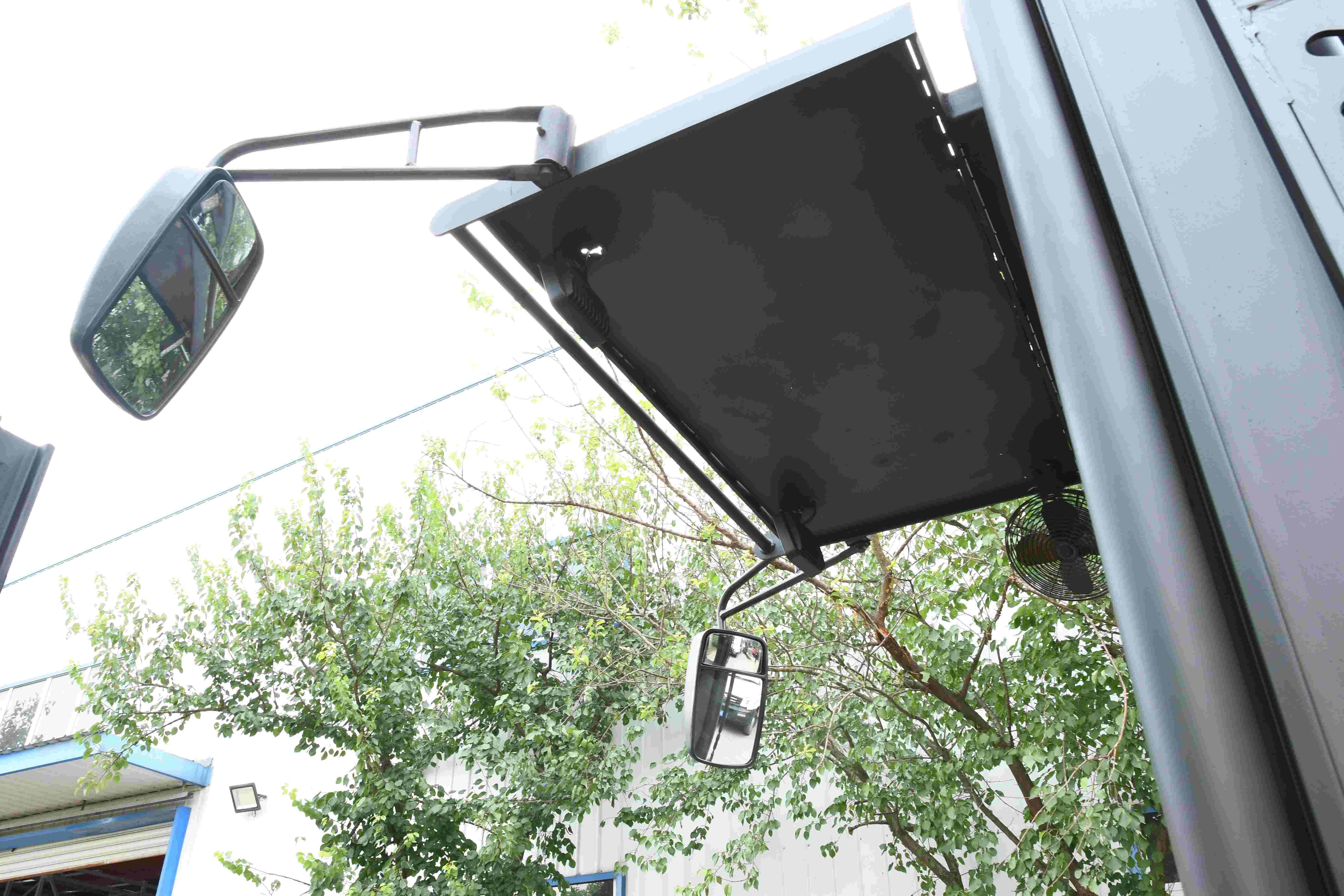

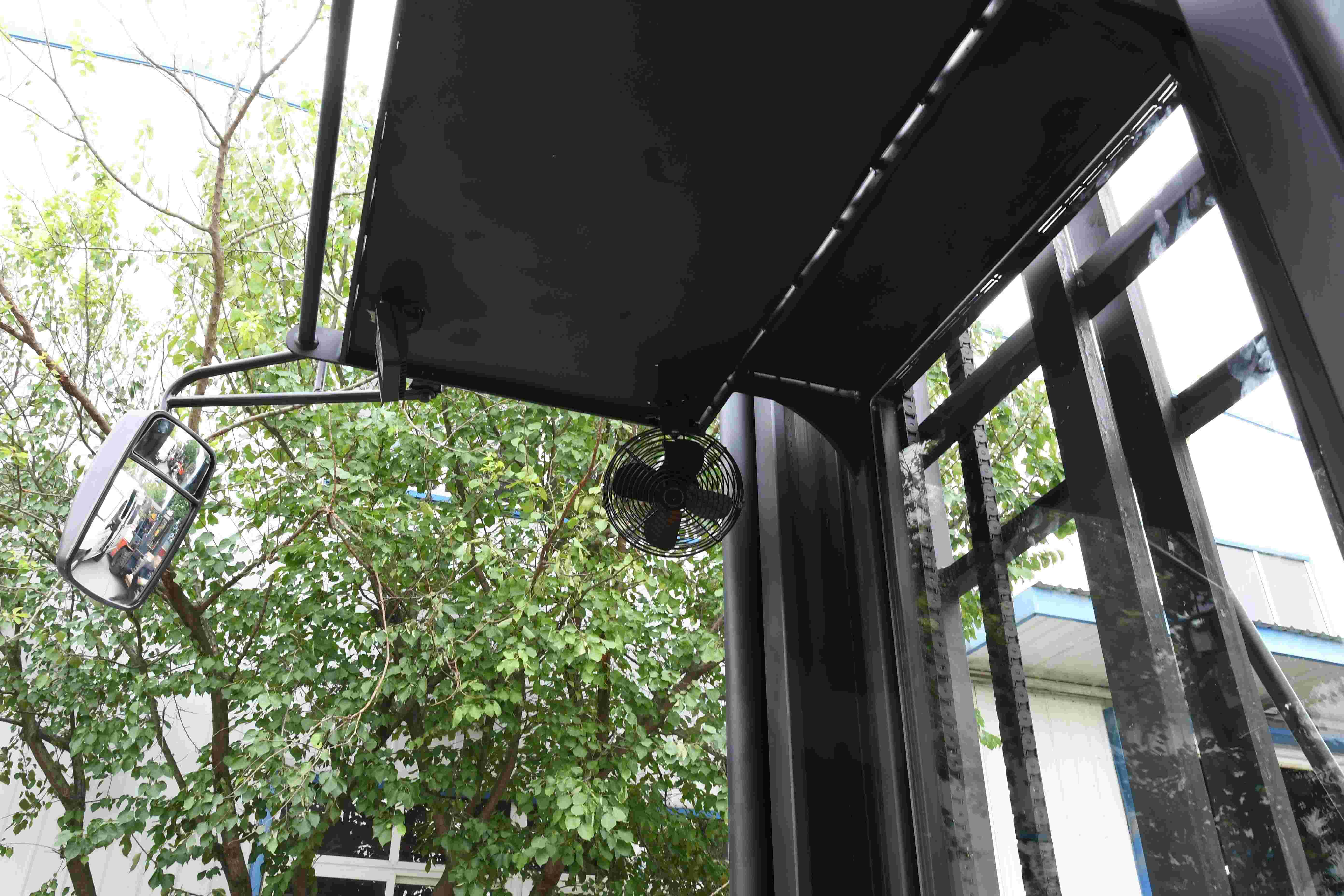

Overhead guard height
h14(mm)
2260/2300
Length(forks rotate on both left and right sides)
l2(mm)
3045
3045
3065
3065
Vehicle width
b1(mm)
1455
1455
1550
1550
Anti-collision guardrail width
(mm)
1500
1500
1600
1600
Forks dimensions
s/e/l(mm)
40/122/1070
45/125/1200
Forks adjustment dimensions
b5(mm)
260-650 (Customized)
The min.ground clearance (wheelbase center)
m2(mm)
32
32
32
32
Stacking aisle width
Ast(mm)
1500(1000*1000pallet)
1600(1200*1200pallet)
Aisle guide rail width
(mm)
120
120
120
120
The min.tuning radius
Wa(mm)
1985
1985
1985
1985
The main aisle width

3270+400
3270+400
3470+400
3470+400
The max. travelling speed,unladen/full-loaded
km/h
8/7
8/7
8/7
8/7
Lift speed,unladen/full-loaded

0.30/0.26
0.30/0.26
0.30/0.26
0.30/0.26
Lowerspeed,unladen/full-loaded

0.30/0.32
0.30/0.32
0.36/0.39
0.36/0.39
Service brake

Electromagnetic
Drive motor power

6.5AC
6.5AC
6.5AC
6.5AC
Lift motor power

15AC
15AC
15AC
15AC
Battery type

Lead-acid
Lead-acid
Lead-acid
Lead-acid
Battery voltage/capacity
V/Ah
48/400
48/400
48/400
48/400
Motor
V/A
48/50
48/50
48/50
48/50
Drive control mode

AC
AC
AC
AC
Q:What is the MOQ?
A: One set.


Q:Can I customize the equipment?
A:Yes, we offer customization service, including load capacity, lifting height, battery, color and others.

Q:   Can I get spare parts or technical support after purchase?
A:   Yes, we provide lifetime support and spare parts supply. We can ship parts globally and assist via video call.


Q:How long is the warranty time?
A: 12 months or 2000 hours whichever comes first.

Q:What is the payment terms?
A: T/T, 30% pre-payment in advance, and 70% balance before delivery.
