Product Description

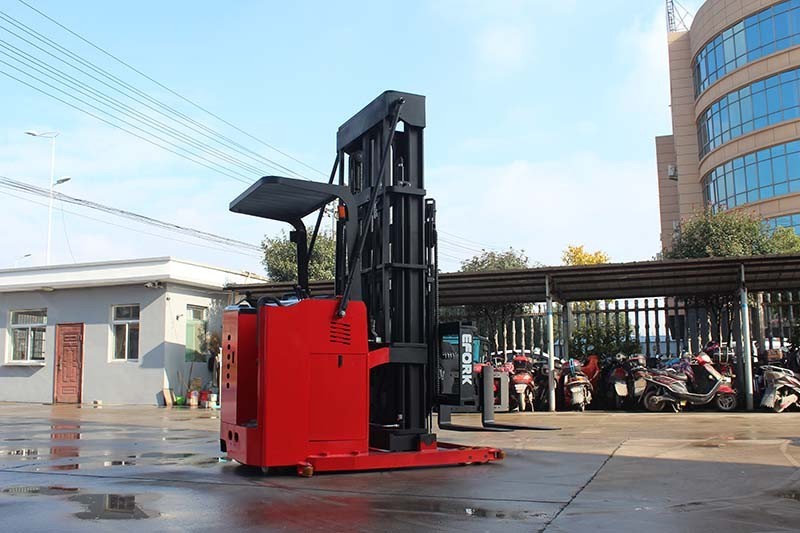

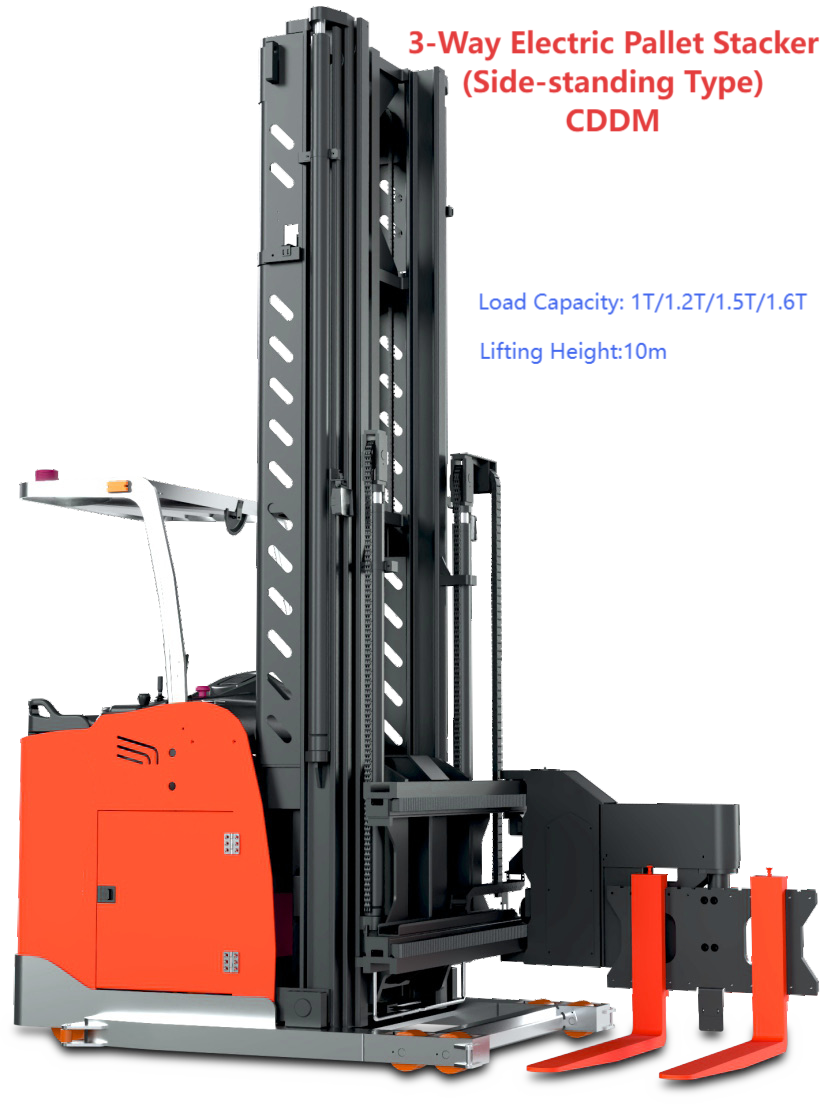

Without turning the vehicle body, three-way pallet stacker series can access goods in rotation, to left, right to load or unload the goods; Intensive storage，optimal to enlarge the warehouse capacity. The min. aisle width is only 1500mm. Outstanding performance of sorting, material handling, stacking in narrow aisles. It saves the space and enlarges the warehouse capacity greatly;

Guide rail wheel appliance achieves steering control automation, allowing vehicle to smoothly pass even the narrowest aisles;

Equipped with branded control system and multi-functional protection system, it offers a higher level fuctional safety;

Equipped with high-strength German Krupp steel mast,not easy to deform, steady operate. Optimized mast reduces the lifting and lowering viberation to offer a great operation comfort;

Equipped with camera, electronic display, timing, fault display and excellent digit transmission LED, it shows real-time vehicle operat- ion status for troubleshooting and maintenance conveniently;

Customized electromagnetic navigation/laser navigation AGV.

Model		CDDM10-60S	CDDM12-60S	CDDM15-60S	CDDM16-60S
Power		Electric
Operation		Side-standing
Rated load	Q(kg)	1000	1200	1500	1600
Load centerdistance	C(mm)	500	500	600	600
Service weight(incl.battery)	kg	5100	5200	6300	6500
Wheel type		PU	PU	PU	PU
Drivewheel specifications	×w(mm)	Ф382*142
The front wheelspecification	Xw(mm)	φ145*100	φ145*100	φ145*100	φ145*100
The balance wheel specification	×w(mm)	φ180*76	φ180*76	φ180*76	φ180*76
Tread,front	b10(mm)	1210	1210	1305	1305
Mast height,lowered	h1(mm)	3400	3400	3400	3400
Free lifting height	h2(mm)	2235	2235	2235	2235
Lift height	h3(mm)	6000	6000	6000	6000
Mastheight,extended	h4(mm)	7125	7125	7125	7125
Overhead guard height	h14(mm)	2260/2300
Length(forks rotate on both left and right sides)	l2(mm)	3045	3045	3065	3065
Vehicle width	b1(mm)	1455	1455	1550	1550
Anti-collision guardrail width	(mm)	1500	1500	1600	1600
Forks dimensions	s/e/l(mm)	40/122/1070		45/125/1200
Forks adjustment dimensions	b5(mm)	260-650 (Customized)
The min.ground clearance (wheelbase center)	m2(mm)	32	32	32	32
Stacking aisle width	Ast(mm)	1500(1000*1000pallet)		1600(1200*1200pallet)
Aisle guide rail width	(mm)	120	120	120	120
The min.tuning radius	Wa(mm)	1985	1985	1985	1985
The main aisle width		3270+400	3270+400	3470+400	3470+400
The max. travelling speed,unladen/full-loaded	km/h	8/7	8/7	8/7	8/7
Lift speed,unladen/full-loaded		0.30/0.26	0.30/0.26	0.30/0.26	0.30/0.26
Lowerspeed,unladen/full-loaded		0.30/0.32	0.30/0.32	0.36/0.39	0.36/0.39
Service brake		Electromagnetic
Drive motor power		6.5AC	6.5AC	6.5AC	6.5AC
Lift motor power		15AC	15AC	15AC	15AC
Battery type		Lead-acid	Lead-acid	Lead-acid	Lead-acid
Battery voltage/capacity	V/Ah	48/400	48/400	48/400	48/400
Motor	V/A	48/50	48/50	48/50	48/50
Drive control mode		AC	AC	AC	AC
