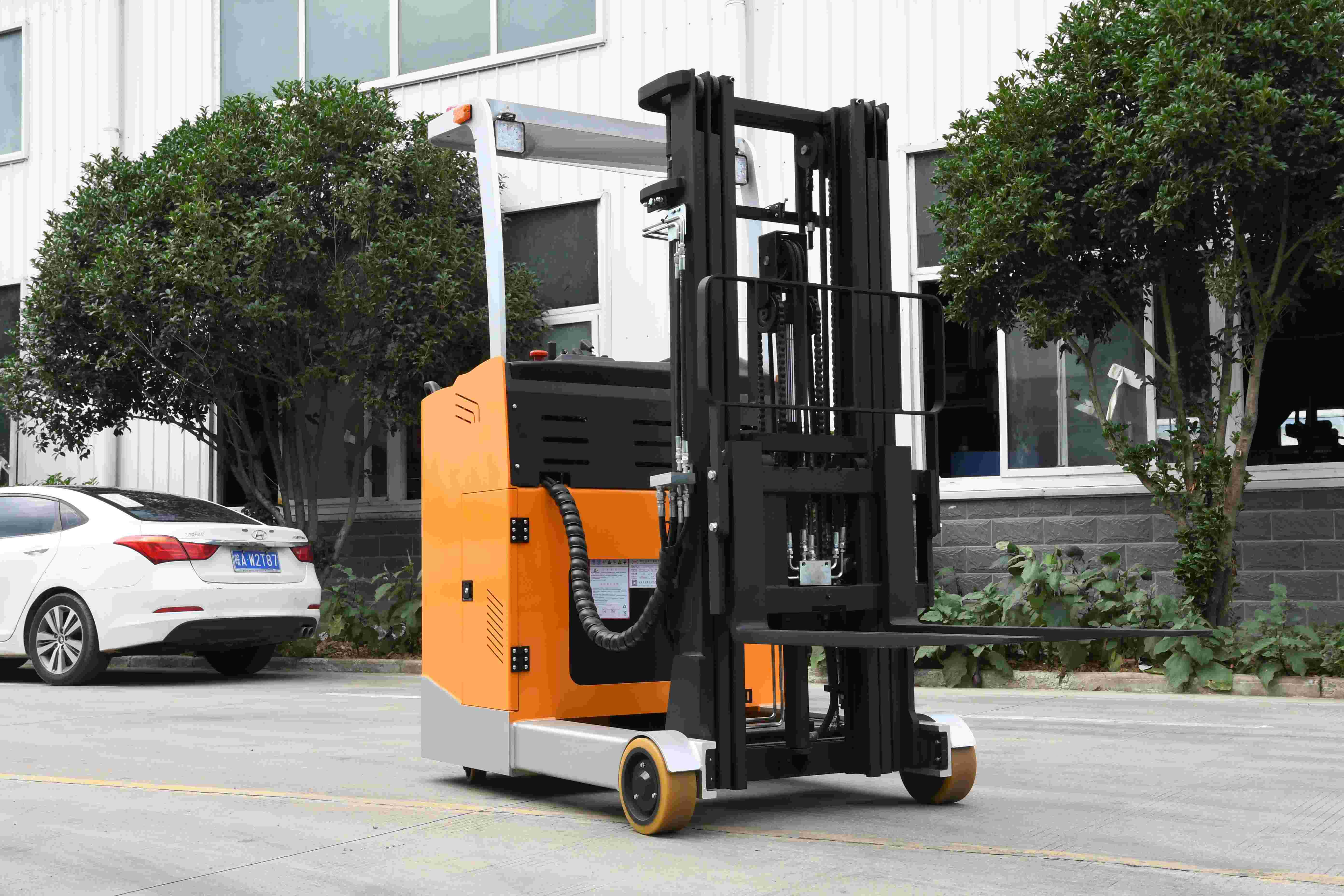

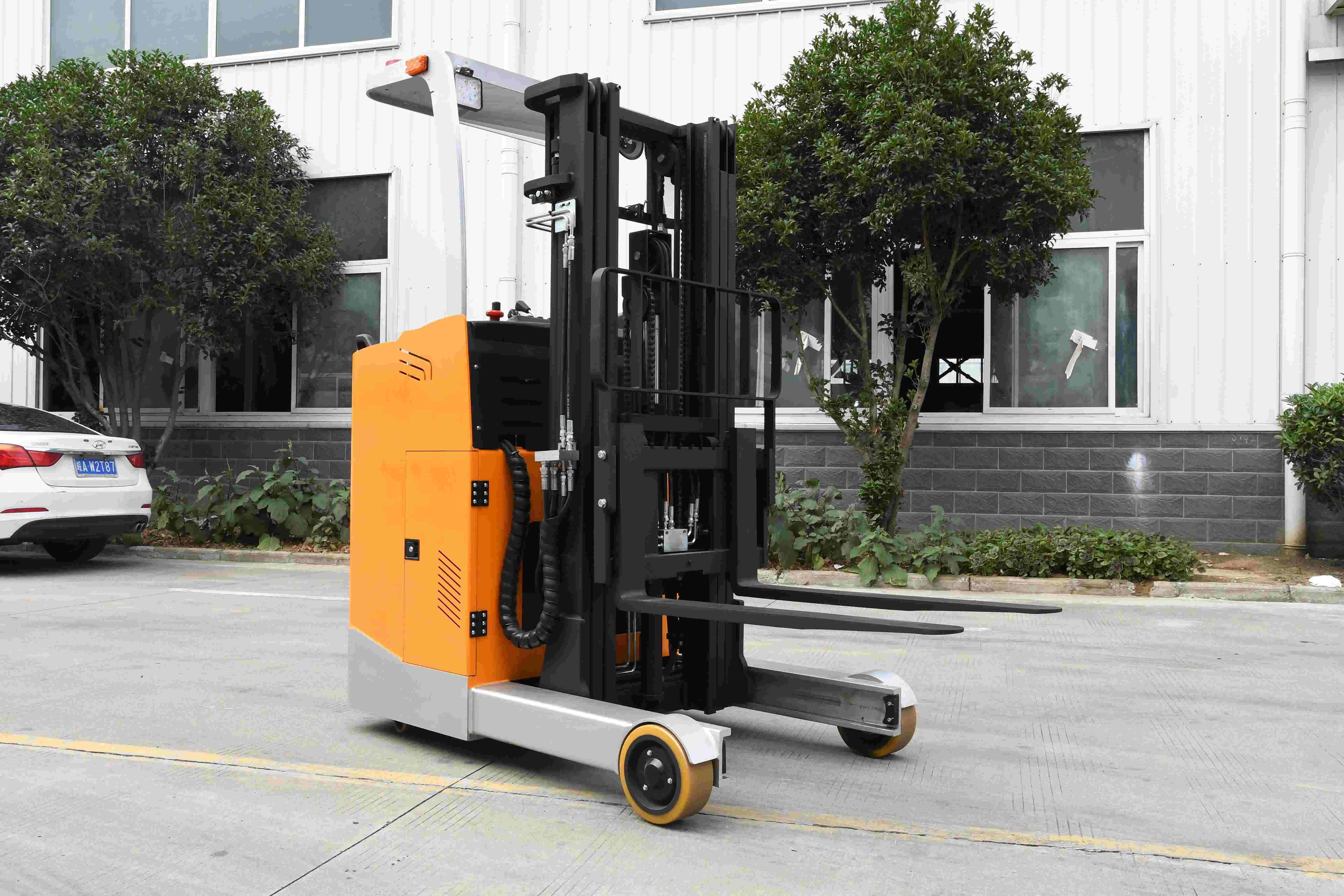

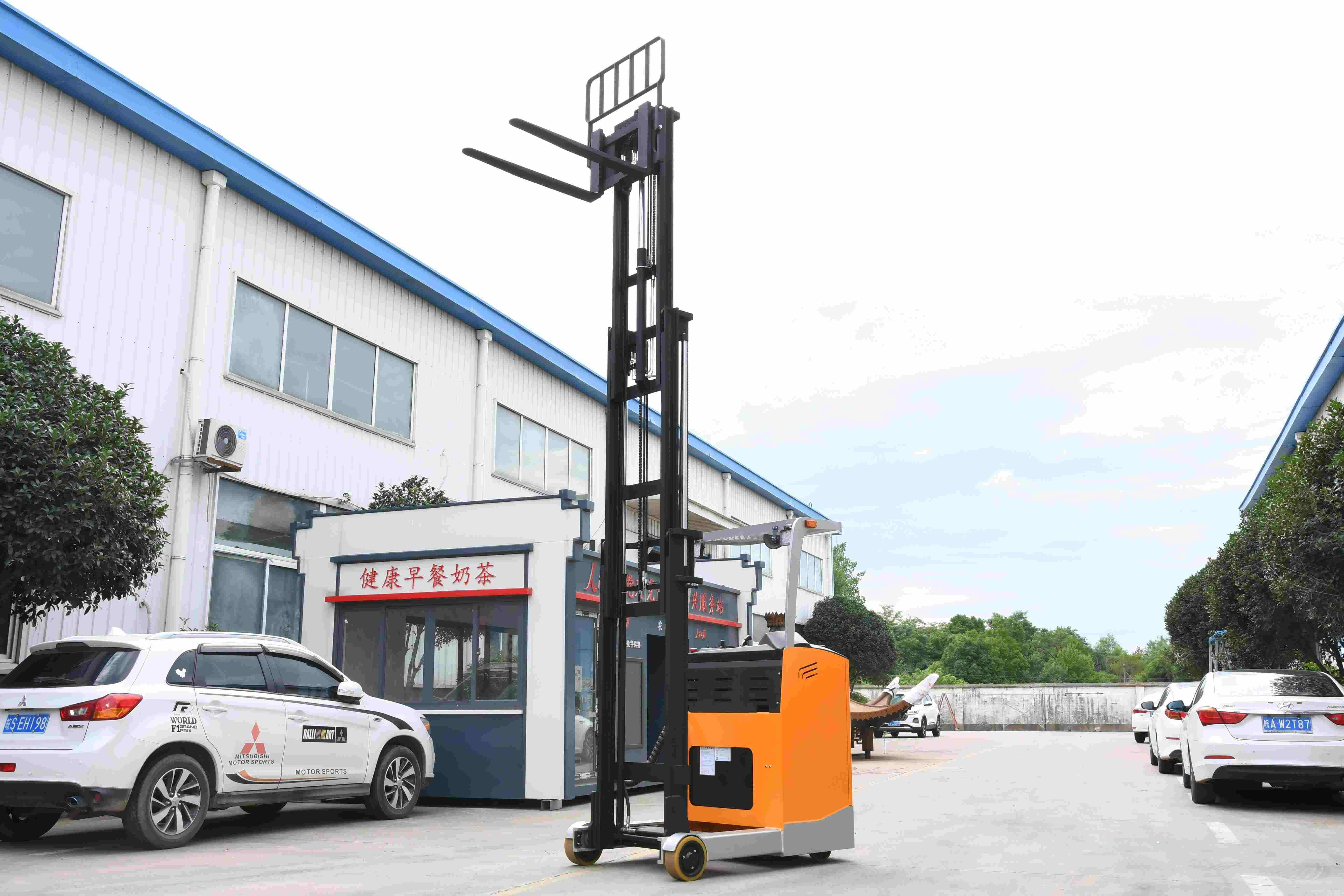

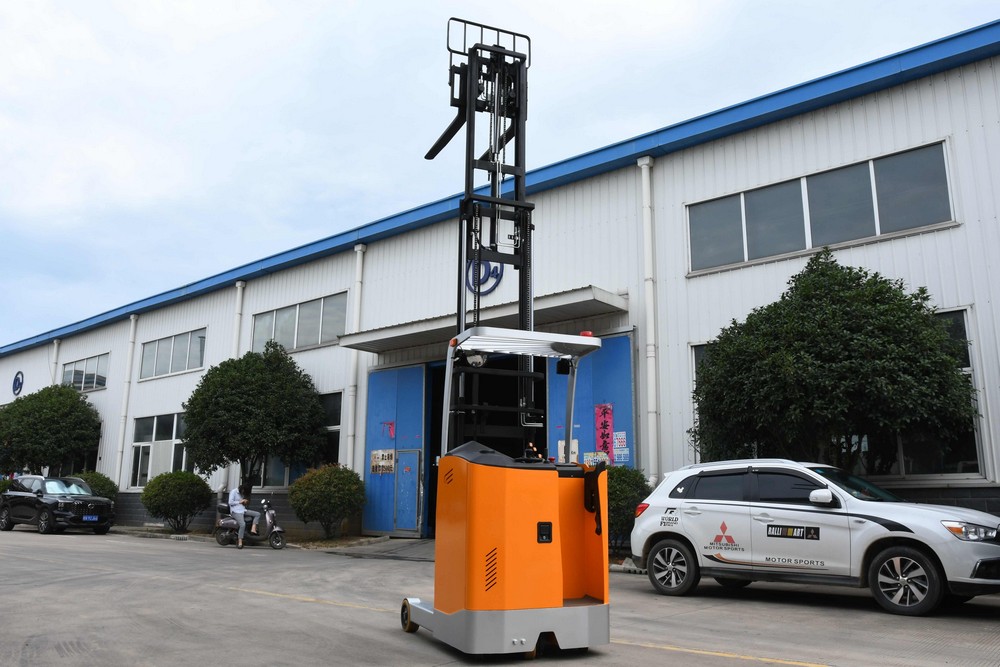

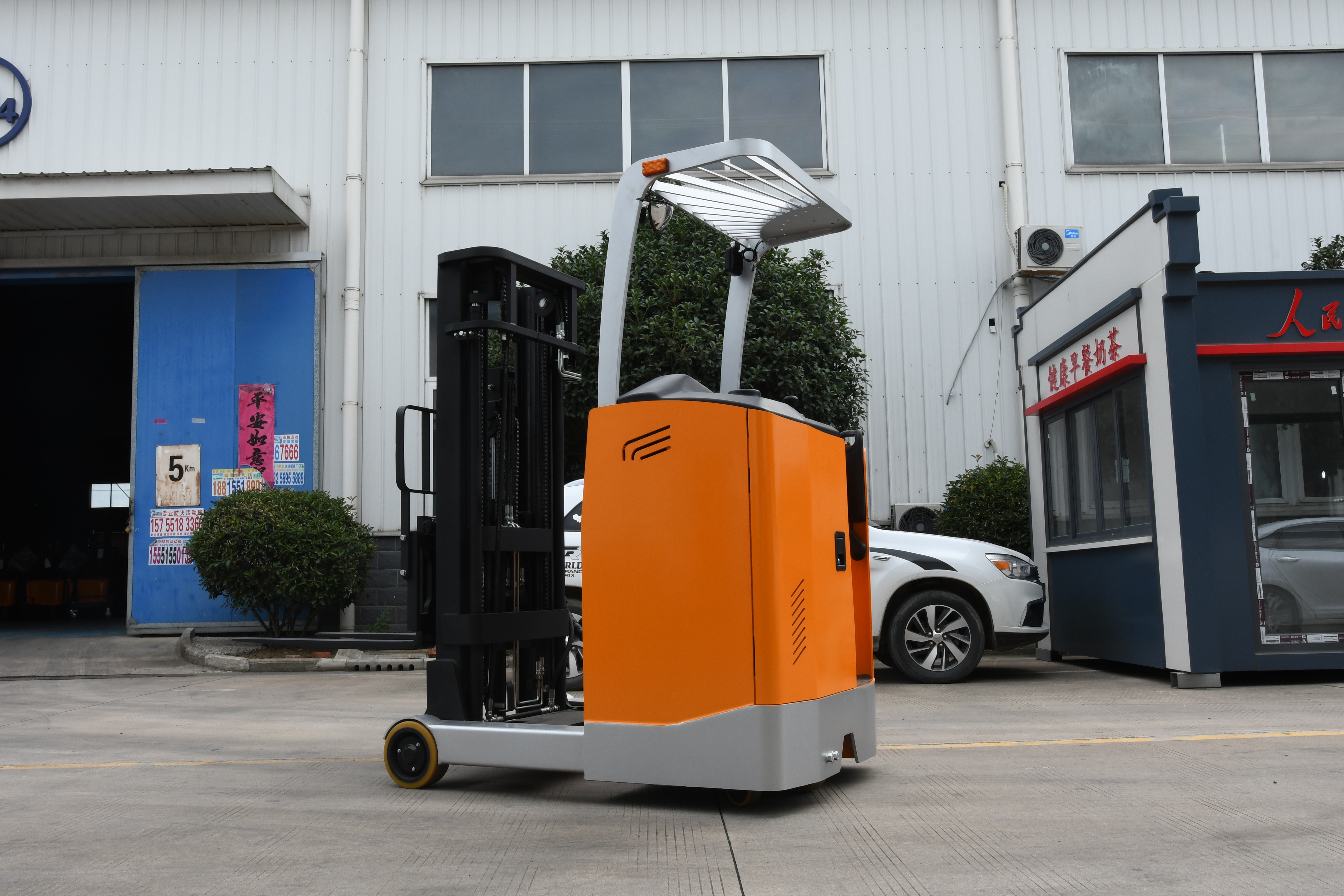

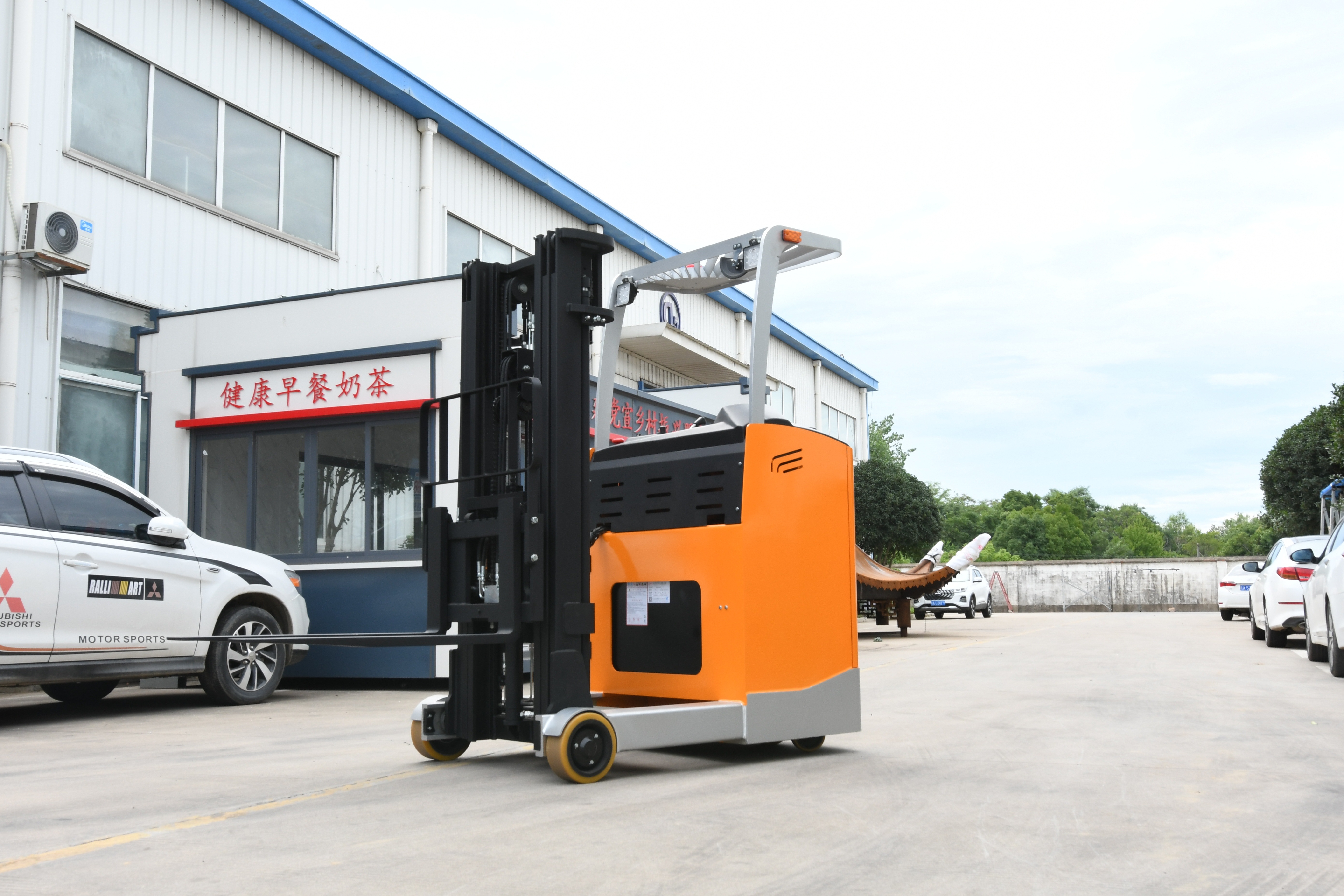

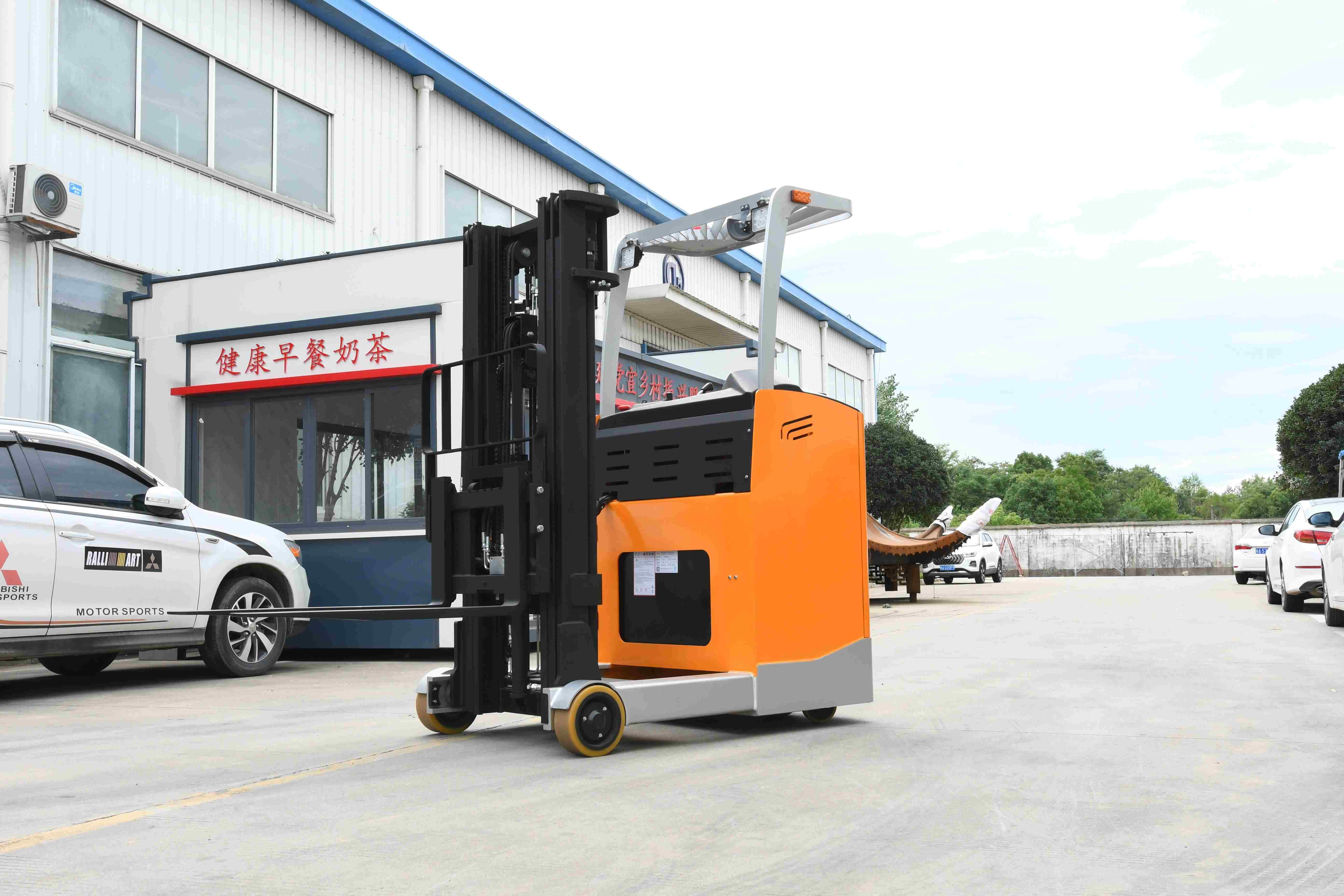

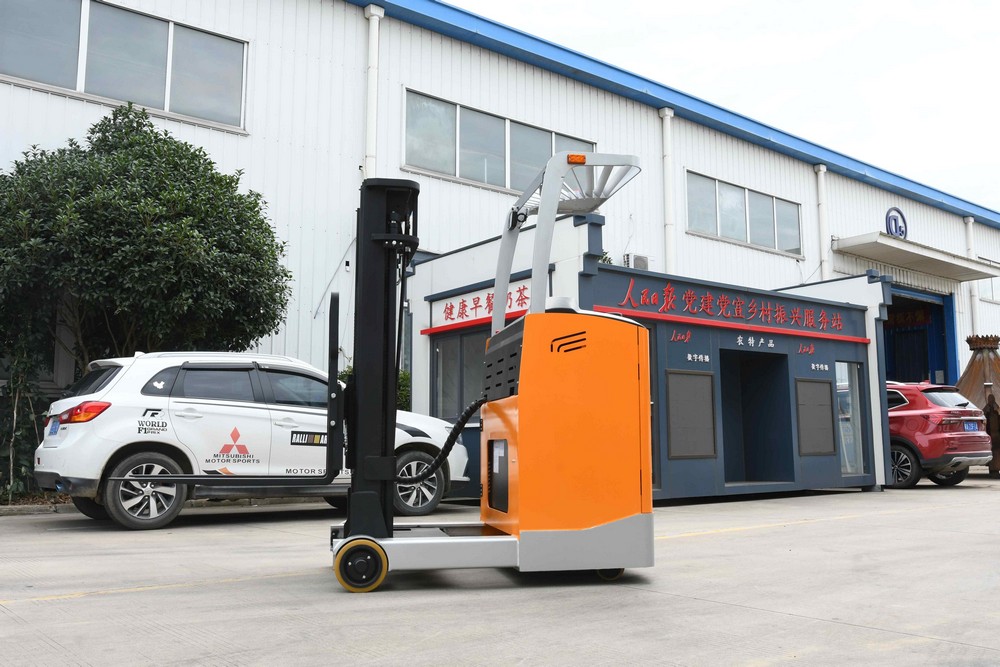

Compact structure, high maneuverability. Low gravity center with good stability. It suits large tonnage, high lifting goods storage scenarios;

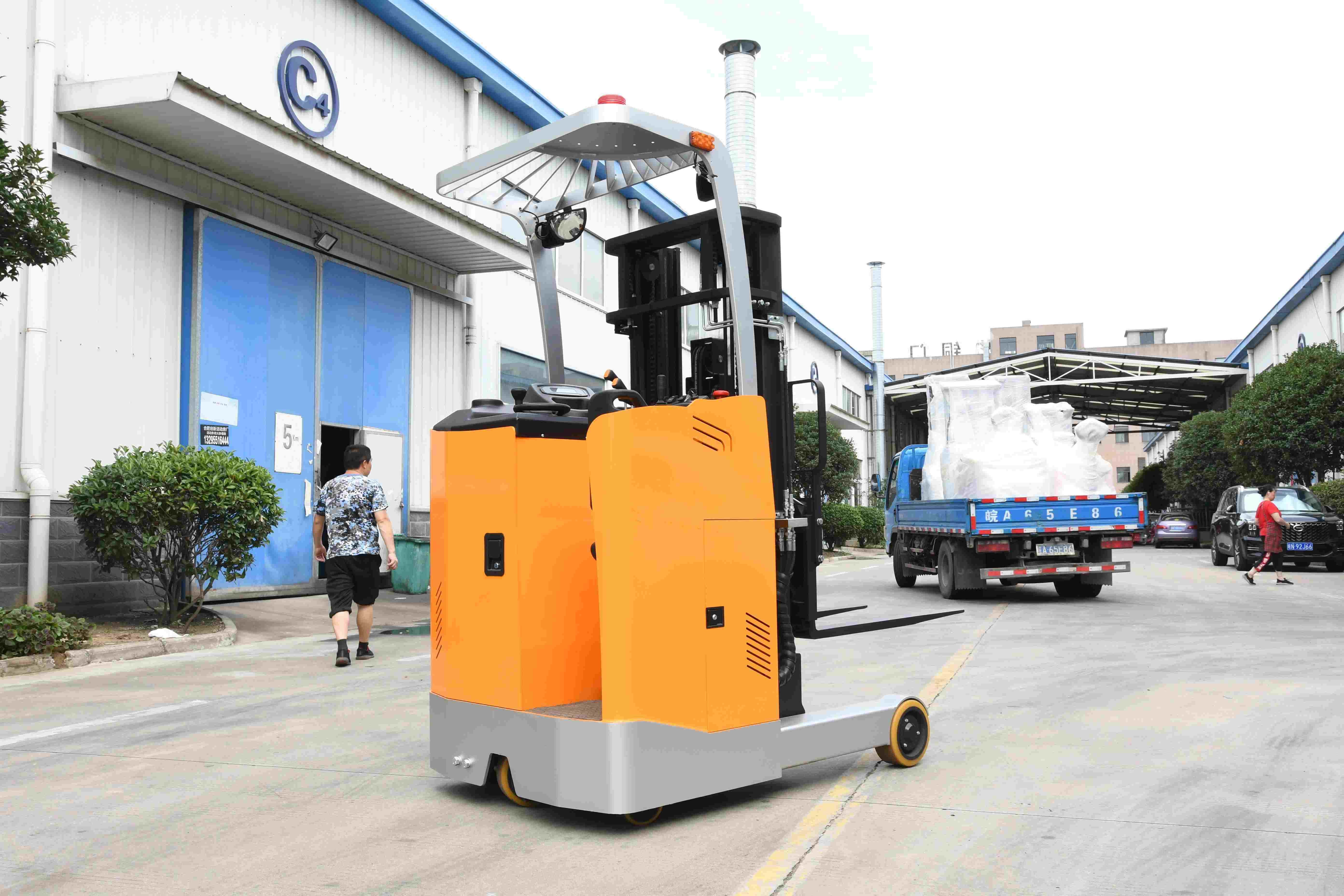

It features in overall mast moving forward, with small turning radius to neglect obstacles at the bottom of the racks. It suits any space-limited scenarios, easy loading or unloading goods;

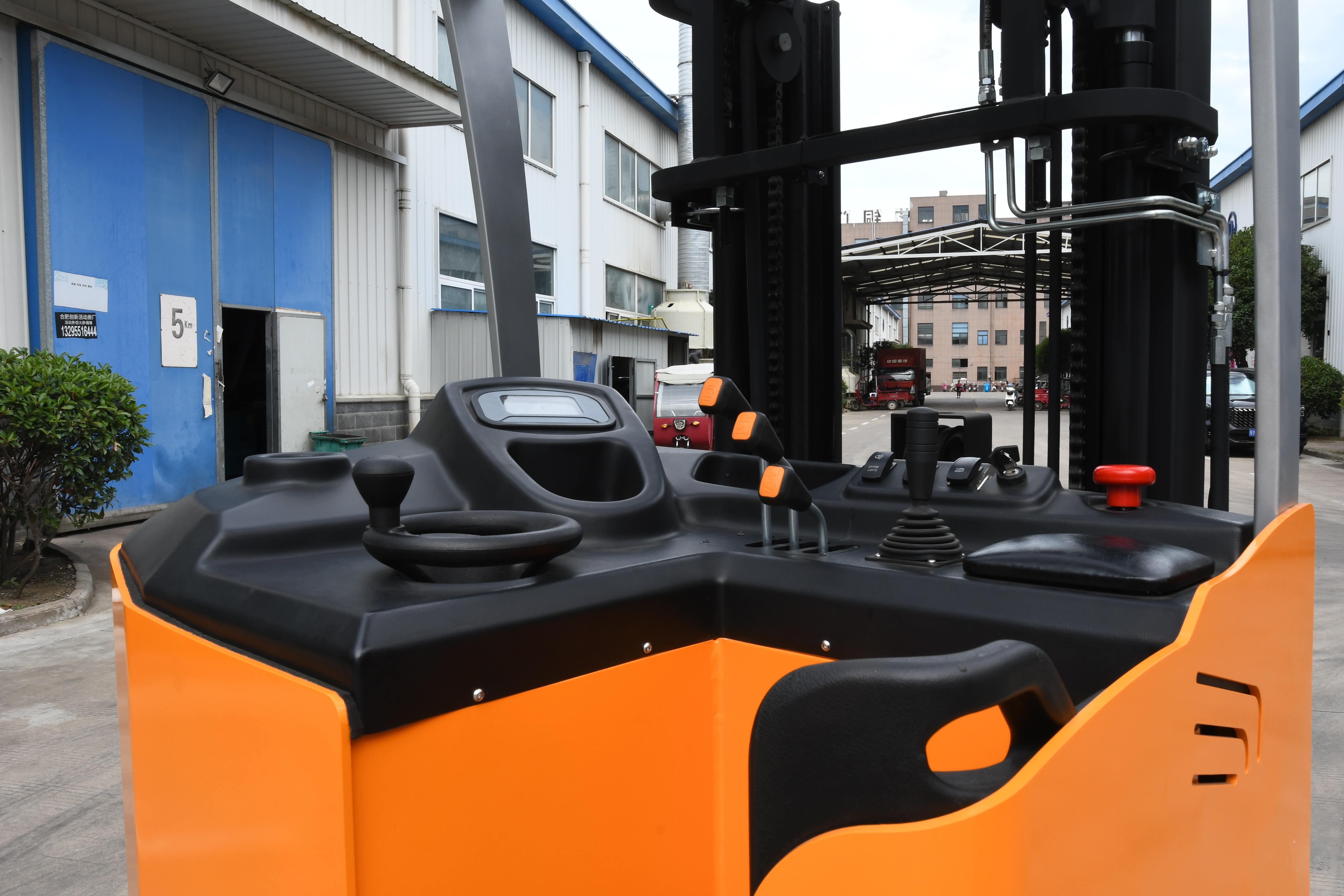

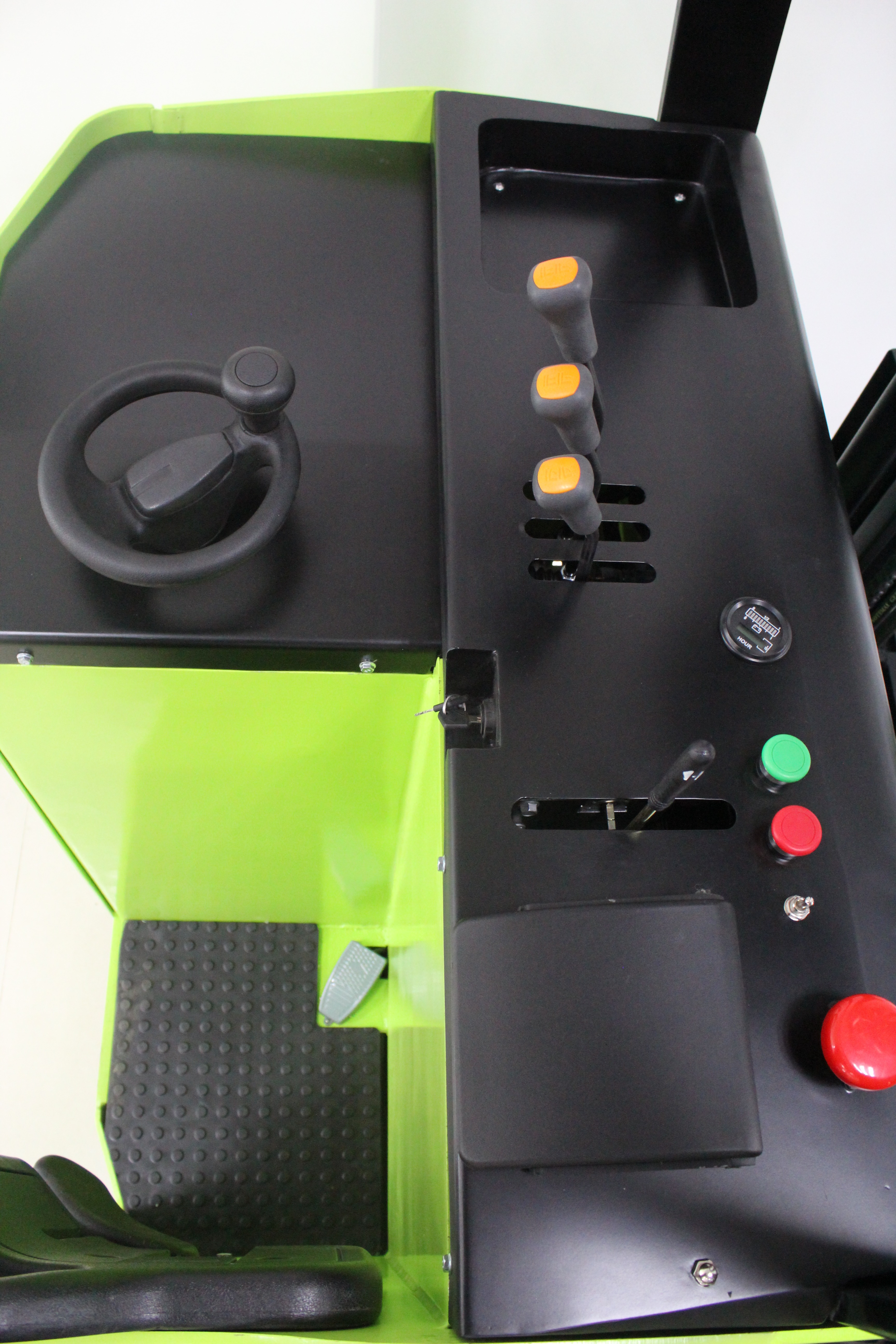

Equipped with branded control system and multi-functional protection system, it offers a higher level functional safety;
Equipped with vertical branded gear box, multi-functional solutions and flexible module construction system. Optimized gear meshing technology can reduce the noise and offer high performance and efficiency;
EPS steering energy reduces 20% with accurate operation, flexible steering, relieving operators pressures and greatly improving the production ability;
Equipped with full AC drive system, small volume, light weight, high efficiency, free-maintenance and carbon-brush replacement. No more maintenance and protection.
Characteristic | Model | | CQD12D-45S | CQD15D-45S | CQD20D-45S |
Power(electricity,diesel,LPG,petrol,manual) | | Electric | Electric | Electric |
Operation(manual,walkie,side-standing,picker) | | Side-standing |
Rated load capacity | Q(kg) | 1200 | 1500 | 2000 |
Load center distance | C(mm) | 500 | 500 | 500 |
The front overhang distance | X(mm) | 145 | 145 | 145 |
Wheelbase | Y(mm) | 1399 | 1399 | 1584 |
Weight | Service weight(incl.battery) | kg | 2200 | 2200 | 2300 |
Wheel/
Chassis | Wheel type | | PU | PU | PU |
Front wheel specification | ø×w(mm) | φ254*104 | φ254*104 | φ254*104 |
Drivewheel specification | ø×w(mm) | φ230*75 | φ230*75 | φ230*75 |
Balance Wheel specification | ø×w(mm) | φ150*50 | φ150*50 | φ150*50 |
Tread,front | b10(mm) | 978 | 978 | 978 |
Tread,rear | b11(mm) | 804 | 804 | 804 |
Dimensions | Vehicle height,mast retracted | h1(mm) | 2120 | 2120 | 2120 |
Liftheight | h3(mm) | 4500 | 4500 | 4500 |
Mast height,extended | h4(mm) | 5485 | 5485 | 5485 |

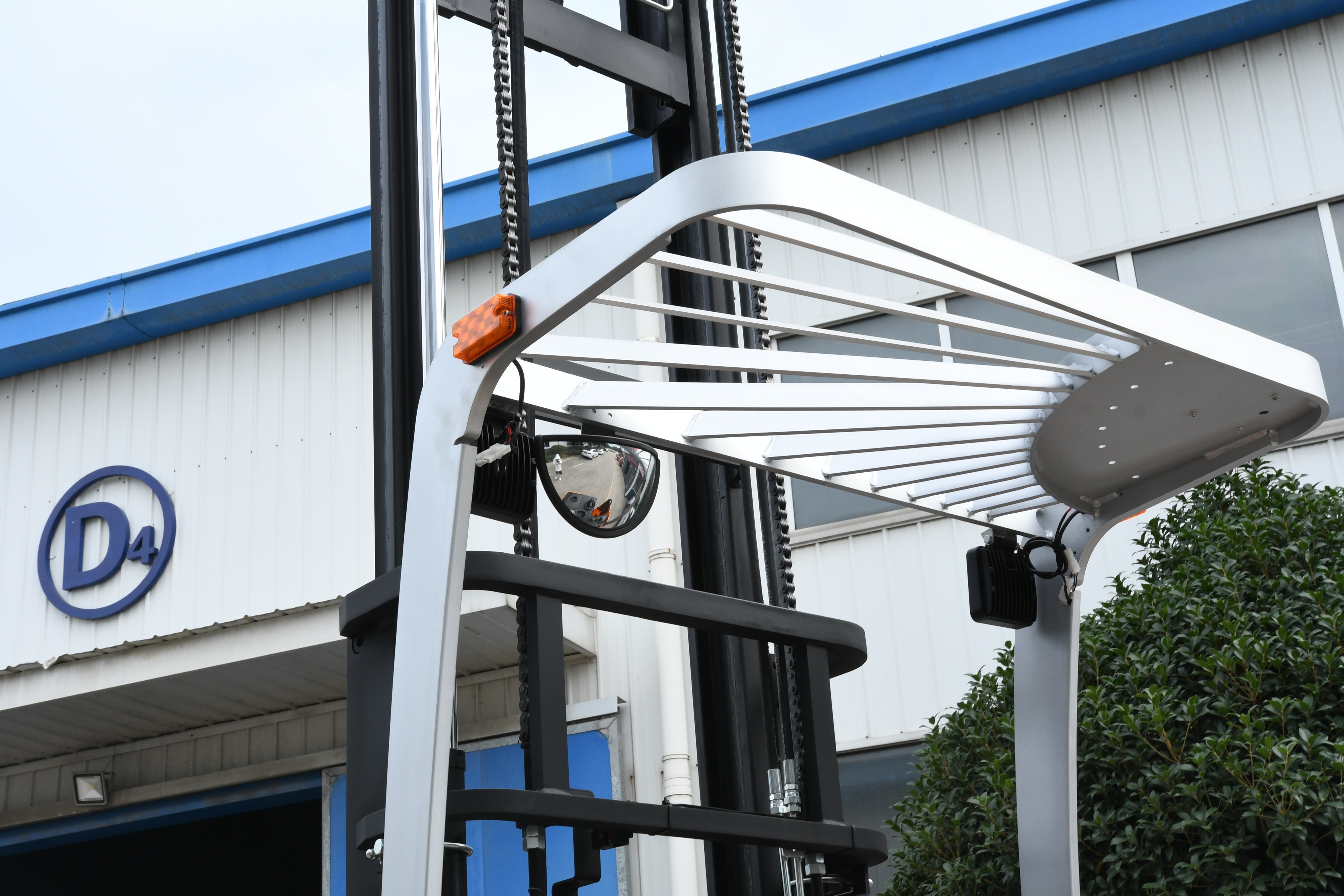

Overhead guard height | h14(mm) | 2308 | 2308 | 2308 |
Forks height,mast retracted | h13(mm) | 35 | 35 | 40 |
Mast/forkstilting angle(the front/the rear) | a/β(°) | 3/5 | 3/5 | 3/5 |
Vehicle bodylength (incl.forks) | l1(mm) | 2272 | 2272 | 2460 |
Vehicle body length(excl.forks) | 12(mm) | 1703 | 1703 | 1888 |
Vehicle body width | b1(mm) | 1098 | 1098 | 1098 |
Forks dimensions | s/e/l(mm) | 35/100/1070 | 40/122/1070 |
Forks adjustment dimensions | b5(mm) | 210-705 | 210-705 | 244-705 |
Forward moving distance | L(mm) | 500 | 500 | 600 |
The min.ground clearance(Wheelbase center) | m2(mm) | 77 | 77 | 77 |
Stackingaisle width,pallet1m×1.2m(1.2m cross forks) | Ast(mm) | 2771 | 2771 | 2880 |
The min.turning radius | Wa(mm) | 1600 | 1600 | 1781 |
Peformance | Travelling speed,unladen/ful-loaded | km/h | 5/4 | 5/4 | 5/4 |
Lift speed unladen/full-loaded | m/s | 0.135/0.115 | 0.135/0.110 | 0.135/0.100 |
Lowerspeed unladen/full-loaded | m/s | 0.085/0.120 | 0.085/0.132 | 0.085/0.140 |
The max.gradability,unladen/full-loaded | % | 8/6 | 8/4 | 8/4 |
Service brake | | Electromagnetic |
Motor | Drivemotor power | kw | 1.5 | 2.5 | 2.5 |
Liftmotorpower | kw | 3 | 3 | 3 |
Battery type | | Lead-acid | Lead-acid | Lead-acid |
Battery voltage/capacity | V/Ah | 24/280 | 24/280 | 24/280 |
Charger | V/A | 24/40 | 24/40 | 24/40 |
Others | Drive control mode | | AC | AC | AC |
Noise level at driver'sears accordingto En12053 | dB(A) | 75 | 75 | 75 |
