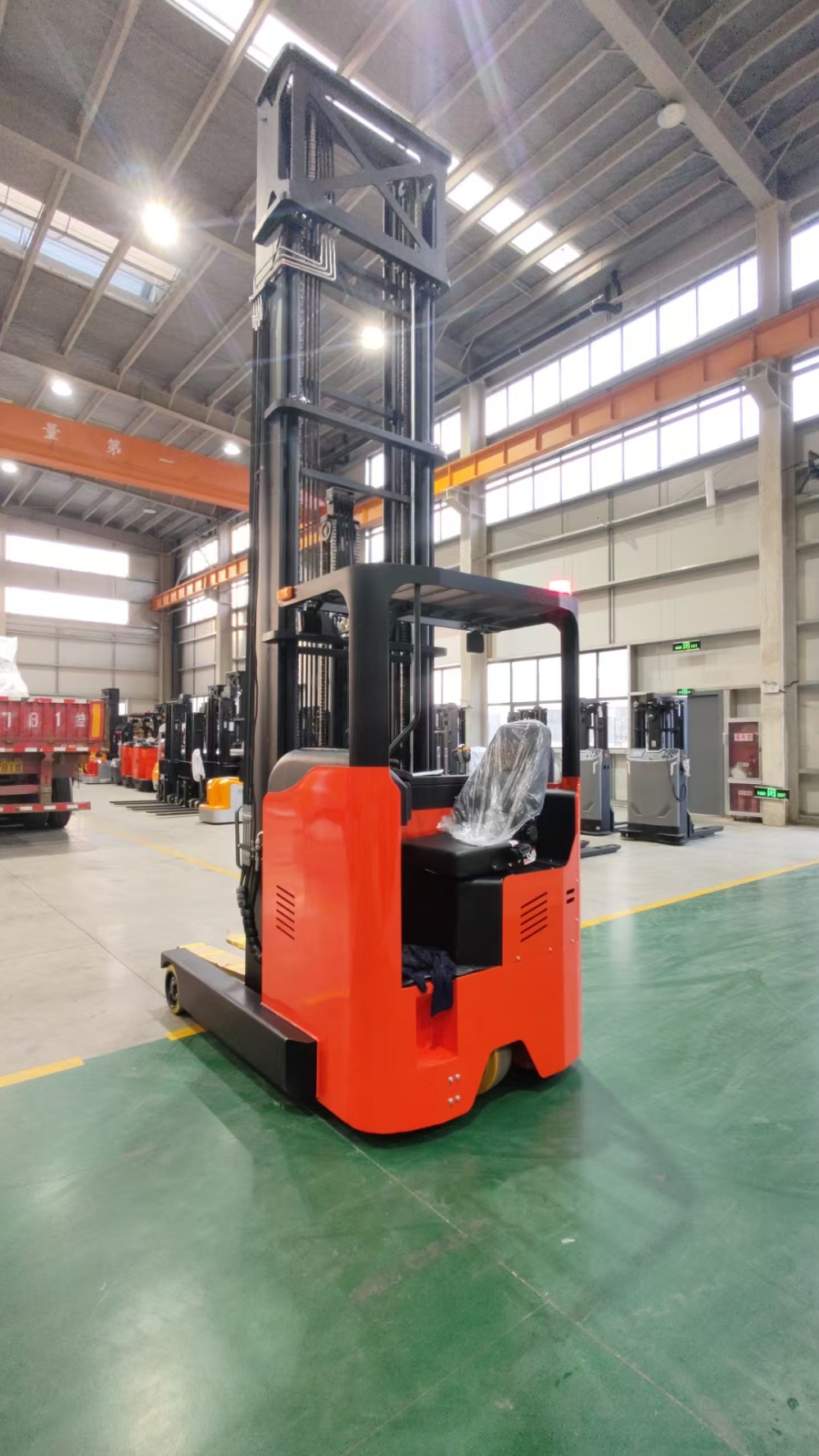

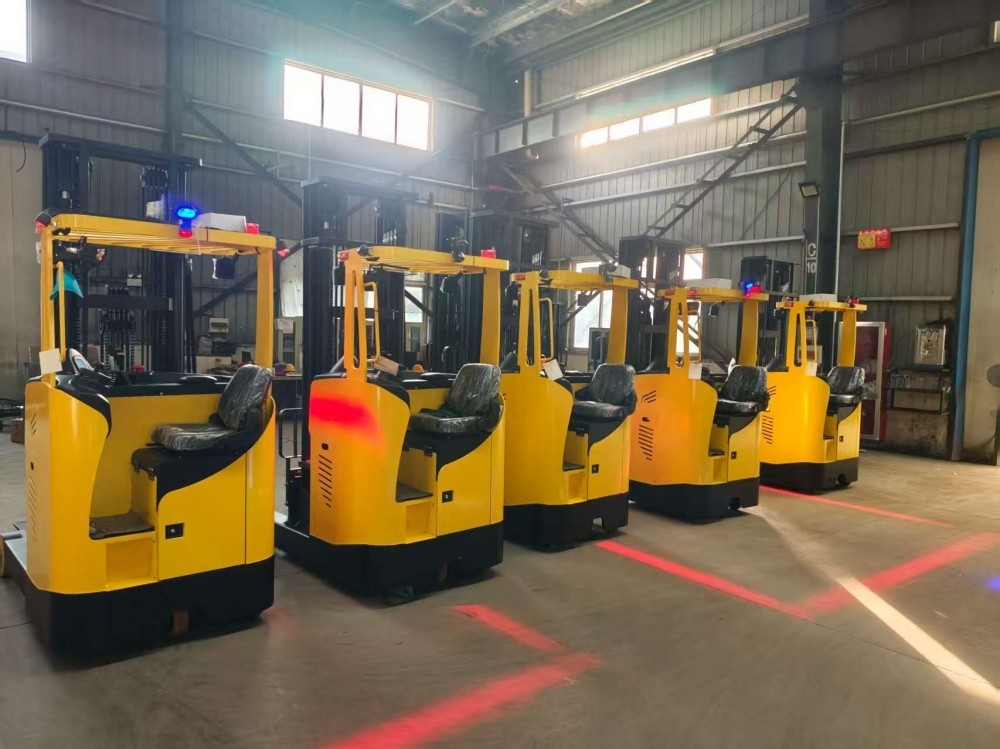

Compact structure, high maneuverability. Low gravity center with good stability. It suits large tonnage, high lifting goods storage scenarios;

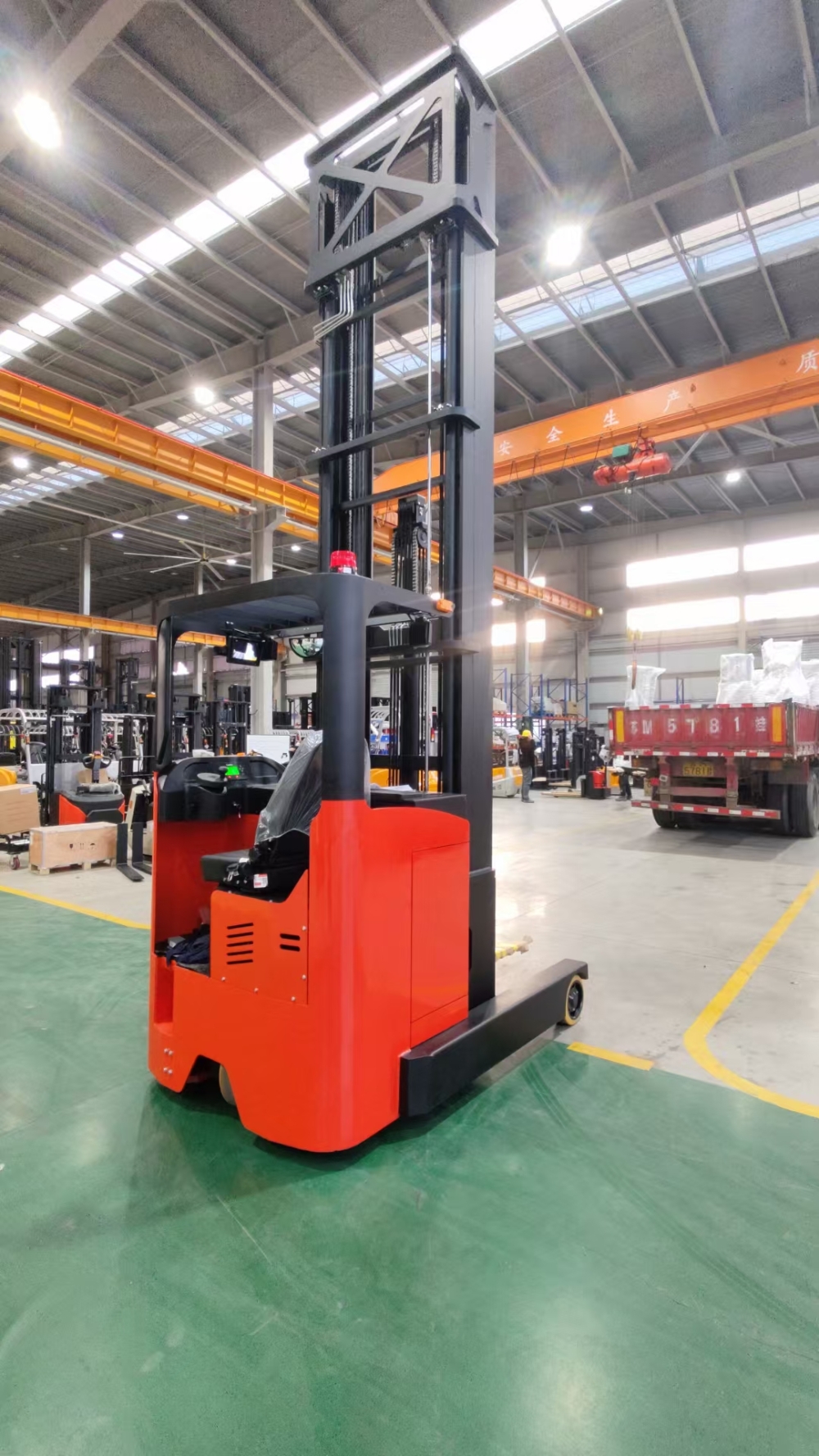

It features in overall mast moving forward, with small turning radius to neglect obstacles at the bottom of the racks . It suits any space-limited scenarios, easy loading or unloading goods;

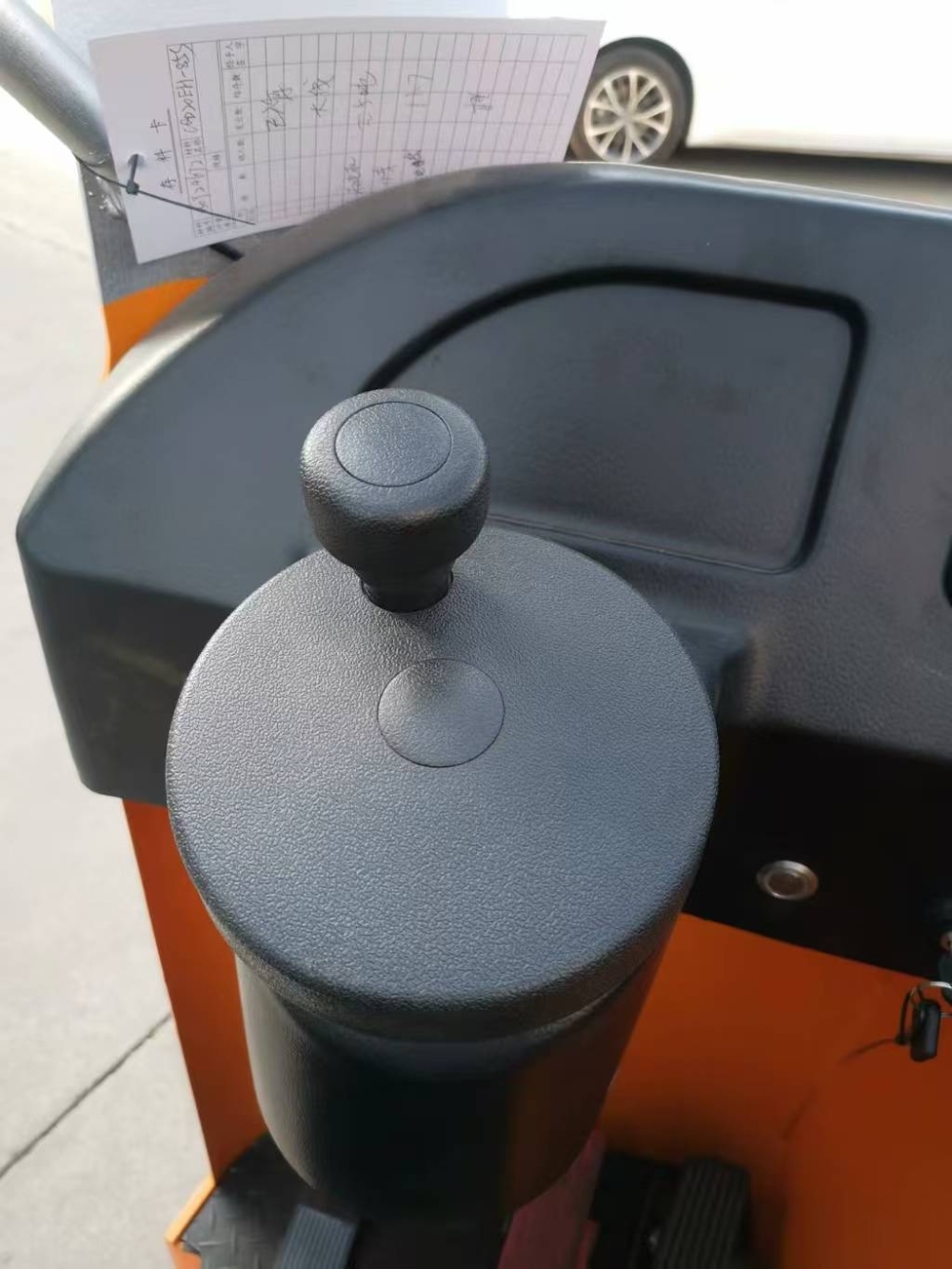

Equipped with full AC drive system, small volume, light weight, hig h effic ie ncy , free - ma i nte na nce a nd ca r bo n - b r us h replacement. No more maintenance and protection;

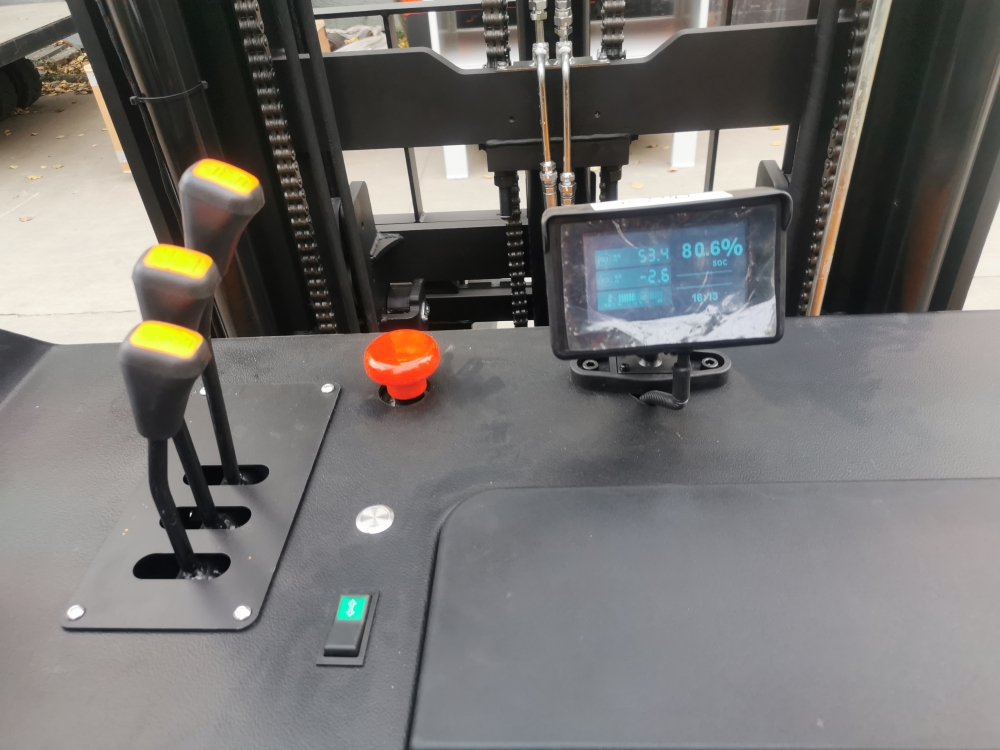

Standard forks tilting up or down function, prevents goods from tipping over and improving the load capability;
Side-pull battery suits multi-shifing occasions , with standard roller trolley for easy change;

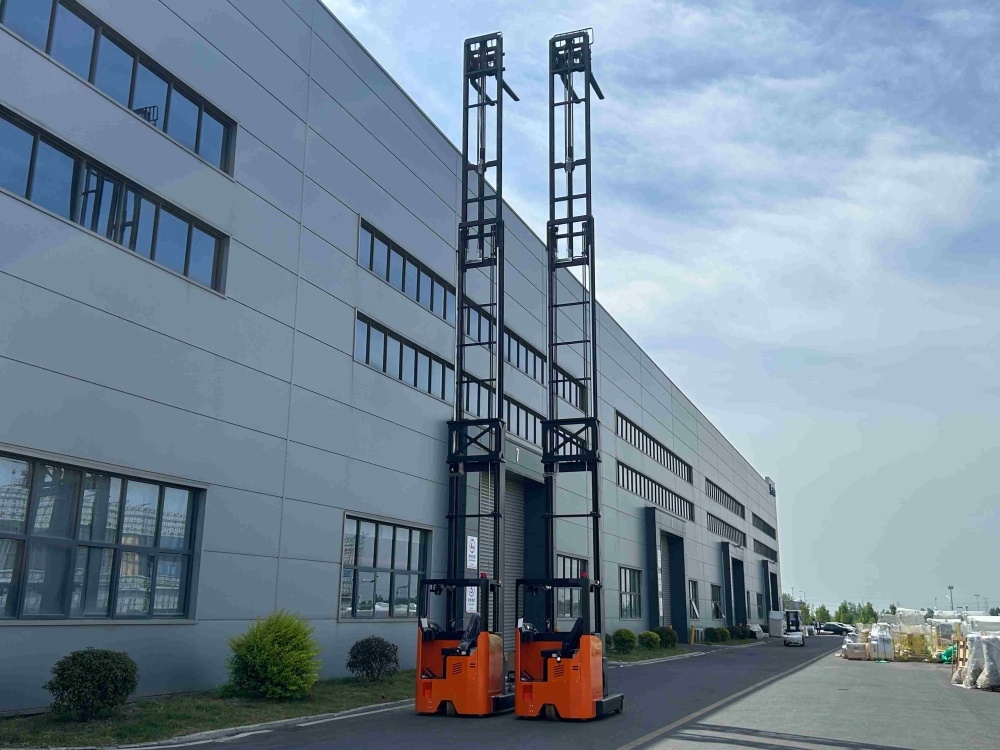

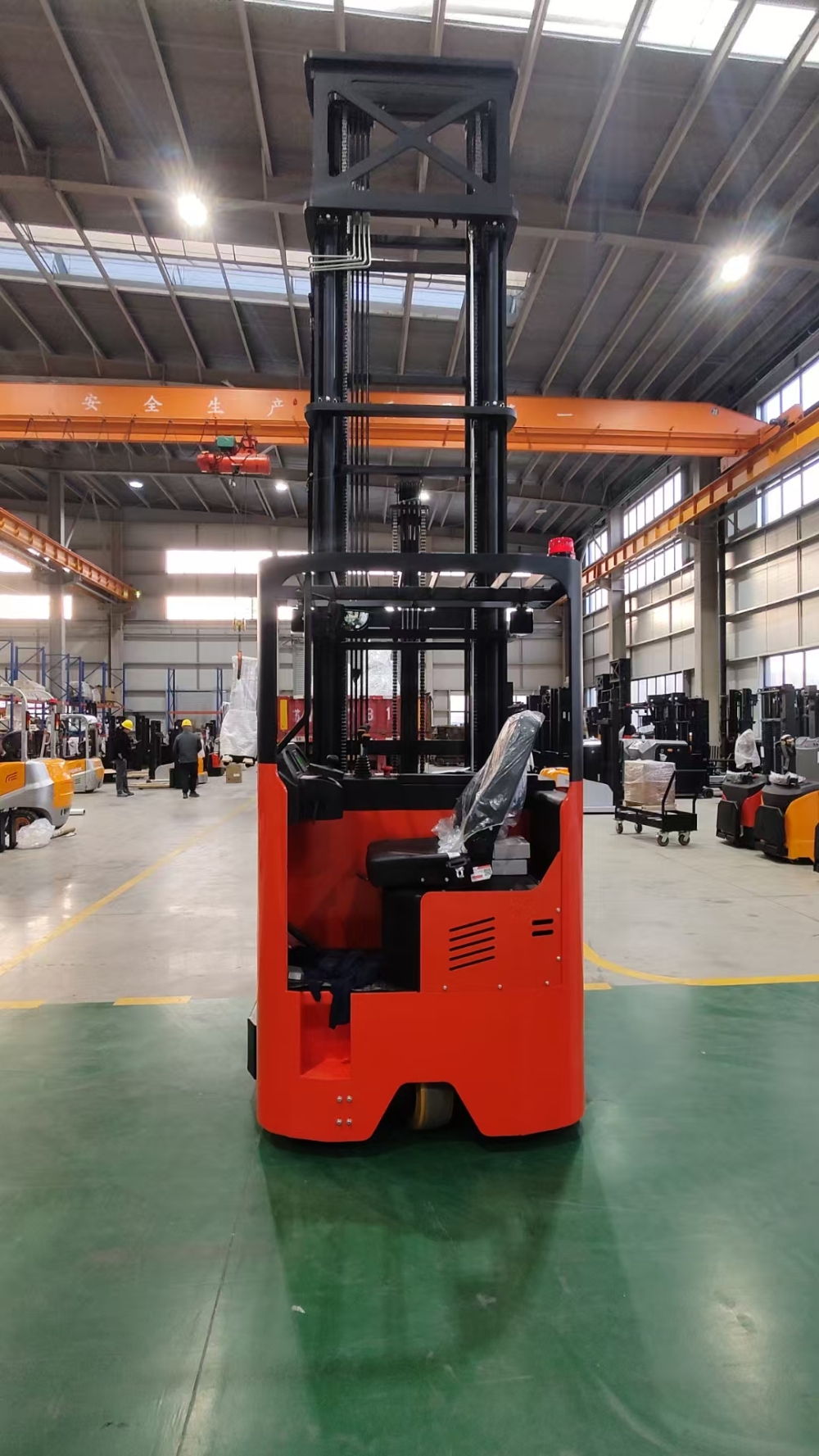

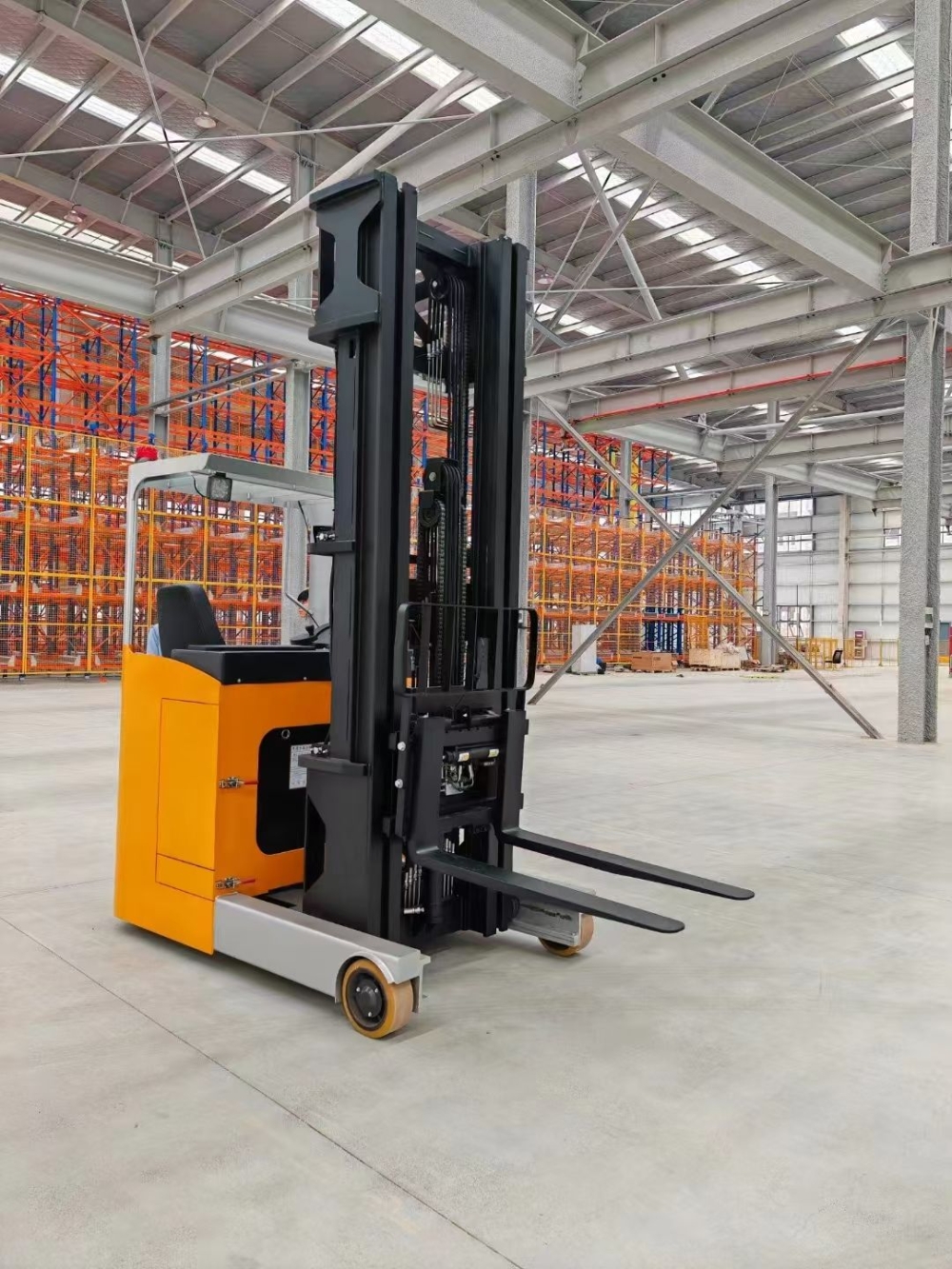

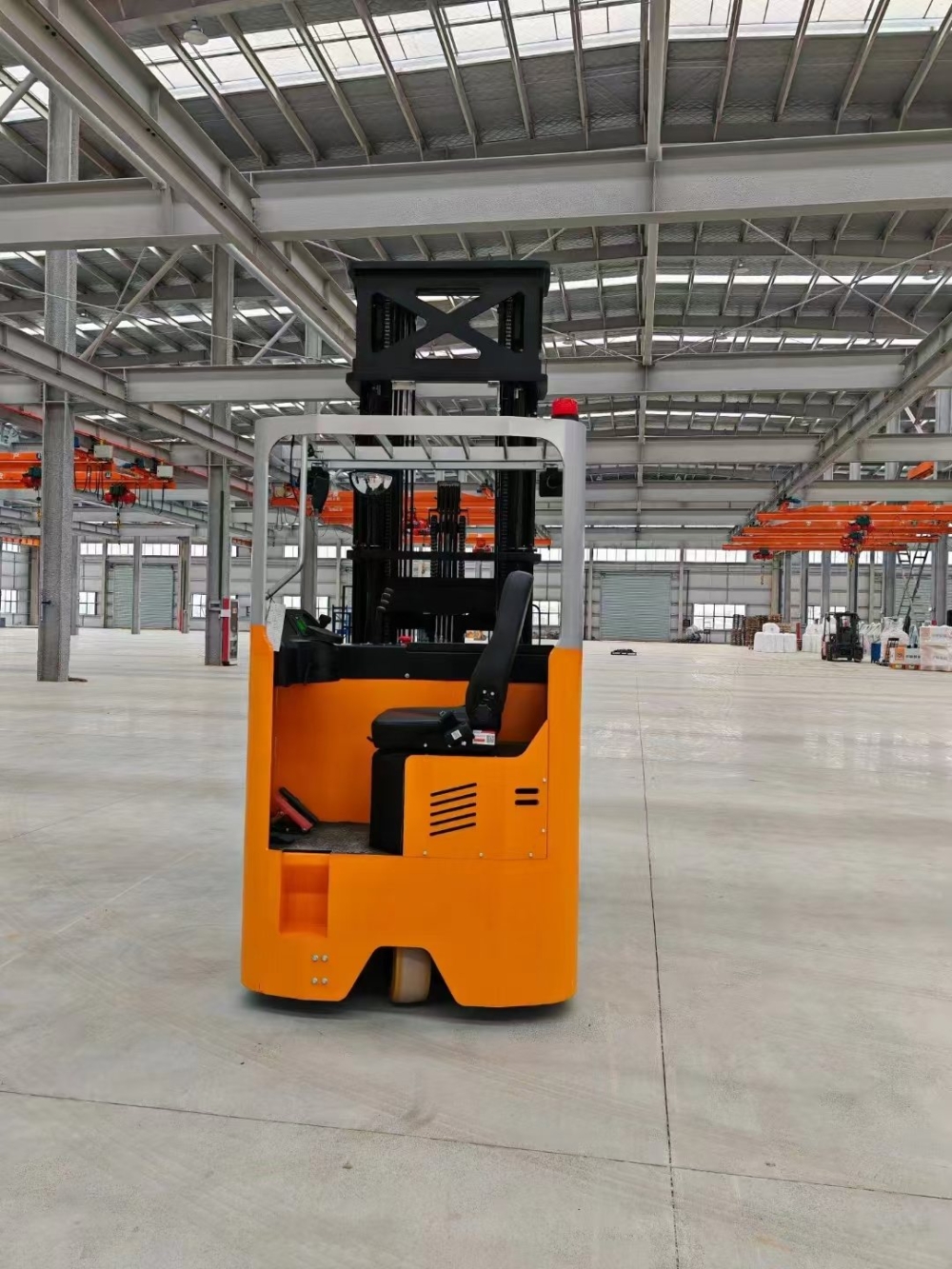

6.5m or above high-strength H type mast steel, not easy to deform, with reliable and stable operation.
Characteristic | Model | | CQDE15-45S | CQDE20-45S | CQDE20H-120S |
Power(electricity,diesel,LPG,petrol,manual) | | Electric | Electric | Electric |
Operation(manual,walkie,side-standing,picker) | | Seated type | Seated type | Seated type |
Rated load capacity | Q(kg) | 1500 | 2000 | 2000 |
Load center distance | C(mm) | 500 | 500 | 500 |
Wheelbase | Y(mm) | 1470 | 1620 | 1650 |
Forward moving distance | L(mm) | 505 | 655 | 610 |
The front overhang distance | X(mm) | 183 | 183 | 183 |
Weight | Service weight(incl.battery) | kg | 3100 | 3200 | 5390 |
Wheel/
Chassis | Wheel type | | PU | PU | PU |
Front wheel specification | ø×w(mm) | φ267*114 | φ267*114 | φ267*114 |
Drive wheel specification | ø×w(mm) | φ382*142 | φ382*142 | φ382*142 |
Tread,front | b10(mm) | 1180 | 1180 | 1329 |
Dimensions | Vehicle height,mast retracted | h1(mm) | 2105 | 2105 | 5136 |
Free lift height | h2(mm) | 1500 | 1500 | 4020 |
Liftheight | h3(mm) | 4500 | 4500 | 12000 |
Mast height,extended | h4(mm) | 5465 | 5465 | 12995 |
Overhead guard height | h14(mm) | 2180 | 2180 | 2180 |
Forks height,mast retracted | h13(mm) | 35 | 40 | 40 |
Mast/forkstiltingangle (the front/the rear) | a/β(°) | 3/5 | 3/5 | 3/5 |
Vehicle body length(incl.forks) | 12(mm) | 2477 | 2477 | 2565 |
Vehicle body width | b1(mm) | 1270 | 1270 | 1270/1460 |
Forks dimensions | s/e/l(mm) | 35/100/1070 | 40/122/1070 | 40/122/1070 |
Forks adjustment dimensions | b5(mm) | 210-705 | 244-705 | 260-840 |
The min.ground clearance(Wheelbase center) | m2(mm) | 70 | 70 | 70 |
Stacking aisle width,pallet1m×1.2m
(1.2m cross forks) | Ast(mm) | 2964 | 3007 | 3010 |
The min.turning radius | Wa(mm) | 1800 | 1900 | 1922 |
Performance | Travelling speed,unladen/full-loaded | km/h | 14/14 | 14/14 | 14/14 |
Lift speed unladen/full-loaded | m/s | 0.330/0.245 | 0.450/0.340 | 0.450/0.340 |
Lowerspeed unladen/full-loaded | m/s | 0.350/0.380 | 0.360/0.420 | 0.360/0.420 |
The max.gradability,unladen/full-loaded | % | ≤10 | ≤10 | ≤10 |
Service brake | | Electromagnetic |
Motor | Drive motor power | kw | 6.5AC | 6.5AC | 6.5AC |
Liftmotorpower | kw | 7.5AC | 12AC | 15AC |
Battery type | | Lead-acid | Lead-acid | Lead-acid |
Battery voltage/capacity | V/Ah | 48/300 | 48/400 | 48/400 |
Charger | V/A | 48/40 | 48/50 | 48/50 |
Others | Drive control mode | | AC | AC | AC |
Noise level at driver's ears according to En12053 | dB(A) | 75 | 75 | 75 |
