Characteristic | Model | CQD15-45S | CQD20-45S | CQD20M-70S | |
Power(electricity,diesel,LPG,petrol,manual) | Electric | Electric | Electric | ||
Operation | Side-standing | ||||
Rated load capacity | Q(kg) | 1500 | 2000 | 2000 | |
Load center distance | C(mm) | 500 | 500 | 500 | |
Wheelbase | Y(mm) | 1383 | 1533 | 1693 | |
Forward moving distance | L(mm) | 500 | 594 | 565 | |
Weight | Service weight(incl.battery) | kg | 2850 | 3025 | 3355 |
Wheel/ Chassis | Wheeltype | PU | PU | PU | |
Front wheel specification | ø×w(mm) | φ267*114 | φ267*114 | φ267*114 | |
Drivewheel specification | ø×w(mm) | φ382*142 | φ382*142 | φ382*142 | |
Balance wheel specification | ø×w(mm) | φ180*76 | φ180*76 | φ180*76 | |
Tread,front | b10(mm) | 1081 | 1081 | 1155 | |
Dimensions | Vehicle height,mast retracted | h1(mm) | 2100 | 2100 | 3210 |
Free lift height | h2(mm) | 1500 | 1500 | 2320 | |
Liftheight | h3(mm) | 4500 | 4500 | 7000 | |
Mast height,extended | h4(mm) | 5480 | 5480 | 7965 | |
Overhead guard height | h14(mm) | 2305/2260 | |||
Forks height,mast retracted | h13(mm) | 35 | 40 | 40 | |
Mast/forkstilting angle(the front/the rear) | a/β(°) | 3/5 | 3/5 | 3/5 | |
Vehicle body length(excl.forks/incl.forks) | 12(mm) | 1752/2405 | 1902/2405 | 2060/2550 | |
Vehicle body width | b1(mm) | 1195 | 1195 | 1270 | |
Forks dimensions | s/e/l(mm) | 35/100/1070 | 40/122/1070 | ||
Forks adjustment dimensions | b5(mm) | 210-700 | 244-700 | 244-700 | |
The min.ground clearance(Wheelbase center) | m2(mm) | 80 | 80 | 80 | |
Stackingaisle width,pallet 1m×1.2m(1.2m crossforks) | Ast(mm) | 2730 | 2882 | 3042 | |
The min.turning radius | Wa(mm) | 1680 | 1836 | 1996 | |
Peformance | Travelling speed,unladen/full-loaded | km/h | 10/9 | 10/9 | 8/7 |
Lift speed unladen/full-loaded | m/s | 0.330/0.245 | 0.300/0.235 | 0.280/0.200 | |
Lower speed unladen/full-loaded | m/s | 0.260/0.325 | 0.330/0.400 | ||
The max.gradability,unladen/full-loaded | % | ≤10 | ≤10 | ≤10 | |
Service brake | Electromagnetic | ||||
Motor | Drivemotor power | kw | 4.5AC | 6.5AC | 6.5AC |
Lift motorpower | kw | 7.5AC | 8.6AC | 8.6 AC | |
Battery type | Lead-acid | ||||
Battery voltage/capacity | V/Ah | 48/300 | 48/400 | 48/400 | |
Charger | V/A | 48/40 | 48/50 | 48/50 | |
Others | Drive control mode | AC | AC | AC | |
Noise level at driver's ears accordingto En12053 | dB(A) | 75 | 75 | 75 | |
Reach Truck

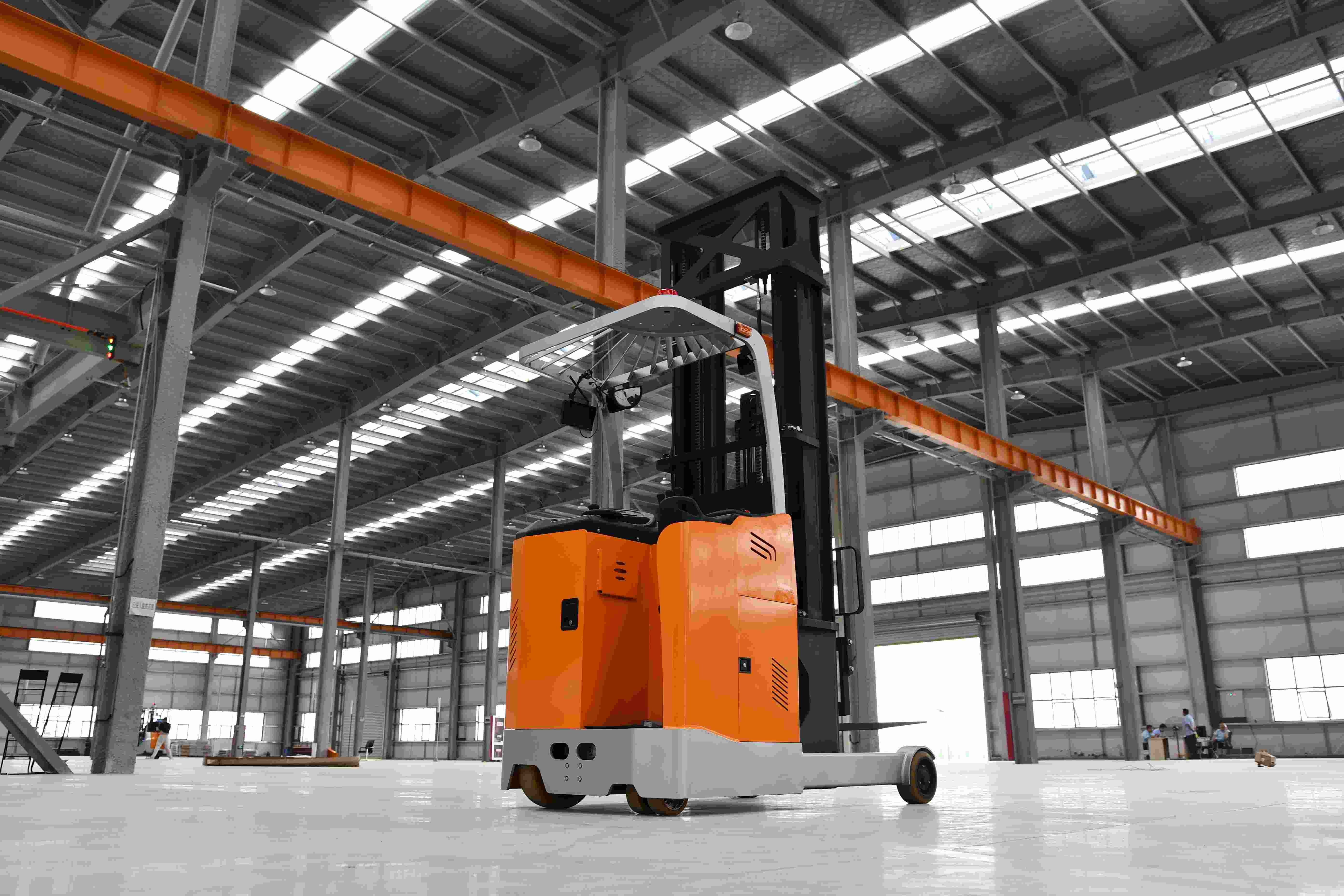

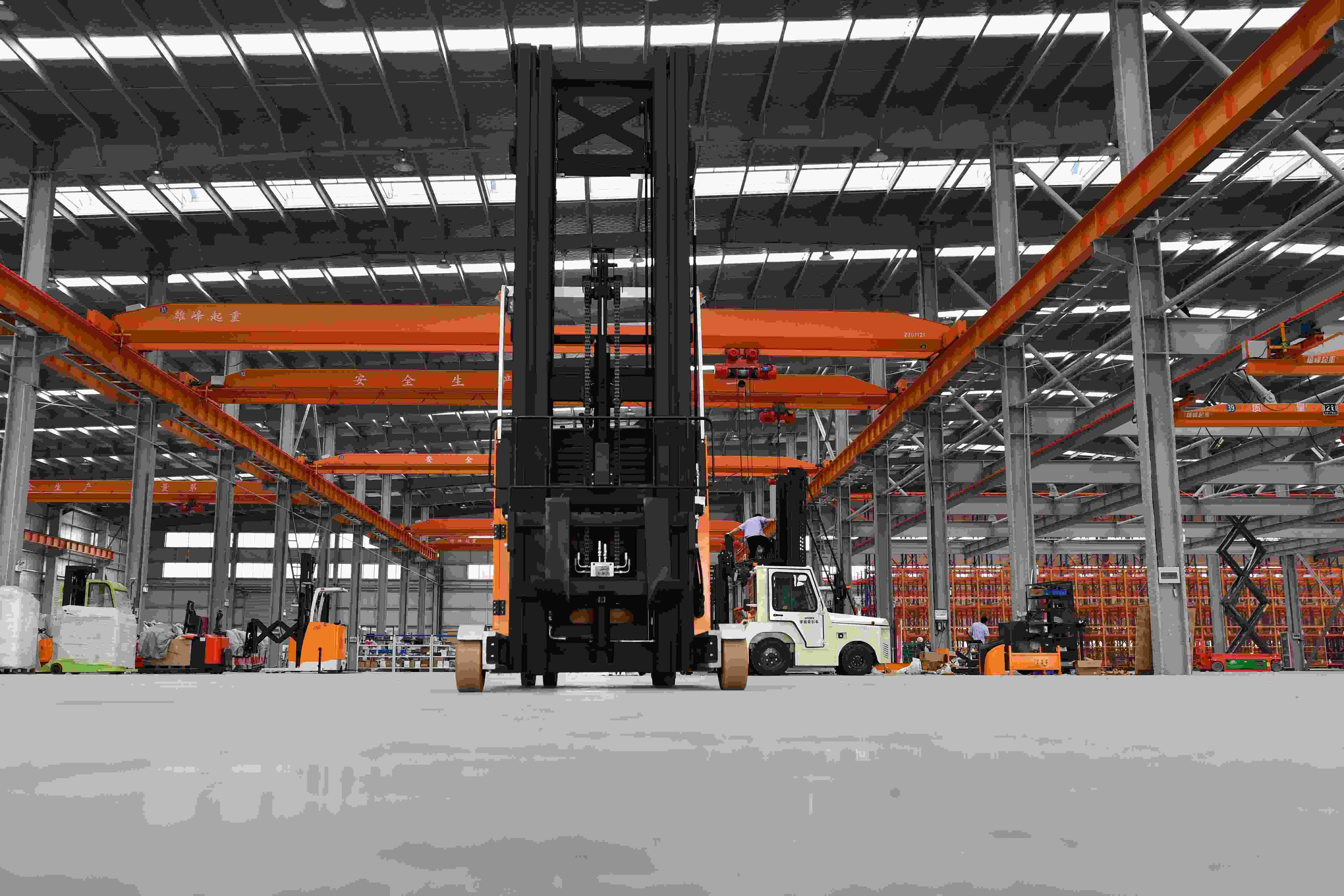

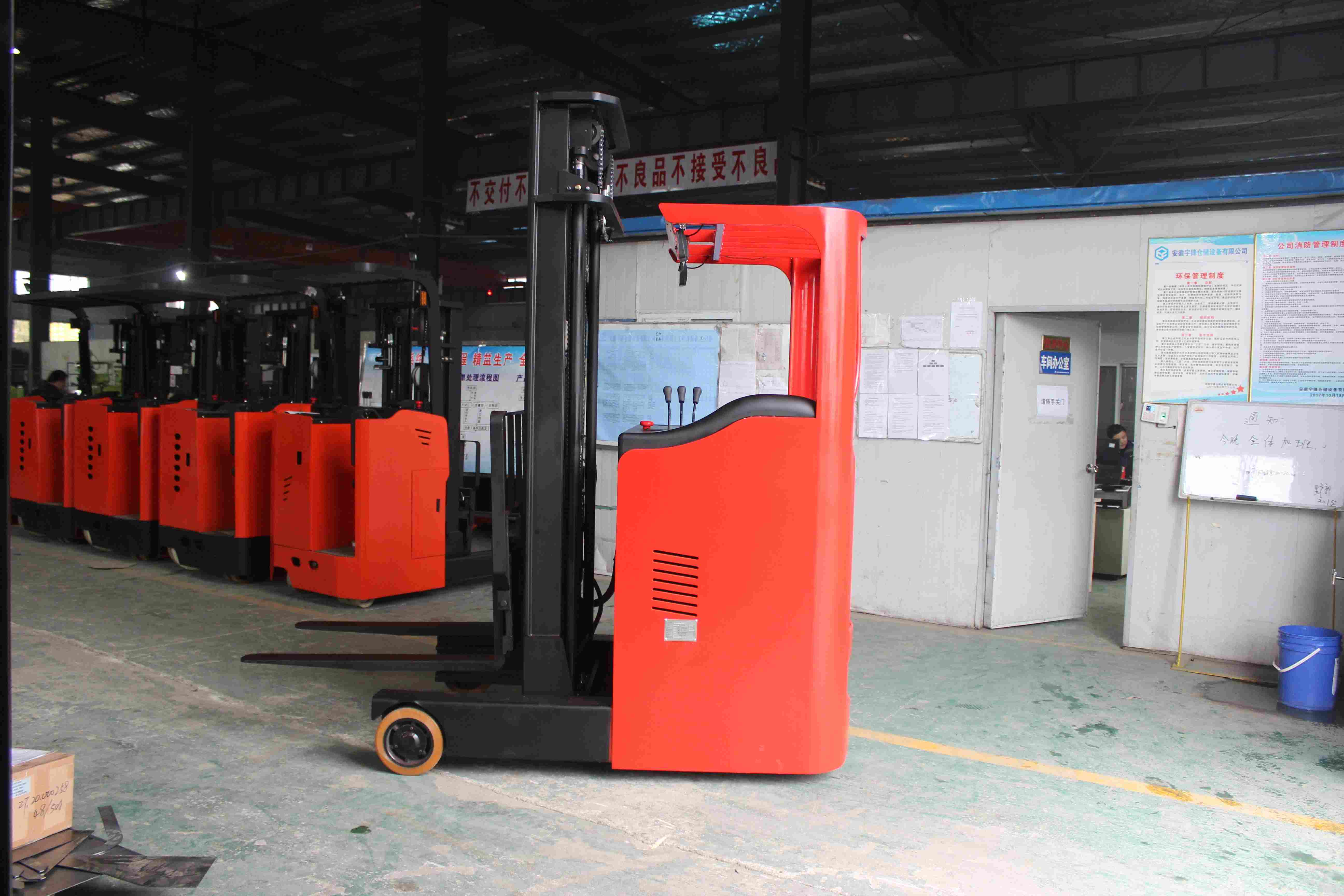

CQD Electric Reach Forklift Warehouse Material Handling Equipment Reach Truck Electric Forklift
CQD15M-70S electric reach forklift 48V stand type
