Description
Inquiry

Product Description

1) Compact structure, high maneuverability. Low gravity center with good stability. It suits large tonnage, high lifting goods storage applications.

2) Equipped with full AC drive system, small volume, light weight, high efficiency, free-maintenance and carbon-brush replacement. No more maintenance and protection.

3) Equipped with branded control system and multi-functional protection system. It offers a higher level functional safety.

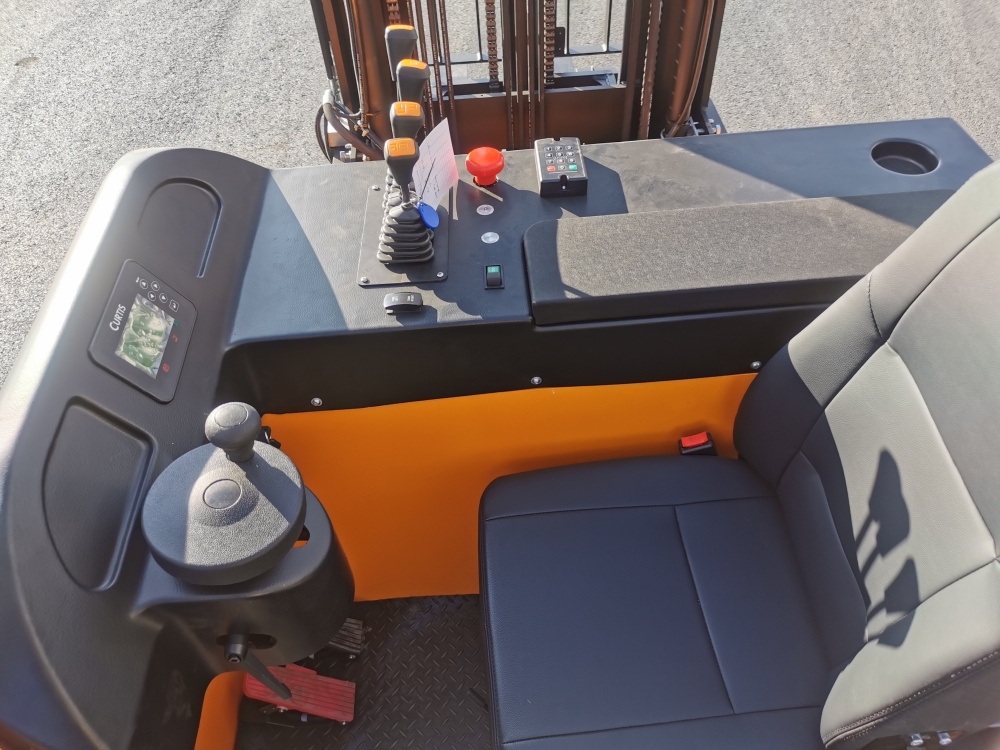

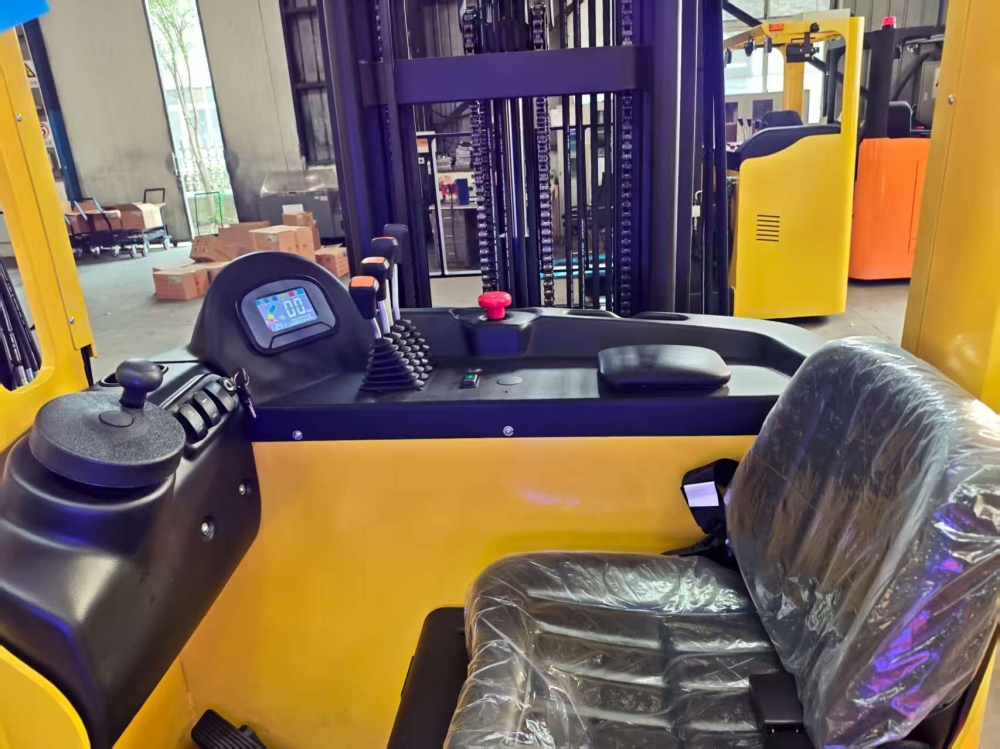

4) Equipped with smart HD display instrument, offering real-time vehicle operation status and fault display, it is easy for

troubleshooting and maintenance.

5) EPS steering energy reduces 20% with accurate operation, flexible steering, relieving operators pressures and greatly improving the production ability.

6) Standard forks tilting up or down function, prevents goods from tipping over and improving the load capability.

7) Side-pull battery suits multi-shifing occasions , with standard roller cart for easy change.

Characteristic	Model		CQDE15-45S	CQDE20-45S	CQDE20H-120S
	Power(electricity,diesel,LPG,petrol,manual)		Electric	Electric	Electric
	Operation(manual,walkie,side-standing,picker)		Seated type	Seated type	Seated type
	Rated load capacity	Q(kg)	1500	2000	2000
	Load center distance	C(mm)	500	500	500
	Wheelbase	Y(mm)	1470	1620	1650
	Forward moving distance	L(mm)	505	655	610
	The front overhang distance	X(mm)	183	183	183
Weight	Service weight(incl.battery)	kg	3100	3200	5390
Wheel/ Chassis	Wheel type		PU	PU	PU
	Front wheel specification	ø×w(mm)	φ267*114	φ267*114	φ267*114
	Drive wheel specification	ø×w(mm)	φ382*142	φ382*142	φ382*142
	Tread,front	b10(mm)	1180	1180	1329
Dimensions	Vehicle height,mast retracted	h1(mm)	2105	2105	5136
	Free lift height	h2(mm)	1500	1500	4020
	Liftheight	h3(mm)	4500	4500	12000
	Mast height,extended	h4(mm)	5465	5465	12995
	Overhead guard height	h14(mm)	2180	2180	2180
	Forks height,mast retracted	h13(mm)	35	40	40
	Mast/forkstiltingangle (the front/the rear)	a/β(°)	3/5	3/5	3/5
	Vehicle body length(incl.forks)	12(mm)	2477	2477	2565
	Vehicle body width	b1(mm)	1270	1270	1270/1460
	Forks dimensions	s/e/l(mm)	35/100/1070	40/122/1070	40/122/1070
	Forks adjustment dimensions	b5(mm)	210-705	244-705	260-840
	The min.ground clearance(Wheelbase center)	m2(mm)	70	70	70
	Stacking aisle width,pallet1m×1.2m (1.2m cross forks)	Ast(mm)	2964	3007	3010
	The min.turning radius	Wa(mm)	1800	1900	1922
Performance	Travelling speed,unladen/full-loaded	km/h	14/14	14/14	14/14
	Lift speed unladen/full-loaded	m/s	0.330/0.245	0.450/0.340	0.450/0.340
	Lowerspeed unladen/full-loaded	m/s	0.350/0.380	0.360/0.420	0.360/0.420
	The max.gradability,unladen/full-loaded	%	≤10	≤10	≤10
	Service brake		Electromagnetic
Motor	Drive motor power	kw	6.5AC	6.5AC	6.5AC
	Liftmotorpower	kw	7.5AC	12AC	15AC
	Battery type		Lead-acid	Lead-acid	Lead-acid
	Battery voltage/capacity	V/Ah	48/300	48/400	48/400
	Charger	V/A	48/40	48/50	48/50
Others	Drive control mode		AC	AC	AC
Others	Noise level at driver's ears according to En12053	dB(A)	75	75	75

Q：What is the MOQ?

A： One set.

Q：Can I customize the equipment?

A：Yes, we offer customization service, including load capacity, lifting height, battery, color and others.

Q: Can I get spare parts or technical support after purchase?

A: Yes, we provide lifetime support and spare parts supply. We can ship parts globally and assist via video call.

Q：How long is the warranty time?

A： 12 months or 2000 hours whichever comes first.

Q：What is the payment terms?

A： T/T, 30% pre-payment in advance, and 70% balance before delivery.
