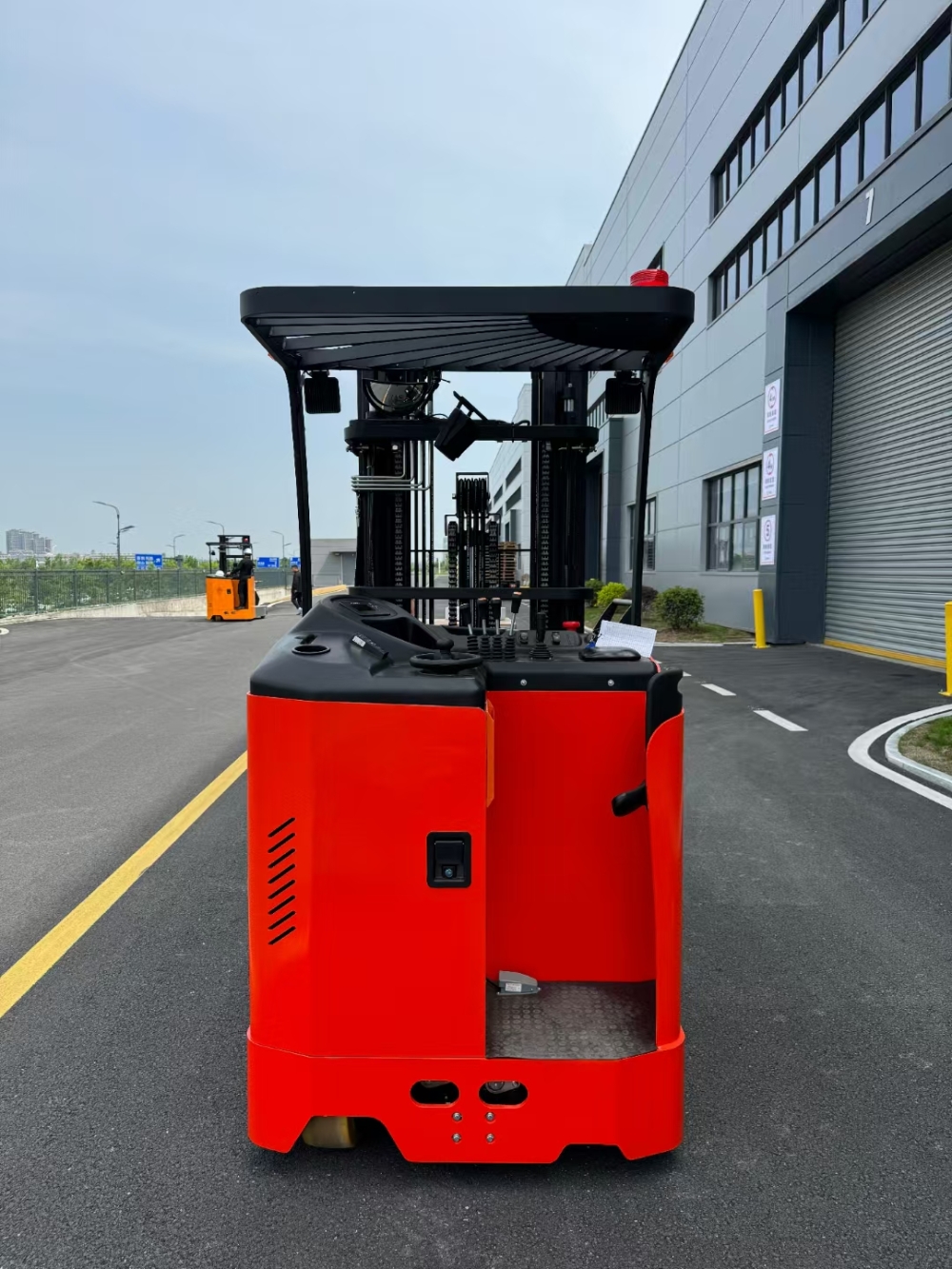

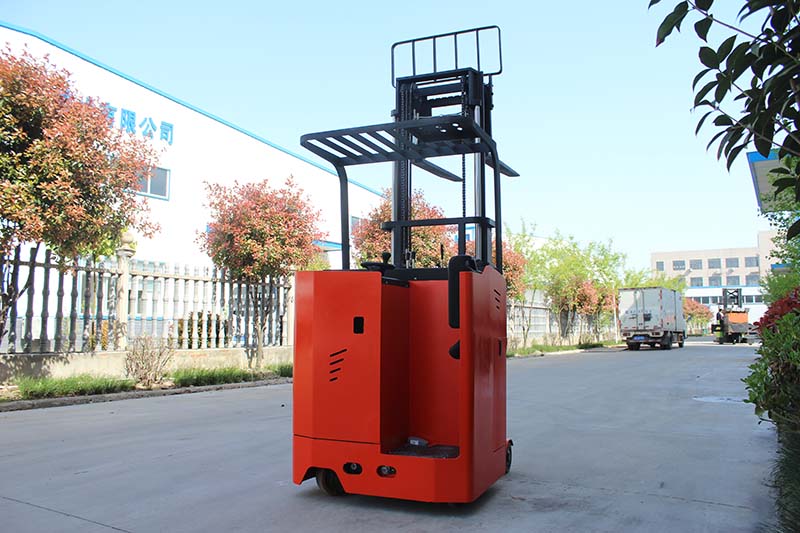

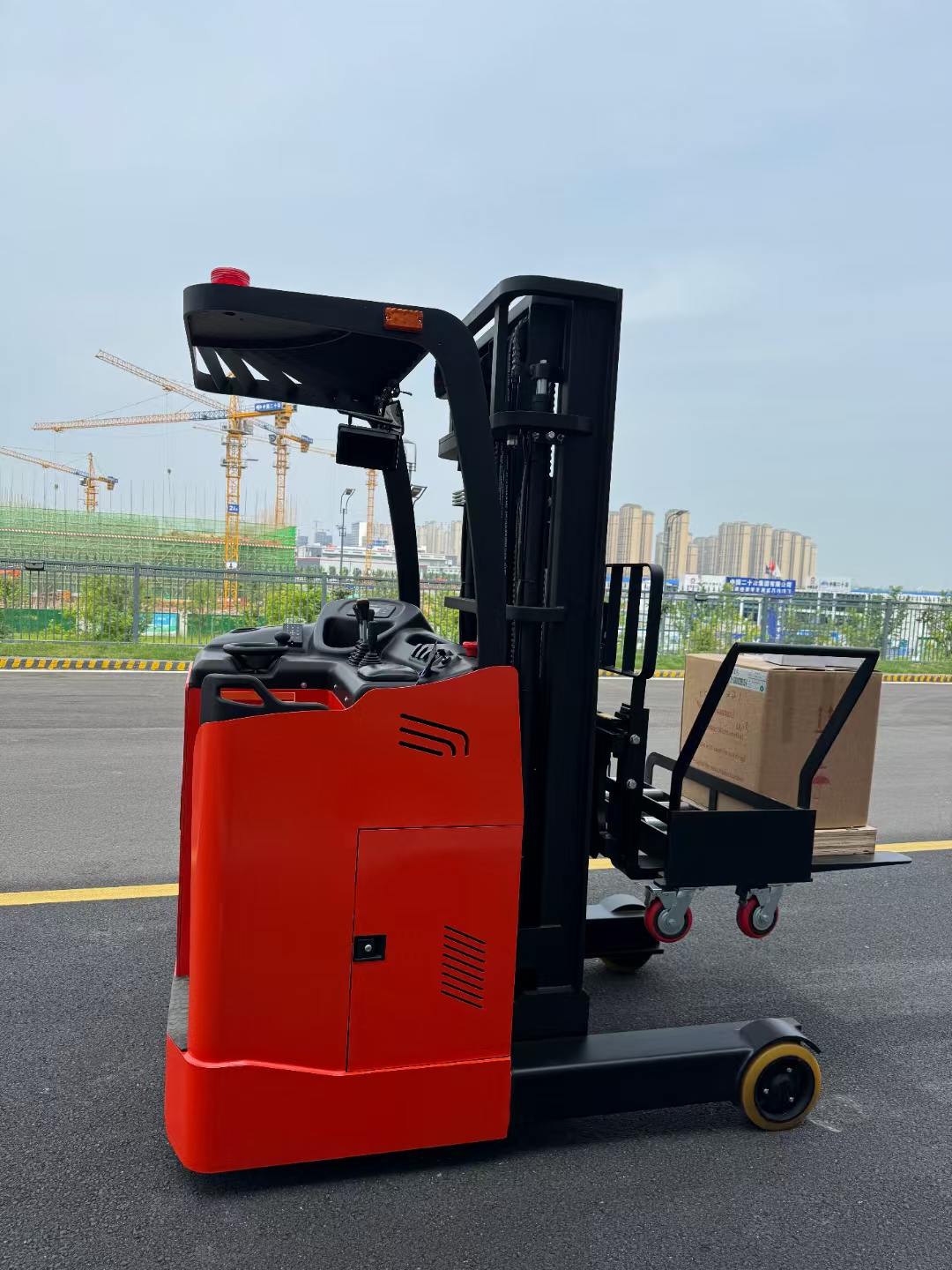

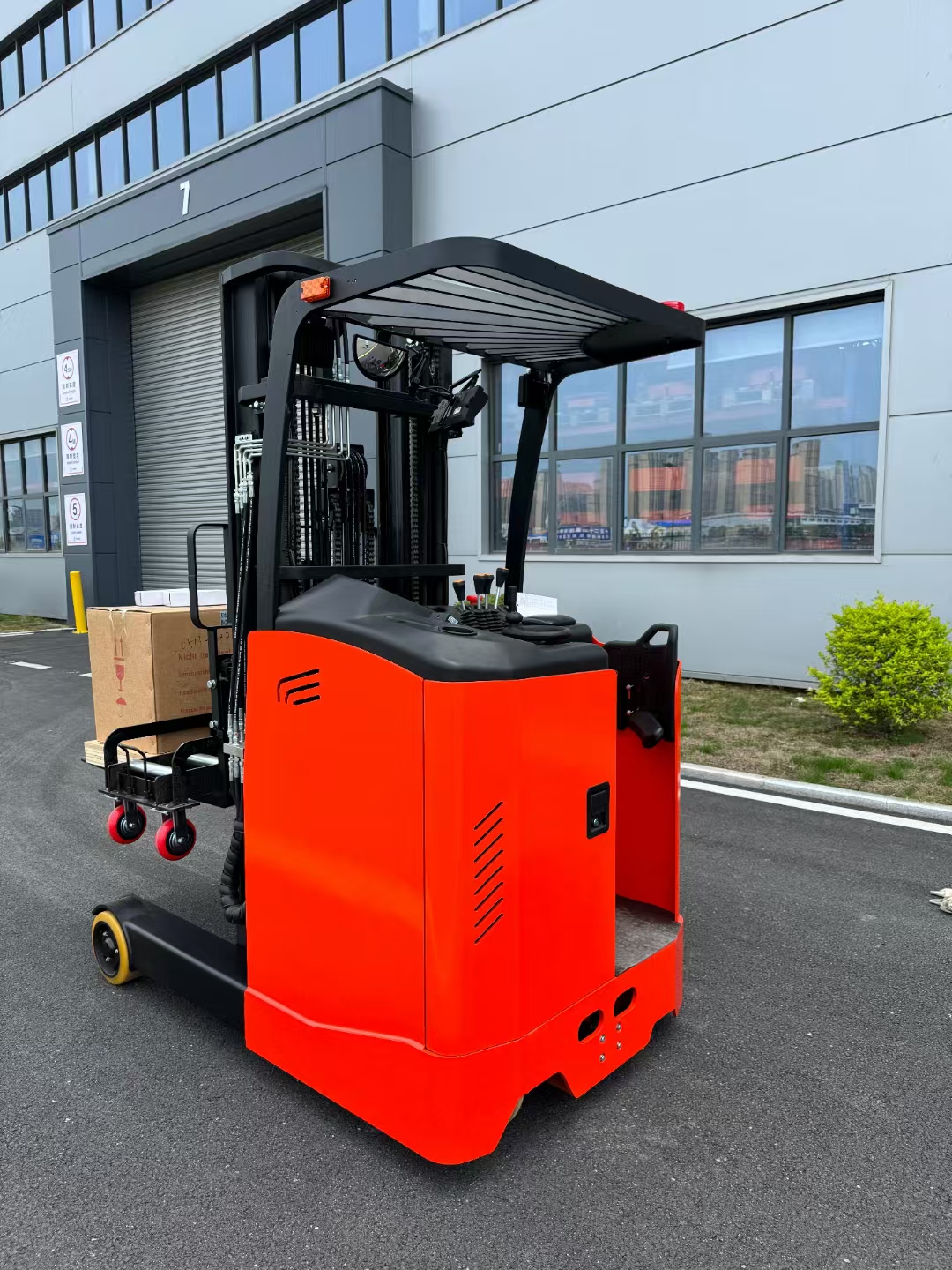

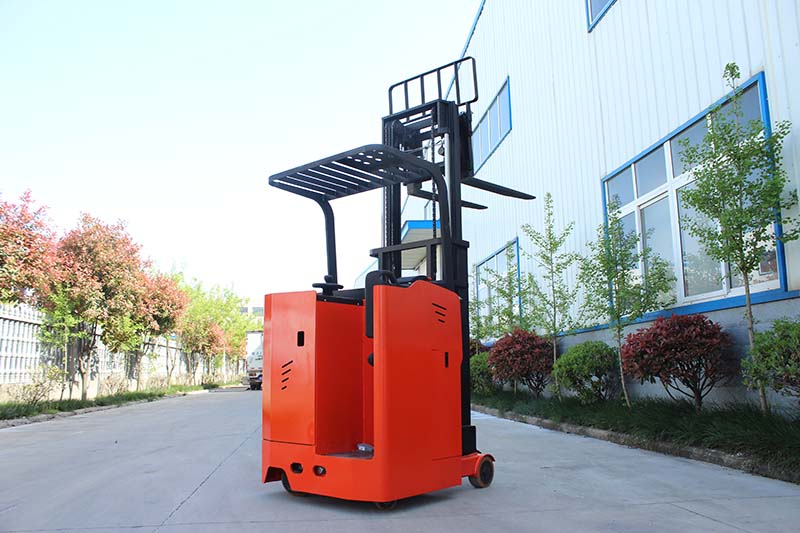

Electric Forklift CQD20M-70S Side-standing Reach Truck(Side-standing Type)48V_Reach Truck_Warehouse Equipment_Products

Description
Inquiry

Product Description

Compact structure, high maneuverability. Low gravity center with good stability. It suits large tonnage, high lifting goods storage scenarios;

It features in overall mast moving forward, with small turning radius to neglect obstacles at the bottom of the racks . It suits any space-limited scenarios, easy loading or unloading goods;

Equipped with full AC drive system, small volume, light weight, hig h effic ie ncy , free - ma i nte na nce a nd ca r bo n - b r us h replacement. No more maintenance and protection;

Standard forks tilting up or down function, prevents goods from tipping over and improving the load capability;

Side-pull battery suits multi-shifing occasions , with standard roller trolley for easy change;

6.5m or above high-strength H type mast steel, not easy to deform, with reliable and stable operation.

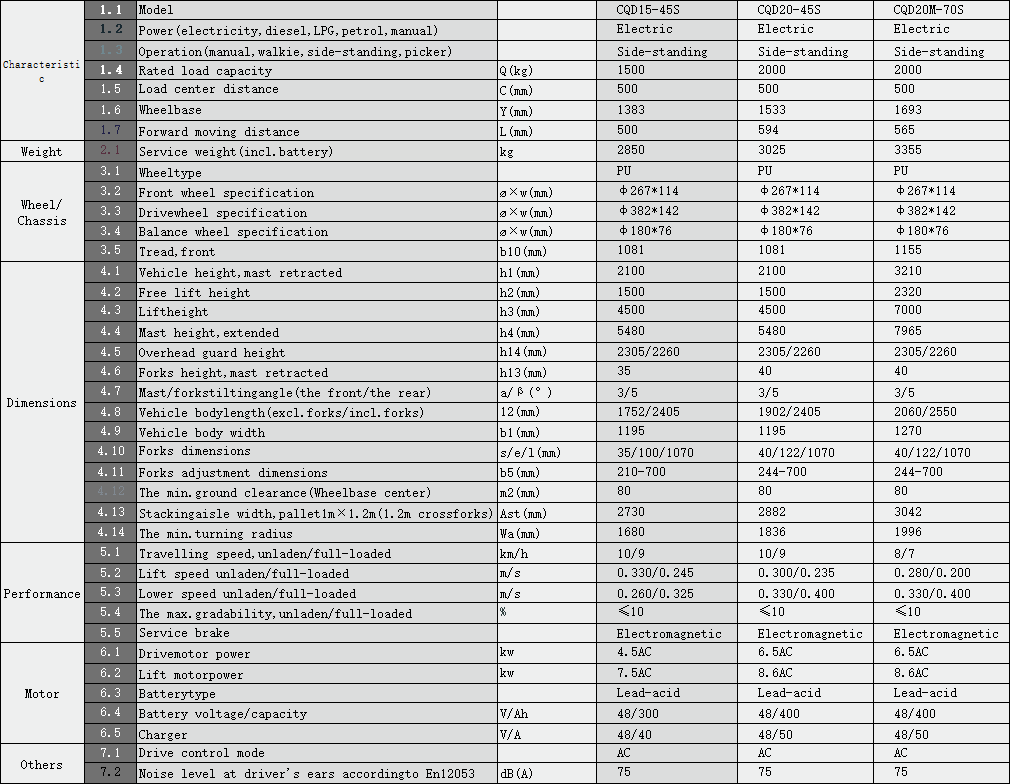

Characteristic	Model		CQD15-45S	CQD20-45S	CQD20M-70S
	Power(electricity,diesel,LPG,petrol,manual)		Electric	Electric	Electric
	Operation		Side-standing
	Rated load capacity	Q(kg)	1500	2000	2000
	Load center distance	C(mm)	500	500	500
	Wheelbase	Y(mm)	1383	1533	1693
	Forward moving distance	L(mm)	500	594	565
Weight	Service weight(incl.battery)	kg	2850	3025	3355
Wheel/ Chassis	Wheeltype		PU	PU	PU
	Front wheel specification	ø×w(mm)	φ267*114	φ267*114	φ267*114
	Drivewheel specification	ø×w(mm)	φ382*142	φ382*142	φ382*142
	Balance wheel specification	ø×w(mm)	φ180*76	φ180*76	φ180*76
	Tread,front	b10(mm)	1081	1081	1155
Dimensions	Vehicle height,mast retracted	h1(mm)	2100	2100	3210
	Free lift height	h2(mm)	1500	1500	2320
	Liftheight	h3(mm)	4500	4500	7000
	Mast height,extended	h4(mm)	5480	5480	7965
	Overhead guard height	h14(mm)	2305/2260
	Forks height,mast retracted	h13(mm)	35	40	40
	Mast/forkstilting angle(the front/the rear)	a/β(°)	3/5	3/5	3/5
	Vehicle body length(excl.forks/incl.forks)	12(mm)	1752/2405	1902/2405	2060/2550
	Vehicle body width	b1(mm)	1195	1195	1270
	Forks dimensions	s/e/l(mm)	35/100/1070	40/122/1070
	Forks adjustment dimensions	b5(mm)	210-700	244-700	244-700
	The min.ground clearance(Wheelbase center)	m2(mm)	80	80	80
	Stackingaisle width,pallet 1m×1.2m(1.2m crossforks)	Ast(mm)	2730	2882	3042
	The min.turning radius	Wa(mm)	1680	1836	1996
Peformance	Travelling speed,unladen/full-loaded	km/h	10/9	10/9	8/7
	Lift speed unladen/full-loaded	m/s	0.330/0.245	0.300/0.235	0.280/0.200
	Lower speed unladen/full-loaded	m/s	0.260/0.325	0.330/0.400
	The max.gradability,unladen/full-loaded	%	≤10	≤10	≤10
	Service brake		Electromagnetic
Motor	Drivemotor power	kw	4.5AC	6.5AC	6.5AC
	Lift motorpower	kw	7.5AC	8.6AC	8.6 AC
	Battery type		Lead-acid
	Battery voltage/capacity	V/Ah	48/300	48/400	48/400
	Charger	V/A	48/40	48/50	48/50
Others	Drive control mode		AC	AC	AC
Others	Noise level at driver's ears accordingto En12053	dB(A)	75	75	75

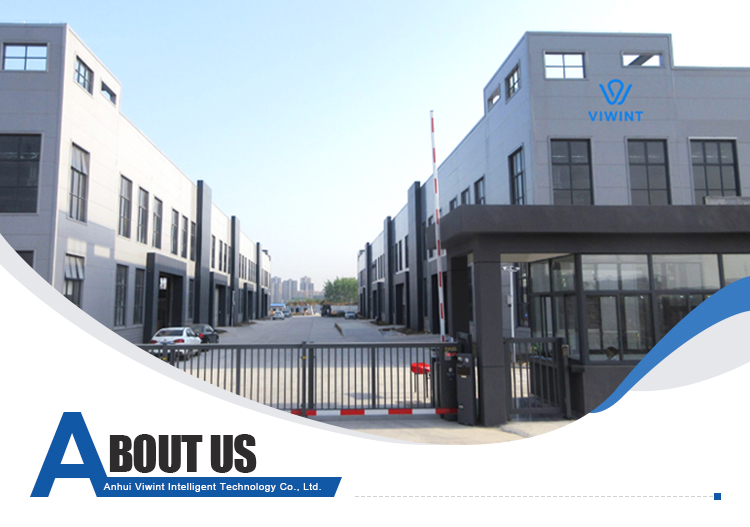

Anhui Viwint Intelligent Technology Co.,Ltd.,a scientific and technological innovationenterprise focusing on the R&D,manufacturing and service of industrial vehicles,andits core business covers the R&D and production of electric forklifts,diesel forklifts,AGV automatic guided vehicles and narrow aisle three-way electric forklifts.With 1000customer service cases and export experience covering the Americas,Europe andother global markets,the company aims to build a leading brand in the field of logisticsequipment.

FAQ

Q：What is the MOQ?
A： One set.

Q：Can I customize the equipment?

A：Yes, we offer customization service, including load capacity, lifting height, battery, color and others.

Q: Can I get spare parts or technical support after purchase?
A: Yes, we provide lifetime support and spare parts supply. We can ship parts globally and assist via video call.

Q：How long is the warranty time?
A： 12 months or 2000 hours whichever comes first.

Q：What is the payment terms?
A： T/T, 30% pre-payment in advance, and 70% balance before delivery.
