Viwint Reach Pallet Truck Electric Double Deep Reach Forklift with 1500kg Loading Capacity Truck CQD-X 10500mm

CQDX Electric reach forklift 48V stand type
  • Description
  • Inquiry

Product Description

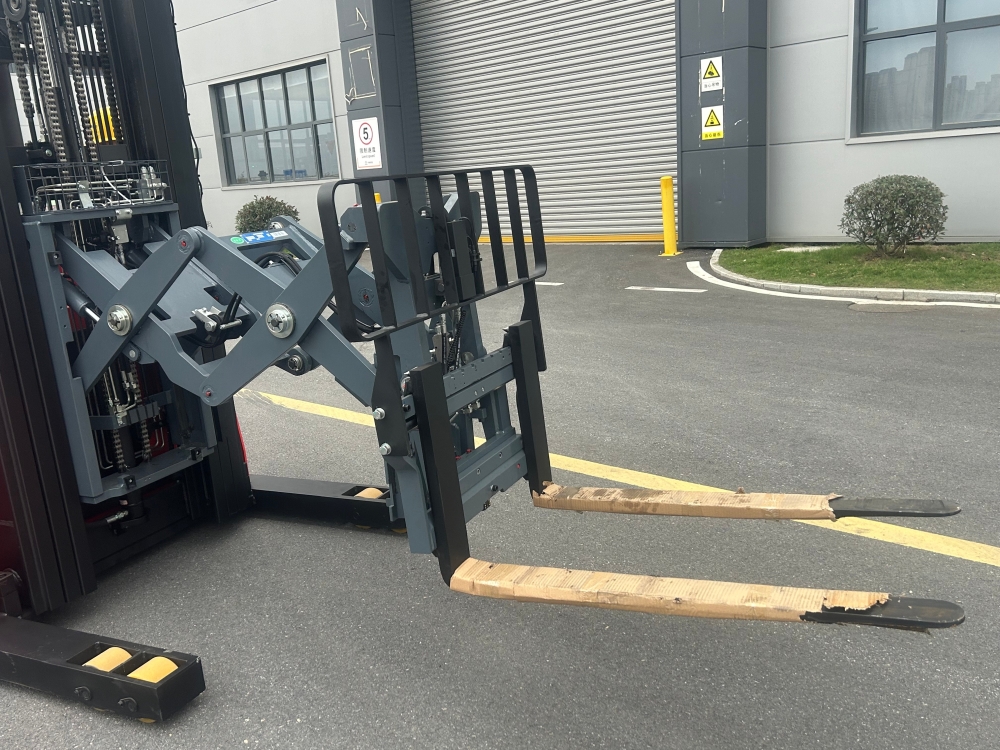

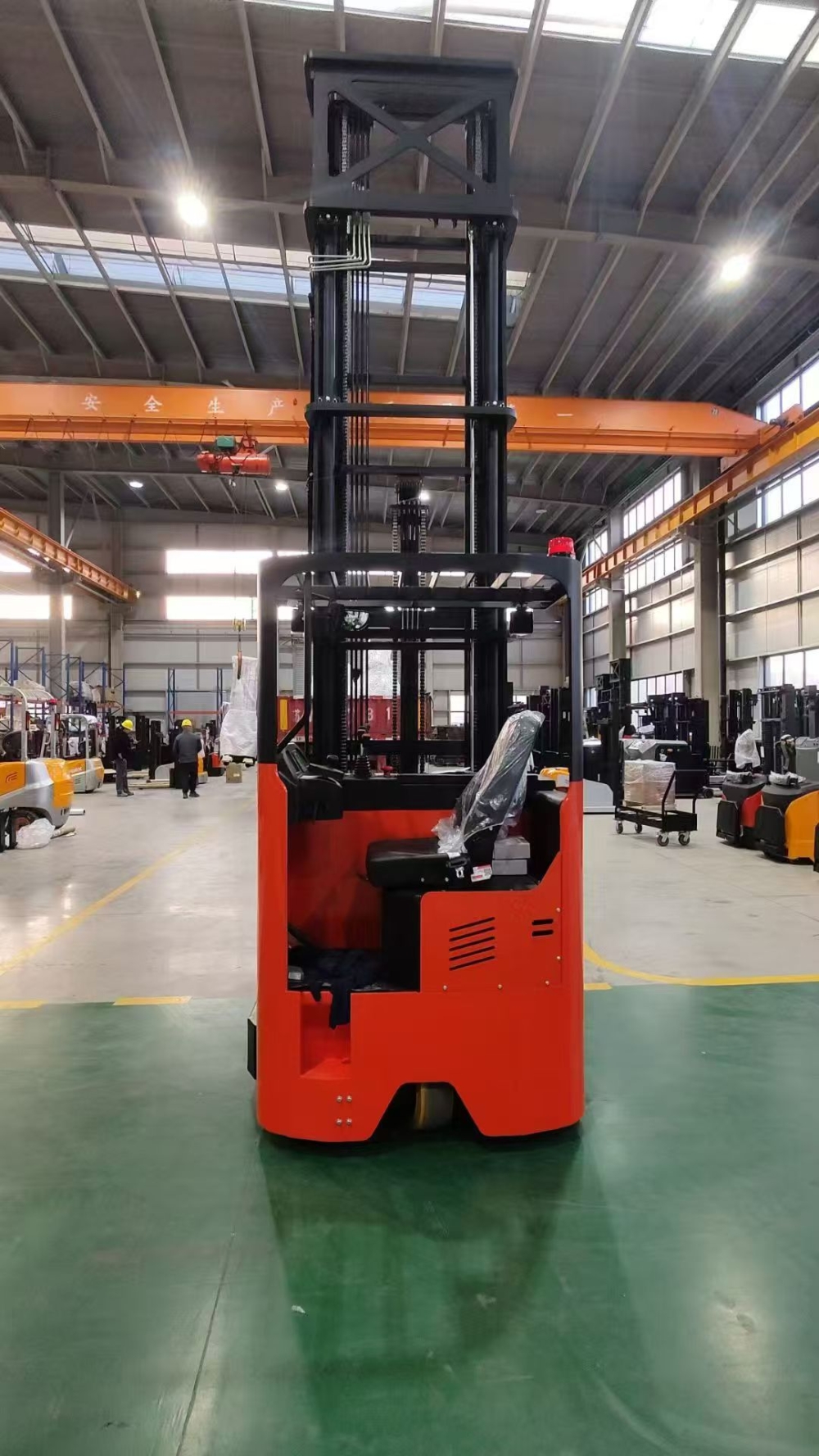

Equipped with double reach arms. The telescopic structure makes good forward or backward moving. When forks extend, the vehicle resembles a counterbalance stacker. Suitable for non-standard pallet, sealed pallet and enclosed racks. When forks retract, it resembles a straddle forklift. Flexible operation in narrow aisles;

Extend and retract distance is1200mm, the largest good accessing depth is 1500mm;

Equipped with full AC drive system,small volume, light weight,high efficiency,free-maintenance and carbon-brush replacement.No more maintenance and protection.
Characteristic
1.1
Model

CQD15X-45
1.2
Power(electricity,diesel,LPG,petrol,manual)

Electric
1.3
Operation(manual,walkie,side-standing,picker)

Side-standing
1.4
Rated load capacity
Q(kg)
1500
1.5
Load center distance
C(mm)
500
1.6
Wheelbase
Y(mm)
1562
Weight
2.1
Service weight(incl.battery)
kg
3650
Wheel/
Chassis
3.1
Wheel type

PU
3.2
Drive wheel specification
ø×w(mm)
φ382*142
3.3
Front wheel specification
ø×w(mm)
φ145*100
3.4
Balance Wheel specification
ø×w(mm)
φ180*76
3.5
Wheel numbers(thefront wheel/X drive wheel/balance wheel)

4/2X/2
3.6
Tread,front
b10(mm)
1562
Dimensions
4.1
Liftheight
h3(mm)
4500
4.2
Mast height,lowered
h1(mm)
3050
4.3
Mast height,extended
h4(mm)
5585
4.4
Overhead guard height
h14(mm)
2280
4.5
Vehiclebody length (incl/exclforks when folded)
12(mm)
2410/1977
4.6
Vehicle body width
b1(mm)
1390
4.7
Forks dimensions
s/e/l(mm)
35/100/1070
4.8
Forks adjustment dimensions
b5(mm)
210-680
4.9
The min.ground clearance(Wheelbase center)
m2(mm)
65
4.10
Stackingaisle width,pallet 1m×1.2m(1.2m crossforks)
Ast(mm)
2835
4.11
The min.turning radius
Wa(mm)
1854
4.12
Forks extend and retract distance
(mm)
1200
Performance
5.1
Max.travelling speed,unladen/full-loaded
km/h
7/6.5
5.2
Lift speed unladen/full-loaded
m/s
0.330/0.245
5.3
Lower speed unladen/full-loaded
m/s
0.350/0.380
5.4
Service brake

Electromagnetic
Motor
6.1
Drive motor power
kw
4.5AC
6.2
Liftmotorpower
kw
7.5AC
6.3
Battery type
Lead-acid
Lead-acid
6.4
Battery voltage/capacity
V/Ah
48/300
Others
7.1
Charger
V/A
48/40
7.2
Drive control mode

AC
FAQ
Q:What is the MOQ?
A: One set.


Q:Can I customize the equipment?
A:Yes, we offer customization service, including load capacity, lifting height, battery, color and others.

Q:   Can I get spare parts or technical support after purchase?
A:   Yes, we provide lifetime support and spare parts supply. We can ship parts globally and assist via video call.


Q:How long is the warranty time?
A: 12 months or 2000 hours whichever comes first.

Q:What is the payment terms?
A: T/T, 30% pre-payment in advance, and 70% balance before delivery.
