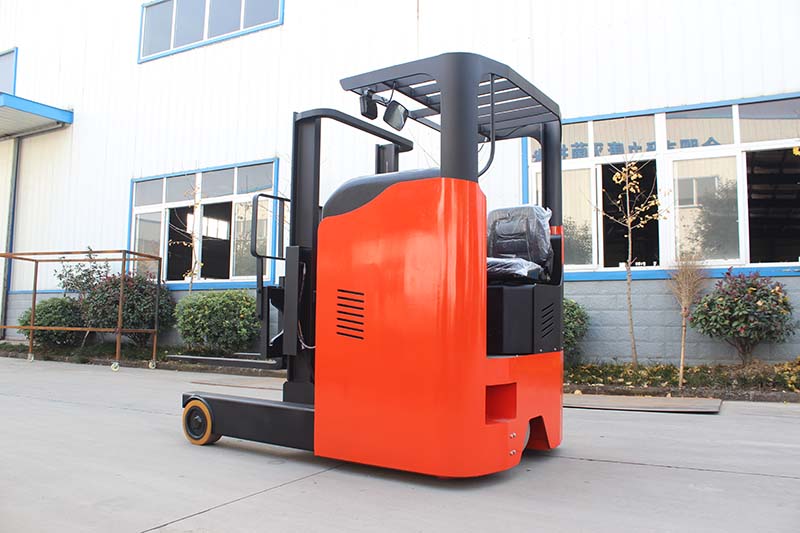

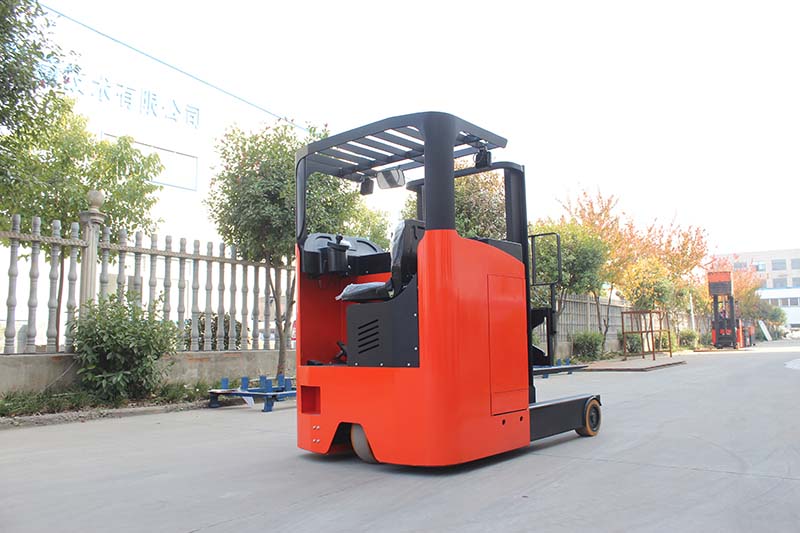

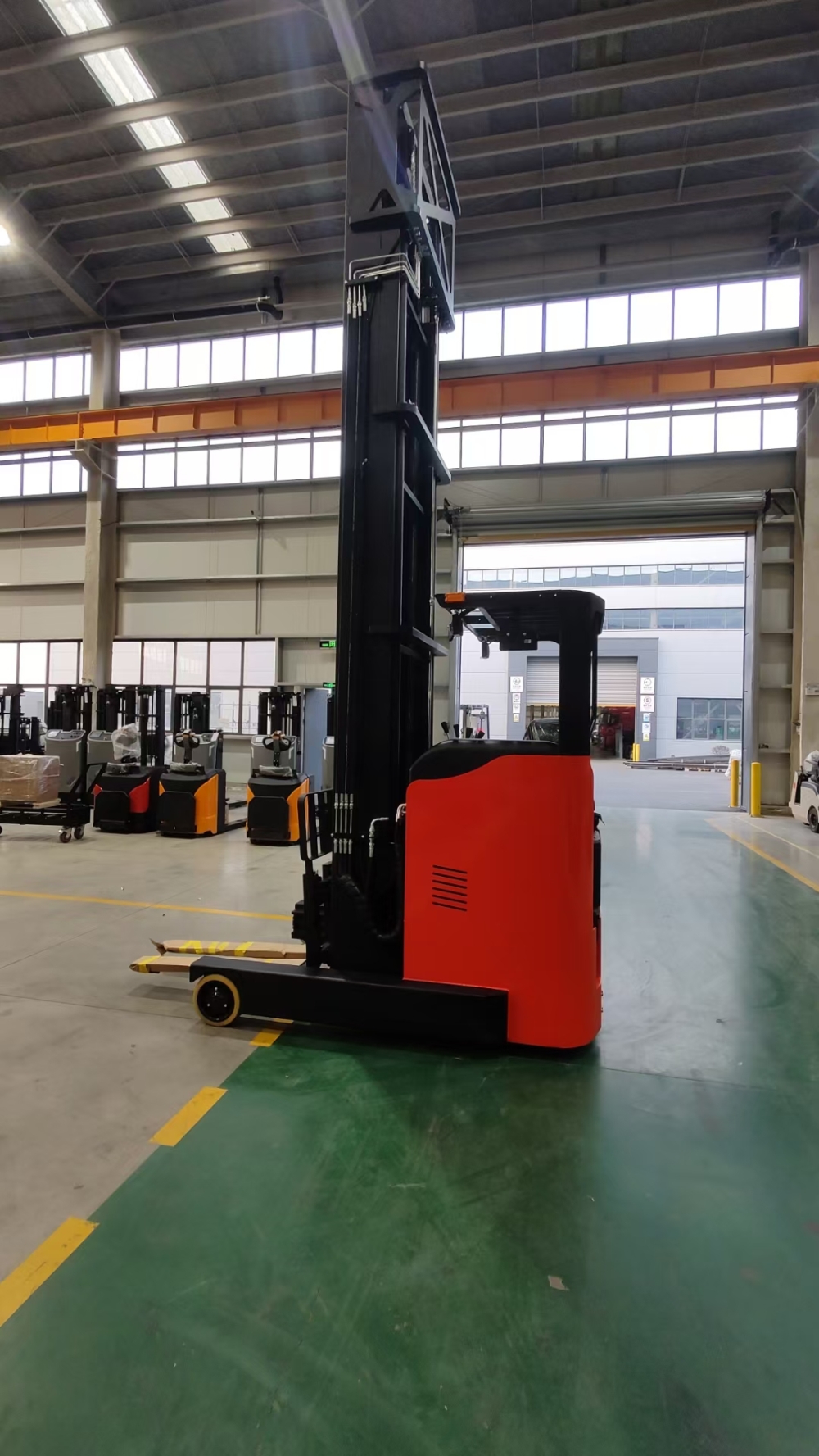

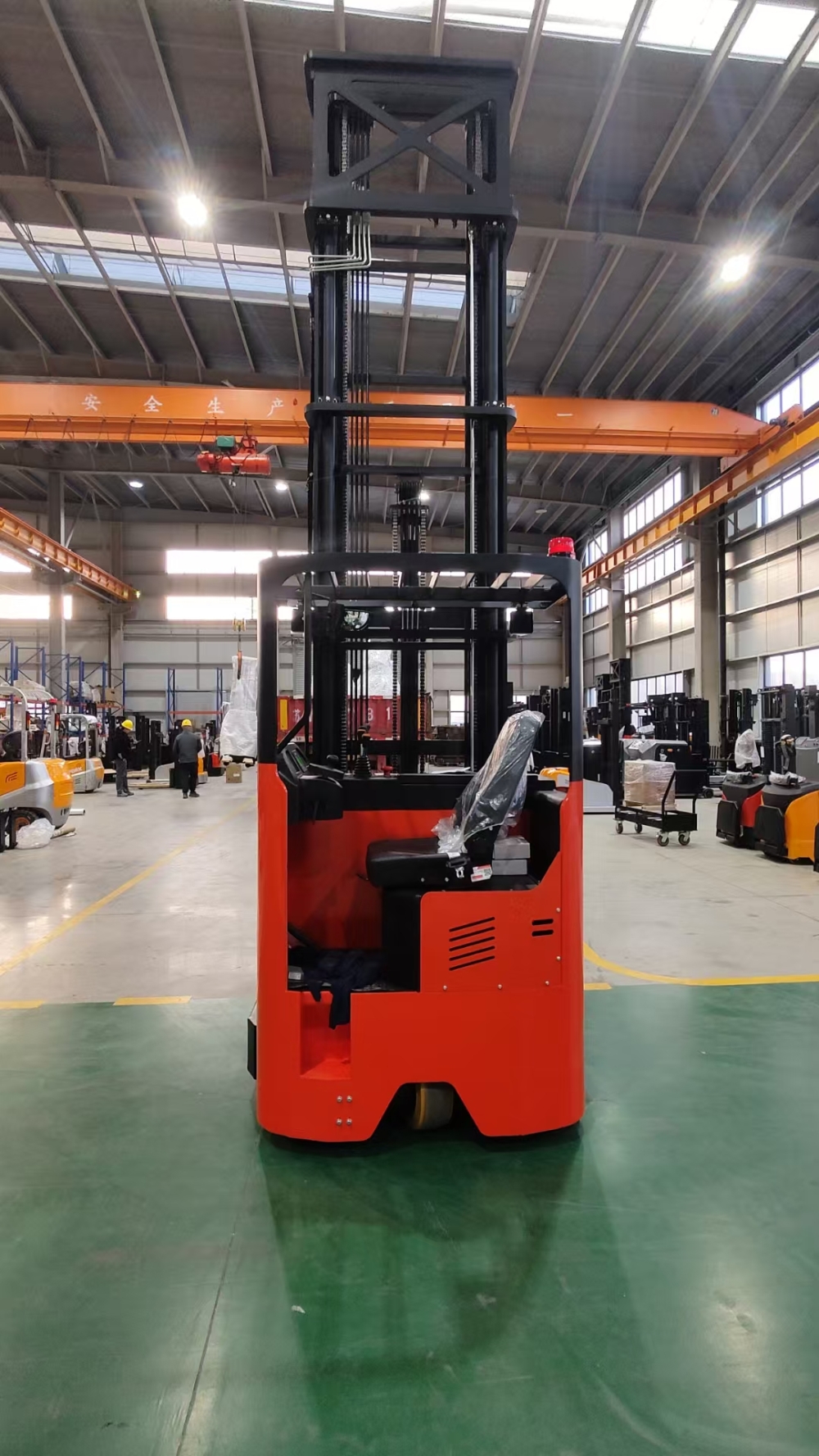

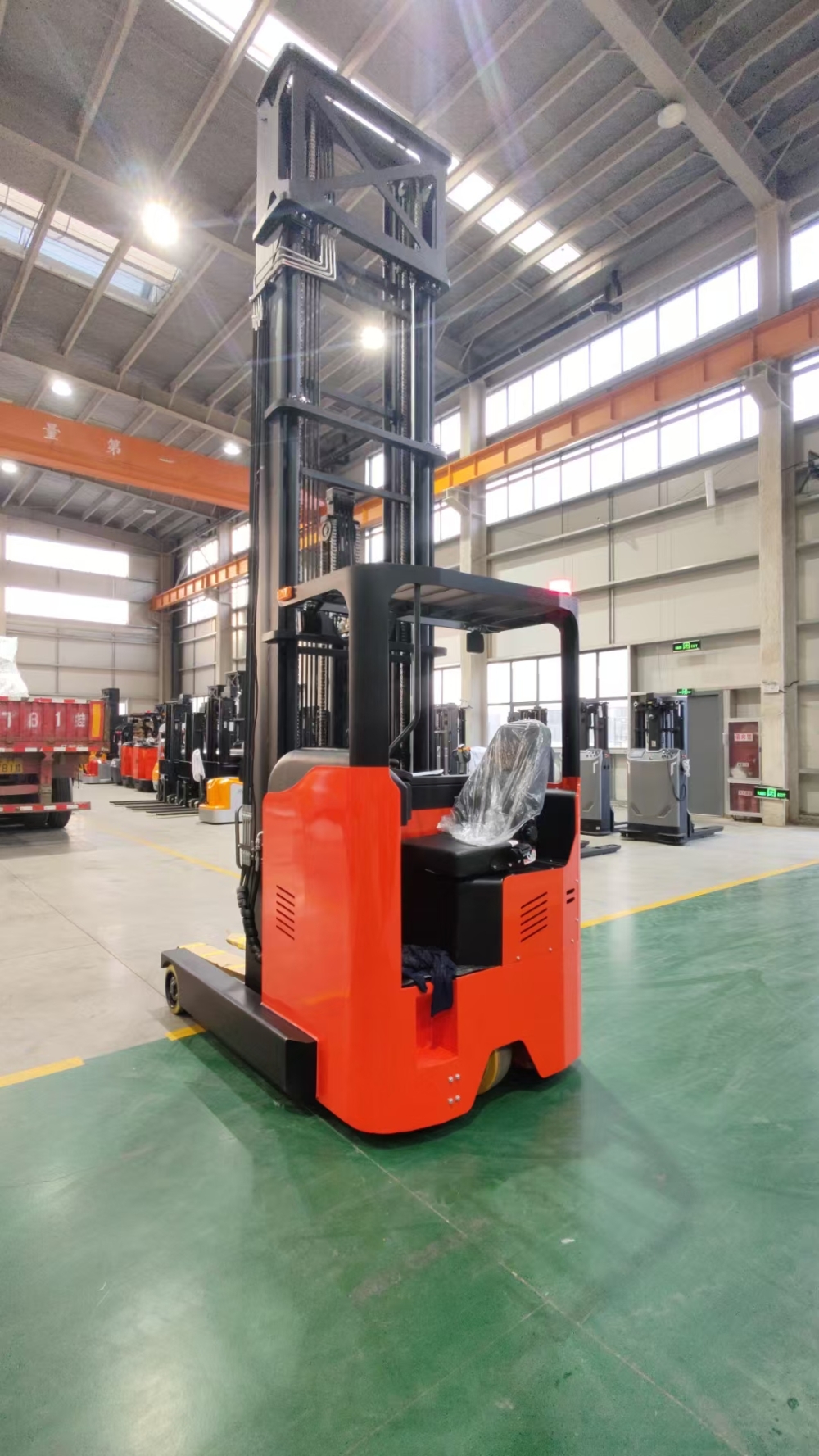

1) Compact structure, high maneuverability. Low gravity center with good stability. It suits large tonnage, high lifting goods storage applications.
2) Equipped with full AC drive system, small volume, light weight, high efficiency, free-maintenance and carbon-brush replacement. No more maintenance and protection.
3) Equipped with branded control system and multi-functional protection system. It offers a higher level functional safety.

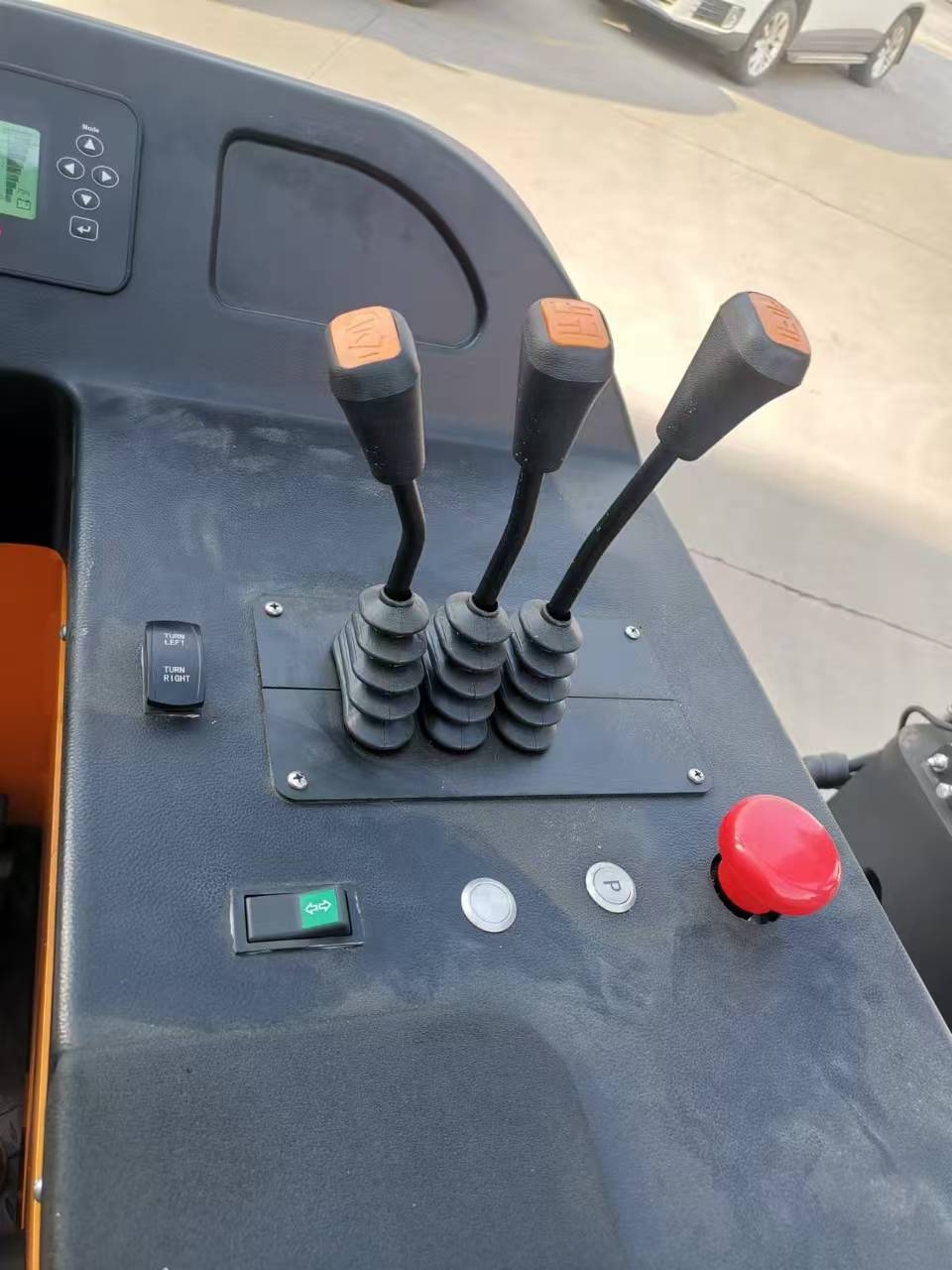

4) Equipped with smart HD display instrument, offering real-time vehicle operation status and fault display, it is easy for
troubleshooting and maintenance.
5) EPS steering energy reduces 20% with accurate operation, flexible steering, relieving operators pressures and greatly improving the production ability.
6) Standard forks tilting up or down function, prevents goods from tipping over and improving the load capability.
7) Side-pull battery suits multi-shifing occasions , with standard roller cart for easy change.
Characteristic | Model |
| CQDE15-45S | CQDE20-45S | CQDE20H-120S |
Power(electricity,diesel,LPG,petrol,manual) |
| Electric | Electric | Electric |
Operation(manual,walkie,side-standing,picker) |
| Seated type | Seated type | Seated type |
Rated load capacity | Q(kg) | 1500 | 2000 | 2000 |
Load center distance | C(mm) | 500 | 500 | 500 |
Wheelbase | Y(mm) | 1470 | 1620 | 1650 |
Forward moving distance | L(mm) | 505 | 655 | 610 |
The front overhang distance | X(mm) | 183 | 183 | 183 |
Weight | Service weight(incl.battery) | kg | 3100 | 3200 | 5390 |
Wheel/
Chassis | Wheel type |
| PU | PU | PU |
Front wheel specification | ø×w(mm) | φ267*114 | φ267*114 | φ267*114 |
Drive wheel specification | ø×w(mm) | φ382*142 | φ382*142 | φ382*142 |
Tread,front | b10(mm) | 1180 | 1180 | 1329 |
Dimensions | Vehicle height,mast retracted | h1(mm) | 2105 | 2105 | 5136 |
Free lift height | h2(mm) | 1500 | 1500 | 4020 |

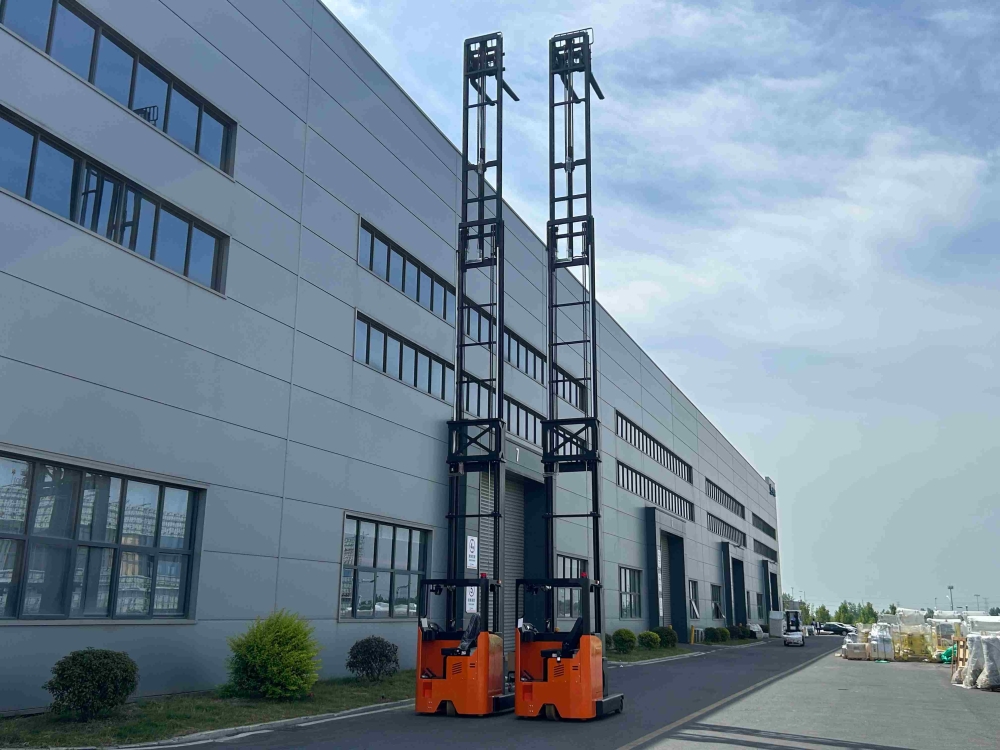

Liftheight | h3(mm) | 4500 | 4500 | 12000 |
Mast height,extended | h4(mm) | 5465 | 5465 | 12995 |
Overhead guard height | h14(mm) | 2180 | 2180 | 2180 |
Forks height,mast retracted | h13(mm) | 35 | 40 | 40 |
Mast/forkstiltingangle (the front/the rear) | a/β(°) | 3/5 | 3/5 | 3/5 |
Vehicle body length(incl.forks) | 12(mm) | 2477 | 2477 | 2565 |
Vehicle body width | b1(mm) | 1270 | 1270 | 1270/1460 |
Forks dimensions | s/e/l(mm) | 35/100/1070 | 40/122/1070 | 40/122/1070 |
Forks adjustment dimensions | b5(mm) | 210-705 | 244-705 | 260-840 |
The min.ground clearance(Wheelbase center) | m2(mm) | 70 | 70 | 70 |
Stacking aisle width,pallet1m×1.2m
(1.2m cross forks) | Ast(mm) | 2964 | 3007 | 3010 |
The min.turning radius | Wa(mm) | 1800 | 1900 | 1922 |
Performance | Travelling speed,unladen/full-loaded | km/h | 14/14 | 14/14 | 14/14 |
Lift speed unladen/full-loaded | m/s | 0.330/0.245 | 0.450/0.340 | 0.450/0.340 |
Lowerspeed unladen/full-loaded | m/s | 0.350/0.380 | 0.360/0.420 | 0.360/0.420 |
The max.gradability,unladen/full-loaded | % | ≤10 | ≤10 | ≤10 |
Service brake |
| Electromagnetic |
Motor | Drive motor power | kw | 6.5AC | 6.5AC | 6.5AC |
Liftmotorpower | kw | 7.5AC | 12AC | 15AC |
Battery type |
| Lead-acid | Lead-acid | Lead-acid |
Battery voltage/capacity | V/Ah | 48/300 | 48/400 | 48/400 |
Charger | V/A | 48/40 | 48/50 | 48/50 |
Others | Drive control mode |
| AC | AC | AC |
Noise level at driver's ears according to En12053 | dB(A) | 75 | 75 | 75 |
Q：What is the MOQ?
A： One set.
Q：Can I customize the equipment?
A：Yes, we offer customization service, including load capacity, lifting height, battery, color and others.
Q: Can I get spare parts or technical support after purchase?
A: Yes, we provide lifetime support and spare parts supply. We can ship parts globally and assist via video call.
Q：How long is the warranty time?
A： 12 months or 2000 hours whichever comes first.
Q：What is the payment terms?
A： T/T, 30% pre-payment in advance, and 70% balance before delivery.
