Compact structure, high maneuverability. Low gravity center with good stability. It suits large tonnage, high lifting goods storage scenarios;
It features in overall mast moving forward, with small turning radius to neglect obstacles at the bottom of the racks. It suits any space-limited scenarios, easy loading or unloading goods;
Equipped with branded control system and multi-functional protection system, it offers a higher level functional safety;
Equipped with vertical branded gear box, multi-functional solutions and flexible module construction system. Optimized gear meshing technology can reduce the noise and offer high performance and efficiency;
EPS steering energy reduces 20% with accurate operation, flexible steering, relieving operators pressures and greatly improving the production ability;
Equipped with full AC drive system, small volume, light weight, high efficiency, free-maintenance and carbon-brush replacement. No more maintenance and protection.
Model | CQD12D-45S | CQD15D-45S | CQD20D-45S |
Operation type | Standing type | Standing type | Standing type |
Rated load capacity | 1200kg | 1500kg | 2000kg |
Load center distance | 500mm | 500mm | 500mm |
Self weight with battery | 2200kg | 2200kg | 2300kg |

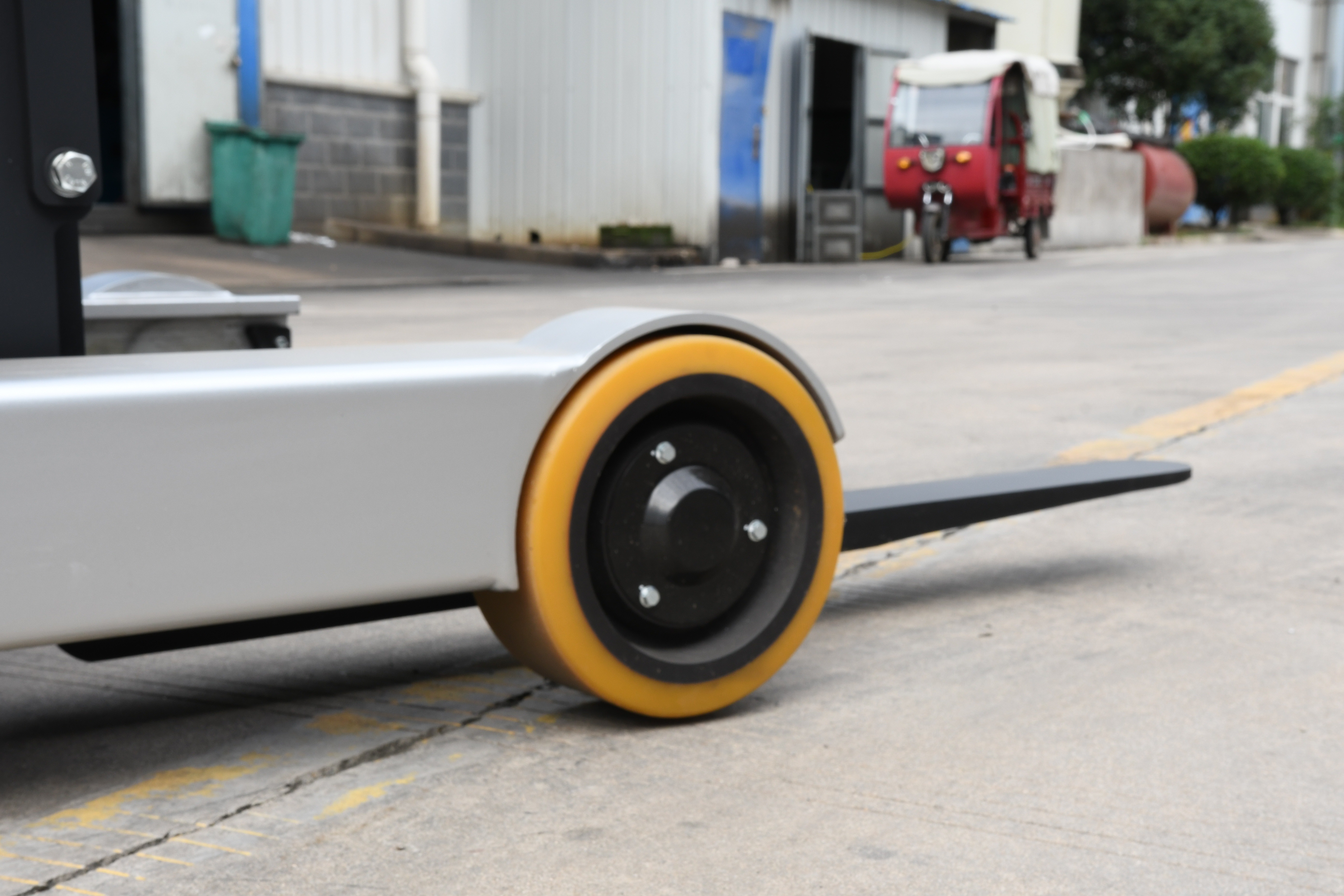

Wheel type | PU | PU | PU |
Front wheel | Ø254*104 | Ø254*104 | Ø254*104 |
Driving wheel | Ø230*75 | Ø230*75 | Ø230*75 |
Balance wheel | Ø150*50 | Ø150*50 | Ø150*50 |
Wheel tread, front wheel | 978mm | 978mm | 978mm |
Lowered mast height | 2120mm | 2120mm | 2120mm |
Lifting height | 4500mm | 4500mm | 4500mm |
Mast height, extended | 5485mm | 5485mm | 5485mm |
Overhead guardrail height | 2308mm | 2308mm | 2308mm |
Vehicle length | 22725mm | 2272mm | 2460mm |
Vehicle width | 1098mm | 1098mm | 1098mm |
Forks size | 35/100/1070mm | 35/100/1070mm | 40/122/1070mm |
Fork spread | 210-705mm | 210-705mm | 244-705mm |
Min.ground clearance | 77mm | 77mm | 77mm |
Stacking aisle width | 2771mm | 2771mm | 2880mm |
Min.turning radius | 1600mm | 1600mm | 1781mm |
Max. travelling speed, unladen/full-loaded | 5/4 km/h | 5/4 km/h | 5/4 km/h |
Lift speed, unladen/full-loaded | 0.135/0.115 m/s | 0.135/0.110 m/s | 0.135/0.100 m/s |
Lower Speed (unladen/full-loaded) | 0.085/0.120 m/s | 0.085/0.132 m/s | 0.085/0.140 m/s |
Max.gradeability | 8/6% | 8/4% | 8/4% |
Driving brake | Electromagnetic | Electromagnetic | Electromagnetic |
Drive motor power | 1.5AC | 2.5AC | 2.5AC |
Lift motor power | 3AC | 3AC | 3AC |
Battery type | Lead-acid | Lead-acid | Lead-acid |
Battery voltage/nominal capacity | 24V/280Ah | 24V/280Ah | 24V/280Ah |
Charger | 24V/40A | 24V/40A | 24V/40A |
Type of Drive Control | AC | AC | AC |
Sound level at the driver's ear acc. to EN12053 | 75dB(A) | 75dB(A) | 75dB(A) |
FAQ
Q：What is the MOQ?
A： One set.
Q：Can I customize the equipment?
A：Yes, we offer customization service, including load capacity, lifting height, battery, color and others.
Q: Can I get spare parts or technical support after purchase?
A: Yes, we provide lifetime support and spare parts supply. We can ship parts globally and assist via video call.
Q：How long is the warranty time?
A： 12 months or 2000 hours whichever comes first.
Q：What is the payment terms?
A： T/T, 30% pre-payment in advance, and 70% balance before delivery.
