1) Compact structure, high maneuverability. Low gravity center with good stability. It suits large tonnage, high lifting goods storage scenarios.
2) It features in overall mast moving forward, with small turning radius to neglect obstacles at the bottom of the racks. It suits any space-limited scenarios, easy loading or unloading goods.
3) Equipped with branded control system and multi-functional protection system, it offers a higher level functional safety.
4) Equipped with vertical branded gear box, multi-functional solutions and flexible module construction system. Optimized gear meshing technology can reduce the noise and offer high performance and efficiency.
5) EPS steering energy reduces 20% with accurate operation, flexible steering, relieving operators pressures and greatly improving the production ability.
6) Equipped with full AC drive system, small volume, light weight, high efficiency, free-maintenance and carbon-brush replacement. No more maintenance and protection

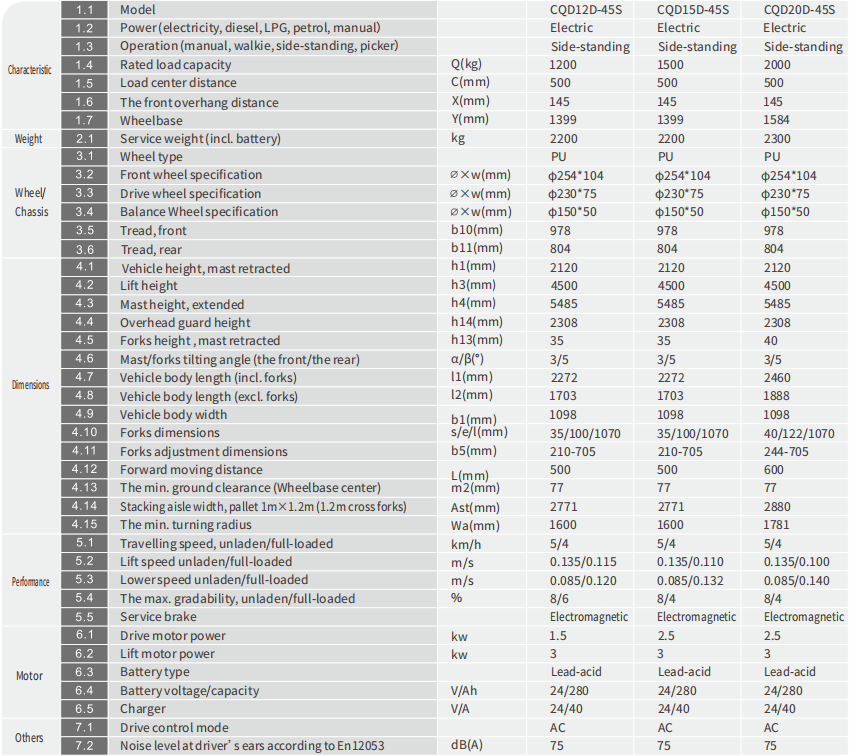

Characteristic | Model |
| CQD12D-45S | CQD15D-45S | CQD20D-45S |
Power(electricity,diesel,LPG,petrol,manual) |
| Electric | Electric | Electric |
Operation(manual,walkie,side-standing,picker) |
| Side-standing |
Rated load capacity | Q(kg) | 1200 | 1500 | 2000 |
Load center distance | C(mm) | 500 | 500 | 500 |
The front overhang distance | X(mm) | 145 | 145 | 145 |
Wheelbase | Y(mm) | 1399 | 1399 | 1584 |
Weight | Service weight(incl.battery) | kg | 2200 | 2200 | 2300 |
Wheel/
Chassis | Wheel type |
| PU | PU | PU |
Front wheel specification | ø×w(mm) | φ254*104 | φ254*104 | φ254*104 |
Drivewheel specification | ø×w(mm) | φ230*75 | φ230*75 | φ230*75 |
Balance Wheel specification | ø×w(mm) | φ150*50 | φ150*50 | φ150*50 |
Tread,front | b10(mm) | 978 | 978 | 978 |
Tread,rear | b11(mm) | 804 | 804 | 804 |
Dimensions | Vehicle height,mast retracted | h1(mm) | 2120 | 2120 | 2120 |
Liftheight | h3(mm) | 4500 | 4500 | 4500 |
Mast height,extended | h4(mm) | 5485 | 5485 | 5485 |
Overhead guard height | h14(mm) | 2308 | 2308 | 2308 |
Forks height,mast retracted | h13(mm) | 35 | 35 | 40 |
Mast/forkstilting angle(the front/the rear) | a/β(°) | 3/5 | 3/5 | 3/5 |
Vehicle bodylength (incl.forks) | l1(mm) | 2272 | 2272 | 2460 |
Vehicle body length(excl.forks) | 12(mm) | 1703 | 1703 | 1888 |
Vehicle body width | b1(mm) | 1098 | 1098 | 1098 |
Forks dimensions | s/e/l(mm) | 35/100/1070 | 40/122/1070 |
Forks adjustment dimensions | b5(mm) | 210-705 | 210-705 | 244-705 |
Forward moving distance | L(mm) | 500 | 500 | 600 |
The min.ground clearance(Wheelbase center) | m2(mm) | 77 | 77 | 77 |
Stackingaisle width,pallet1m×1.2m(1.2m cross forks) | Ast(mm) | 2771 | 2771 | 2880 |
The min.turning radius | Wa(mm) | 1600 | 1600 | 1781 |
Peformance | Travelling speed,unladen/ful-loaded | km/h | 5/4 | 5/4 | 5/4 |
Lift speed unladen/full-loaded | m/s | 0.135/0.115 | 0.135/0.110 | 0.135/0.100 |
Lowerspeed unladen/full-loaded | m/s | 0.085/0.120 | 0.085/0.132 | 0.085/0.140 |
The max.gradability,unladen/full-loaded | % | 8/6 | 8/4 | 8/4 |
Service brake |
| Electromagnetic |
Motor | Drivemotor power | kw | 1.5 | 2.5 | 2.5 |
Liftmotorpower | kw | 3 | 3 | 3 |
Battery type |
| Lead-acid | Lead-acid | Lead-acid |
Battery voltage/capacity | V/Ah | 24/280 | 24/280 | 24/280 |
Charger | V/A | 24/40 | 24/40 | 24/40 |
Others | Drive control mode |
| AC | AC | AC |
Noise level at driver'sears accordingto En12053 | dB(A) | 75 | 75 | 75 |
Q：What is the MOQ?
A： One set.
Q：Can I customize the equipment?
A：Yes, we offer customization service, including load capacity, lifting height, battery, color and others.
Q: Can I get spare parts or technical support after purchase?
A: Yes, we provide lifetime support and spare parts supply. We can ship parts globally and assist via video call.
Q：How long is the warranty time?
A： 12 months or 2000 hours whichever comes first.
Q：What is the payment terms?
A： T/T, 30% pre-payment in advance, and 70% balance before delivery.
