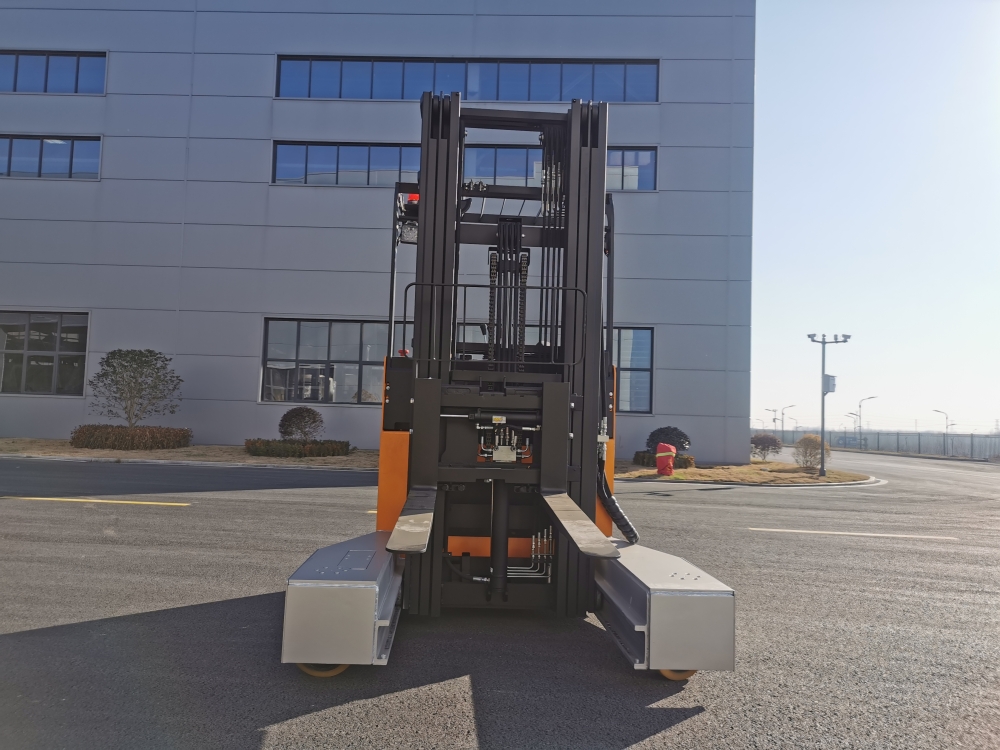

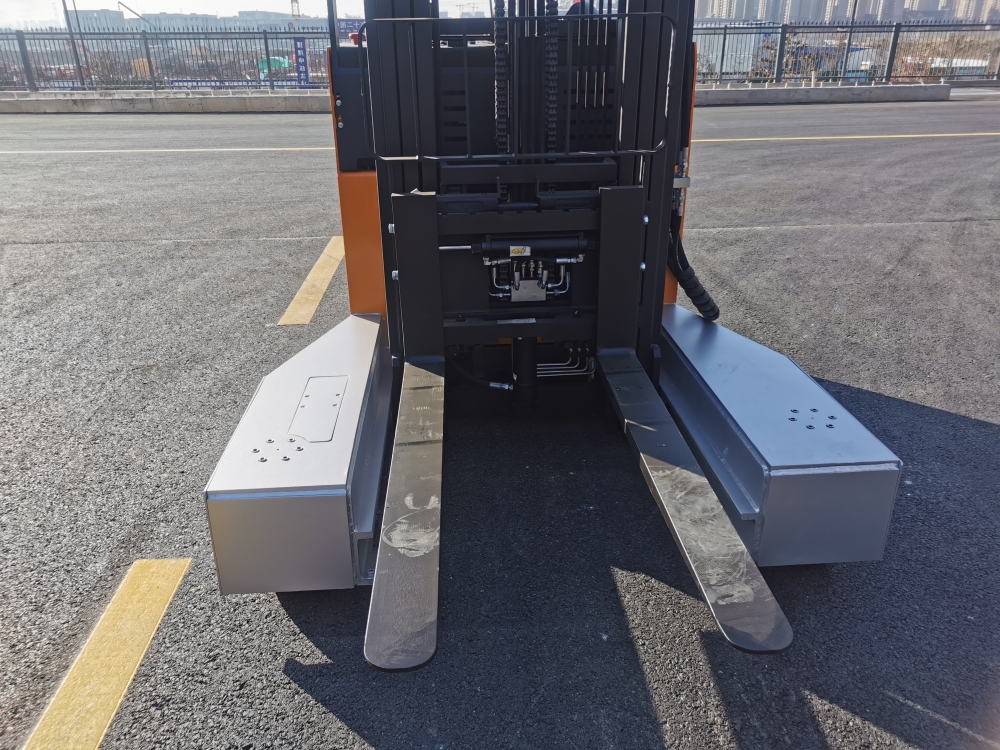

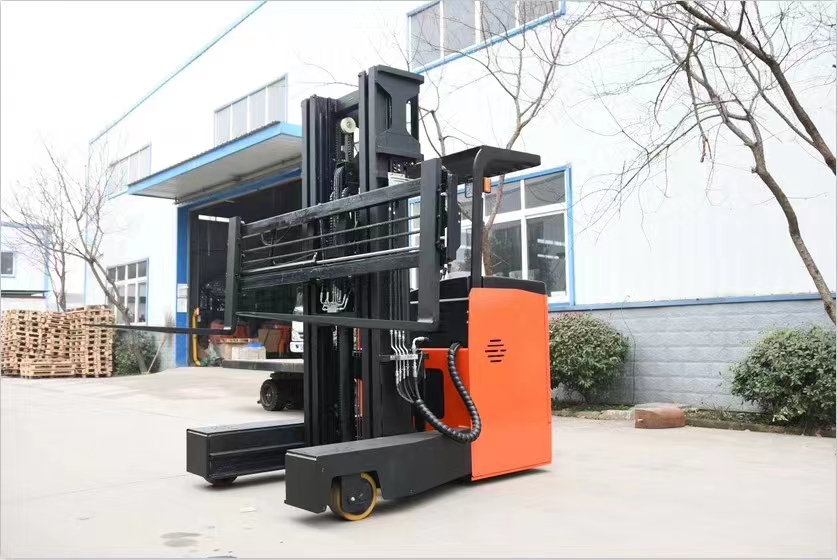

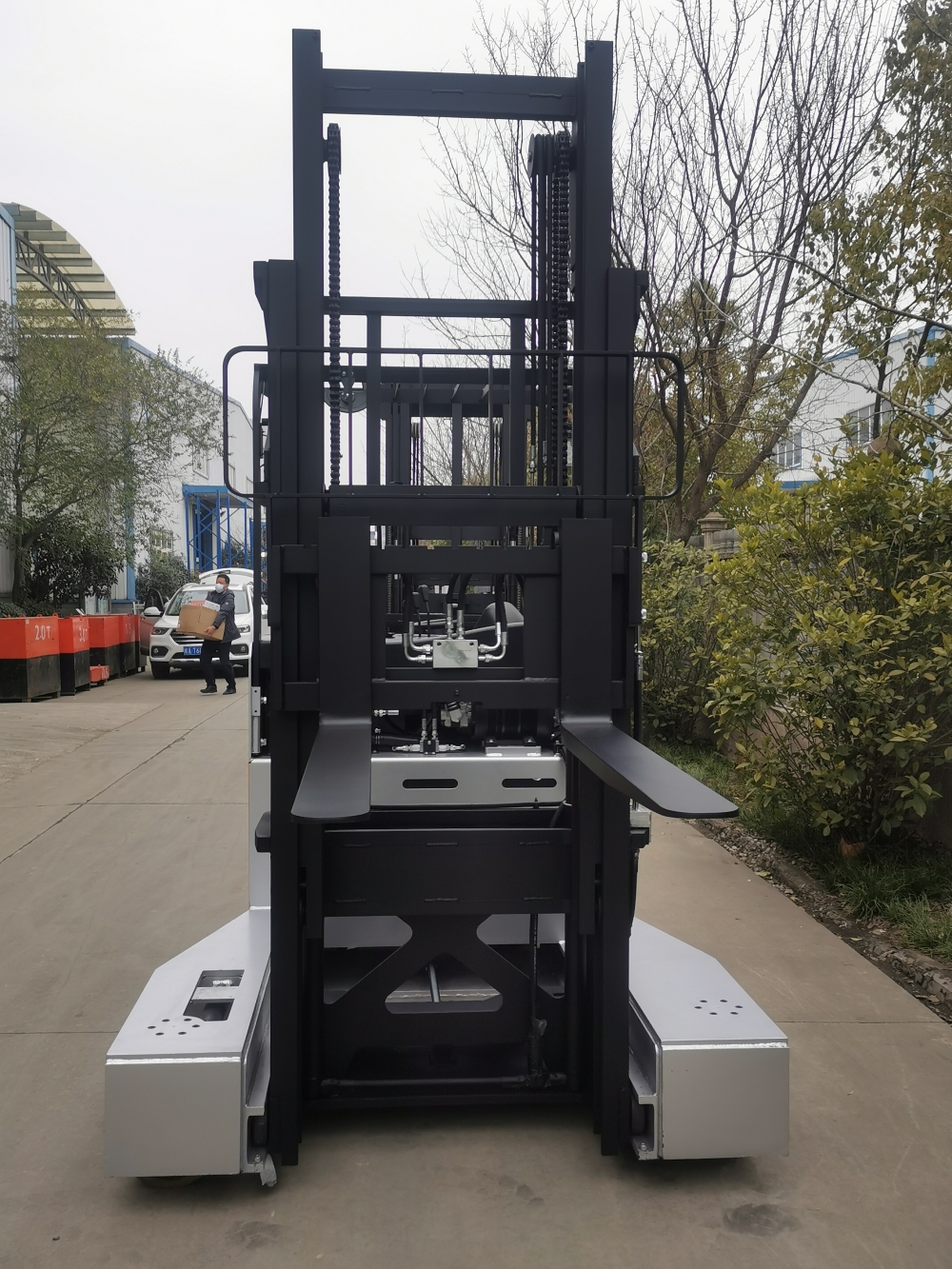

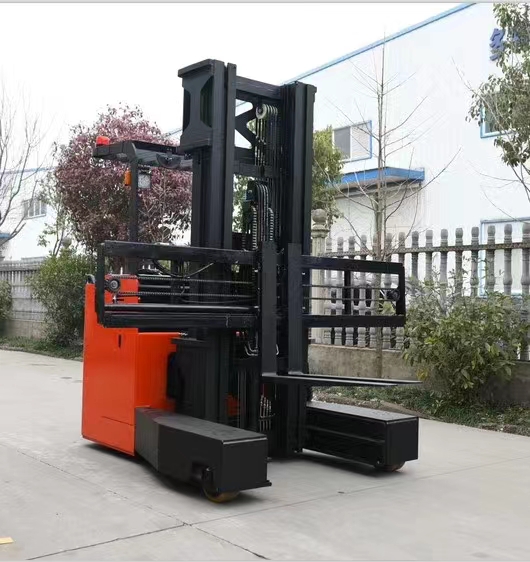

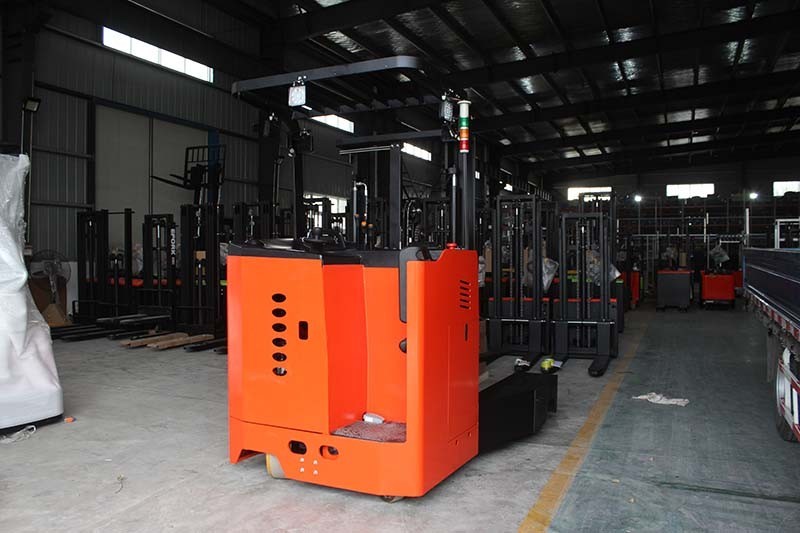

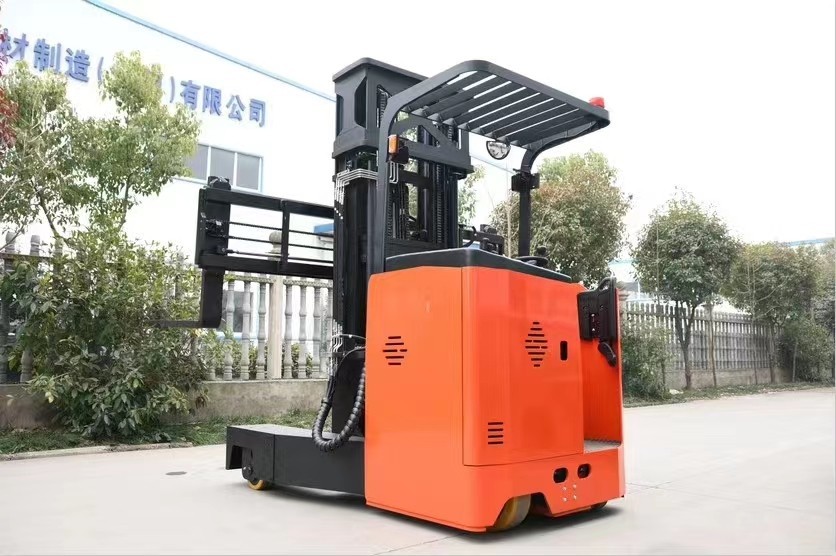

Product Description

Four-way driving, suits for VNA stacking operation, especially the long material handling, greatly saving the warehouse storage space, it can switch from straight line driving to lateral driving quickly with easy operation. High efficiency and less fault;

Equipped with branded control system and multi-functional protection system,it offers higher level fuctional safety;

Equipped with smart HD display instrument,offering real-time vehicle operation status and fault display,it is easy for troubleshooting and maintenance;

It adopts full AC drive system, with quicker response and more accurate control, further improving the vehicle performance;

Equipped with EPS steering system, with easy and flexible operation, improving the operational stability in high speed;

It displays real-time drive wheel angle , easy for the fine -tunning inner V NA , safe , reasonable and accurate;

Specialised large-capacity power battery, with strong power, safe and reliable , easy for charging. Long end u - rance and low maintenance cost;

Side-pull battery suits multi-shifin g occasions , with standard roller cart for easy change;

Electromagnetic brake features in quick parking and automatic brake.

Characteristic	Model		CQDS15-45S	CQDS20-45S	CQDS25-45S
	Operation(Manual,walkie,side-standing,picker)		Side-standing
	Rated load capacity	Q(kg)	1500	2000	2500
	Load centerdistance	C(mm)	500	500	500
	Wheelbase	Y(mm)	1622	1722	1822
	The front overhang distance	X(mm)	200	200	200
Weight	Service weight(incl.battery)	kg	3400	3500	3800
Wheel/ Chassis	Wheeltype		PU	PU	PU
	The front wheel specification	ø×w(mm)	φ267*114	φ267*114	φ267*114
	Drive wheel specification	ø×w(mm)	φ382*142	φ382*142	φ382*142
	Balance wheelspecification	ø×w(mm)	φ180*76	φ180*76	φ180*76
	Tread,front	b10(mm)	1430	1430	1430
Dimensions	Tread,rear	b11(mm)	703	703	703
	Vehicle height,mast retracted	h1(mm)	2110	2110	2360
	Free lifting height	h2(mm)	1500	1500	1500
	Lift height	h3(mm)	4500	4500	4500
	Mast height,extended	h4(mm)	5480	5480	5480
	Overhead guard height	h14(mm)	2280	2280	2280
	Forks height,mast retracted	h13(mm)	35	40	45
	Mast/forks tilting angle(the front/the rear)	a/β(°)	3/5	3/5	3/5
	Overall vehicle length (incl.forks)	l1mm)	2505	2585	2700
	Vehicle bodylength(excl.forks)	12(mm)	2046	2146	2246
	Vehicle body width	b1(mm)	1680	1680	1680
	Forks dimensions	s/e/l(mm)	35/100/1070	40/122/1070	45/125/1070
	Forks adjustment dimensions	b5(mm)	210-705	260-705	270-840
	Forward moving distance	L(mm)	655	700	640
	The min.groundclearance(wheelbase center)	m2(mm)	80	80	80
	Stacking aisle width,pallet1000×1200(1200 acrossforks)	Ast(mm)	2705	2785	2900
Peformance	The min.turning radius	Wa(mm)	1905	2000	2105
	Travelling speed,unladen/full-loaded	km/h	8/7	8/7	8/7
	Lift speed,unladen/full-loaded	m/s	0.320/0.260	0.350/0.240	0.330/0.240
	Lower speed,unladen/full-loaded	m/s	0.350/0.380	0.320/0.400	0.320/0.400
	The max.gradability,unladen/full-loaded	%	≤10	≤10	≤10
	Service brake		Electromagnetic
Motor	Drive motorpower	kw	6.5AC	6.5AC	6.5AC
	Lift power power	kw	8.6 AC	8.6 AC	8.6 AC
	Battery type		Lead-acid	Lead-acid	Lead-acid
	Batteryvoltage/capacity	V/Ah	48/300	48/400	48/400
	Motor	V/A	48/40	48/50	48/50
Others	Drive controlmode		AC	AC	AC
Others	Noise level atdriver'sears according to En12053	dB(A)	75	75	75
