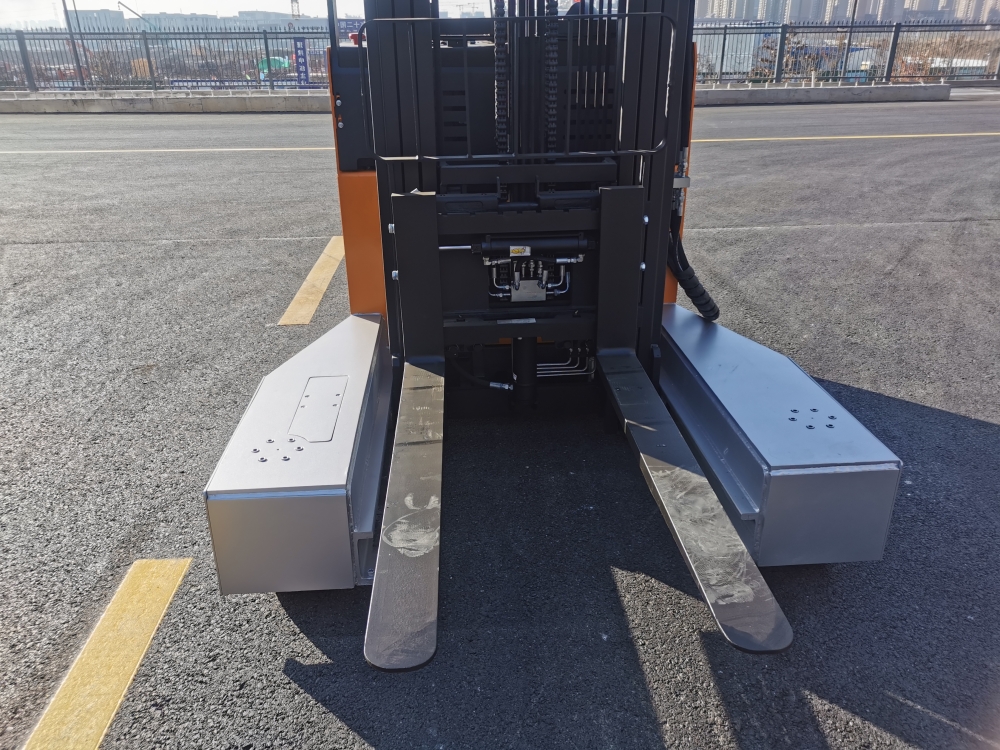

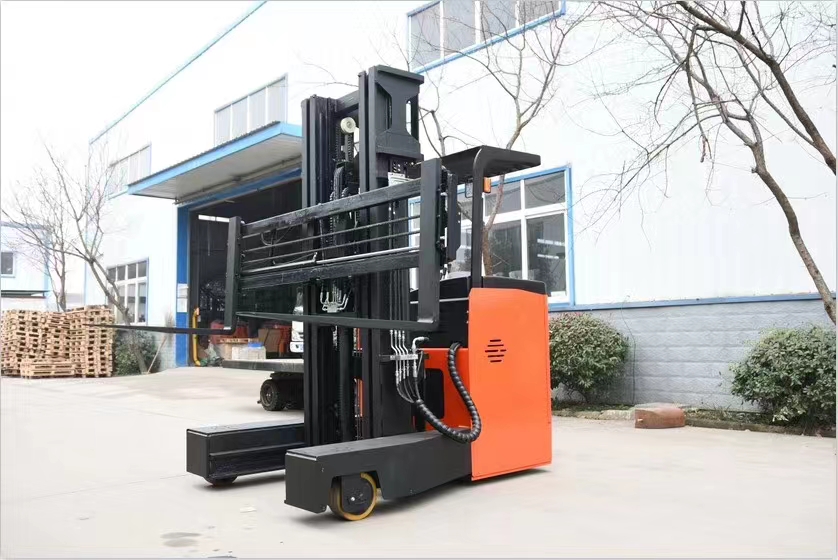

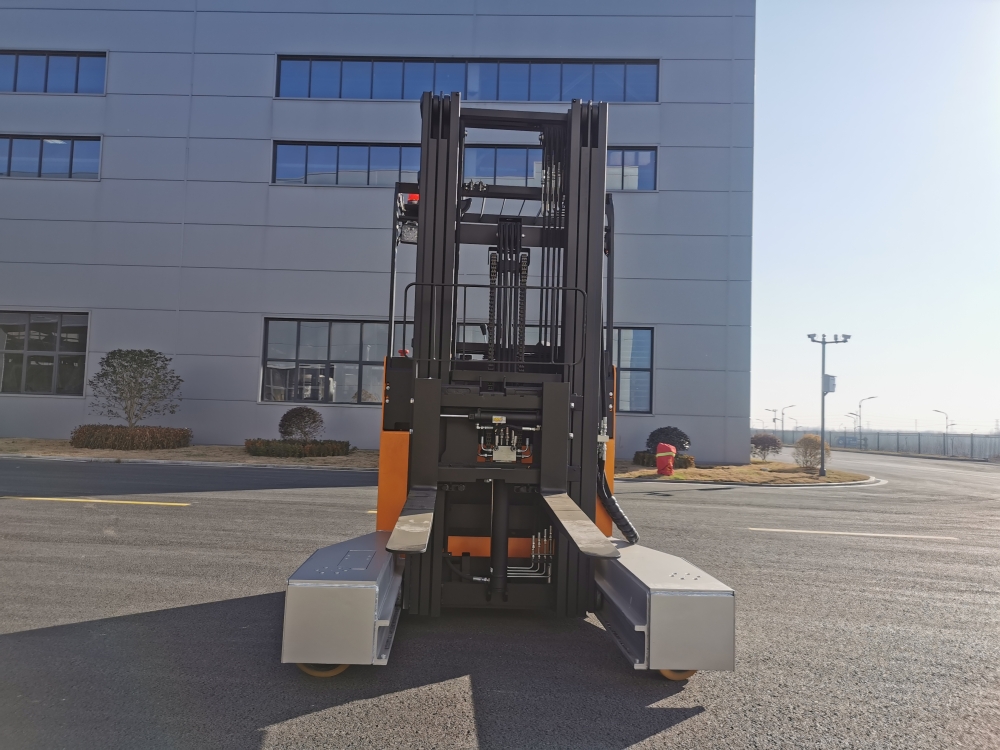

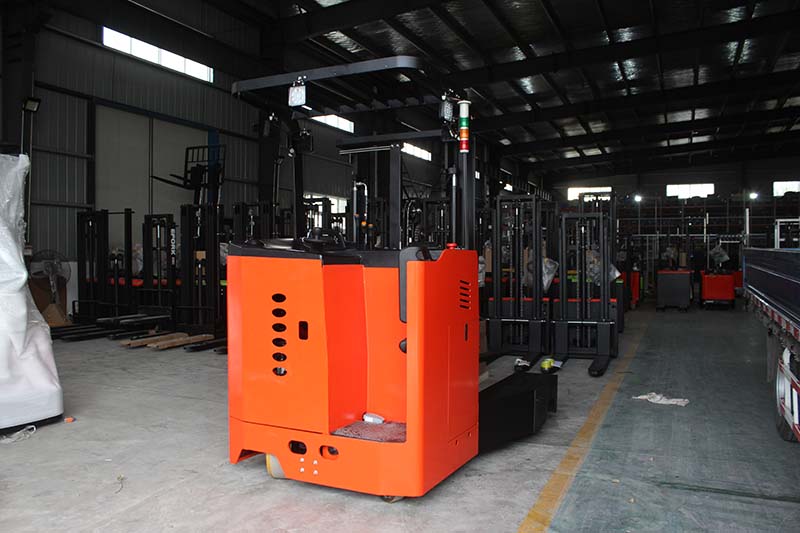

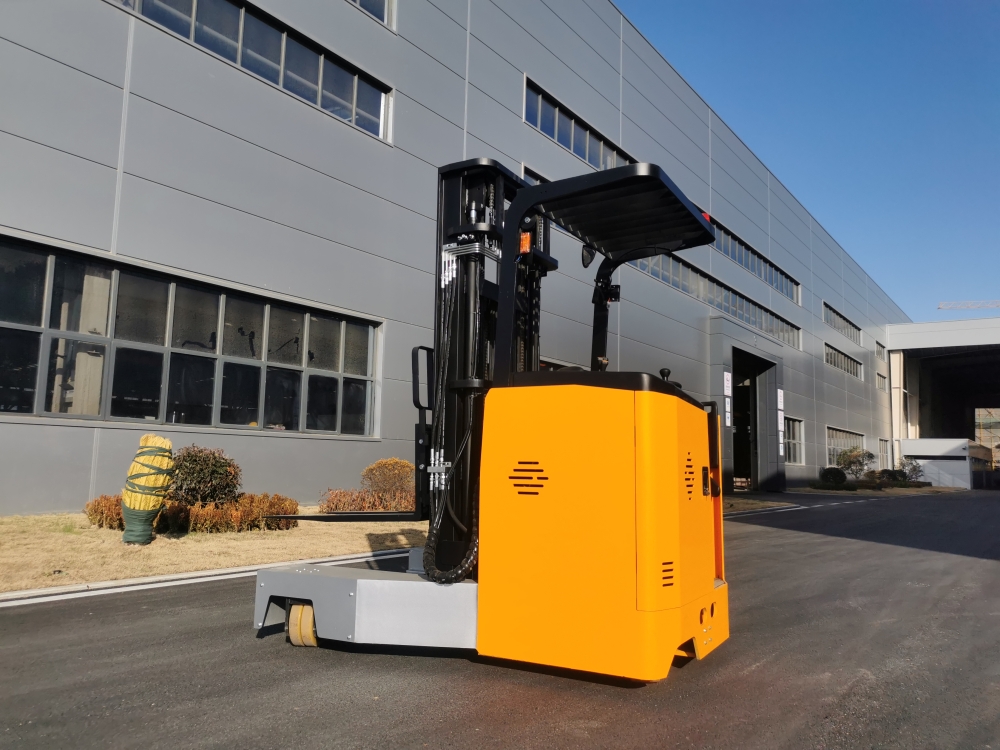

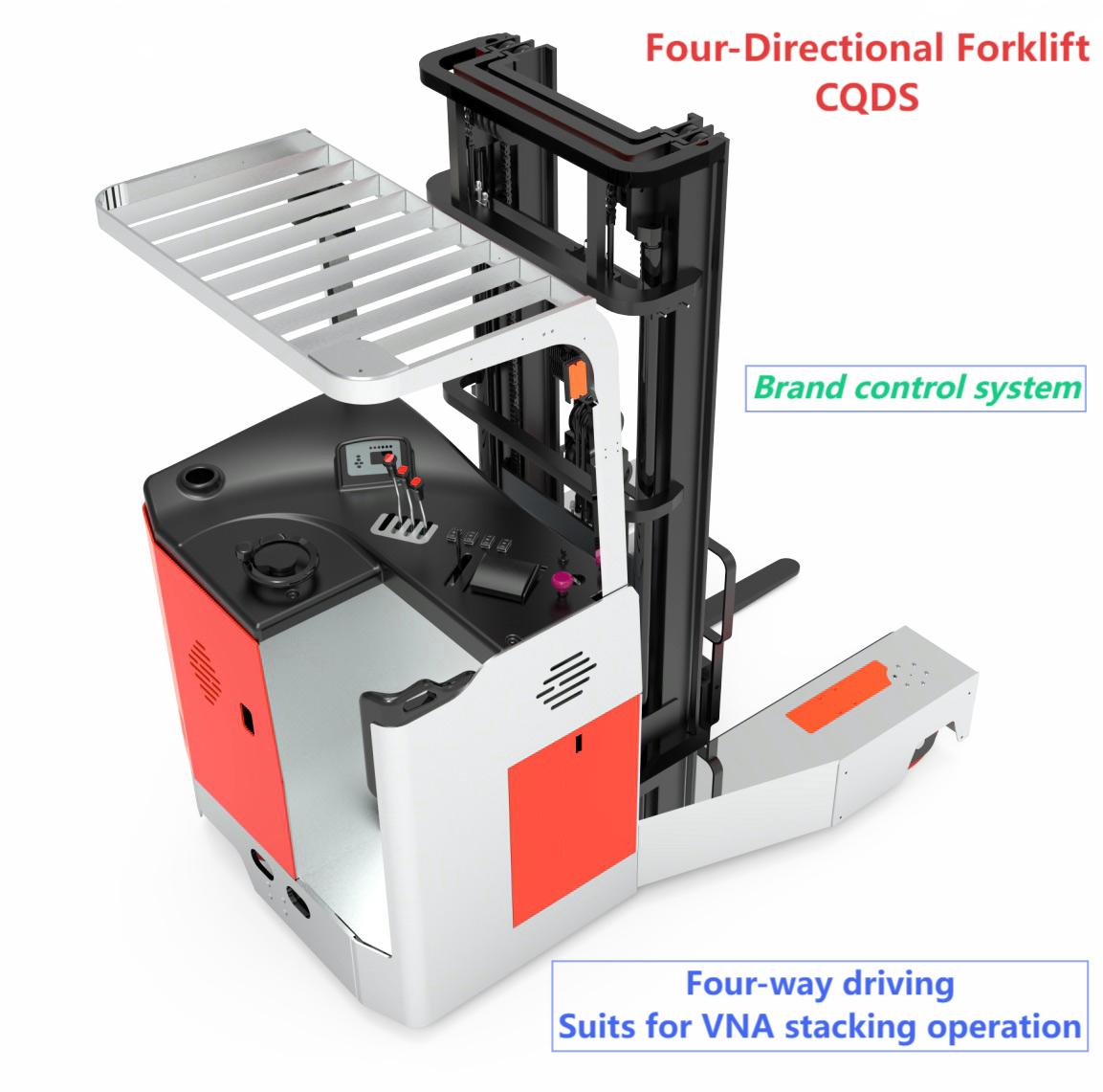

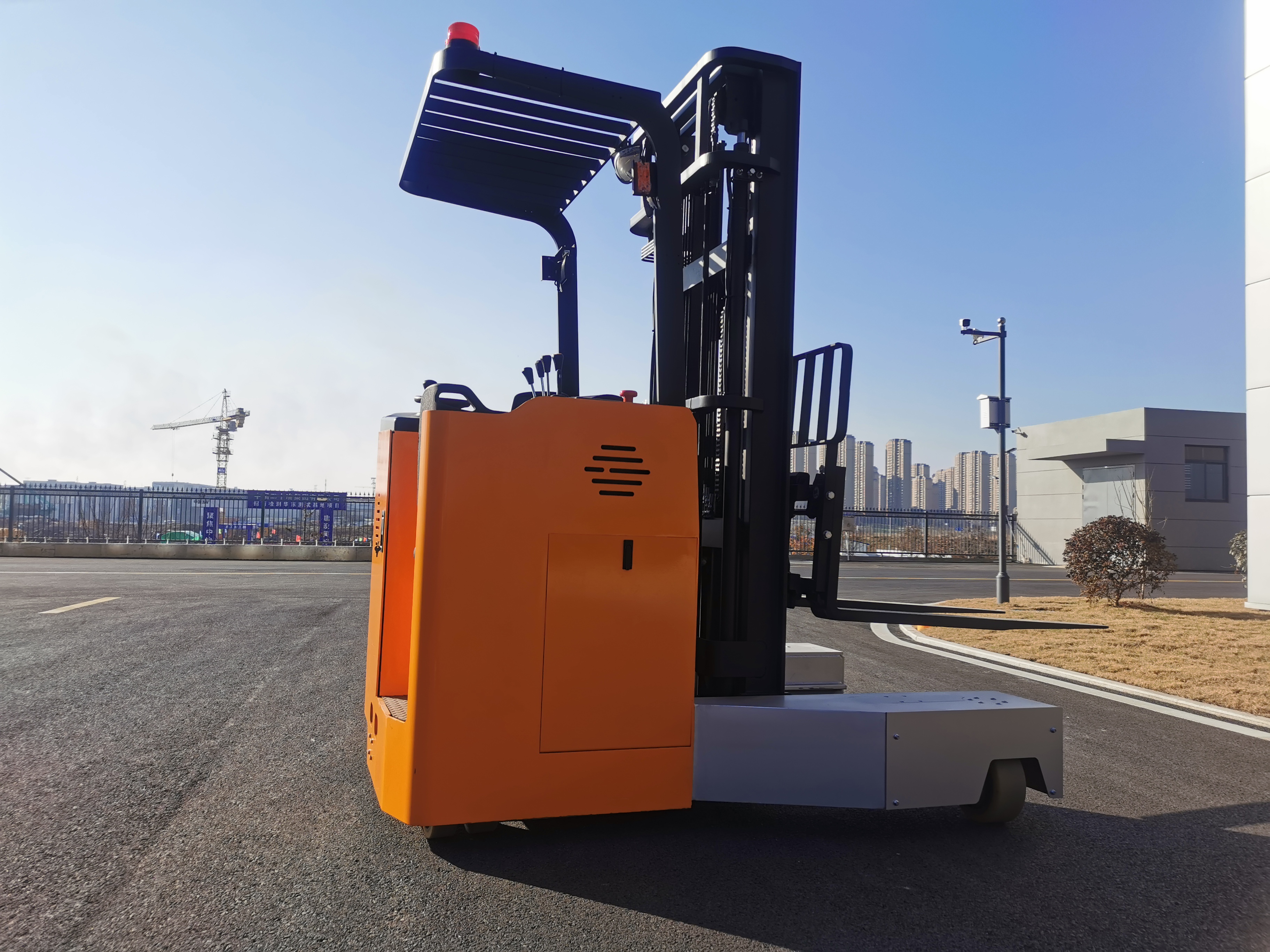

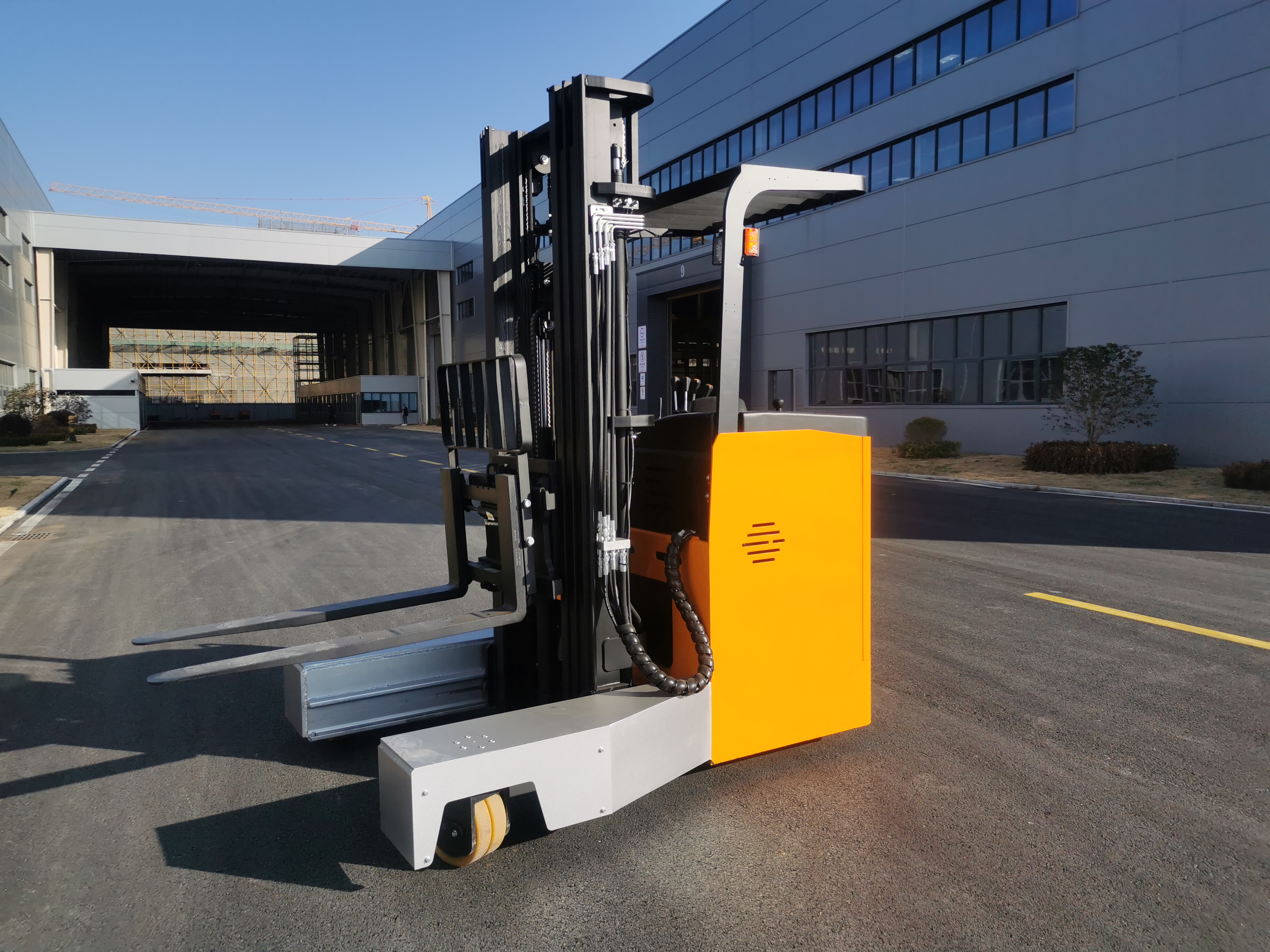

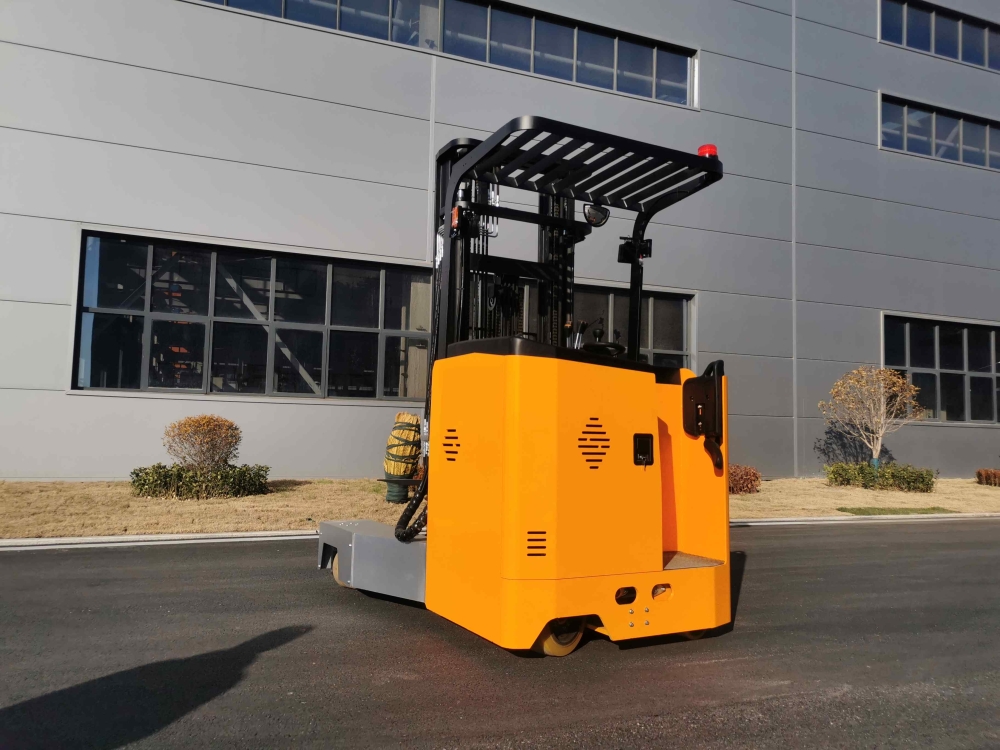

Reach Truck

Especially suitable for the long material handling, greatly saving the warehouse storage space, it can switch from straight line driving to lateral driving quickly with easy operation. High efficiency and less fault.

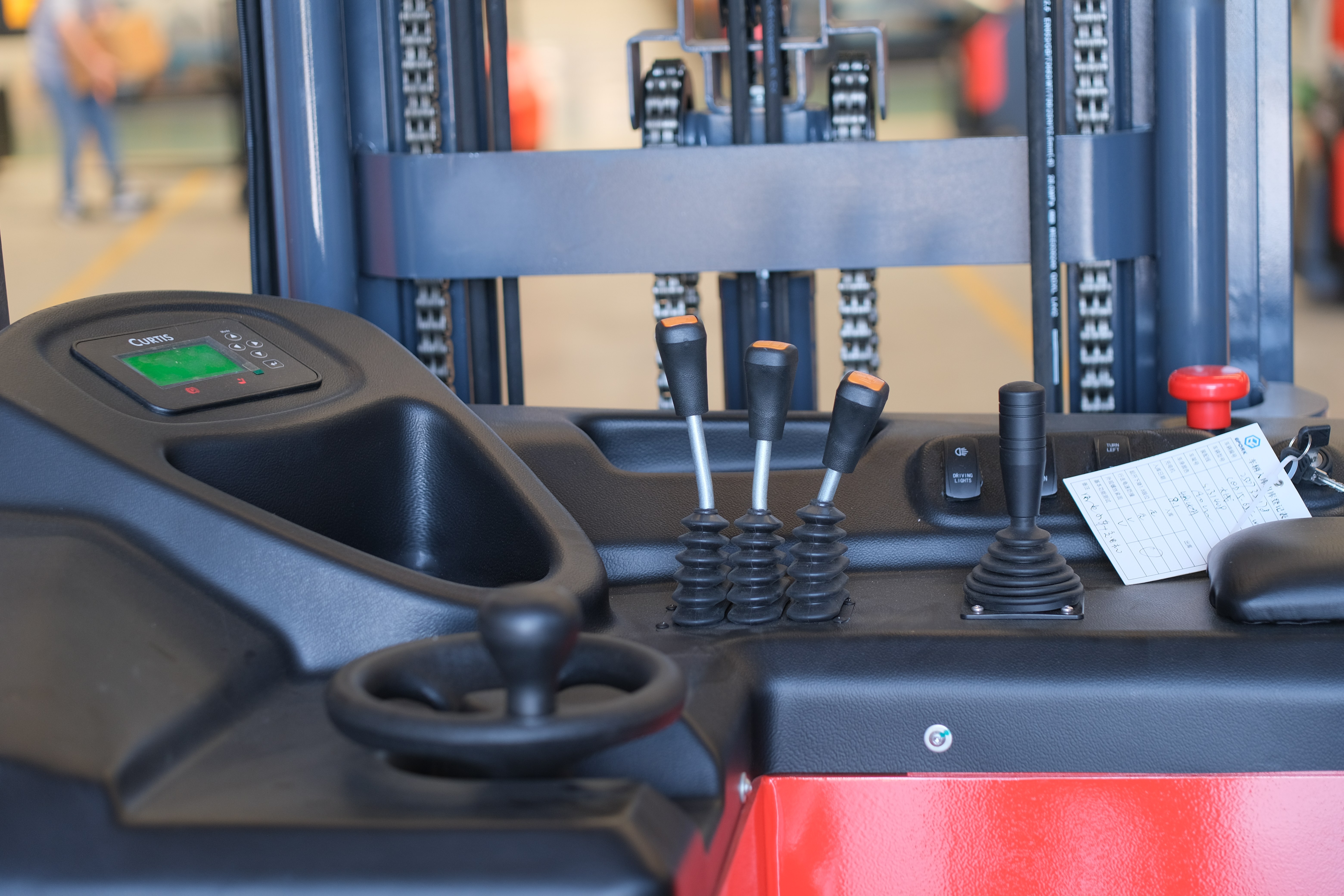

Equipped with smart HD display instrument,offering real-time vehicle operation status and fault display,it is easy for troubleshooting and maintenance; It adopts full AC drive system,with quicker response and more accurate control,further improving the vehicle performance; Equipped with EPS steering system,with easy and flexible operation,improving the operational stability in high speed.

It displays real-time drive wheel angle, easy for the finetunning inner VNA, safe, reasonable and accurate; Specialised large-capacity power battery,with strong power,safe and reliable,easy for charging.Long-endurance and low maintenance cost; Side-pull battery suits multi-shifing occasions, with standard roller cart for easy change; Electromagnetic brake features in quick parking and automatic brake.

Characteristic	1.1	Model		CQDS15-45S	CQDS20-45S	CQDS25-45S
	1.2	Operation(Manual,walkie,side-standing,picker)		Side-standing	Side-standing	Side-standing
	1.3	Rated load capacity	Q(kg)	1500	2000	2500
	1.4	Load centerdistance	C(mm)	500	500	500
	1.5	Wheelbase	Y(mm)	1622	1722	1822
	1.6	The front overhang distance	X(mm)	200	200	200
Weight	2.1	Service weight(incl.battery)	kg	3400	3500	3800
Wheel/ Chassis	3.1	Wheeltype		PU	PU	PU
	3.2	The front wheel specification	ø×w(mm)	φ267*114	φ267*114	φ267*114
	3.3	Drive wheel specification	ø×w(mm)	φ382*142	φ382*142	φ382*142
	3.4	Balance wheelspecification	ø×w(mm)	φ180*76	φ180*76	φ180*76
	3.5	Tread,front	b10(mm)	1430	1430	1430
Dimensions	4.1	Tread,rear	b11(mm)	703	703	703
	4.2	Vehicle height,mast retracted	h1(mm)	2110	2110	2360
	4.3	Free lifting height	h2(mm)	1500	1500	1500
	4.4	Lift height	h3(mm)	4500	4500	4500
	4.5	Mast height,extended	h4(mm)	5480	5480	5480
	4.6	Overhead guard height	h14(mm)	2280	2280	2280
	4.7	Forks height,mast retracted	h13(mm)	35	40	45
	4.8	Mast/forks tilting angle(the front/the rear)	a/β(°)	3/5	3/5	3/5
	4.9	Overall vehicle length (incl.forks)	l1mm)	2505	2585	2700
	4.10	Vehicle bodylength(excl.forks)	12(mm)	2046	2146	2246
	4.11	Vehicle body width	b1(mm)	1680	1680	1680
	4.12	Forks dimensions	s/e/l(mm)	35/100/1070	40/122/1070	45/125/1070
	4.13	Forks adjustment dimensions	b5(mm)	210-705	260-705	270-840
	4.14	Forward moving distance	L(mm)	655	700	640
	4.15	The min.groundclearance(wheelbase center)	m2(mm)	80	80	80
	4.16	Stacking aisle width,pallet1000×1200(1200 acrossforks)	Ast(mm)	2705	2785	2900
Peformance	5.1	The min.turning radius	Wa(mm)	1905	2000	2105
	5.2	Travelling speed,unladen/full-loaded	km/h	8/7	8/7	8/7
	5.3	Lift speed,unladen/full-loaded	m/s	0.320/0.260	0.350/0.240	0.330/0.240
	5.4	Lower speed,unladen/full-loaded	m/s	0.350/0.380	0.320/0.400	0.320/0.400
	5.5	The max.gradability,unladen/full-loaded	%	≤10	≤10	≤10
	5.6	Service brake		Electromagnetic	Electromagnetic	Electromagnetic
Motor	6.1	Drive motorpower	kw	6.5AC	6.5AC	6.5AC
	6.2	Lift power power	kw	8.6 AC	8.6 AC	8.6 AC
	6.3	Battery type		Lead-acid	Lead-acid	Lead-acid
	6.4	Batteryvoltage/capacity	V/Ah	48/300	48/400	48/400
	6.5	Motor	V/A	48/40	48/50	48/50
Others	7.1	Drive controlmode		AC	AC	AC
	7.2	Noise level atdriver'sears according to En12053	dB(A)	75	75	75

 Anhui Viwint Intelligent Technology Co.,Ltd.,a scientific and technological innovationenterprise focusing on the R&D,manufacturing and service of industrial vehicles,andits core business covers the R&D and production of electric forklifts,diesel forklifts,AGV automatic guided vehicles and narrow aisle three-way electric forklifts.With 1000customer service cases and export experience covering the Americas,Europe andother global markets,the company aims to build a leading brand in the field of logisticsequipment.

FAQ

Q：What is the MOQ?
A： One set.

Q：Can I customize the equipment?

A：Yes, we offer customization service, including load capacity, lifting height, battery, color and others.

Q: Can I get spare parts or technical support after purchase?
A: Yes, we provide lifetime support and spare parts supply. We can ship parts globally and assist via video call.

Q：How long is the warranty time?
A： 12 months or 2000 hours whichever comes first.

Q：What is the payment terms?
A： T/T, 30% pre-payment in advance, and 70% balance before delivery.
