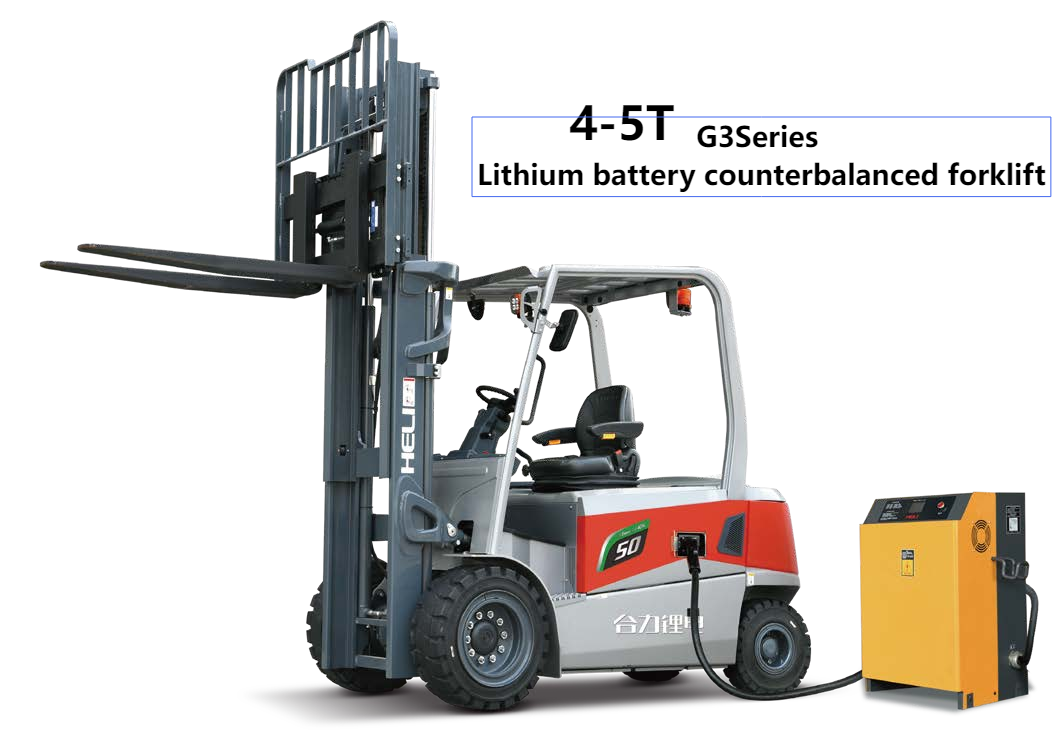

Improved human-machine comfort High efficiency and energy saving
Suitable for high and low temperature work High security
The integrated powertrain reduces wiring and significantly reduces power transmission losses.
The components and control module are clearly structured for easy maintenance.
Centralized maintenance Fast and convenient
①The hood opens 80° with a simple opening mechanism and an optional key lock for easy maintenance.
②The vehicle's optimized structural layout provides ample interior space and easy maintenance.
③The modular design of the powertrain and electrical system facilitates maintenance and reduces costs.
No need for refilling or dust protection; No routine maintenance required; No manual maintenance required. |
High reliability High security Long service life
Model |
|
| | | |
Configuration Number |
|
| | | | | | | |

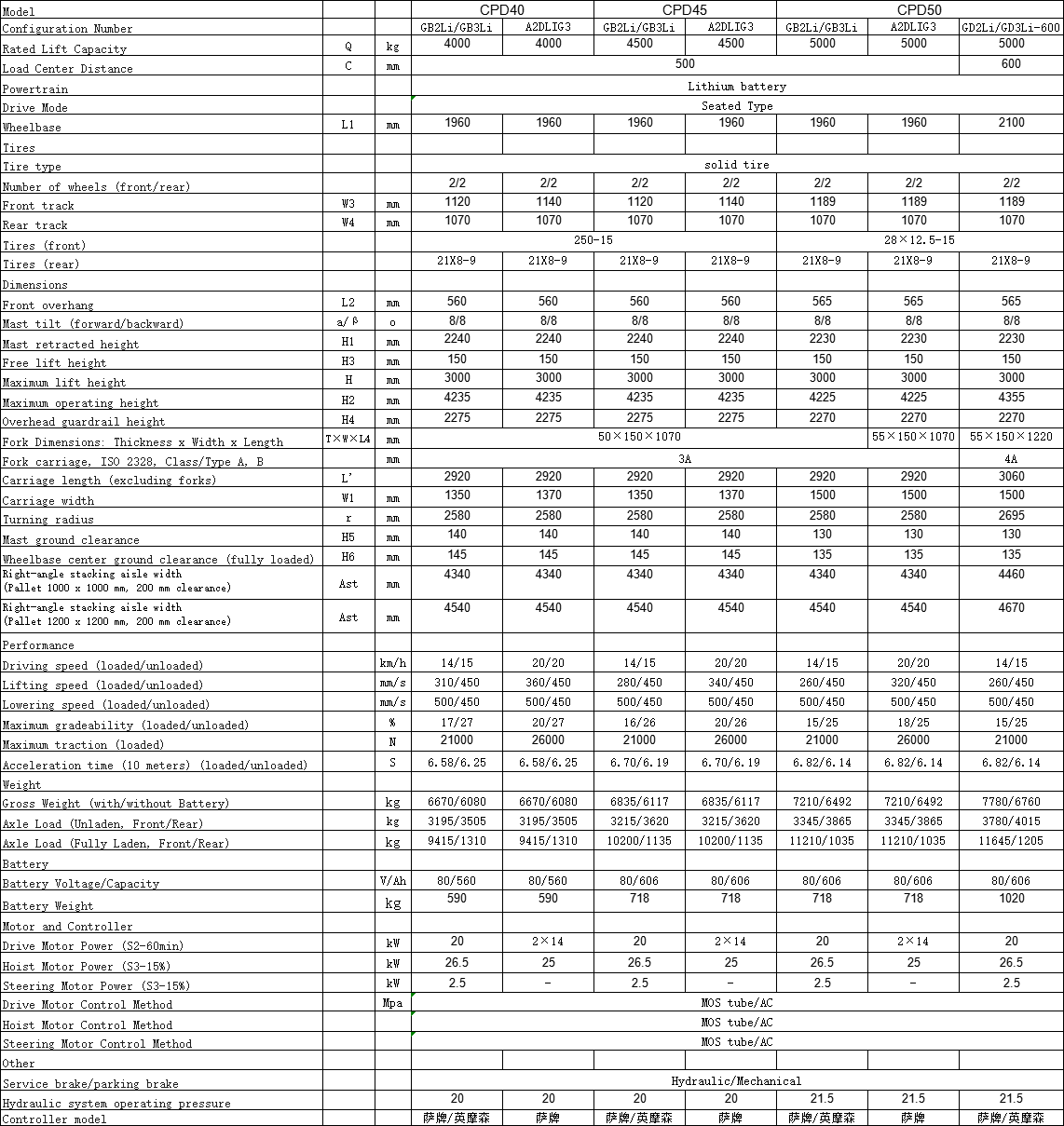

Rated Lift Capacity | Q | kg | 4000 | 4000 | 4500 | 4500 | 5000 | 5000 | 5000 |
Load Center Distance | C | mm | | 600 |
Powertrain |
|
| |
Drive Mode |
|
| |
Wheelbase | L1 | mm | 1960 | 1960 | 1960 | 1960 | 1960 | 1960 | 2100 |
Tires |
|
|
|
|
|
|
|
|
|
Tire type |
|
| |
Number of wheels (front/rear) |
|
| 2/2 | 2/2 | 2/2 | 2/2 | 2/2 | 2/2 | 2/2 |
Front track | W3 | mm | 1120 | 1140 | 1120 | 1140 | 1189 | 1189 | 1189 |
Rear track | W4 | mm | 1070 | 1070 | 1070 | 1070 | 1070 | 1070 | 1070 |
Tires (front) |
|
| | |
Tires (rear) |
|
| 21X8-9 | 21X8-9 | 21X8-9 | 21X8-9 | 21X8-9 | 21X8-9 | 21X8-9 |
Dimensions |
|
|
|
|
|
|
|
|
|
Front overhang | L2 | mm | 560 | 560 | 560 | 560 | 565 | 565 | 565 |
Mast tilt (forward/backward) | a/β | o | 8/8 | 8/8 | 8/8 | 8/8 | 8/8 | 8/8 | 8/8 |
Mast retracted height | H1 | mm | 2240 | 2240 | 2240 | 2240 | 2230 | 2230 | 2230 |
Free lift height | H3 | mm | 150 | 150 | 150 | 150 | 150 | 150 | 150 |
Maximum lift height | H | mm | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 |
Maximum operating height | H2 | mm | 4235 | 4235 | 4235 | 4235 | 4225 | 4225 | 4355 |
Overhead guardrail height | H4 | mm | 2275 | 2275 | 2275 | 2275 | 2270 | 2270 | 2270 |
Fork Dimensions: Thickness x Width x Length | T×W×L4 | mm | | 55×150×1070 | 55×150×1220 |
Fork carriage, ISO 2328, Class/Type A, B |
| mm | | 4A |
Carriage length (excluding forks) | L' |
| 2920 | 2920 | 2920 | 2920 | 2920 | 2920 | 3060 |
Carriage width | W1 | mm | 1350 | 1370 | 1350 | 1370 | 1500 | 1500 | 1500 |
Turning radius | r | mm | 2580 | 2580 | 2580 | 2580 | 2580 | 2580 | 2695 |
Mast ground clearance | H5 | mm | 140 | 140 | 140 | 140 | 130 | 130 | 130 |
Wheelbase center ground clearance (fully loaded) | H6 | mm | 145 | 145 | 145 | 145 | 135 | 135 | 135 |
Right-angle stacking aisle width
(Pallet 1000 x 1000 mm, 200 mm clearance) | Ast | mm | 4340 | 4340 | 4340 | 4340 | 4340 | 4340 | 4460 |
Right-angle stacking aisle width
(Pallet 1200 x 1200 mm, 200 mm clearance) | Ast | mm | 4540 | 4540 | 4540 | 4540 | 4540 | 4540 | 4670 |
Performance |
|
|
|
|
|
|
|
|
|
Driving speed (loaded/unloaded) |
| km/h | 14/15 | 20/20 | 14/15 | 20/20 | 14/15 | 20/20 | 14/15 |
Lifting speed (loaded/unloaded) |
| mm/s | 310/450 | 360/450 | 280/450 | 340/450 | 260/450 | 320/450 | 260/450 |
Lowering speed (loaded/unloaded) |
| mm/s | 500/450 | 500/450 | 500/450 | 500/450 | 500/450 | 500/450 | 500/450 |
Maximum gradeability (loaded/unloaded) |
| % | 17/27 | 20/27 | 16/26 | 20/26 | 15/25 | 18/25 | 15/25 |
Maximum traction (loaded) |
| N | 21000 | 26000 | 21000 | 26000 | 21000 | 26000 | 21000 |
Acceleration time (10 meters) (loaded/unloaded) |
| S | 6.58/6.25 | 6.58/6.25 | 6.70/6.19 | 6.70/6.19 | 6.82/6.14 | 6.82/6.14 | 6.82/6.14 |
Weight |
|
|
|
|
|
|
|
|
|
Gross Weight (with/without Battery) |
| kg | 6670/6080 | 6670/6080 | 6835/6117 | 6835/6117 | 7210/6492 | 7210/6492 | 7780/6760 |
Axle Load (Unladen, Front/Rear) |
| kg | 3195/3505 | 3195/3505 | 3215/3620 | 3215/3620 | 3345/3865 | 3345/3865 | 3780/4015 |
Axle Load (Fully Laden, Front/Rear) |
| kg | 9415/1310 | 9415/1310 | 10200/1135 | 10200/1135 | 11210/1035 | 11210/1035 | 11645/1205 |
Battery |
|
|
|
|
|
|
|
|
|
Battery Voltage/Capacity |
| V/Ah | 80/560 | 80/560 | 80/606 | 80/606 | 80/606 | 80/606 | 80/606 |
Battery Weight |
| kg | 590 | 590 | 718 | 718 | 718 | 718 | 1020 |
Motor and Controller |
|
|
|
|
|
|
|
|
|
Drive Motor Power (S2-60min) |
| kW | 20 | 2×14 | 20 | 2×14 | 20 | 2×14 | 20 |
Hoist Motor Power (S3-15%) |
| kW | 26.5 | 25 | 26.5 | 25 | 26.5 | 25 | 26.5 |
Steering Motor Power (S3-15%) |
| kW | 2.5 | - | 2.5 | - | 2.5 | - | 2.5 |
Drive Motor Control Method |
| Mpa | |
Hoist Motor Control Method |
|
| |
Steering Motor Control Method |
|
| |
Other |
|
|
|
|
|
|
|
|
|
Service brake/parking brake |
|
| |
Hydraulic system operating pressure |
|
| 20 | 20 | 20 | 20 | 21.5 | 21.5 | 21.5 |
Controller model |
|
| 萨牌/英摩森 | 萨牌 | 萨牌/英摩森 | 萨牌 | 萨牌/英摩森 | 萨牌 | 萨牌/英摩森 |
