HELI K2 Series 4wheel Counterbalanced Electric Forklift Handling Equipment for Building Construction Forklift Stacking Moving

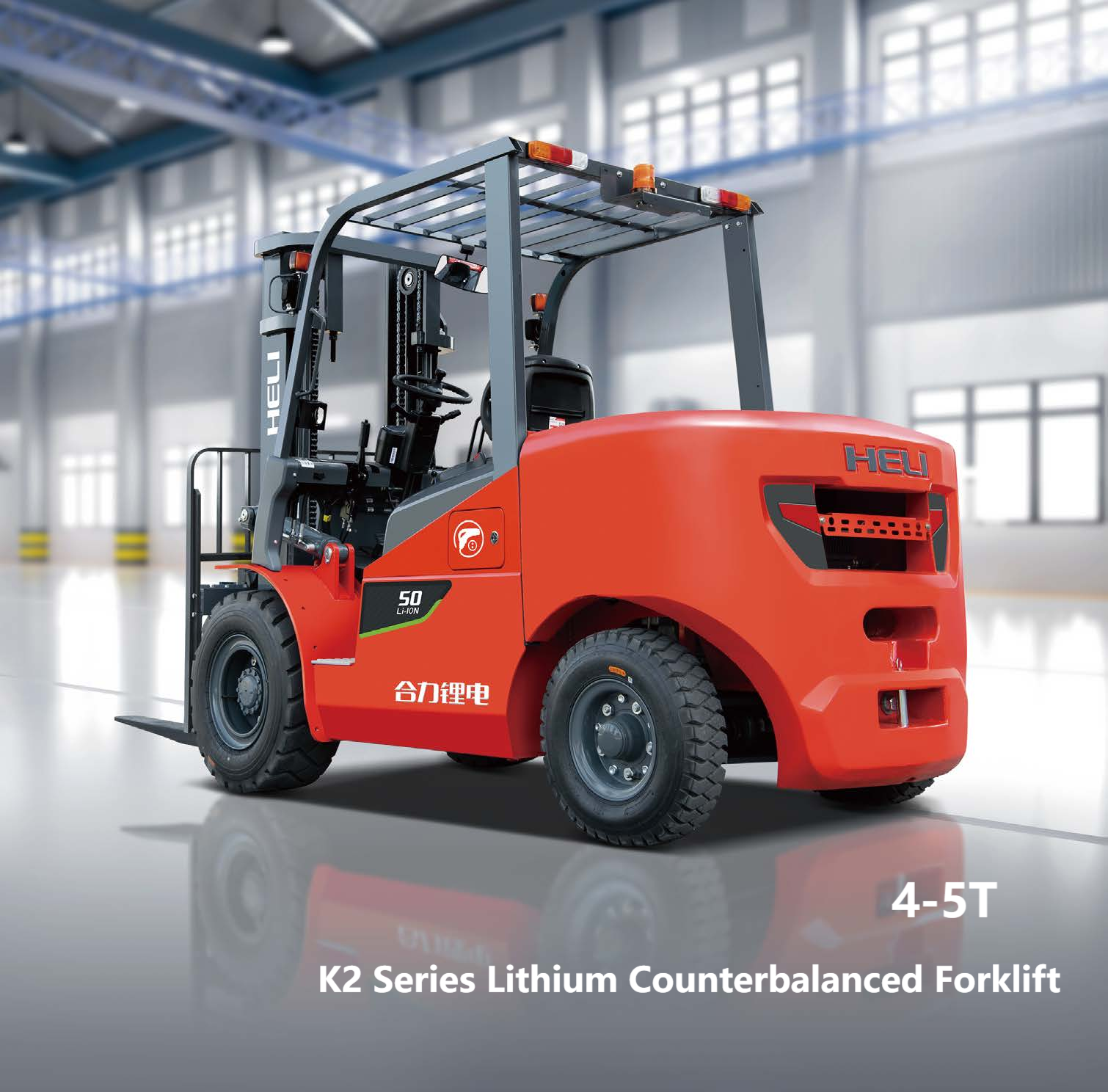

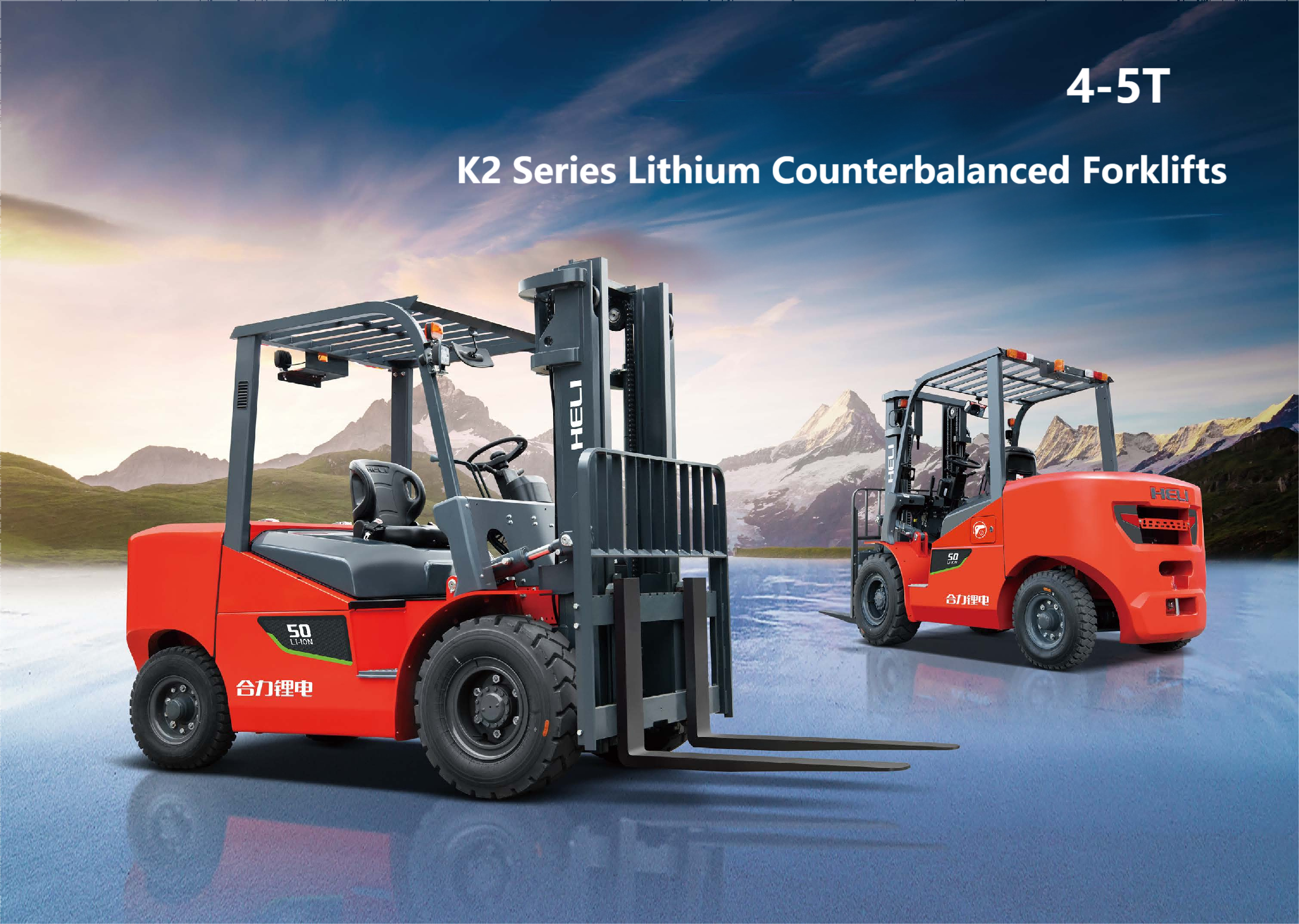

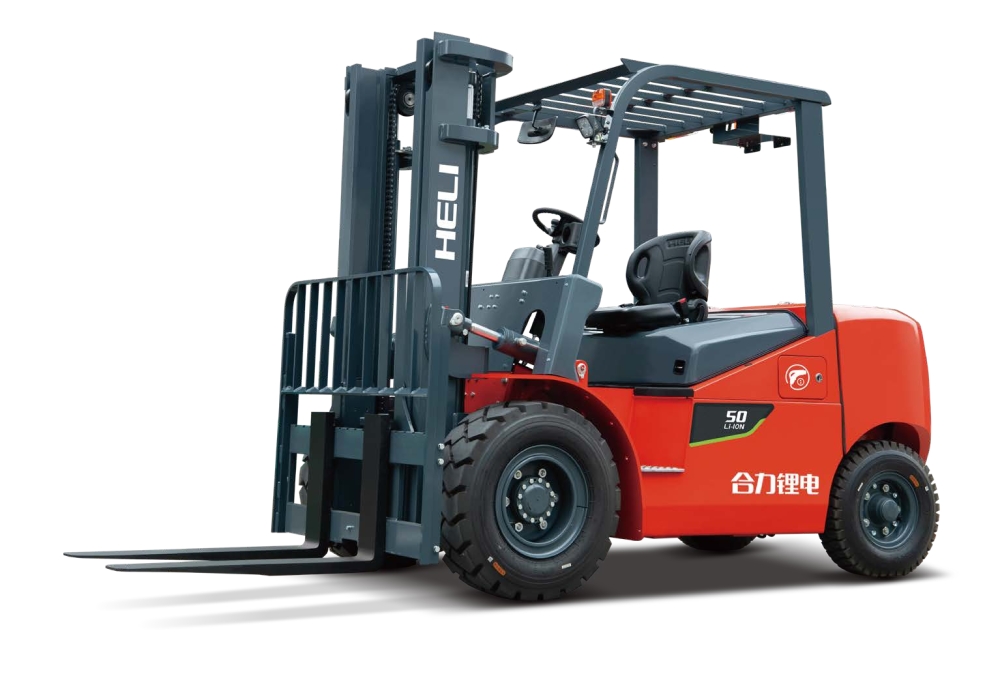

Heli Forklift CPD40 K2Series 4Ton Electric Forklift Lithium-ion Battery Powered Operated Fork Lift
  • Description
  • Inquiry

Product Description

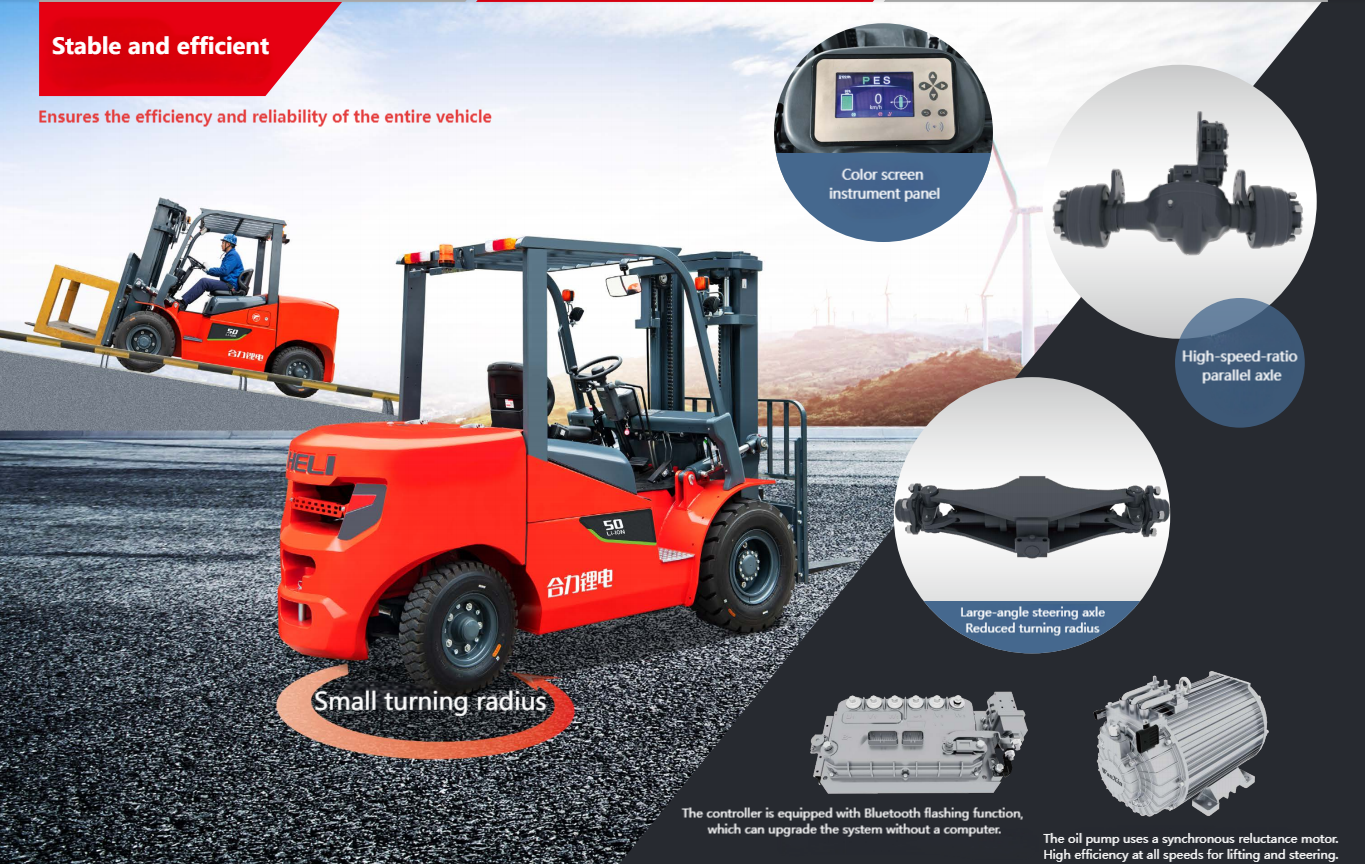

Smart security

·Dual-core controller
·OPS protection
·Hydraulic pipe burst protection, forward tilt self-locking protection
·Multiple electrical protections (short circuit protection, overheating protection, low battery protection, sequence protection)
·Parking safety reminder
·Slope slow-down reminder
·Automatic deceleration during turns (optional)

Standard LED lighting throughout the vehicle offers high brightness, long life, and energy efficiency

Reverse horn handle (optional on the S model, standard on the H and M models)
③Electric-specific tread tires with low driving resistance


Semi-enclosed shock-absorbing seat,high comfort

Fully wrapped instrument panel design; Cup holder, phone tray, and USB port (optional on S, standard on H/M)

Steering axle: cast axle body, tapered roller bearings

The pump/pump motor is located on the upper left side of the vehicle body (2-3.8t), and the electronic control is located on the counterweight, making maintenance easy.

High reliability                              High security                           Long service life

Model

CPC(D)10
CPC(D)15
CPC(D)18
Rated Capacity
kg
1000
1500
1800
Load Center
mm
500
500
500
Power Type

Diesel
Diesel
Diesel
Driving Mode

Seated Type
Seated Type
Seated Type
Service Mass
kg
2300
2700
2900
Tyre (front/ rear)

6.50-10-10PR/ 5.00-8-10PR
Max. Lifting Height
mm
3000
Mast Height, Lowered
mm
1995
Mast Height, Extended
mm
4014
Free Lift
mm
155
Min. Turning Radius
mm
1955
1955
1955
Overall Length(with fork/without fork)
mm
3011/2241
3165/2245
3213/2293
Overall Width
mm
1170
Overall Height(Overhead Guard)
mm
2035
Wheel Base
mm
1400
Tread(front/ rear)
mm
962/929
Front Overhang
mm
421
425
428
Min. Ground Clearance
mm
110
Distance from the seat surface to the overhead guard
mm
970
Distance across forks(max./min.)
mm
950/200
Min.Right angle aisle width
mm
2280
2280
2280
Mast tilt
°
6/12
Fork size
mm
770*100*32
920*100*35
920*100*35
Lghting speed: loded/unloaded
mm/s
500/530
Lowering speed: loaded/unloaded
mm/s
≤600/≥300
Travelling speed: loaded/unloaded
km/h
14.5/14.5
Gradeability (loaded)
%
23(22)
21(18)
19(17)
Max/traction force: loaded/unloaded
KN
10.1/8.4
11.1/9
11/9.1
Battery voltage/capacity
V/Ah
12/80
Internal combustion engine model

Xinchang
Xinchang
Isuzu
Rated Output
KW/rpm
36.8/2500
31/2600
34.6/2500
Rated torque
nm/rpm
165/1600-1800
131/1700-1900
142/1800
Internal combustion engine number of cylinder

4-93x105
4-85x100
4-86X102
Engine displacement
L
2.9
2.27
2.369
Fuel tank capacity
L
30
30
30

FAQ

Q:What is the MOQ?
A: One set.


Q:Can I customize the equipment?
A:Yes, we offer customization service, including load capacity, lifting height, battery, color and others.

Q:   Can I get spare parts or technical support after purchase?
A:   Yes, we provide lifetime support and spare parts supply. We can ship parts globally and assist via video call.


Q:How long is the warranty time?
A: 12 months or 2000 hours whichever comes first.

Q:What is the payment terms?
A: T/T, 30% pre-payment in advance, and 70% balance before delivery.
