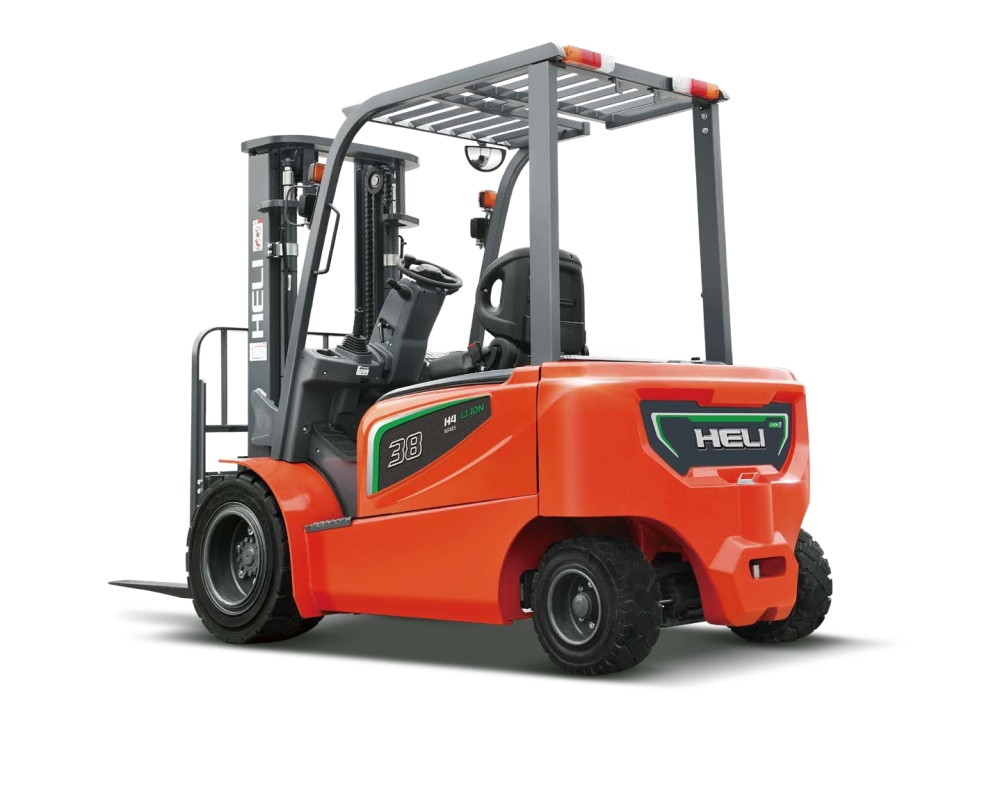

Heli Forklift CPD15 H4 Series 1.5Ton Electric Forklift Lithium-ion Battery Powered Operated Fork Lift Truck_HELI Forklift_Products

Description
Inquiry

Product Description

Smart security

·Dual-core controller

·OPS protection

·Hydraulic pipe burst protection, forward tilt self-locking protection

·Multiple electrical protections (short circuit protection, overheating protection, low battery protection, sequence protection)

·Parking safety reminder

·Slope slow-down reminder

·Automatic deceleration during turns (optional)

①Standard LED lighting throughout the vehicle offers high brightness, long life, and energy efficiency

②Reverse horn handle (optional on the S model, standard on the H and M models)

③Electric-specific tread tires with low driving resistance

Semi-enclosed shock-absorbing seat，high comfort

Fully wrapped instrument panel design; Cup holder, phone tray, and USB port (optional on S, standard on H/M)

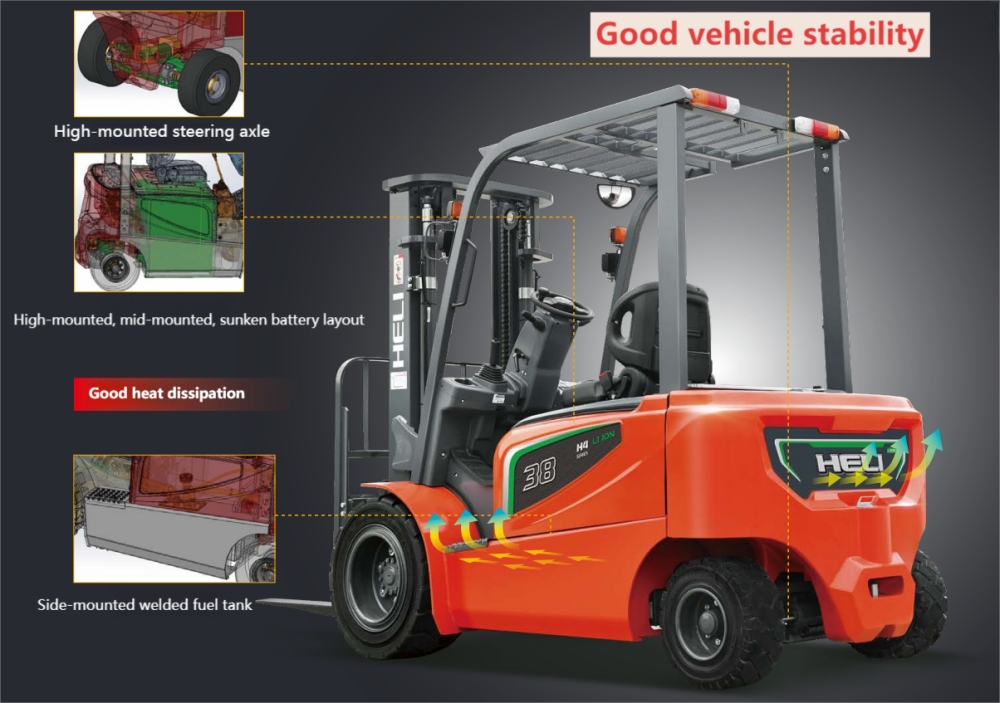

Steering axle: cast axle body, tapered roller bearings

The pump/pump motor is located on the upper left side of the vehicle body (2-3.8t), and the electronic control is located on the counterweight, making maintenance easy.

High reliability High security Long service life

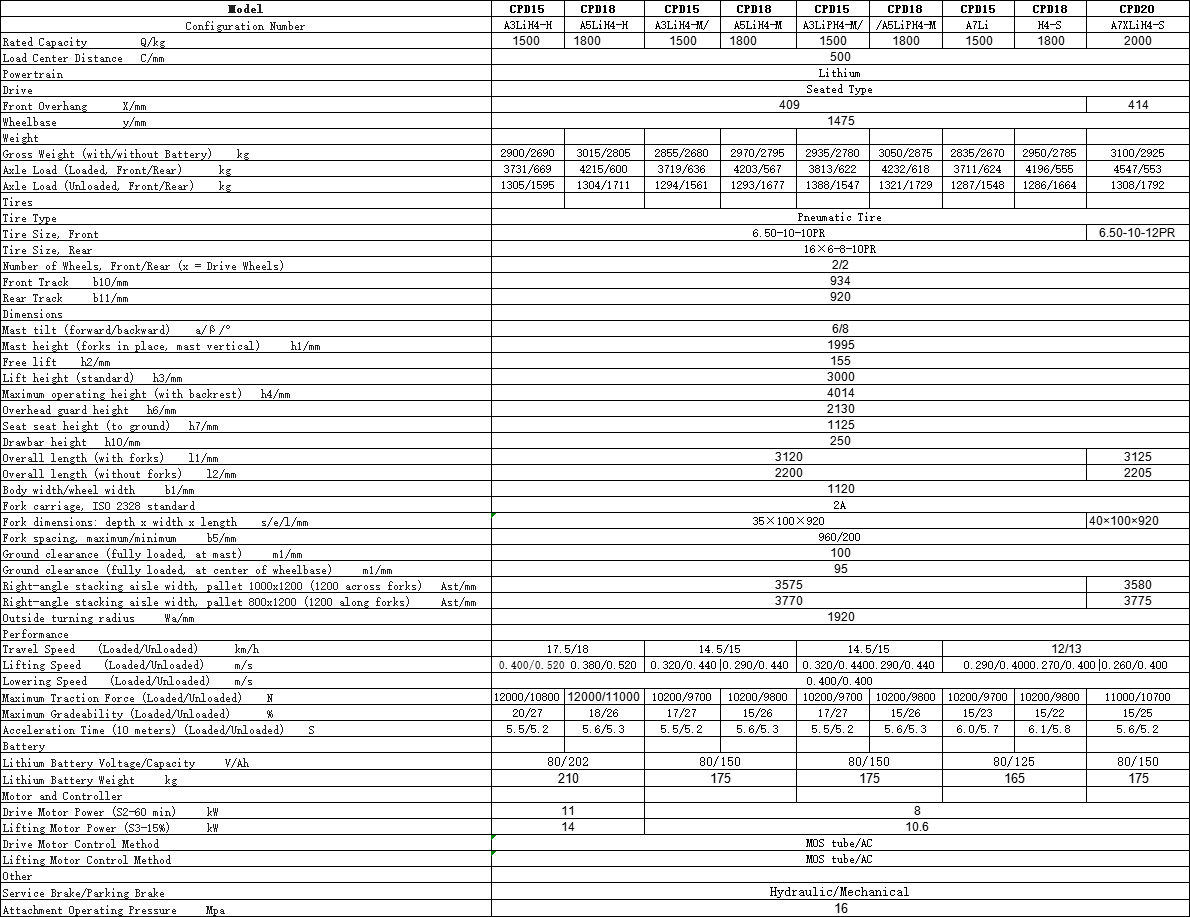

Model	CPD15	CPD18	CPD15	CPD18	CPD15	CPD18	CPD15	CPD18	CPD20
Configuration Number	A3LiH4-H	A5LiH4-H	A3LiH4-M/	A5LiH4-M	A3LiPH4-M/	/A5LiPH4-M	A7Li	H4-S	A7XLiH4-S
Rated Capacity Q/kg	1500	1800	1500	1800	1500	1800	1500	1800	2000
Load Center Distance C/mm	500
Powertrain	Lithium
Drive	Seated Type
Front Overhang X/mm	409								414
Wheelbase y/mm	1475
Weight
Gross Weight (with/without Battery) kg	2900/2690	3015/2805	2855/2680	2970/2795	2935/2780	3050/2875	2835/2670	2950/2785	3100/2925
Axle Load (Loaded, Front/Rear) kg	3731/669	4215/600	3719/636	4203/567	3813/622	4232/618	3711/624	4196/555	4547/553
Axle Load (Unloaded, Front/Rear) kg	1305/1595	1304/1711	1294/1561	1293/1677	1388/1547	1321/1729	1287/1548	1286/1664	1308/1792
Tires
Tire Type	Pneumatic Tire
Tire Size, Front	6.50-10-10PR								6.50-10-12PR
Tire Size, Rear	16×6-8-10PR
Number of Wheels, Front/Rear (x = Drive Wheels)	2/2
Front Track b10/mm	934
Rear Track b11/mm	920
Dimensions
Mast tilt (forward/backward) a/β/°	6/8
Mast height (forks in place, mast vertical) h1/mm	1995
Free lift h2/mm	155
Lift height (standard) h3/mm	3000
Maximum operating height (with backrest) h4/mm	4014
Overhead guard height h6/mm	2130
Seat seat height (to ground) h7/mm	1125
Drawbar height h10/mm	250
Overall length (with forks) l1/mm	3120								3125
Overall length (without forks) l2/mm	2200								2205
Body width/wheel width b1/mm	1120
Fork carriage, ISO 2328 standard	2A
Fork dimensions: depth x width x length s/e/l/mm	35×100×920								40×100×920
Fork spacing, maximum/minimum b5/mm	960/200
Ground clearance (fully loaded, at mast) m1/mm	100
Ground clearance (fully loaded, at center of wheelbase) m1/mm	95
Right-angle stacking aisle width, pallet 1000x1200 (1200 across forks) Ast/mm	3575								3580
Right-angle stacking aisle width, pallet 800x1200 (1200 along forks) Ast/mm	3770								3775
Outside turning radius Wa/mm	1920
Performance
Travel Speed (Loaded/Unloaded) km/h	17.5/18		14.5/15		14.5/15		12/13
Lifting Speed (Loaded/Unloaded) m/s	0.400/0.520 0.380/0.520		0.320/0.440\|0.290/0.440		0.320/0.4400.290/0.440		0.290/0.4000.270/0.400\|0.260/0.400
Lowering Speed (Loaded/Unloaded) m/s	0.400/0.400
Maximum Traction Force (Loaded/Unloaded) N	12000/10800	12000/11000	10200/9700	10200/9800	10200/9700	10200/9800	10200/9700	10200/9800	11000/10700
Maximum Gradeability (Loaded/Unloaded) %	20/27	18/26	17/27	15/26	17/27	15/26	15/23	15/22	15/25
Acceleration Time (10 meters) (Loaded/Unloaded) S	5.5/5.2	5.6/5.3	5.5/5.2	5.6/5.3	5.5/5.2	5.6/5.3	6.0/5.7	6.1/5.8	5.6/5.2
Battery
Lithium Battery Voltage/Capacity V/Ah	80/202		80/150		80/150		80/125		80/150
Lithium Battery Weight kg	210		175		175		165		175
Motor and Controller
Drive Motor Power (S2-60 min) kW	11		8
Lifting Motor Power (S3-15%) kW	14		10.6
Drive Motor Control Method	MOS tube/AC
Lifting Motor Control Method	MOS tube/AC
Other
Service Brake/Parking Brake	Hydraulic/Mechanical
Attachment Operating Pressure Mpa	16

FAQ

Q：What is the MOQ?
A： One set.

Q：Can I customize the equipment?

A：Yes, we offer customization service, including load capacity, lifting height, battery, color and others.

Q: Can I get spare parts or technical support after purchase?
A: Yes, we provide lifetime support and spare parts supply. We can ship parts globally and assist via video call.

Q：How long is the warranty time?
A： 12 months or 2000 hours whichever comes first.

Q：What is the payment terms?
A： T/T, 30% pre-payment in advance, and 70% balance before delivery.
