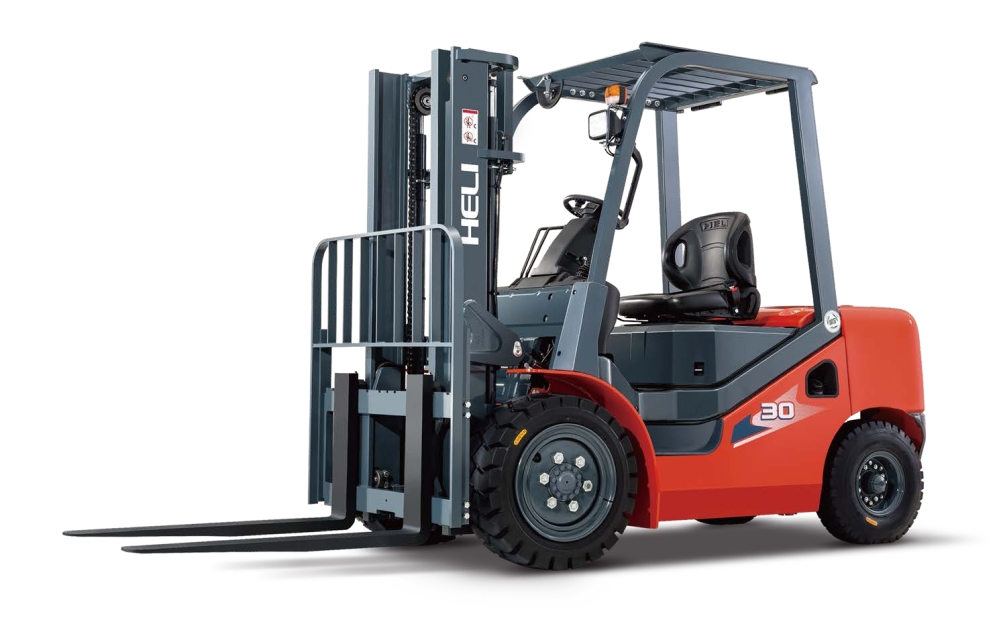

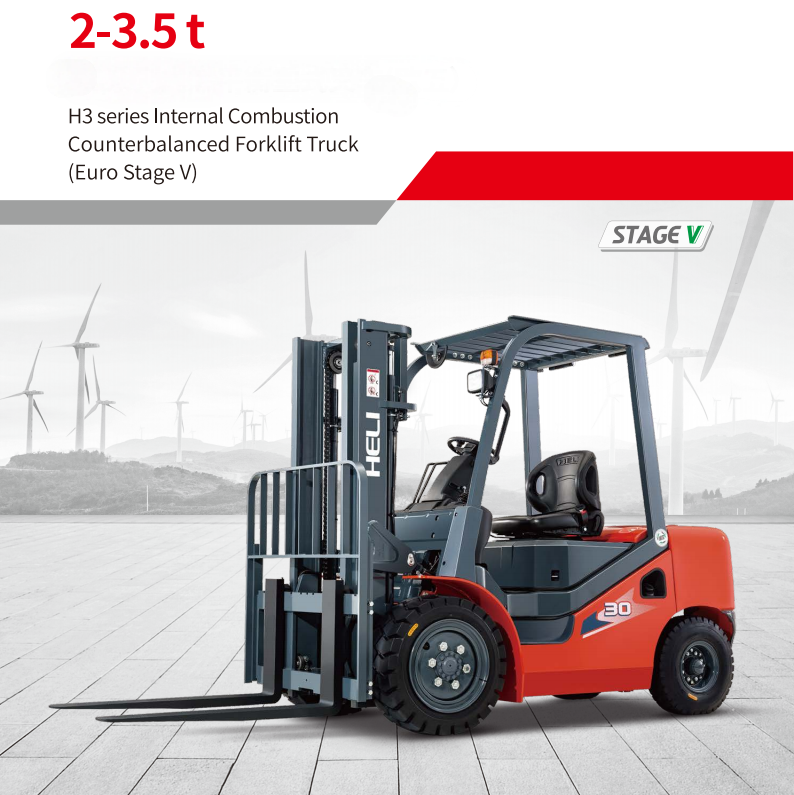

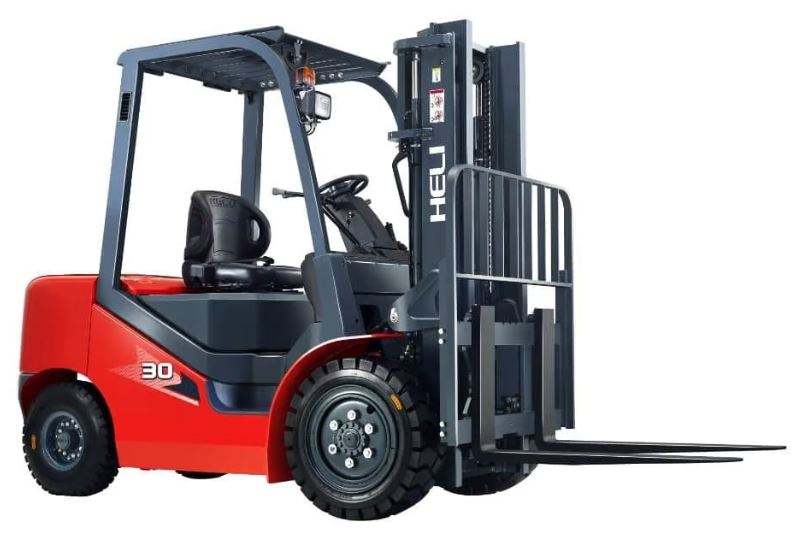

HELI H3 Series Diesel Forklift Counterbalanced Forklift Truck(Euro Stage V)

HELI H3 Series 4wheel Counterbalanced Diesel Forklift Handling Equipment for Building Construction F
  • Description
  • Inquiry

Product Description

photobank (8)

Smart security

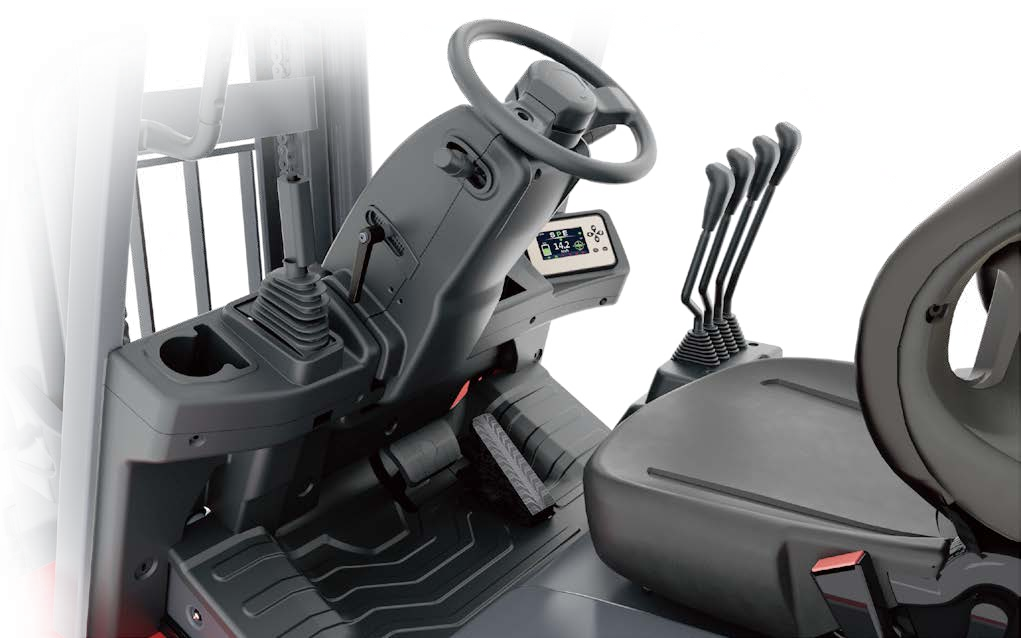

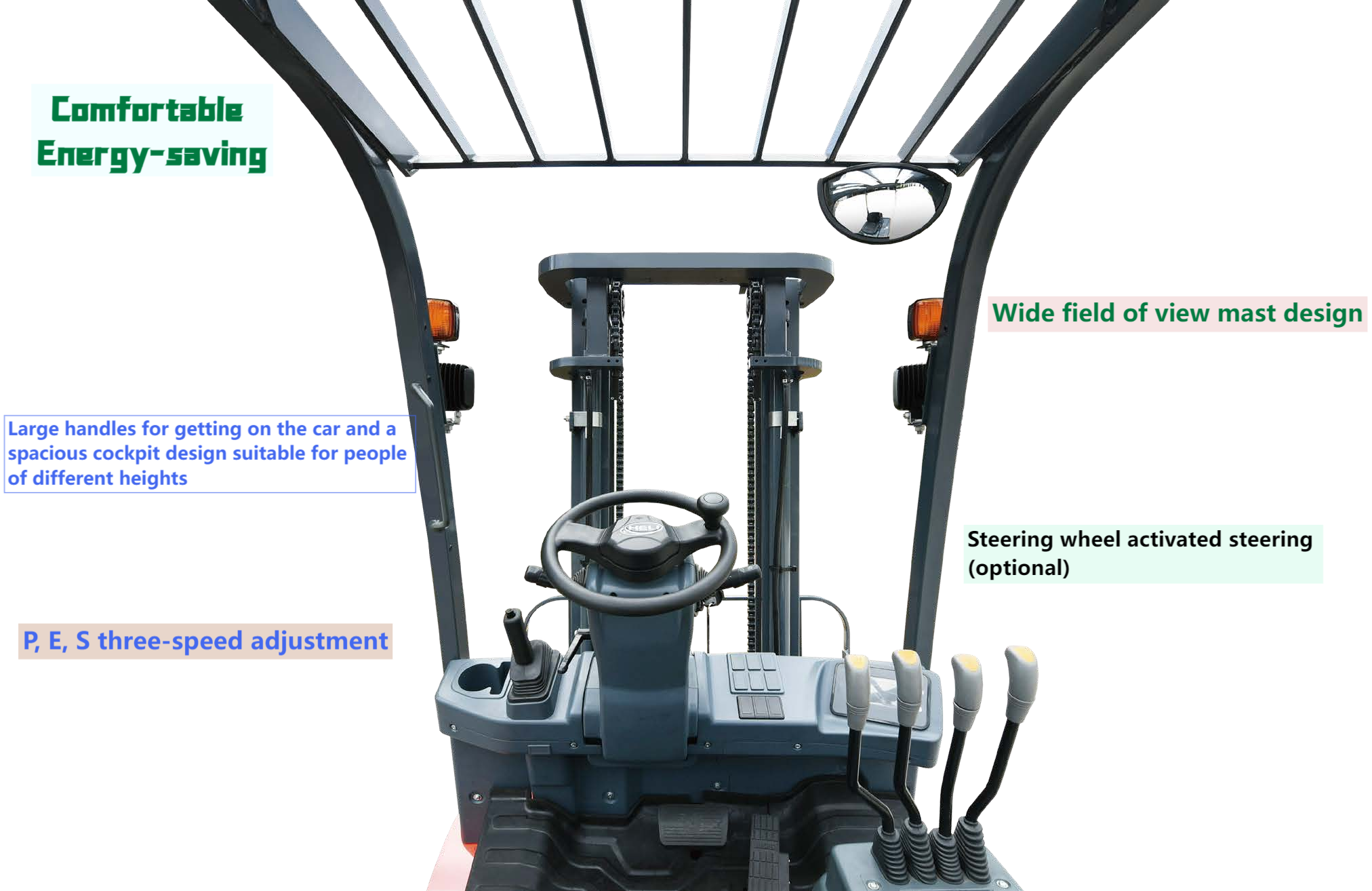

Semi-enclosed shock-absorbing seat,high comfort

Fully wrapped instrument panel design; Cup holder, phone tray, and USB port (optional on S, standard on H/M)

Steering axle: cast axle body, tapered roller bearings

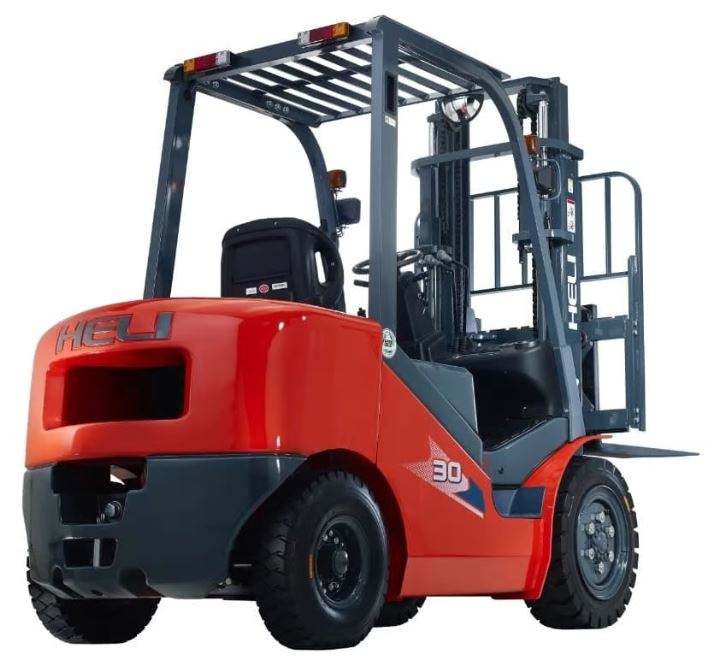

The pump/pump motor is located on the upper left side of the vehicle body (2-3.8t), and the electronic control is located on the counterweight, making maintenance easy.

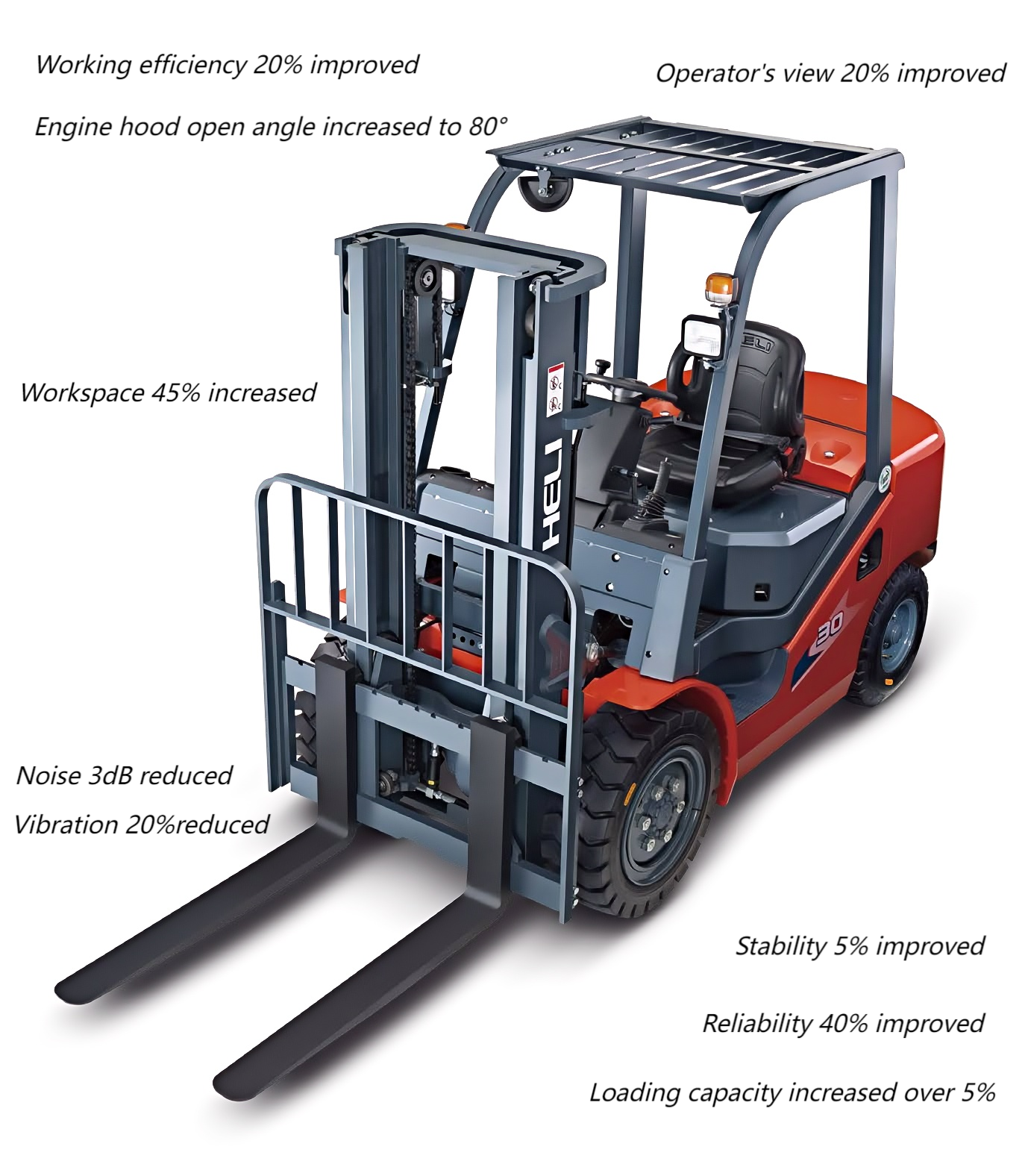

High reliability High security Long service life


Model
CPC20/
CPCD20/
CPC25/
CPCD25/
CPC30/
CPCD30/
CPC35/
CPCD35/
Rated capacity
kg
2000
2500
3000
3500
Load center
mm
500
Operation mode
Seat-type
Size
Max.lifting height
H
mm
3000
3000
3000
3000
Mast overall height(Fork to the ground and mast be vertical)
H1
mm
2000
2000
2065
2180
Max.fork lifting height(With backrest)
H2
mm
4030
4030
4245
4235
Free lift height
H3
mm
165
165
160
170
Overall height(Overhead guard)
H4
mm
2150
2150
2170
2170
Min.groung clearance(At the mast)
H5
mm
115
115
135
135
Distance from the surface ofthe seat to the overahead guard
H6
mm
1030
1030
1030

1030
Traction pin height
H9
mm
275
275
280
280
Backrest height(Calculated from the surface of the fork)
H13
mm
1000
1000
1227
1222
Overall length(With fork/Without fork)
L/L'
mm
3500/2580
3708/2638
3818/2748
3836/2766
Wheel base
L1
mm
1650
1650
1700
1700
Front overhang
L2
mm
478
478
478
496
Rearoverhang
L3
mm
457
515
570
570
Overall width
W1
mm
1150
1150
1225
1225
Tread (Front tread/Rear tread)
W3/W2
mm
970/970
970/970
1000/970
1000/970
Fork adjustable range(the externalof the fork)(Max./Min.
W5
mm
1030/244
1030/244
1060/250
1060/250
Min.turning radius(Exterior)
r
mm
2170
2240
2400
2420
Min.turning radius(Interior)
r′
mm
180
180
200
200
Min.right angle stacking aisle width
Ra
mm
2200
2280
2380
2400
Mast tilting angle
a/β
deg
6/12
6/12
6/12
6/12
Fork size
L4×W×T
mm
920×122×40
1070×122×40
1070×125×45
1070×125×50
Weight
Total weight
kg
3370
3740
4340
4700
Weight distribution loaded(Front/Rear)
kg
4740/630
5440/800
6440/900
7380/820
Weight distribution únloaded(Front/Rear)
kg
1570/1800
1520/2220
1700/2640
1850/2850

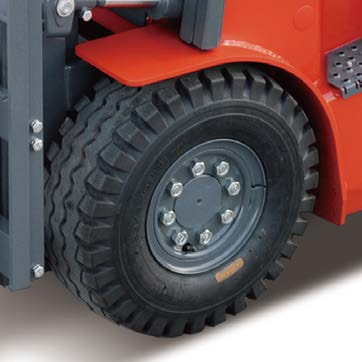

Wheel and tyre
Wheel numberx=drive wheel (Front/Rear)
2X/2
Tyre type(Front/Rear)
Pneumatic tyre
Tyre size(Front/Rear)
7.00-12-12PR/
6.00-9-10PR
28×9-15-14PR/
6.50-10-10PR
Service brake
Hydraulic-Foot Pedal
Parking brake
Mechanical-Hand Lever

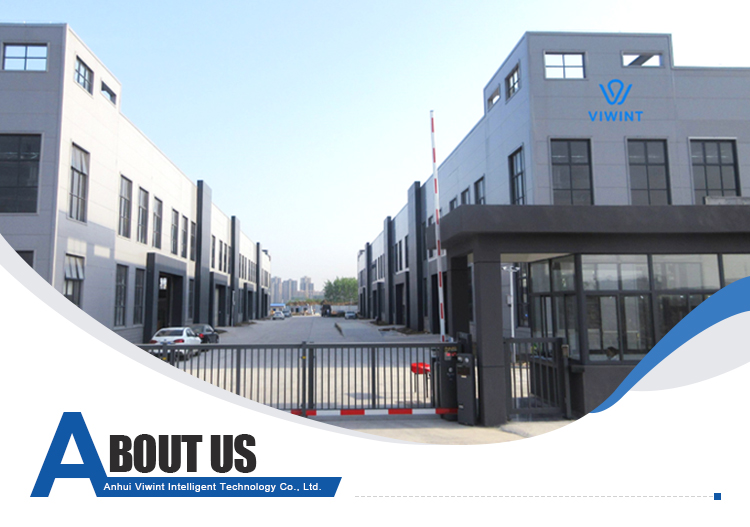

Anhui Viwint Intelligent Technology Co.,Ltd.,a scientific and technological innovationenterprise focusing on the R&D,manufacturing and service of industrial vehicles,andits core business covers the R&D and production of electric forklifts,diesel forklifts,AGV automatic guided vehicles and narrow aisle three-way electric forklifts.With 1000customer service cases and export experience covering the Americas,Europe andother global markets,the company aims to build a leading brand in the field of logisticsequipment.

photobank


FAQ

Q:What is the MOQ?
A: One set.


Q:Can I customize the equipment?
A:Yes, we offer customization service, including load capacity, lifting height, battery, color and others.

Q: Can I get spare parts or technical support after purchase?
A: Yes, we provide lifetime support and spare parts supply. We can ship parts globally and assist via video call.


Q:How long is the warranty time?
A: 12 months or 2000 hours whichever comes first.

Q:What is the payment terms?
A: T/T, 30% pre-payment in advance, and 70% balance before delivery.
