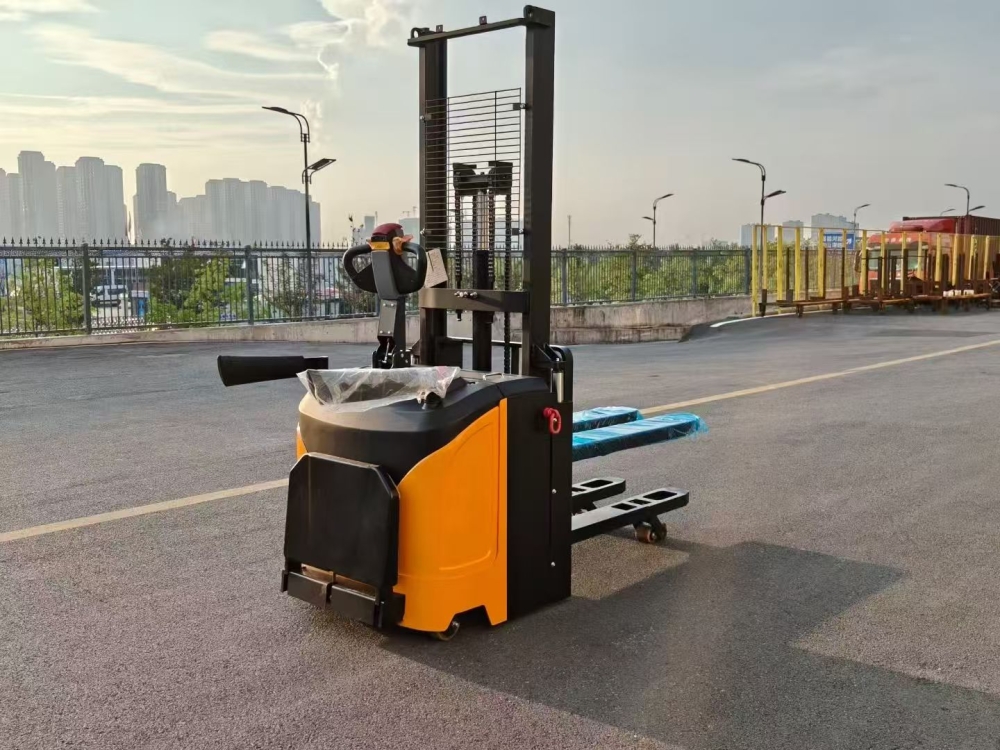

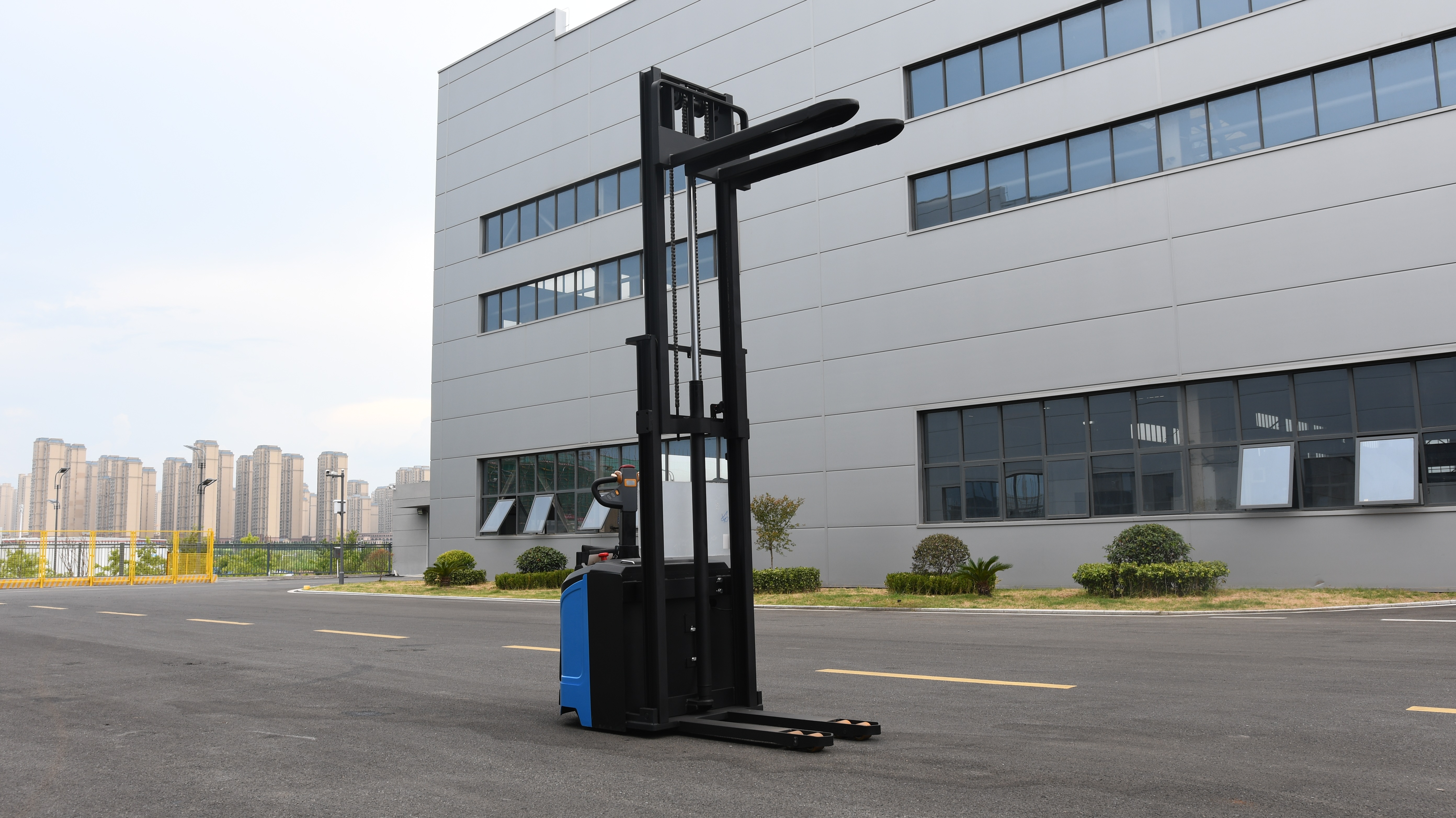

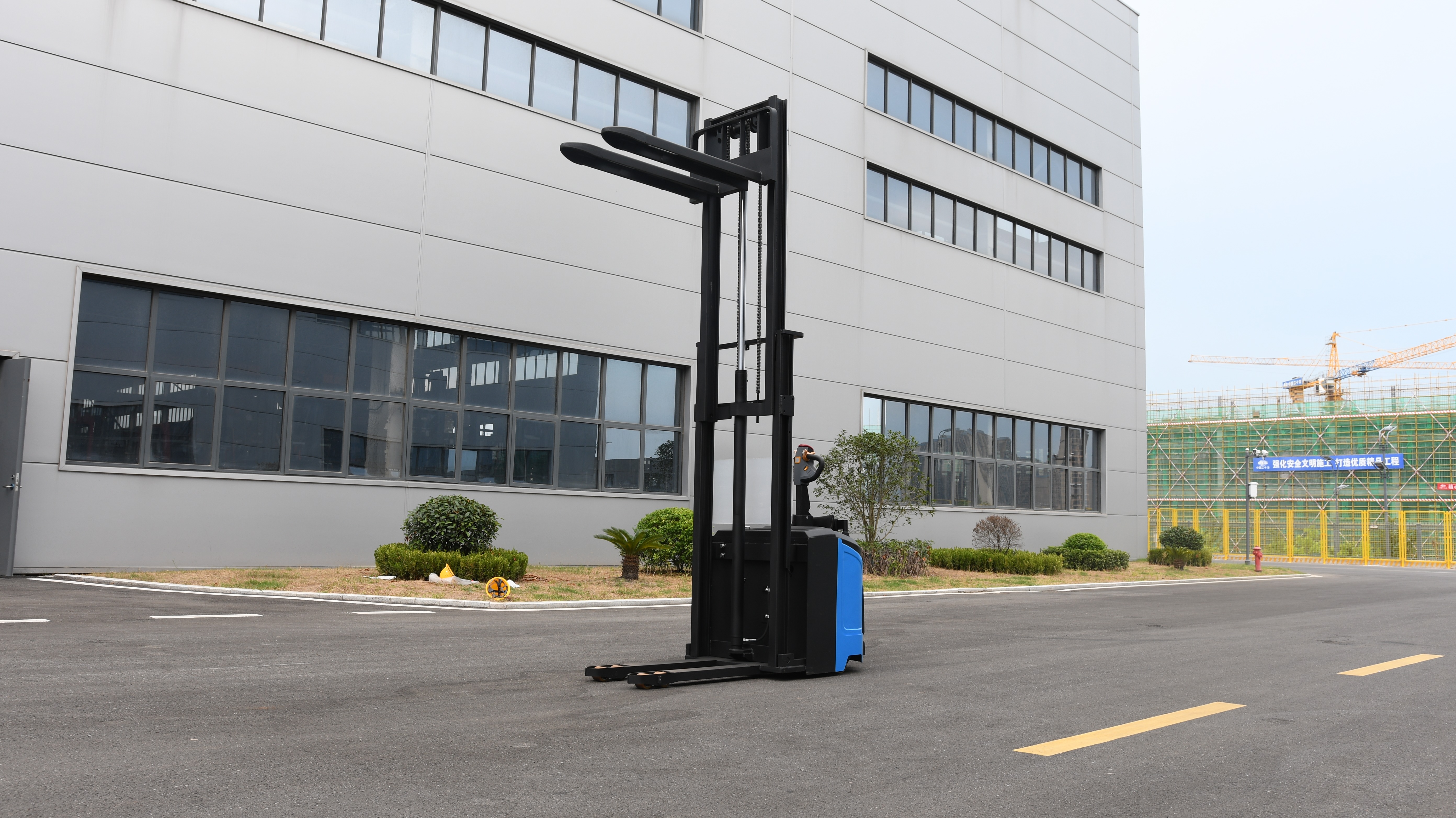

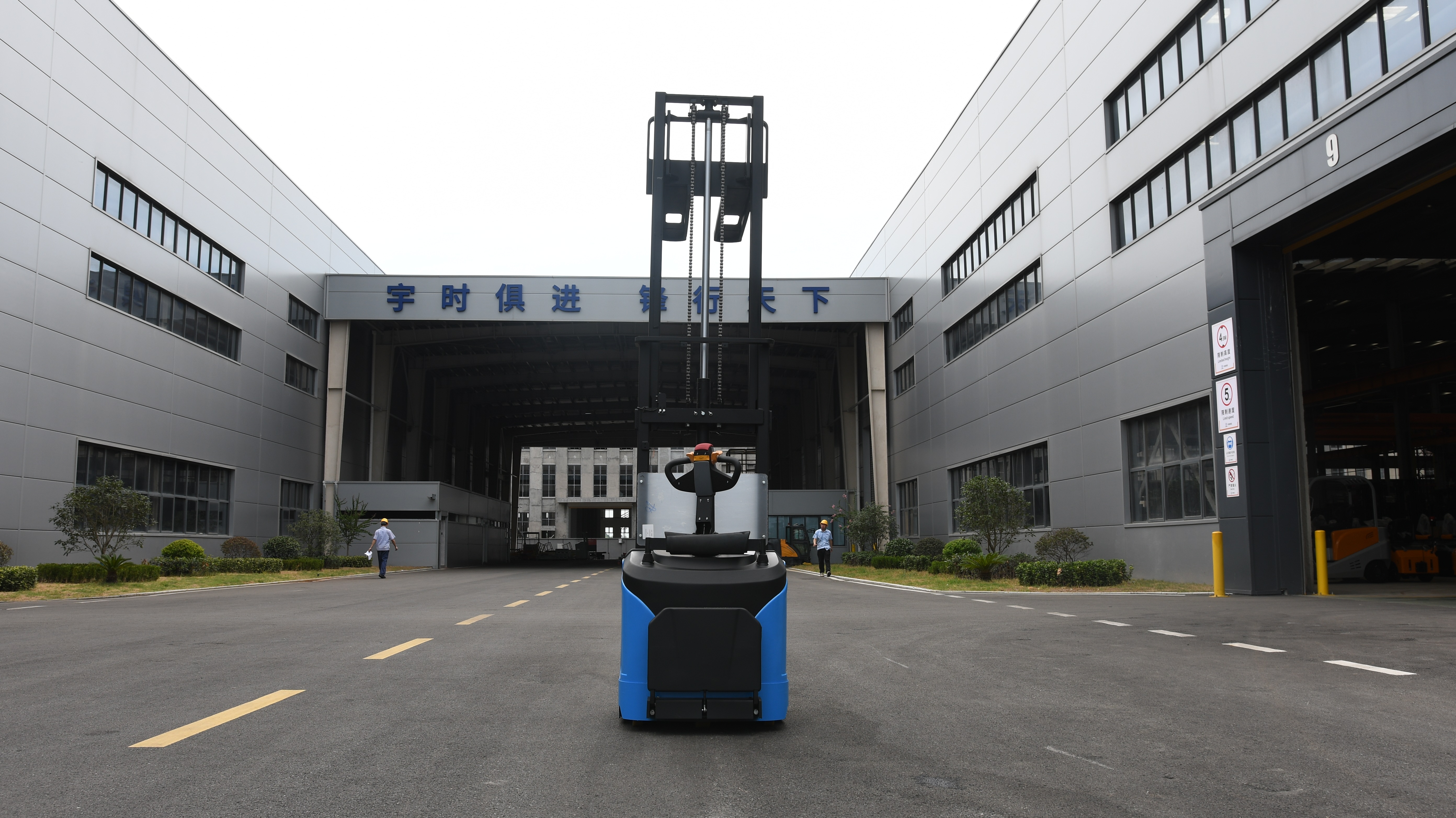

1) Equipped with branded control system and multi-functional protection system, it offers higher level functional safety;
2) Equipped with vertical branded gear box, multi-functional solutions and flexible module construction system. Optimized gear meshing technology can reduce the noise and offer high performance and efficiency;
3) EPS steering energy reduces 20% with accurate operation, flexible steering, relieving operators pressures and greatly improving the production ability;
4) No need to adjust the buffering spring. It can adjust the vertical drive unit according to road conditions, increasing the steady operation efficiency;
5) High quality with buffering hydraulic system. Low noise, light shock, good seal, steady lift and lower processes;
6) Equipped with full AC drive system, small volume, light weight, high efficiency, free-maintenance and carbon-brush replacement. No more maintenance and protection;
6) Wide field mast design, specialized groove steel with high strength;
7) Customized electromagnetic or laser navigation AGV.
Characteristic | 1.1 | Model |
| CQDA10-25 | CQDA15-25 | CQDA20-25 |
1.2 | Power(electricity,diesel,LPG,petrol,manual) |
| Electric | Electric | Electric |
1.3 | Operation(manual,walkie,side-standing,picker) |
| Rider type | Ridertype | Ridertype |
1.4 | Rated load capacity | Q(kg) | 1000 | 1500 | 2000 |
1.5 | Load center distance | C(mm) | 500 | 500 | 500 |
1.6 | The front overhang distance | X(mm) | 155 | 155 | 155 |
1.7 | Wheelbase | Y(mm) | 1335 | 1435 | 1585 |
1.8 | Forward moving distance | 14(mm) | 500 | 600 | 730 |
Weight | 2.1 | Service weight(incl.battery) | kg | 1875 | 1900 | 2050 |
Wheel/
Chassis | 3.1 | Wheel type |
| PU | PU | PU |
3.2 | Drive wheelspecification | ø×w(mm) | φ230*75 | φ230*75 | φ230*75 |
3.3 | Front wheel specification | ø×w(mm) | φ210*85 | φ210*85 | φ210*85 |
3.4 | Rear Wheel specification | ø×w(mm) | φ150*50 | φ150*50 | φ150*50 |
3.5 | Tread,front | b10(mm) | 945 | 945 | 945 |
3.6 | Tread,rear | b11(mm) | 735 | 735 | 735 |
Dimensions | 4.1 | Vehicle height,mast retracted | h1(mm) | 1845 | 1845 | 1845 |
4.2 | Standard lifting height | h3(mm) | 2500 | 2500 | 2500 |
4.3 | Mast height,extended | h4(mm) | 3470 | 3470 | 3470 |
4.4 | Forks height,mast retracted | h13(mm) | 35 | 35 | 40 |
4.5 | Mast/forks tilting angle (the front/the rear) | a/β(°) | 3/5 | 3/5 | 3/5 |
4.6 | Vehiclebody length(excl/incl forks with pedal folded) | l1(mm) | 1734/2276 | 1834/2276 | 1984/2346 |
4.7 | Vehicle length(extra 536mm with pedal,without pedal) | 12(mm) | 1615 | 1715 | 1865 |
4.8 | Vehicle Body Width | b1(mm) | 1034 | 1034 | 1034 |
4.9 | Forks dimensions | s/e/l(mm) | 135/100/1070 | 35/100/1070 | 40/122/1070 |
4.10 | Forks adjustment dimensions | b5(mm) | 210-680 | 210-680 | 245-705 |
4.11 | The min.ground clearance(Wheelbase center) | m2(mm) | 70 | 70 | 70 |
4.12 | Stacking aislewidth,palletfolded 1m×1.2m(1malong forks) | Ast(mm) | 2681 | 2715 | 2816 |
4.13 | Stacking aisle width,pallet unfolded1m×1.2m(1m along forks) | Ast(mm) | 3083 | 3116 | 3220 |
Peformance | 4.14 | The min.turning radius(pallets folded/extended) | Wa(mm) | 1652/2053 | 1752/2153 | 1900/2304 |
5.1 | Travelling speed,unladen/full-loaded | km/h | 5/4 | 5/4 | 5/4 |
5.2 | Lift speed unladen/full-loaded | m/s | 0.112/0.095 | 0.112/0.092 | 0.112/0.085 |
5.3 | Lowerspeed unladen/full-loaded | m/s | 0.094/0.110 | 0.094/0.115 | 0.096/0.123 |
5.4 | Themax.gradability,unladen/full-loaded | % | 8/5 | 8/5 | 6/4 |
Motor | 5.5 | Service brake |
| Electromagnetic | Electromagnetic | Electromagnetic |
6.1 | Drive motor power | kw | 1.5 | 1.5 | 2.5 |
6.2 | Lift motor power | kw | 2.2 | 2.2 | 2.2 |
6.3 | Battery type |
| Lead-acid | Lead-acid | Lead-acid |
6.4 | Battery voltage/capacity | V/Ah | 24/210 | 24/210 | 24/210 |
6.5 | Charger | V/A | 24/30 | 24/30 | 24/30 |
Others | 7.1 | Drive controlmode |
| AC | AC | AC |
7.2 | Noise level at driver's ears according to En12053 | dB(A) | 75 | 75 | 75 |
Q：What is the MOQ?
A： One set.
Q：Can I customize the equipment?
A：Yes, we offer customization service, including load capacity, lifting height, battery, color and others.
Q: Can I get spare parts or technical support after purchase?
A: Yes, we provide lifetime support and spare parts supply. We can ship parts globally and assist via video call.
Q：How long is the warranty time?
A： 12 months or 2000 hours whichever comes first.
Q：What is the payment terms?
A： T/T, 30% pre-payment in advance, and 70% balance before delivery.
