1) Suitable for medium and short distances material handling in various scenarios of different height;

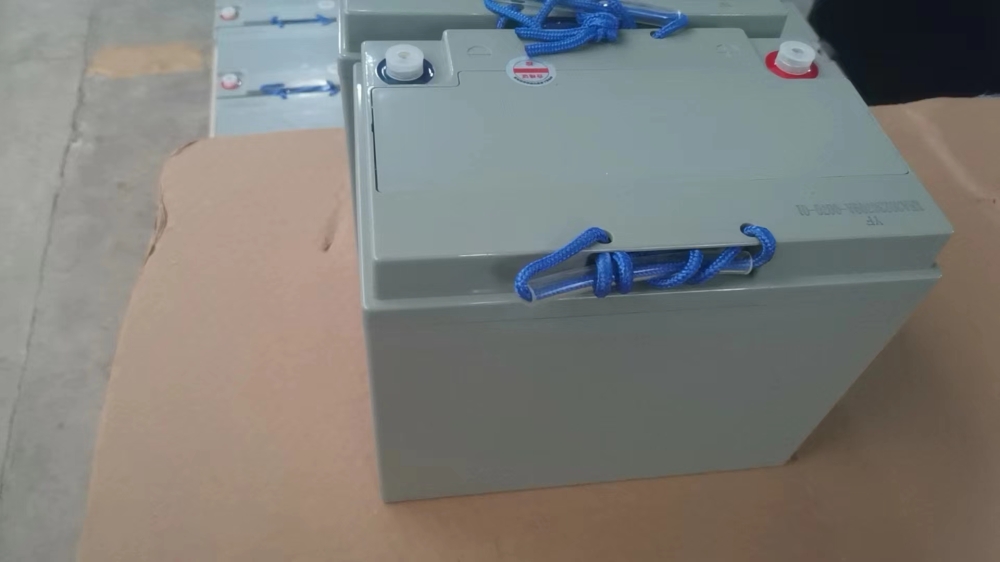

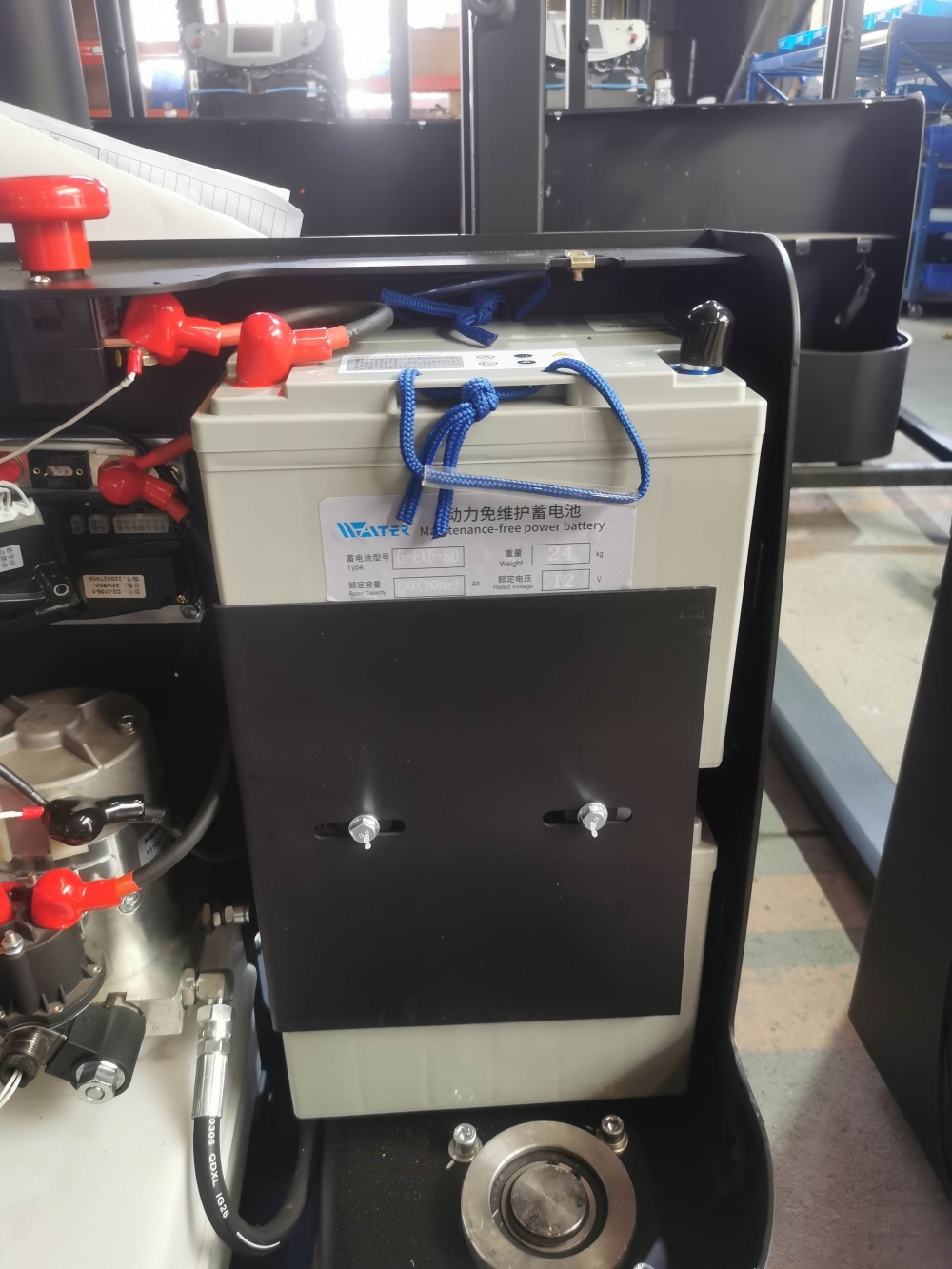

2) High performance sealed internal battery. Long endurance. It works without adding water or other liquids;
3) Compact structure saves the space. It goes through narrow aisles.

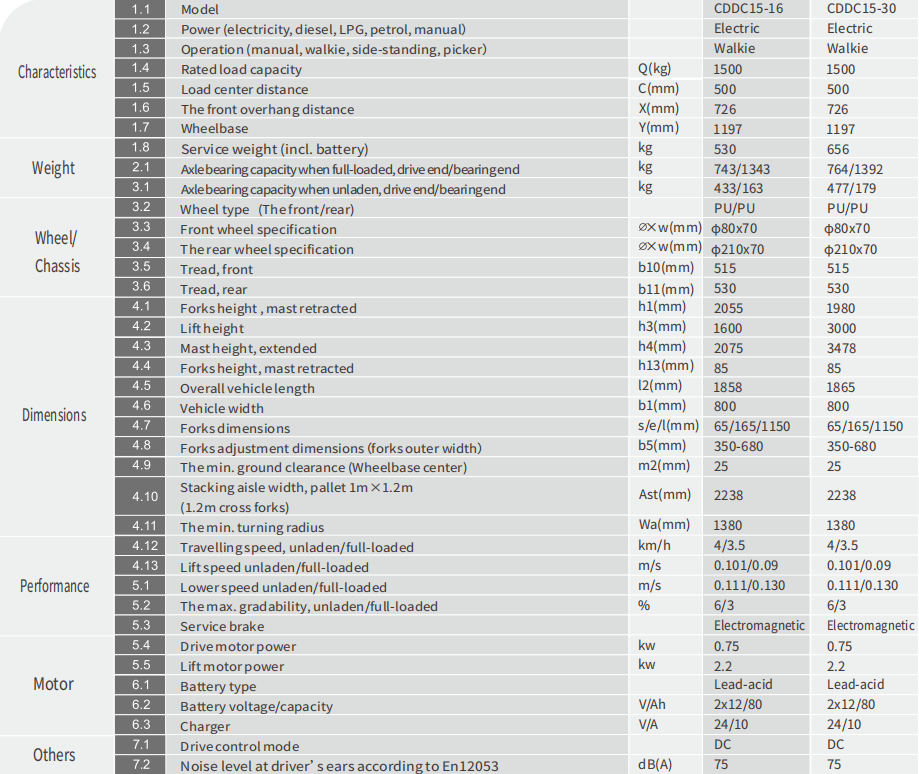

Characteristics | 1.1 | Model |
| CDDC15-16 | CDDC15-30 |
1.2 | Power(electricity,diesel, LPG,petrol,manual) |
| Electric | Electric |
1.3 | Operation(manual, walkie, side-standing, picker) |
| Walkie | Walkie |
1.4 | Rated load capacity | Q(kg) | 1500 | 1500 |
1.5 | Load center distance | C(mm) | 500 | 500 |
1.6 | The front overhang distance | X(mm) | 726 | 726 |
1.7 | Wheelbase | Y(mm) | 1197 | 1197 |
Weight | 1.8 | Service weight(incl. battery) | kg | 530 | 656 |
2.1 | Axlebearingcapacitywhenfull-loaded,driveend/bearingend | kg | 743/1343 | 764/1392 |
3.1 | Axle bearing capacitywhenunladen,driveend/bearingend | kg | 433/163 | 477/179 |
Wheel/
Chassis | 3.2 | Wheel type(The front/rear) |
| PU/PU | PU/PU |
3.3 | Front wheel specification | ø×w(mm) | φ80x70 | φ80x70 |
3.4 | The rear wheel specification | ø×w(mm) | φ210x70 | φ210x70 |
3.5 | Tread,front | b10(mm) | 515 | 515 |
3.6 | Tread, rear | b11(mm) | 530 | 530 |
Dimensions | 4.1 | Forks height,mast retracted | h1(mm) | 2055 | 1980 |
4.2 | Lift height | h3(mm) | 1600 | 3000 |
4.3 | Mast height, extended | h4(mm) | 2075 | 3478 |
4.4 | Forks height,mast retracted | h13(mm) | 85 | 85 |
4.5 | Overall vehicle length | 12(mm) | 1858 | 1865 |
4.6 | Vehicle width | b1(mm) | 800 | 800 |
4.7 | Forks dimensions | s/e/l(mm) | 65/165/1150 |
4.8 | Forks adjustment dimensions(forks outer width) | b5(mm) | 350-680 | 350-680 |
4.9 | The min.ground clearance(Wheelbase center) | m2(mm) | 25 | 25 |
4.10 | Stacking aisle width,pallet1m×1.2m
(1.2m cross forks) | Ast(mm) | 2238 | 2238 |
4.11 | The min.turningradius | Wa(mm) | 1380 | 1380 |
Performance | 4.12 | Travelling speed,unladen/full-loaded | km/h | 4/3.5 | 4/3.5 |
4.13 | Lift speed unladen/full-loaded | m/s | 0.101/0.09 | 0.101/0.09 |
5.1 | Lowerspeed unladen/full-loaded | m/s | 0.111/0.130 | 0.111/0.130 |
5.2 | The max. gradability,unladen/full-loaded | % | 6/3 | 6/3 |
5.3 | Service brake |
| Electromagnetic |
Motor | 5.4 | Drive motor power | kw | 0.75 | 0.75 |
5.5 | Lift motor power | kw | 2.2 | 2.2 |
6.1 | Battery type |
| Lead-acid | Lead-acid |
6.2 | Battery voltage/capacity | V/Ah | 2x12/80 | 2x12/80 |
6.3 | Charger | V/A | 24/10 | 24/10 |
Others | 7.1 | Drive controlmode |
| DC | DC |
7.2 | Noise level at driver'sears according to En12053 | dB(A) | 75 | 75 |
Q：What is the MOQ?
A： One set.
Q：Can I customize the equipment?
A：Yes, we offer customization service, including load capacity, lifting height, battery, color and others.
Q: Can I get spare parts or technical support after purchase?
A: Yes, we provide lifetime support and spare parts supply. We can ship parts globally and assist via video call.
Q：How long is the warranty time?
A： 12 months or 2000 hours whichever comes first.
Q：What is the payment terms?
A： T/T, 30% pre-payment in advance, and 70% balance before delivery.
