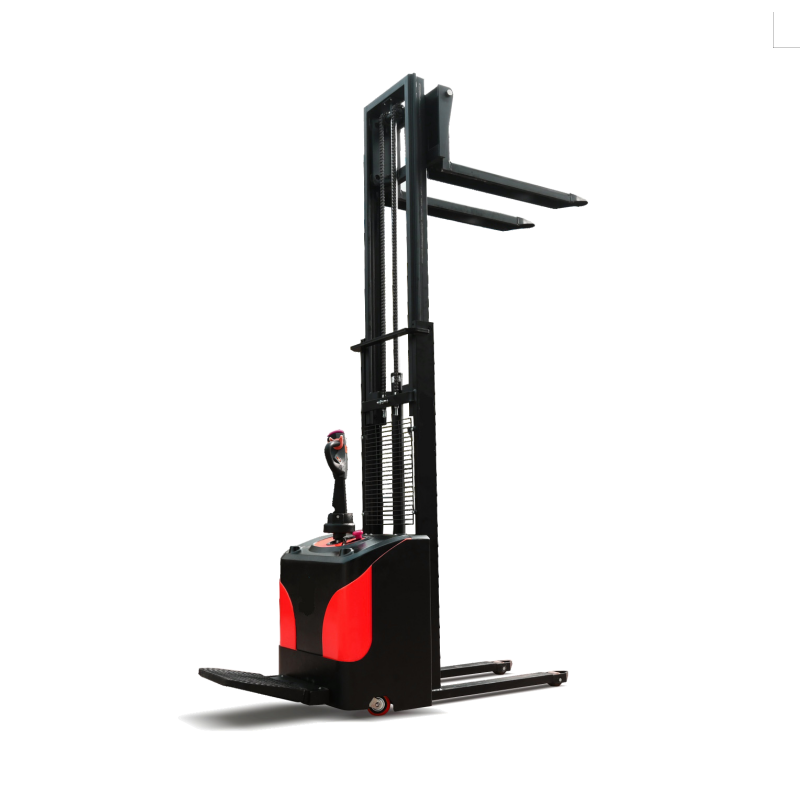

Good Quality CDD15W II-20 1.5tons Loading Capacity 2m Lifting Height Rider Type Electric Pallet Stacker_Electric Pallet Stacker_Warehouse Equipment_Products

Description
Inquiry

Product Description

1) The shock-absorbing springs require no frequent adjustment and proactively adjust the drive unit to road conditions, reducing ground impact and improving operating efficiency.

2) An emergency power-off switch is standard. Simply pressing the emergency stop button cuts off all power, bringing the vehicle to an immediate stop or rapidly shutting off power in an emergency, providing safety protection.

3) Multi-function handle, integrated controls (acceleration, horn, emergency collision avoidance, lift button), ergonomic design makes operation more comfortable.

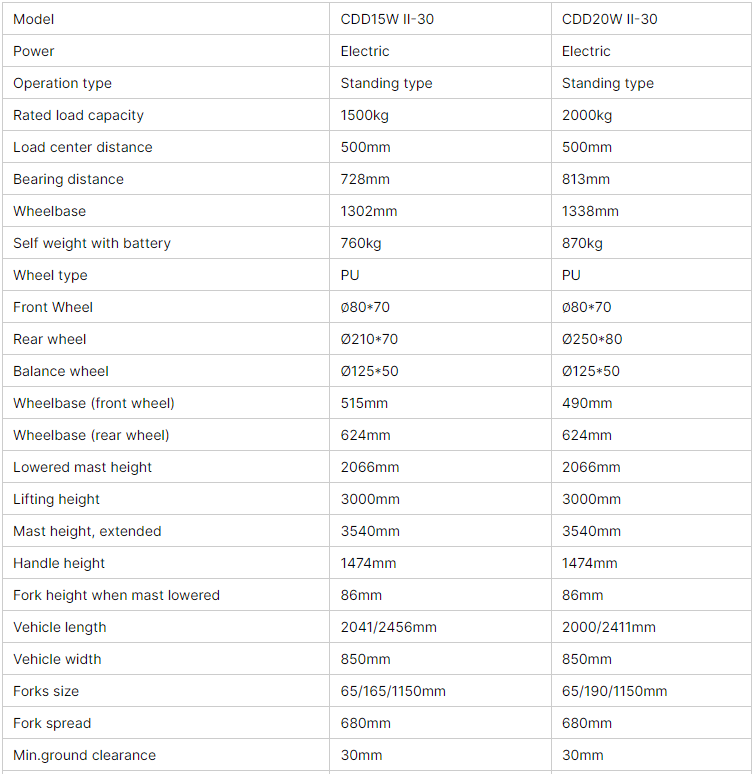

Model	CDD15W II-30	CDD20W II-30
Power	Electric	Electric
Operation type	Standing type	Standing type
Rated load capacity	1500kg	2000kg
Load center distance	500mm	500mm
Bearing distance	728mm	813mm
Wheelbase	1302mm	1338mm
Self weight with battery	760kg	870kg
Wheel type	PU	PU
Front Wheel	∅80*70	∅80*70
Rear wheel	Ø210*70	Ø250*80
Balance wheel	Ø125*50	Ø125*50
Wheelbase (front wheel)	515mm	490mm
Wheelbase (rear wheel)	624mm	624mm
Lowered mast height	2066mm	2066mm
Lifting height	3000mm	3000mm
Mast height, extended	3540mm	3540mm
Handle height	1474mm	1474mm
Fork height when mast lowered	86mm	86mm
Vehicle length	2041/2456mm	2000/2411mm
Vehicle width	850mm	850mm
Forks size	65/165/1150mm	65/190/1150mm
Fork spread	680mm	680mm
Min.ground clearance	30mm	30mm

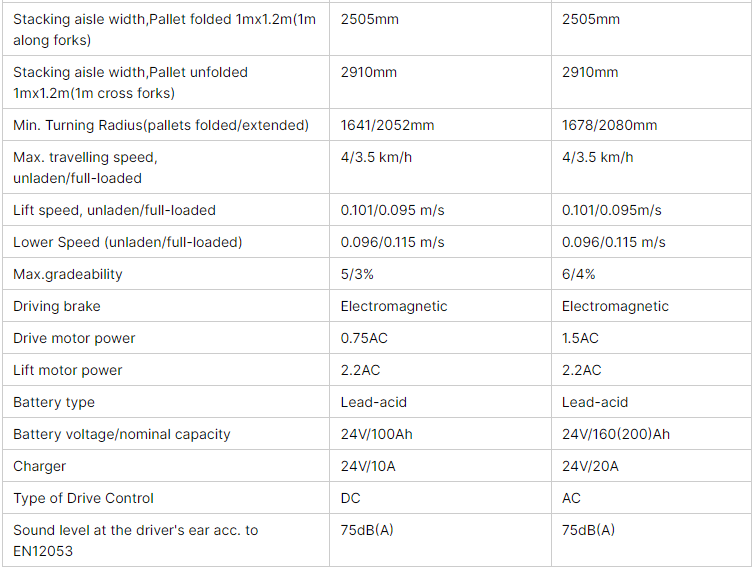

Stacking aisle width,Pallet folded 1mx1.2m(1m along forks)	2505mm	2505mm
Stacking aisle width,Pallet unfolded 1mx1.2m(1m cross forks)	2910mm	2910mm
Min. Turning Radius(pallets folded/extended)	1641/2052mm	1678/2080mm
Max. travelling speed, unladen/full-loaded	4/3.5 km/h	4/3.5 km/h
Lift speed, unladen/full-loaded	0.101/0.095 m/s	0.101/0.095m/s
Lower Speed (unladen/full-loaded)	0.096/0.115 m/s	0.096/0.115 m/s
Max.gradeability	5/3%	6/4%
Driving brake	Electromagnetic	Electromagnetic
Drive motor power	0.75AC	1.5AC
Lift motor power	2.2AC	2.2AC
Battery type	Lead-acid	Lead-acid
Battery voltage/nominal capacity	24V/100Ah	24V/160(200)Ah
Charger	24V/10A	24V/20A
Type of Drive Control	DC	AC
Sound level at the driver's ear acc. to EN12053	75dB(A)	75dB(A)

Q：What is the MOQ?

A： One set.

Q：Can I customize the equipment?

A：Yes, we offer customization service, including load capacity, lifting height, battery, color and others.

Q: Can I get spare parts or technical support after purchase?

A: Yes, we provide lifetime support and spare parts supply. We can ship parts globally and assist via video call.

Q：How long is the warranty time?

A： 12 months or 2000 hours whichever comes first.

Q：What is the payment terms?

A： T/T, 30% pre-payment in advance, and 70% balance before delivery.
