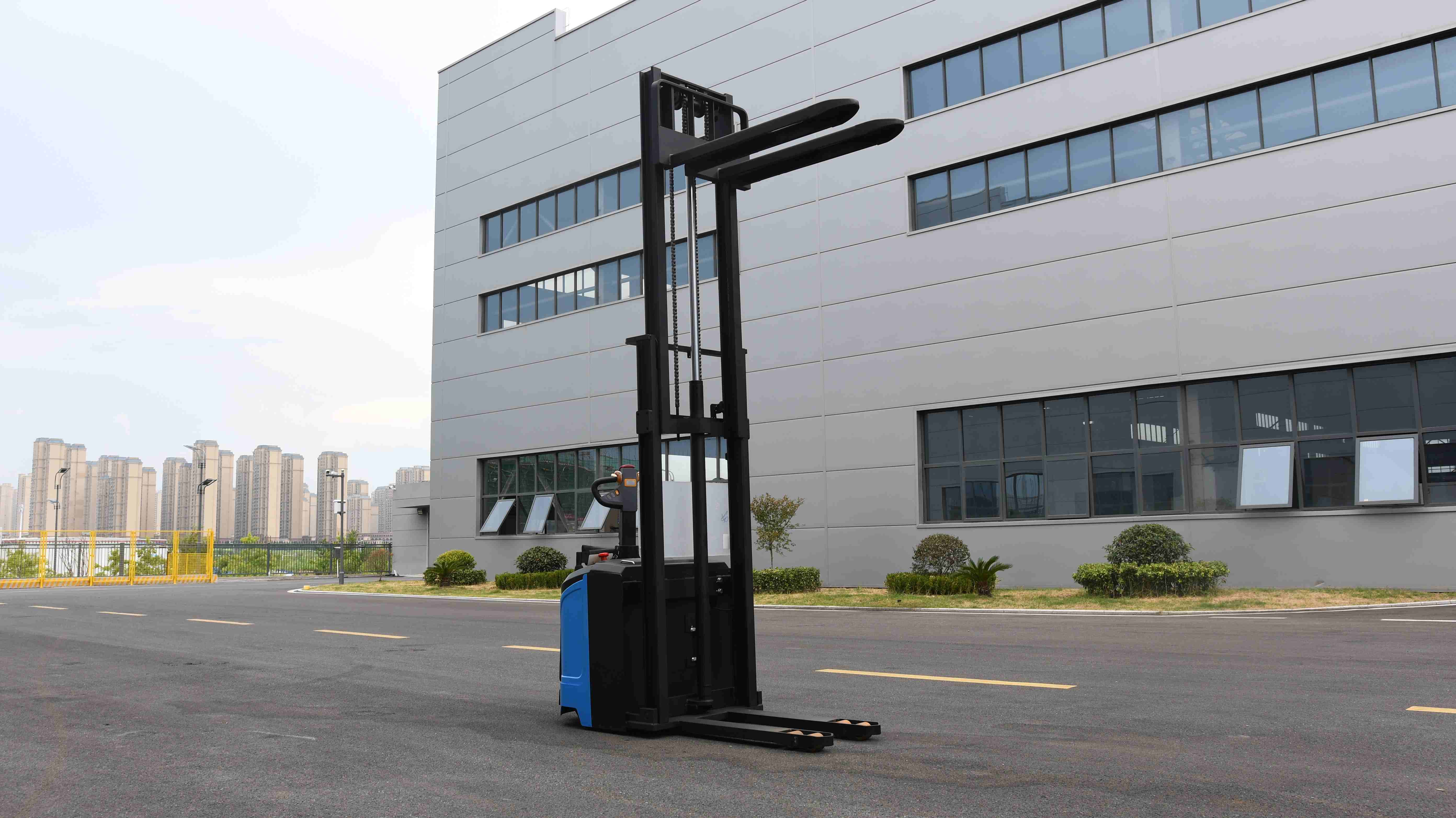

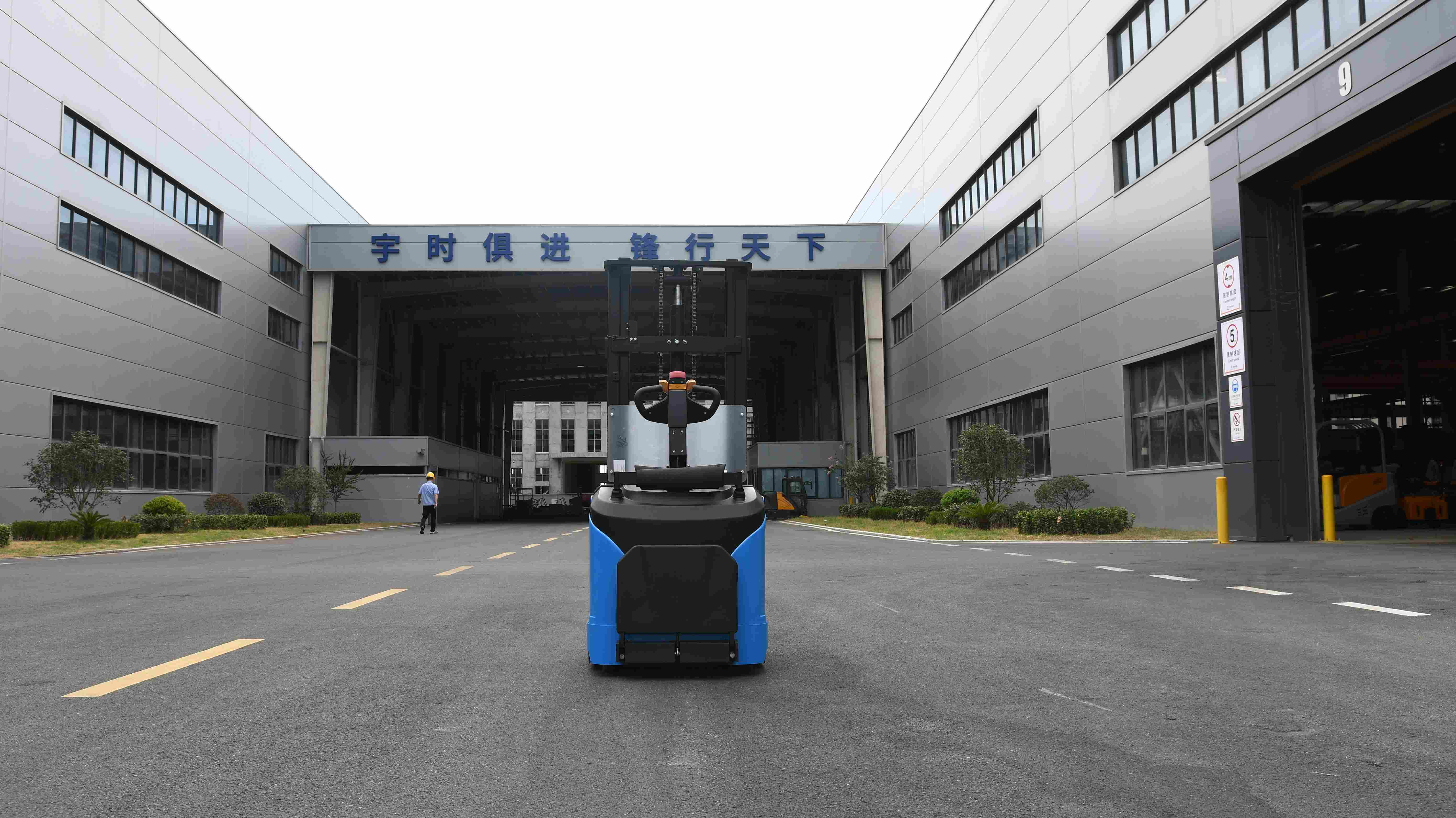

Electric Pallet Stacker

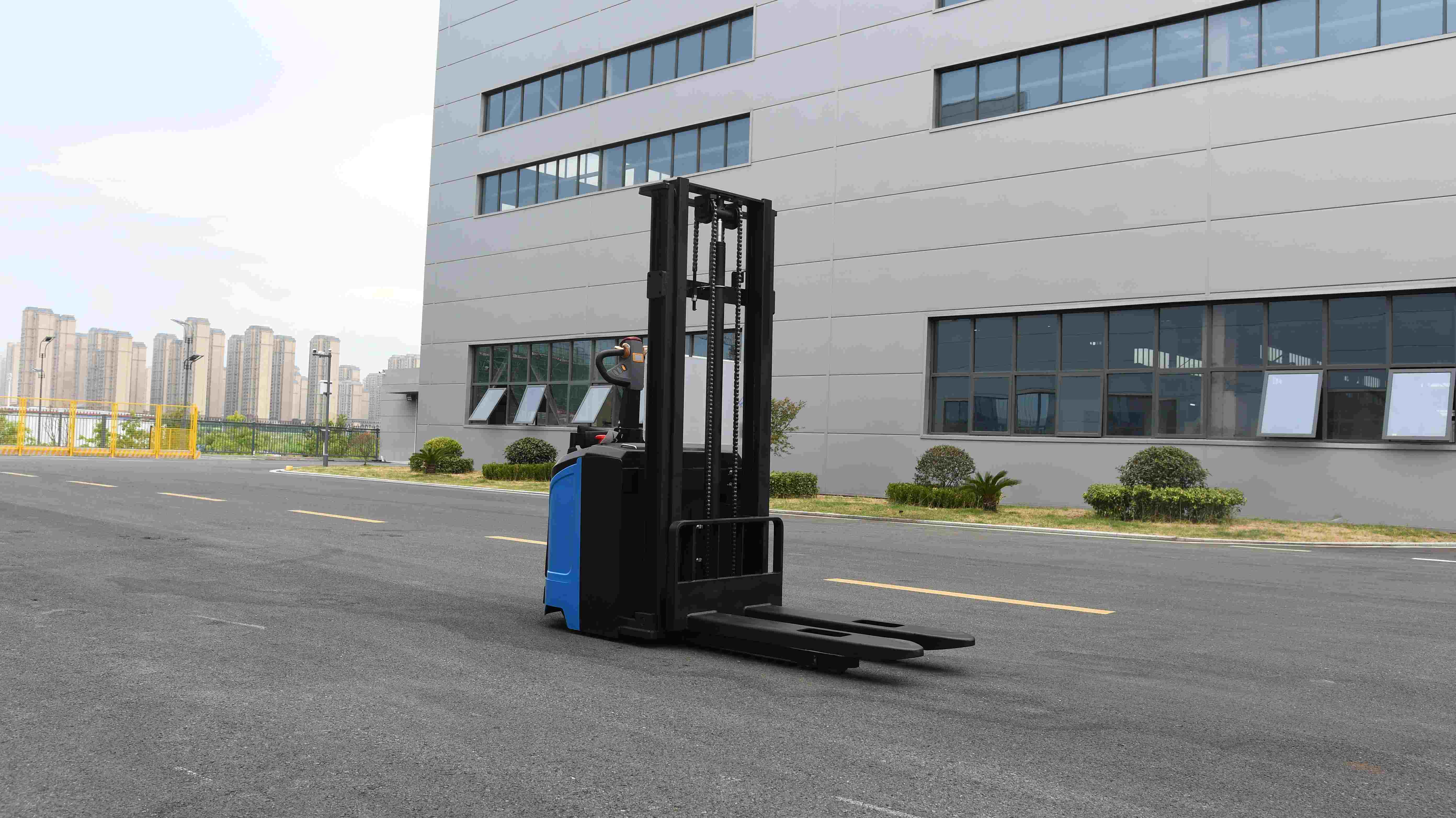

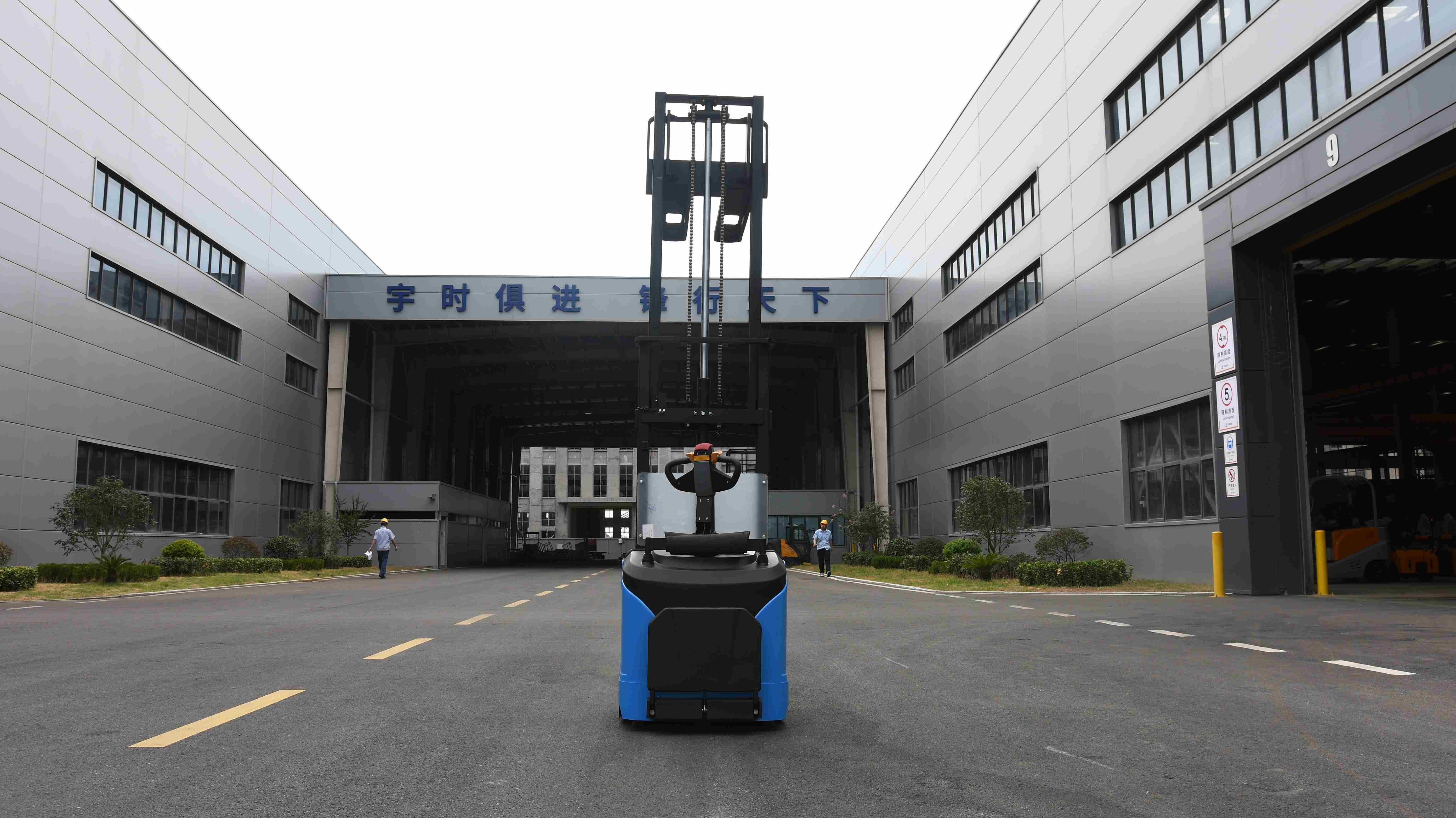

CE Certificate CDD15 II-30 Lithium Battery Lead-acid Battery Electric Pallet Stacker Standing-on Drive

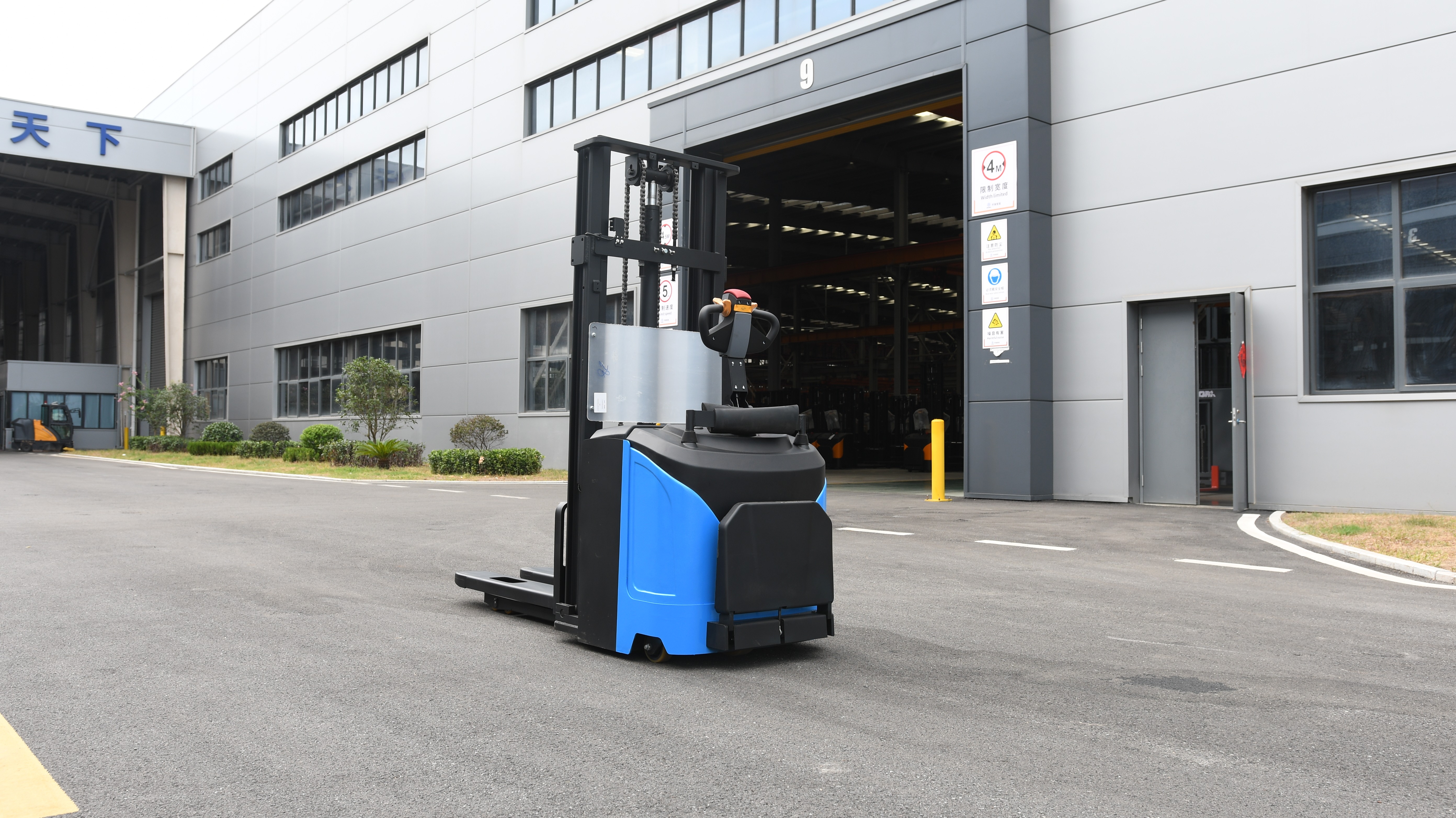

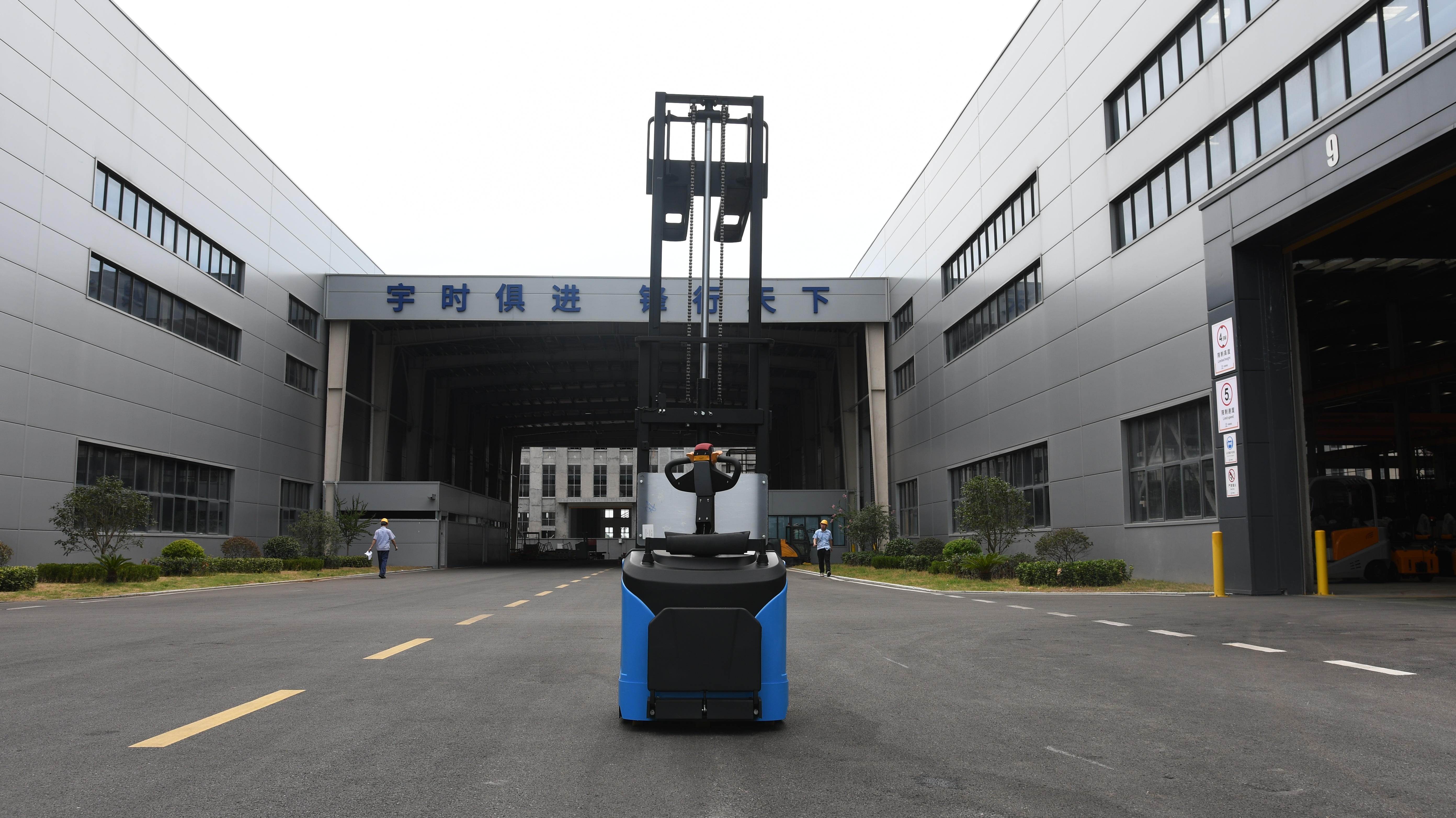

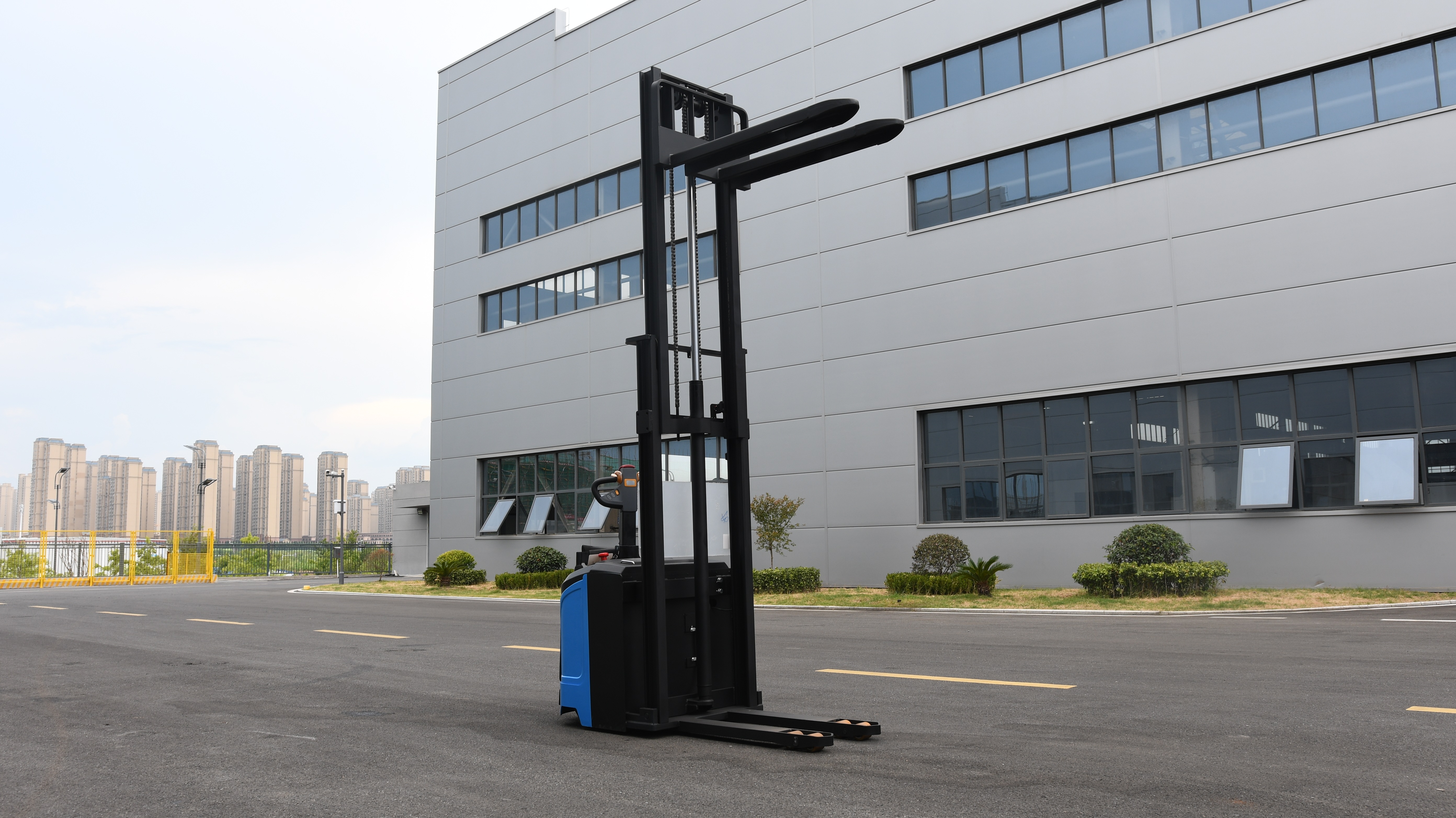

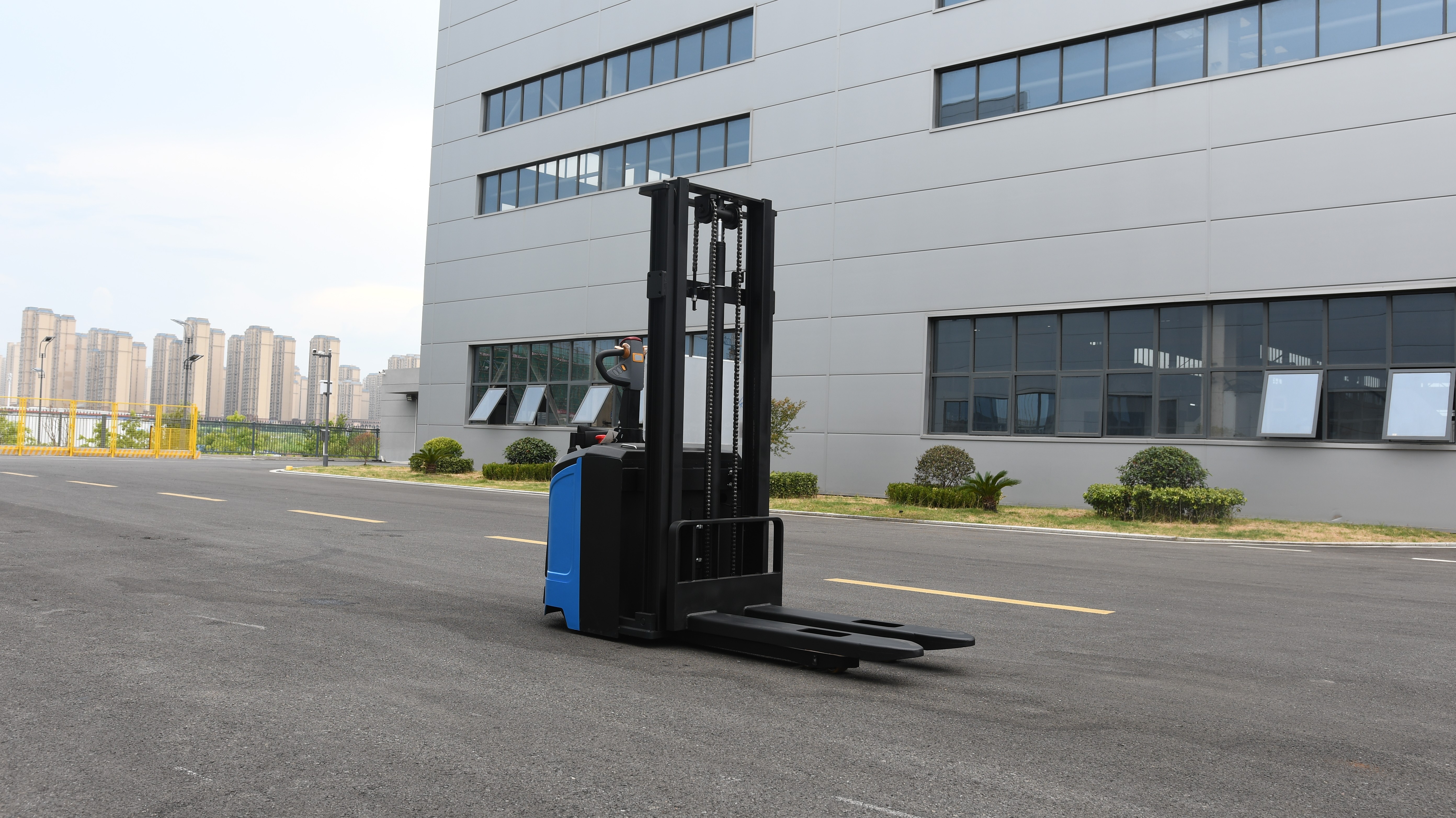

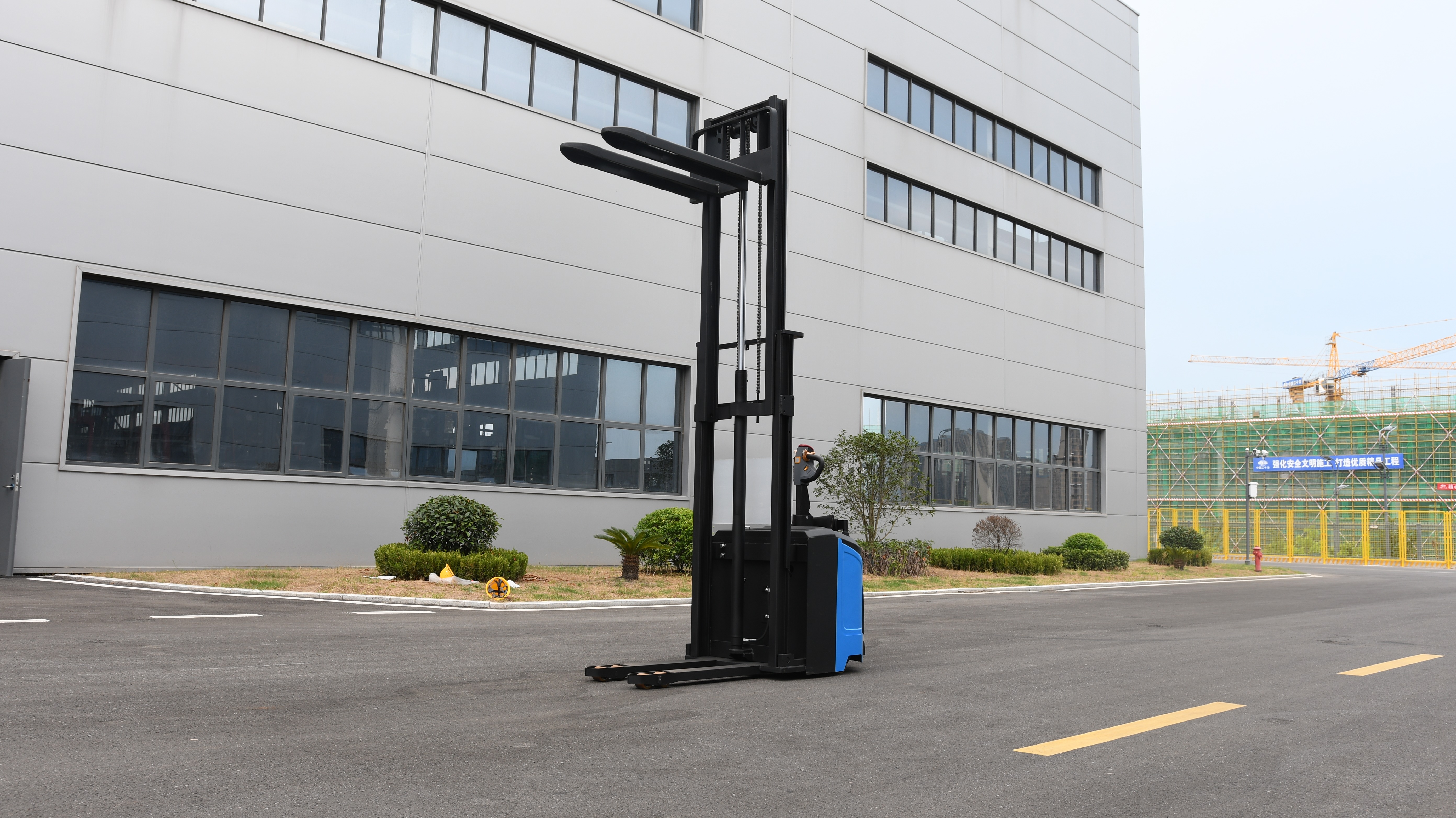

CDD15 II-30 electric pallet stacker stand type
  • Description
  • Inquiry

Product Description

1) Equipped with branded control system and multi-functional protection system, it offers higher level functional safety;


 2) Equipped with vertical  branded gear  box,  multi-functional solutions and flexible module construction system. Optimized gear meshing technology can reduce the noise and offer high performance and efficiency;


 3) EPS steering energy reduces 20% with accurate operation, flexible steering, relieving operators pressures and greatly improving the production ability;


 4) No need to adjust the buffering spring. It can adjust the vertical drive unit according to road conditions, increasing the steady operation efficiency;


 5) High quality with buffering hydraulic system. Low noise, light shock, good seal, steady lift and lower processes;


 6) Equipped with full AC drive system, small volume, light weight, high efficiency, free-maintenance and carbon-brush replacement. No more maintenance and protection;


 6) Wide field mast design, specialized groove steel with high strength;


 7) Customized electromagnetic or laser navigation AGV.

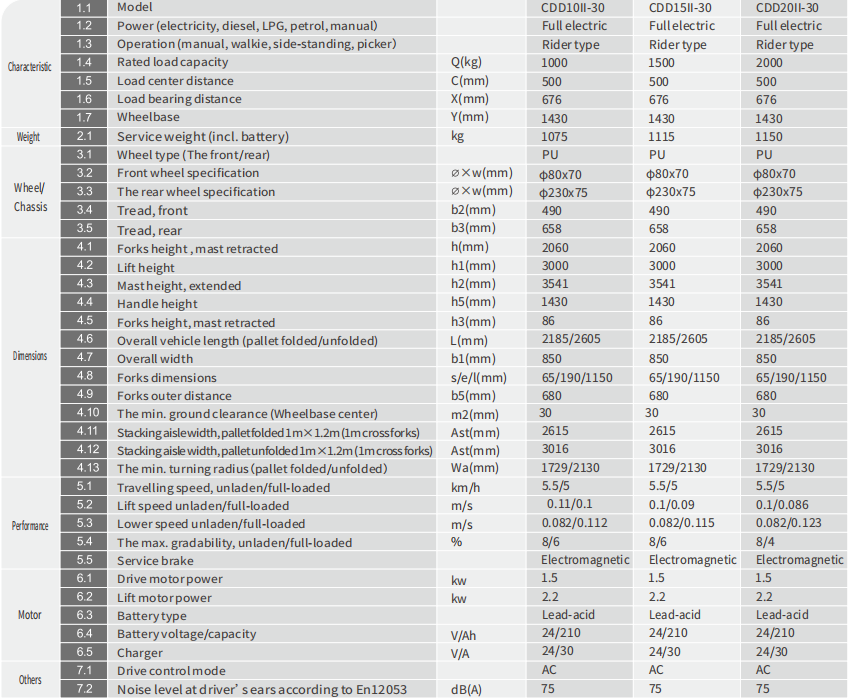

Characteristic
Model

CDD10II-30
CDD15II-30
CDD20II-30
Power(electricity,diesel,LPG,petrol,manual)

Full electric
Full electric
Full electric
Operation

Ridertype
Ridertype
Rider type
Rated load capacity
Q(kg)
1000
1500
2000
Load centerdistance
C(mm)
500
500
500
Load bearing distance
X(mm)
676
676
676
Wheelbase
Y(mm)
1430
1430
1430
Weight
Service weight(incl.battery)
kg
1075
1115
1150
Wheel/
Chassis
Wheel type(Thefront/rear)

PU
PU
PU
Front wheel specification
ø×w(mm)
φ80x70
φ80x70
φ80x70
The rear wheel specification
ø×w(mm)
φ230x75
φ230x75
φ230×75
Tread,front
b2(mm)
490
490
490
Tread,rear
b3(mm)
658
658
658
Dimensions
Forks height,mast retracted
h(mm)
2060
2060
2060
Liftheight
h1(mm)
3000
3000
3000
Mast height,extended
h2(mm)
3541
3541
3541
Handle height
h5(mm)
1430
1430
1430
Forks height,mast retracted
h3(mm)
86
86
86
Overall vehicle length(pallet folded/unfolded)
L(mm)
2185/2605
Overall width
b1(mm)
850
850
850
Forks dimensions
s/e/l(mm)
65/190/1150
Forks outer distance
b5(mm)
680
680
680
The min.ground clearance(Wheelbase center)
m2(mm)
30
30
30
Stackingaislewidth,pallet folded1m×1.2m(1mcrossforks)
Ast(mm)
2615
2615
2615
Stackingaislewidth,pallet unfolded1m×1.2m(1mcrossforks)
Ast(mm)
3016
3016
3016
The min.turning radius(pallet folded/unfolded)
Wa(mm)
1729/2130
Peformance
Travelling speed,unladen/full-loaded
km/h
5.5/5
5.5/5
5.5/5
Liftspeed unladen/full-loaded
m/s
0.11/0.1
0.1/0.09
0.1/0.086
Lower speed unladen/full-loaded
m/s
0.082/0.112
0.082/0.115
0.082/0.123
The max.gradability,unladen/full-loaded
%
8/6
8/6
8/4
Service brake

Electromagnetic
Motor
Drive motor power
kw
1.5
1.5
1.5
Liftmotorpower
kw
2.2
2.2
2.2
Battery type

Lead-acid
Lead-acid
Lead-acid
Battery voltage/capacity
V/Ah
24/210
24/210
24/210
Charger
V/A
24/30
24/30
24/30
Others
Drive control mode

AC
AC
AC
Noiselevel at driver's ears according to En12053
dB(A)
75
75
75



Q:What is the MOQ?

A: One set.


Q:Can I customize the equipment?

A:Yes, we offer customization service, including load capacity, lifting height, battery, color and others.


Q:   Can I get spare parts or technical support after purchase?

A:   Yes, we provide lifetime support and spare parts supply. We can ship parts globally and assist via video call.


Q:How long is the warranty time?

A: 12 months or 2000 hours whichever comes first.


Q:What is the payment terms?

A: T/T, 30% pre-payment in advance, and 70% balance before delivery.


If you have questions or suggestions, please leave us a message,we will reply you as soon as we can!
