New Models 1.5 2.0 2.5Ton Lightweight Stand Counterbalanced Pallet Stacker Truck Battery Forklift_Electric Pallet Stacker_Warehouse Equipment_Products

Description
Inquiry

Product Description

CPDB8 CPDB7

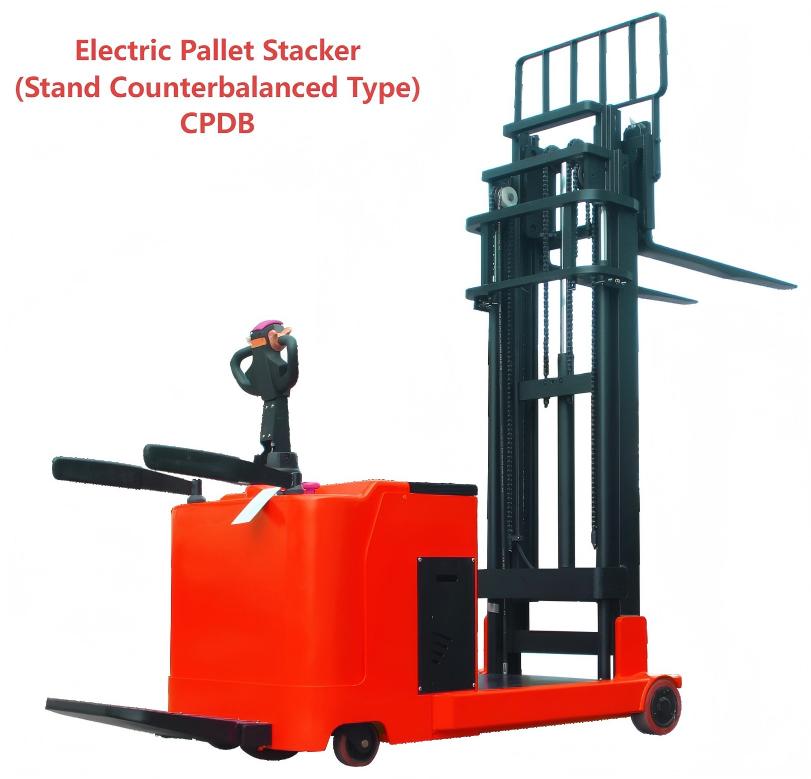

Pallet stacker(counterbalance type), with adjustable forged forks, various pallets available, easy access to goods; Equipped with branded control system and multi-functional protection system, it offers higher level functional safety; Equipped with vertical branded gear box, multi-functional solutions and flexible module construction system. Optimized gear meshing technology can reduce the noise and offer high performance and efficiency.

Characteristic	1.1	Model		CPDB10-25	CPDB15-25	CPDB20-25
	1.2	Power(electricity,diesel,LPG,petrol,manual)		Electric	Electric	Electric
	1.3	Operation(manual,walkie,side-standing,picker)		Ridertype	Rider type	Rider type
	1.4	Rated load capacity	Q(kg)	1000	1500	2000
	1.5	Load center distance	C(mm)	500	500	500
	1.6	The front overhang distance	X(mm)	129	129	129
	1.7	Wheelbase	Y(mm)	1335	1435	1635
Weight	2.1	Service weight(incl.battery)	kg	1700	1775	1890
Wheel/ Chassis	3.1	Wheeltype(The front/rear)		PU	PU	PU
	3.2	Drive specification	ø×w(mm)	φ230*75	φ230*75	φ230*75
	3.3	Front wheel specification	ø×w(mm)	φ210*85	φ210*85	φ210*85
	3.4	The rearwheelspecification	ø×w(mm)	φ150*50	φ150*50	φ150*50
	3.5	Tread,front	b10(mm)	898	898	898
	3.6	Tread,rear	b11(mm)	736	736	736
Dimensions	4.1	Forks height,mast retracted	h1(mm)	1845	1845	1845
	4.2	Lift height	h3(mm)	2500	2500	2500
	4.3	Mast height,extended	h4(mm)	3470	3470	3470
	4.4	Overallvehiclelength,pedalfolded(excl/inclforks)	12(mm)	1757/2834	1857/2934	2057/3134
	4.5	Vehicle width	bi(mm)	983	983	983
	4.6	Forks dimensions	s/e/l(mm)	35/100/1070	35/100/1070	40/122/1070
	4.7	Forks adjustment dimensions	b5(mm)	210-680	210-680	210-705
	4.8	The min.ground clearance(Wheelbase center)	m2(mm)	70	70	70
	4.9	Stacking aisle width,pallet1m×1.2m(1.2m cross forks) (pedalfolded/unfolded)	Ast(mm)	3131/3534	3231/3634	3431/3834
	4.10	The min.turning radius(pedalfolded/unfolded)	Wa(mm)	1652/2055	1752/2155	1952/2355
Performance	5.1	Travelling speed,unladen/full-loaded	km/h	5/4	5/4	5/4
	5.2	Lift speed unladen/full-loaded	m/s	0.112/0.095	0.112/0.085	0.090/0.070
	5.3	Lower speedunladen/full-loaded	m/s	0.094/0.110	0.094/0.115	0.096/0.123
	5.4	The max.gradability,unladen/full-loaded	%	8/5	8/5	6/4
	5.5	Service brake		Electromagnetic	Electromagnetic	Electromagnetic
Motor	6.1	Drive motor power	kw	1.5	1.5	2.5
	6.2	Lift motor power	kw	2.2	2.2	2.2
	6.3	Battery type		Lead-acid	Lead-acid	Lead-acid
	6.4	Battery voltage/capacity	V/Ah	24/210	24/210	24/210
	6.5	Charger	V/A	24/30	24/30	24/30
Others	7.1	Drive controlmode		AC	AC	AC
Others	7.2	Noise level at driver'sears according to En12053	dB(A)	75	75	75

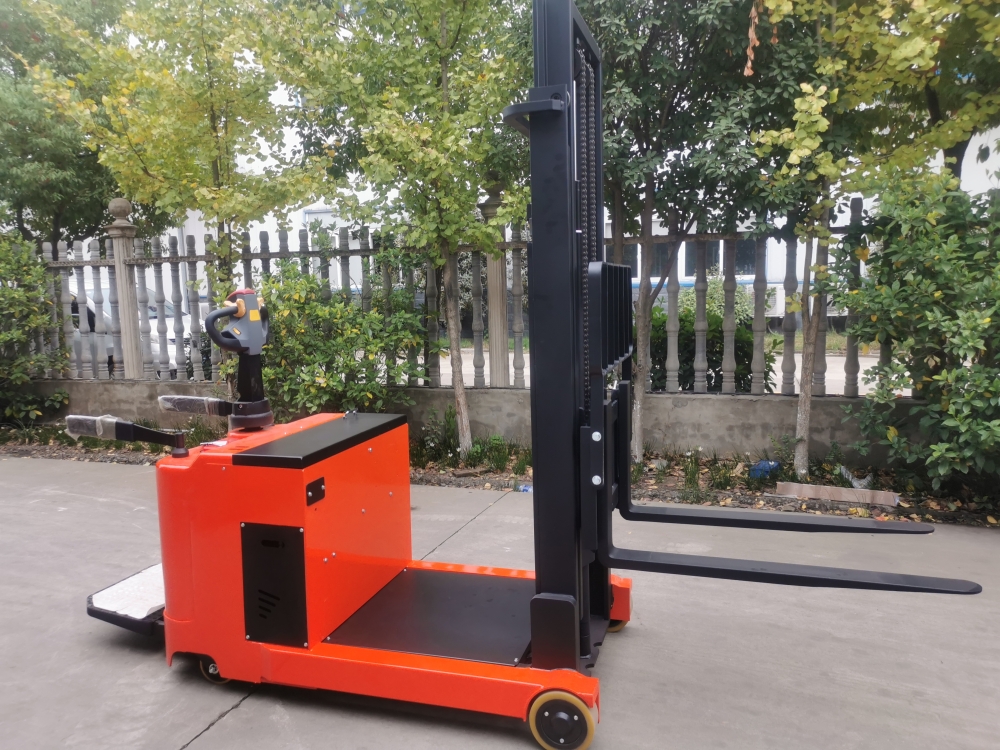

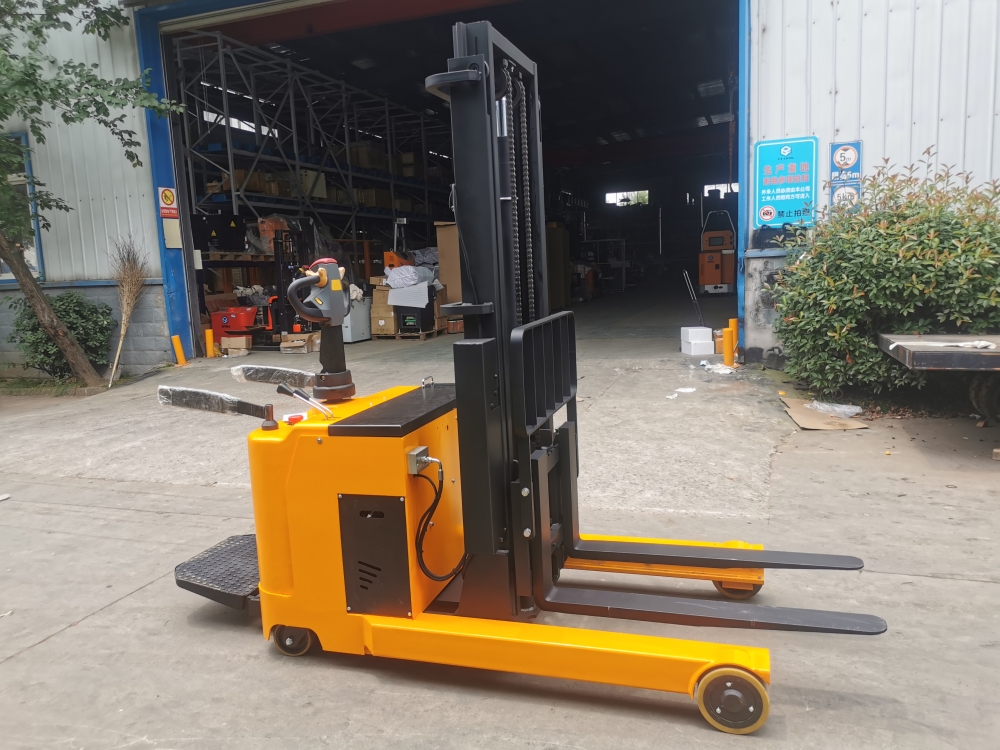

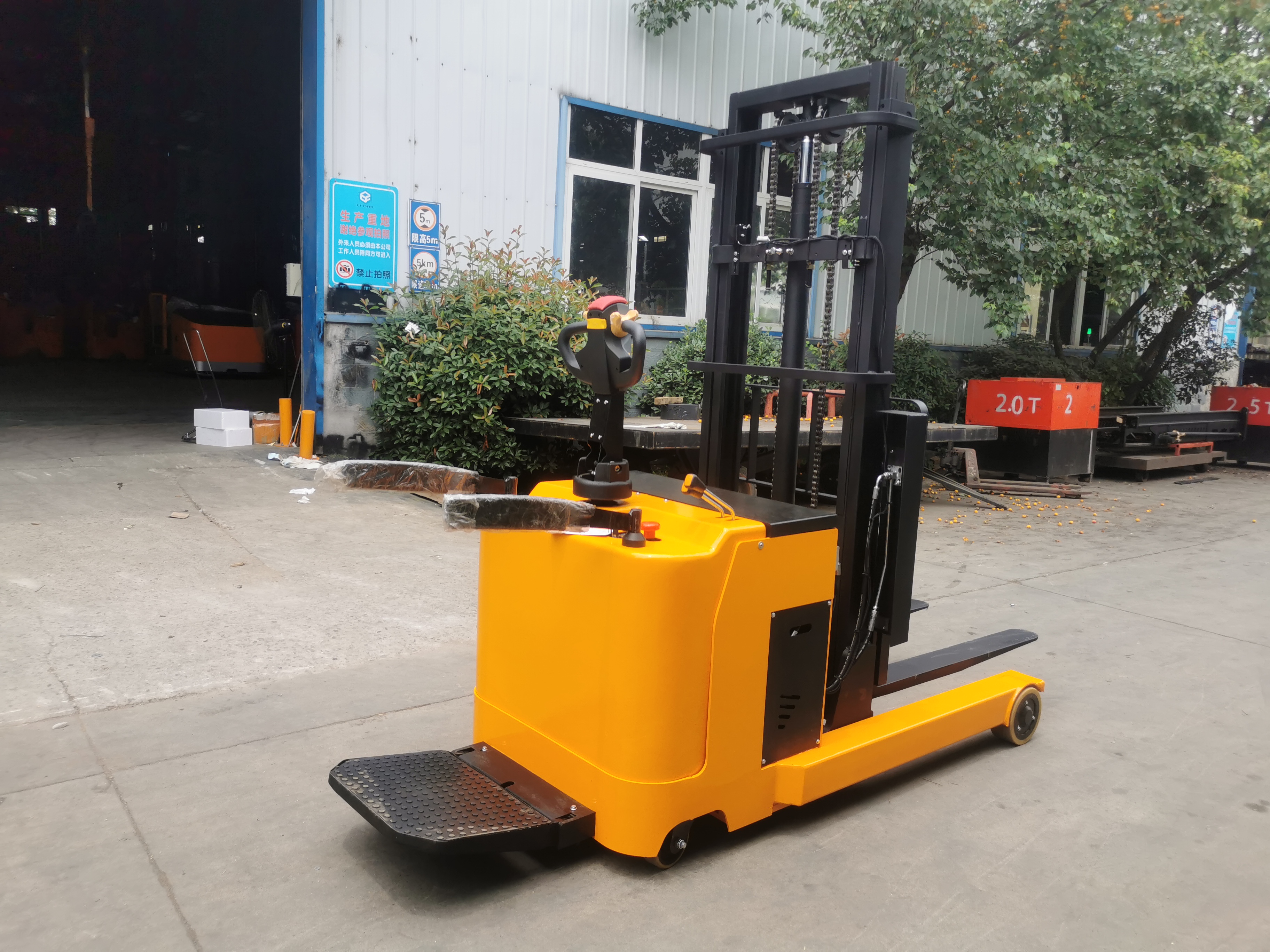

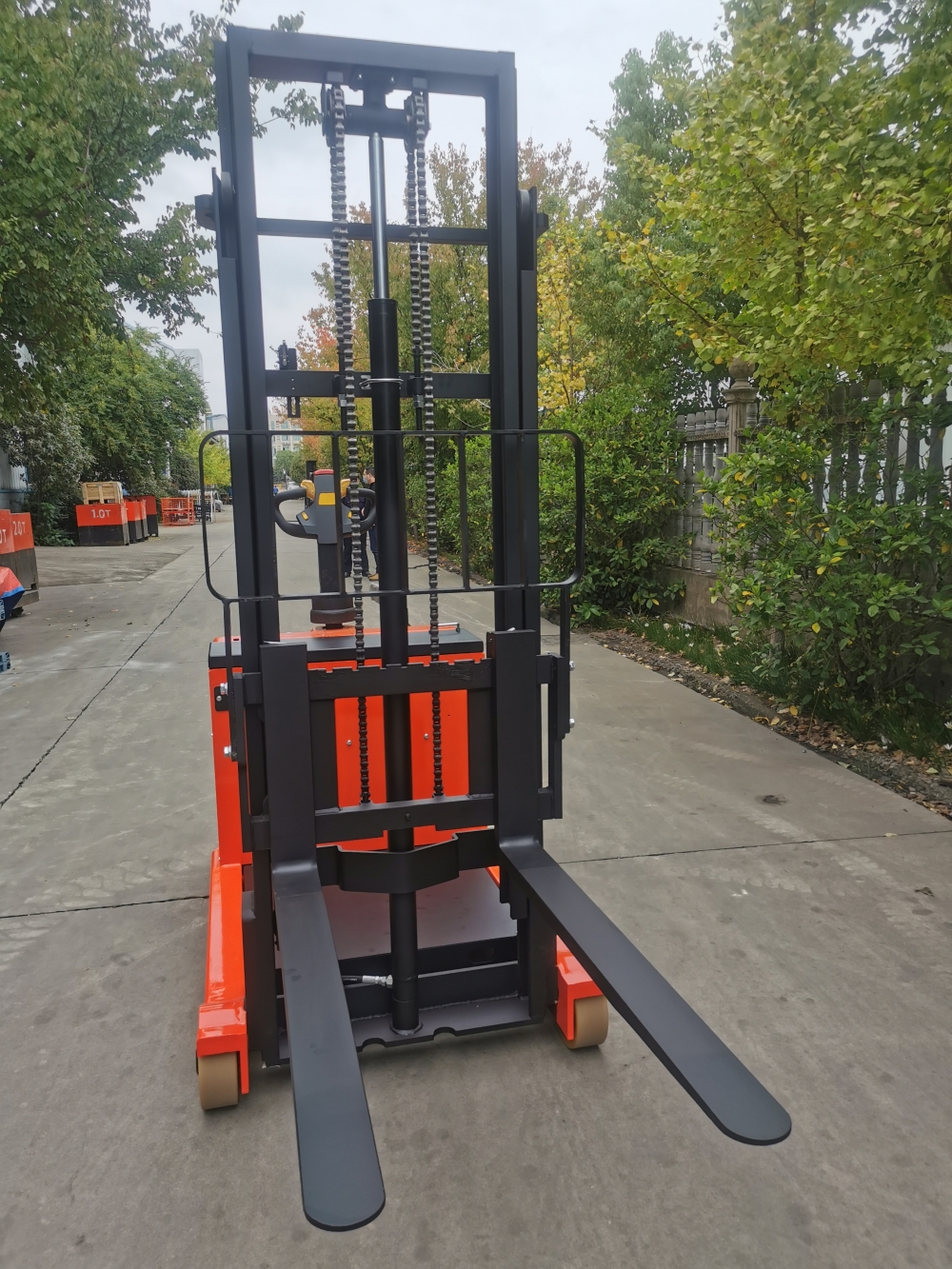

photobank 1 (13)

1 (14)

1 (15) 1 (11) 1 (19)

FAQ

Q：What is the MOQ?
A： One set.

Q：Can I customize the equipment?

A：Yes, we offer customization service, including load capacity, lifting height, battery, color and others.

Q: Can I get spare parts or technical support after purchase?
A: Yes, we provide lifetime support and spare parts supply. We can ship parts globally and assist via video call.

Q：How long is the warranty time?
A： 12 months or 2000 hours whichever comes first.

Q：What is the payment terms?
A： T/T, 30% pre-payment in advance, and 70% balance before delivery.
