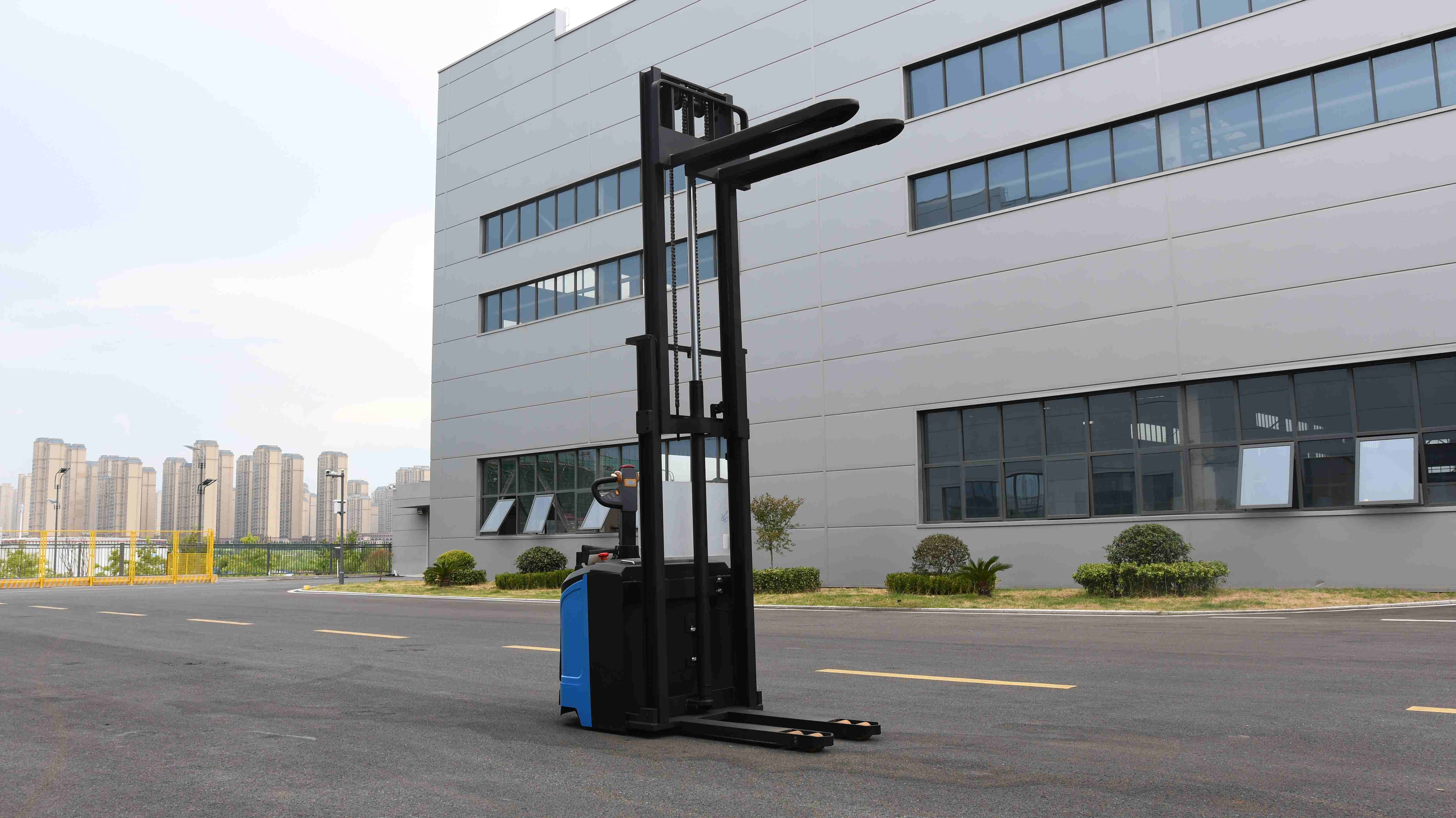

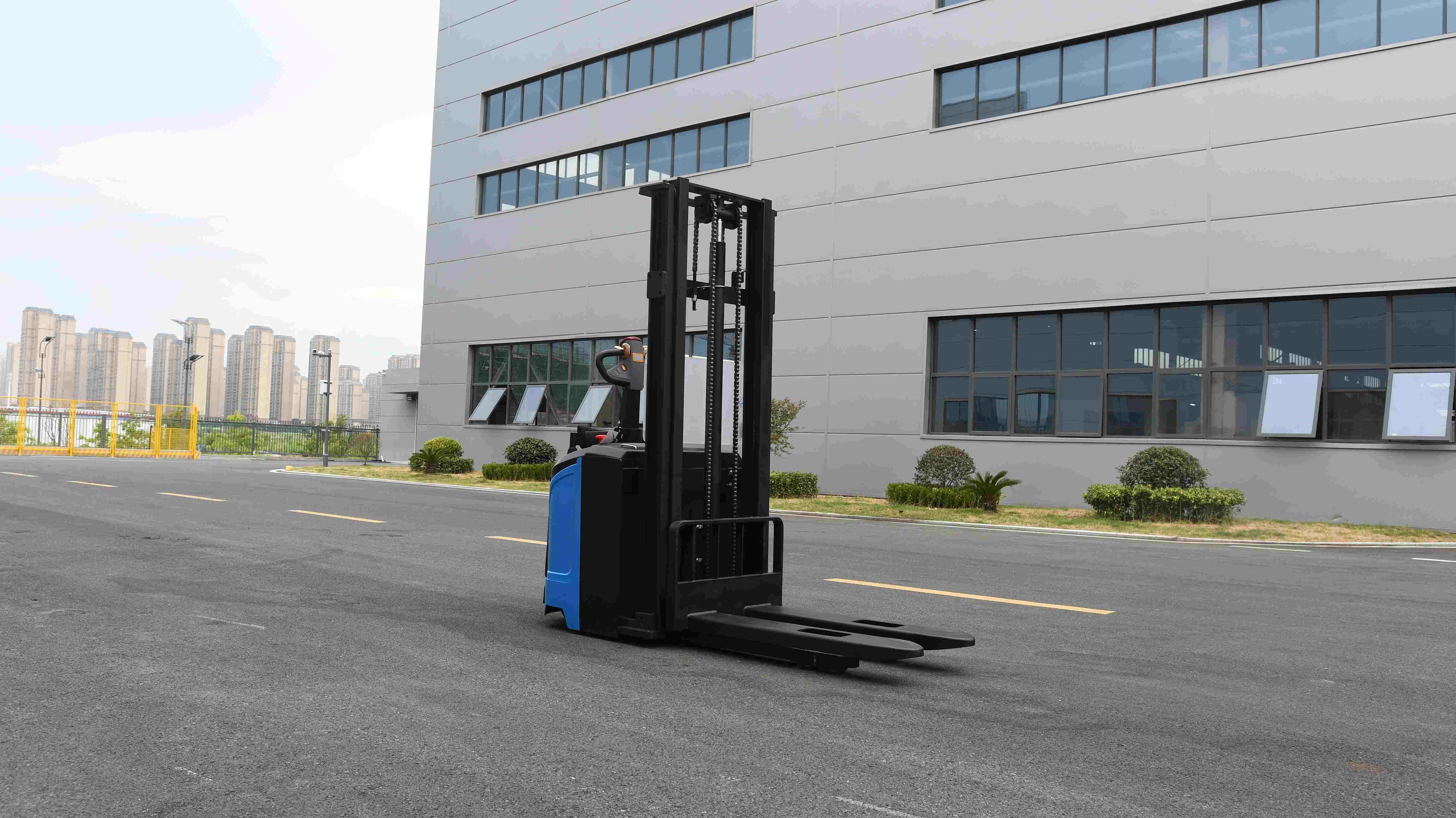

Equipped with branded control system and multi-functional protection system, it offers higher level functional safety;
Equipped with vertical branded gear box, multi-functional solutions and flexible module construction system. Optimized gear meshing technology can reduce the noise and offer high performance and efficiency;
EPS steering energy reduces 20% with accurate operation, flexible steering, relieving operators pressures and greatly improving the production ability;
No need to adjust the buffering spring. It can adjust the vertical drive unit according to road conditions, increasing the steady operation efficiency; High quality with buffering hydraulic system. Low noise, light shock, good seal, steady lift and lower processes;
Equipped with full AC drive system, small volume, light weight, high efficiency, free-maintenance and carbon-brush replacement. No more maintenance and protection;
Wide field mast design, specialized groove steel with high strength;
Customized electromagnetic or laser navigation AGV.

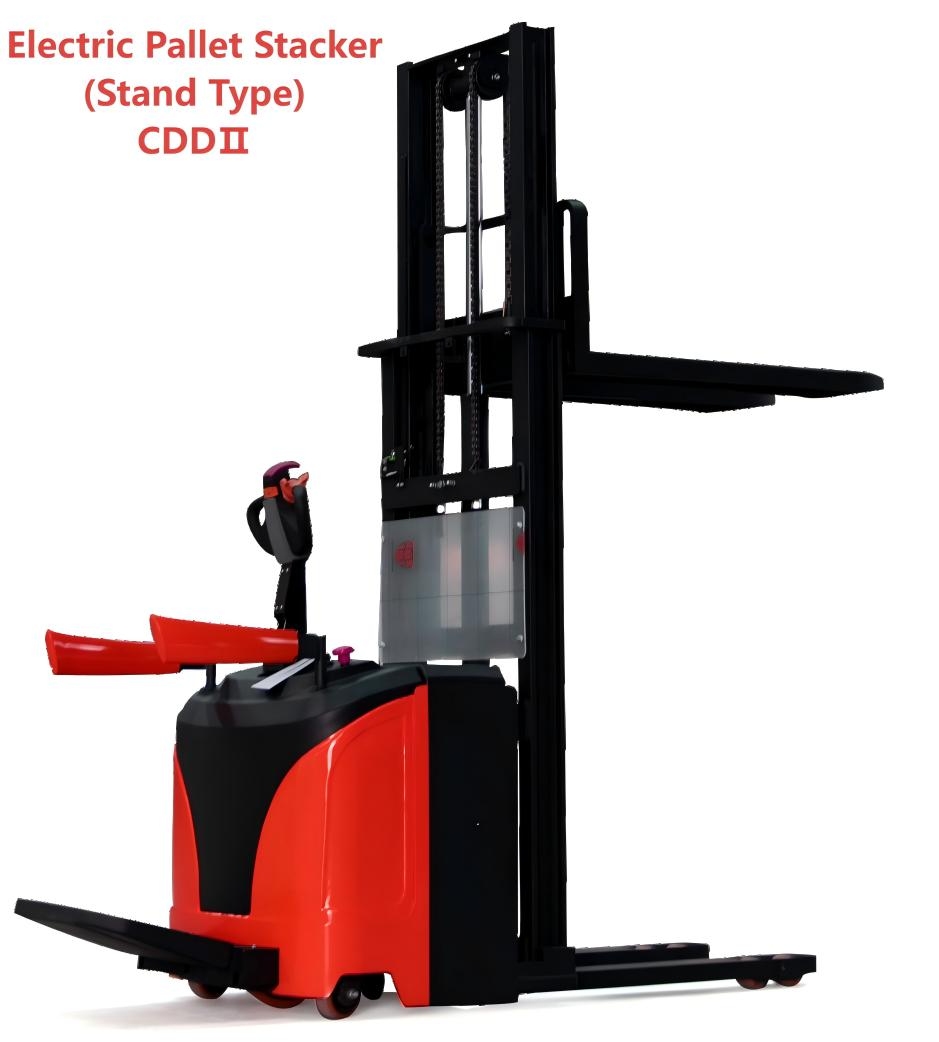

Characteristic | 1.1 | Model | | CDD10II-30 | CDD15II-30 | CDD20II-30 |
1.2 | Power(electricity,diesel,LPG,petrol,manual) | | Full electric | Full electric | Full electric |
1.3 | Operation(manual,walkie,side-standing,picker) | | Ridertype | Ridertype | Rider type |
1.4 | Rated load capacity | Q(kg) | 1000 | 1500 | 2000 |
1.5 | Load centerdistance | C(mm) | 500 | 500 | 500 |
1.6 | Load bearing distance | X(mm) | 676 | 676 | 676 |
1.7 | Wheelbase | Y(mm) | 1430 | 1430 | 1430 |
Weight | 2.1 | Service weight(incl.battery) | kg | 1075 | 1115 | 1150 |
Wheel/
Chassis | 3.1 | Wheel type(Thefront/rear) | | PU | PU | PU |
3.2 | Front wheel specification | ø×w(mm) | φ80x70 | φ80x70 | φ80x70 |
3.3 | The rear wheel specification | ø×w(mm) | φ230x75 | φ230x75 | φ230×75 |
3.4 | Tread,front | b2(mm) | 490 | 490 | 490 |
3.5 | Tread,rear | b3(mm) | 658 | 658 | 658 |
Dimensions | 4.1 | Forks height,mast retracted | h(mm) | 2060 | 2060 | 2060 |
4.2 | Liftheight | h1(mm) | 3000 | 3000 | 3000 |
4.3 | Mast height,extended | h2(mm) | 3541 | 3541 | 3541 |
4.4 | Handle height | h5(mm) | 1430 | 1430 | 1430 |
4.5 | Forks height,mast retracted | h3(mm) | 86 | 86 | 86 |
4.6 | Overall vehicle length(pallet folded/unfolded) | L(mm) | 2185/2605 | 2185/2605 | 2185/2605 |
4.7 | Overall width | b1(mm) | 850 | 850 | 850 |
4.8 | Forks dimensions | s/e/l(mm) | 65/190/1150 | 65/190/1150 | 65/190/1150 |
4.9 | Forks outer distance | b5(mm) | 680 | 680 | 680 |
4.10 | The min.ground clearance(Wheelbase center) | m2(mm) | 30 | 30 | 30 |
4.11 | Stackingaislewidth,pallet folded1m×1.2m(1mcrossforks) | Ast(mm) | 2615 | 2615 | 2615 |
4.12 | Stackingaislewidth,pallet unfolded1m×1.2m(1mcrossforks) | Ast(mm) | 3016 | 3016 | 3016 |
4.13 | The min.turning radius(pallet folded/unfolded) | Wa(mm) | 1729/2130 | 1729/2130 | 1729/2130 |
Peformance | 5.1 | Travelling speed,unladen/full-loaded | km/h | 5.5/5 | 5.5/5 | 5.5/5 |
5.2 | Liftspeed unladen/full-loaded | m/s | 0.11/0.1 | 0.1/0.09 | 0.1/0.086 |
5.3 | Lower speed unladen/full-loaded | m/s | 0.082/0.112 | 0.082/0.115 | 0.082/0.123 |
5.4 | The max.gradability,unladen/full-loaded | % | 8/6 | 8/6 | 8/4 |
5.5 | Service brake | | Electromagnetic | Electromagnetic | Electromagnetic |
Motor | 6.1 | Drive motor power | kw | 1.5 | 1.5 | 1.5 |
6.2 | Liftmotorpower | kw | 2.2 | 2.2 | 2.2 |
6.3 | Battery type | | Lead-acid | Lead-acid | Lead-acid |
6.4 | Battery voltage/capacity | V/Ah | 24/210 | 24/210 | 24/210 |
6.5 | Charger | V/A | 24/30 | 24/30 | 24/30 |
Others | 7.1 | Drive control mode | | AC | AC | AC |
7.2 | Noiselevel at driver's ears according to En12053 | dB(A) | 75 | 75 | 75 |
FAQ
Q：What is the MOQ?
A： One set.
Q：Can I customize the equipment?
A：Yes, we offer customization service, including load capacity, lifting height, battery, color and others.
Q: Can I get spare parts or technical support after purchase?
A: Yes, we provide lifetime support and spare parts supply. We can ship parts globally and assist via video call.
Q：How long is the warranty time?
A： 12 months or 2000 hours whichever comes first.
Q：What is the payment terms?
A： T/T, 30% pre-payment in advance, and 70% balance before delivery.
