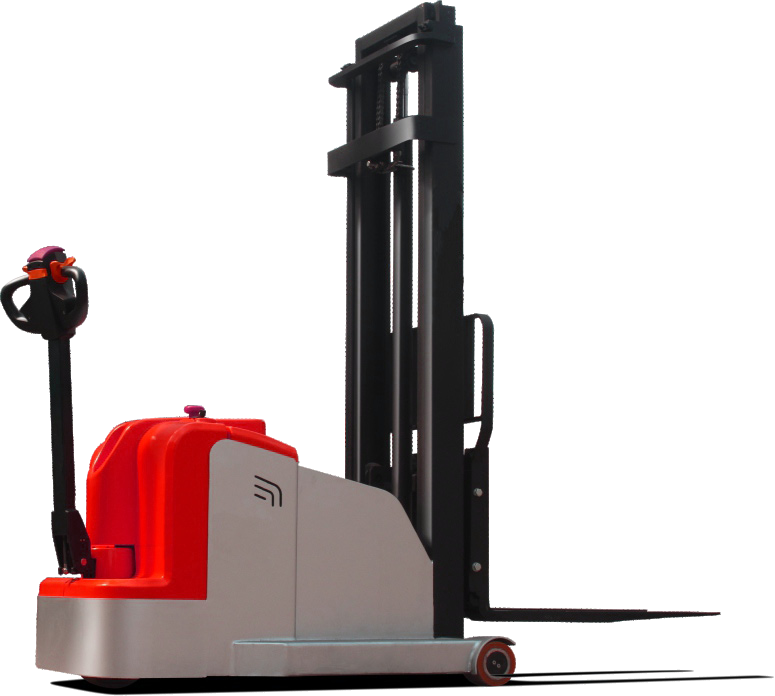

Compared to the same kind products in market , it owns smaller turning radius and aisles, larger load center distance (500mm), outstanding in performance;
Equipped with branded control system and multi-functional protection system, it offers higher level functional safety;
Free-maintenance battery(Li-ion optional) . No need to add liquids . It is easy to maintain, saving the energy. Build-in motor. Easy charging by only open the cover;
Excellent layout structure, Easy parts assembly or disa- ssem bly, easy for maintenance
Characteristics | 1.1 | Model |
| CPDW09 | CPDW10 | CPDW12 |
1.4 | Power (electricity, diesel, petrol, LPG, manual) |
| Electric | Electric | Electric |
1.5 | Operation (manual, walkie, side-standing, order picker) |
| Walkie | Walkie | Walkie |
1.6 | Rated load capacity | Q(Kg) | 900 | 1000 | 1200 |
1.7 | Load center distance | C(mm) | 500 | 500 | 500 |
1.8 | The front overhang distance | X(mm) | 71 | 71 | 85 |
1.9 | Wheelbase | Y(mm) | 1070 | 1340 | 1312 |
Weight | 2.1 | Self weight with battery | kg | 1290 | 1320 | 1480 |
Wheel, chassis | 3.1 | Wheel type (the front/the rear) |
| PU/PU | PU/PU | PU/PU |
3.2 | The front wheel specification | ∅×w(mm) | Φ140x100 | Φ140x100 | Φ210x85 |
3.3 | The rear wheel specification | ∅×w(mm) | Φ210x70 | Φ210x70 | Φ250x80 |
3.4 | The front track width | b2(mm) | 816 | 816 | 801 |
Dimensions | 4.1 | Mast closed height | H1(mm) | 2065 | 2065 | 2115 |
4.2 | Free lifting height | h2(mm) | 0 | 0 | 0 |
4.3 | Lifting height | H(mm) | 3000 | 3000 | 3000 |
4.4 | Maximum mast lifting height (load backrest included) | H2(mm) | 3913 | 3913 | 3913 |
4.6 | Forks height when mast retracted | H3(mm) | 35 | 35 | 35 |
4.9 | Overall vehicle length (forks excluded/included) | L(mm) | 1380/2301 | 1652/2573 | 1684/2612 |
4.10 | Overall vehicle width | b1(mm) | 916 | 916 | 886 |
4.11 | Forks dimensions | s/e/l(mm) | 920*100*35 | 920*100*35 | 1070*100*35 |
4.12 | Forks aadjustment dimensions (outer width) | b5(mm) | 200-580 | 200-580 | 200-580 |
4.13 | Minimum ground clearance (wheelbase center) | m2(mm) | 40 | 40 | 72 |
4.14 | Stacking aisle width， pallet1000×1200 (1200 placed cross forks) | Ast(mm) | 2720 | 2956 | 2846 |
4.15 | Stacking aisle width， pallet1000×1200 (1200 placed along the forks) | Ast(mm) | 2859 | 3094 | 3083 |
4.16 | Minimum turning radius | Wa(mm) | 1257 | 1528 | 1480 |
Performance | 5.1 | Travel speed, full loaded/loaded | km/h | 4.0/3.5 | 4.0/3.5 | 4.0/3.5 |
5.2 | Lifting speed, full loaded/loaded | m/s | 0.215/0.145 | 0.215/0.130 | 0.215/0.130 |
5.3 | Lowering speed, full loaded/loaded | m/s | 0.105/0.125 | 0.105/0.130 | 0.105/0.130 |
5.8 | Maximum gradeability, full loaded/loaded | ％ | 5.0/4.5 | 5.0/4.0 | 5.0/4.0 |
5.1 | Service brake |
| Electromagnetic | Electromagnetic | Electromagnetic |
Motor | 6.1 | Drive motor power | kw | 0.75 | 0.75 | 1.5 |
6.2 | Lifting motor power | kw | 2.2 | 2.2 | 2.2 |
6.3 | Battery type |
| Lead acid | Lead acid | Lead acid gel battery |
6.4 | Battery voltage/capacity | V/Ah | 24/100 | 24/100 | 24/150 |
6.5 | Battery charger | v/A | 24V/10A | 24V/10A | 24/20A |
Other | 7.1 | Drive control mode |
| DC | DC | AC |
7.4 | Driver's ear noise level according to EN12053 | dB(A) | 70 | 70 | 70 |
