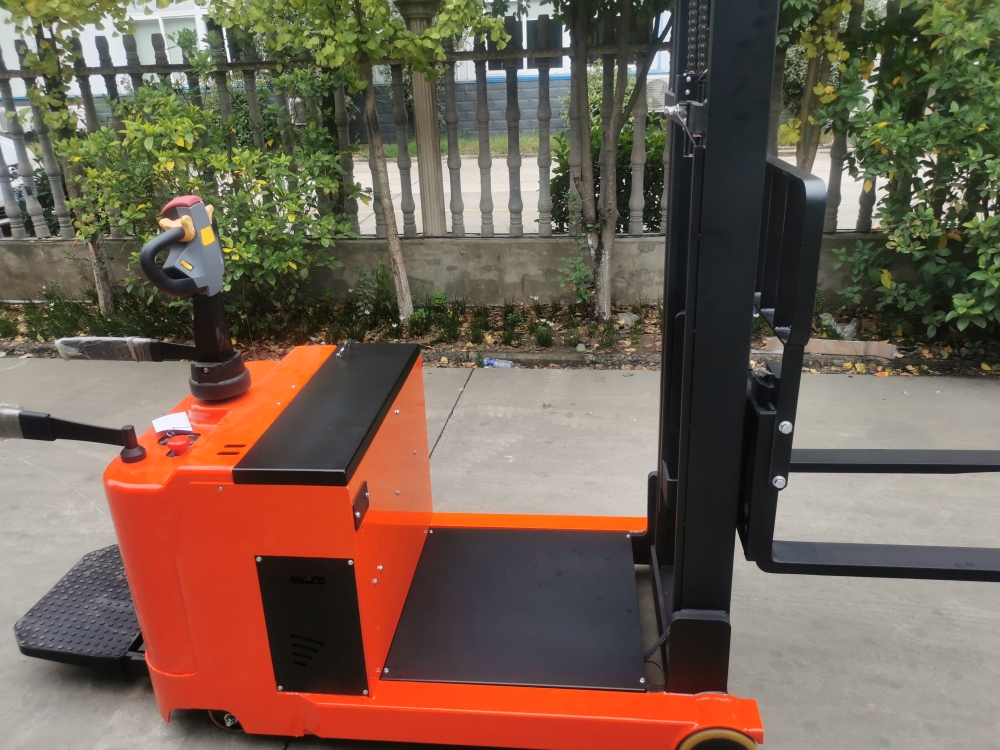

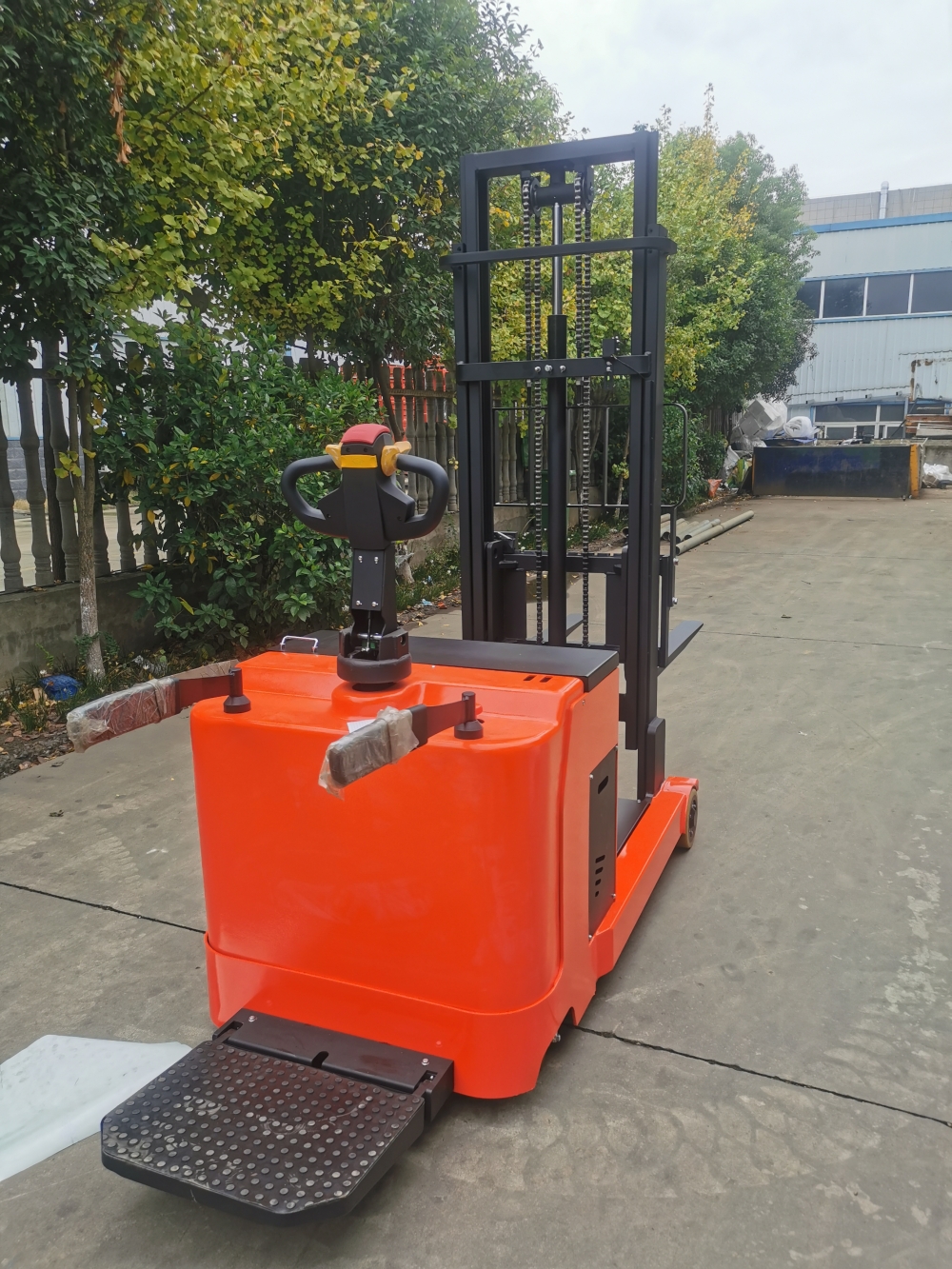

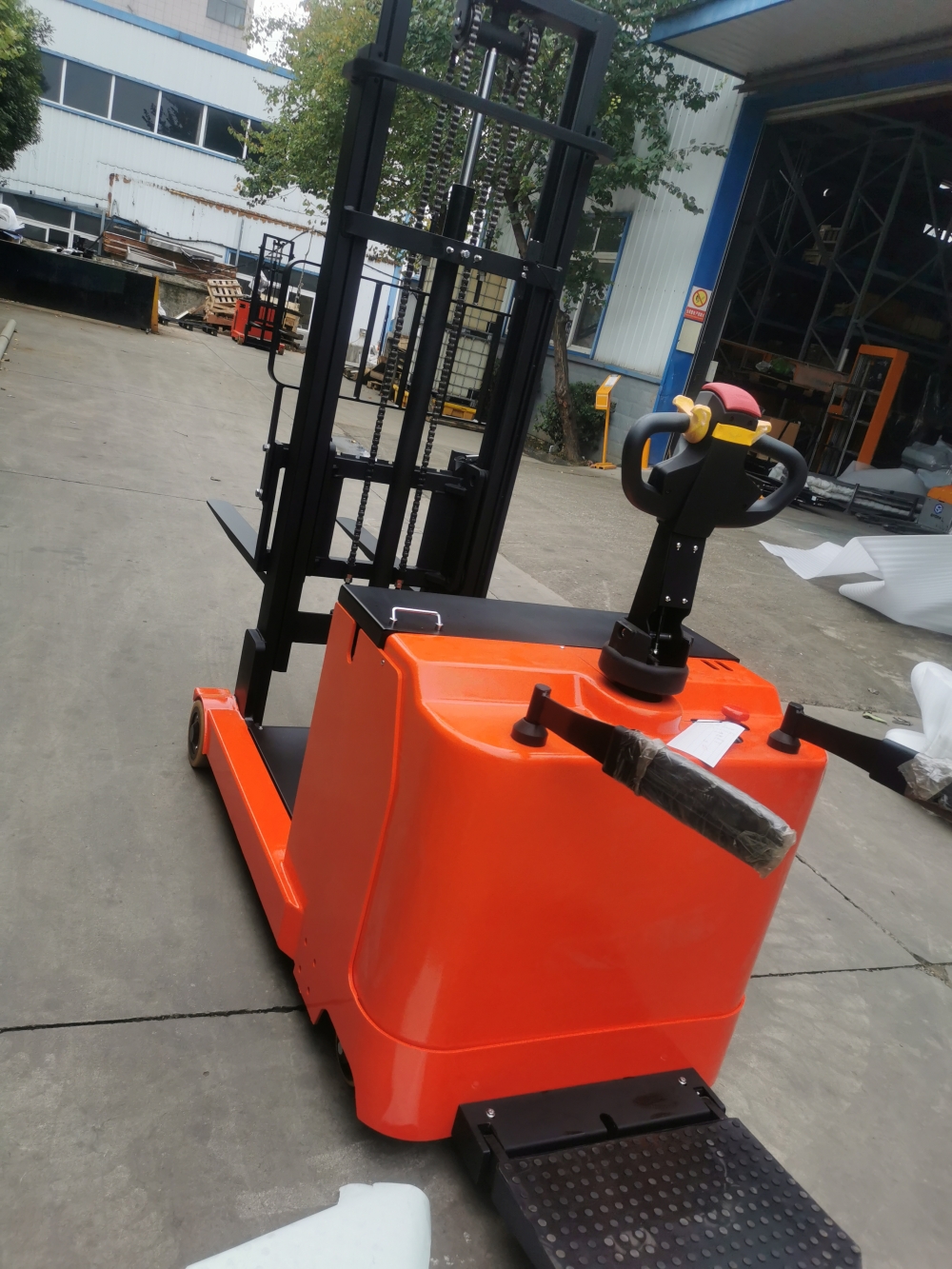

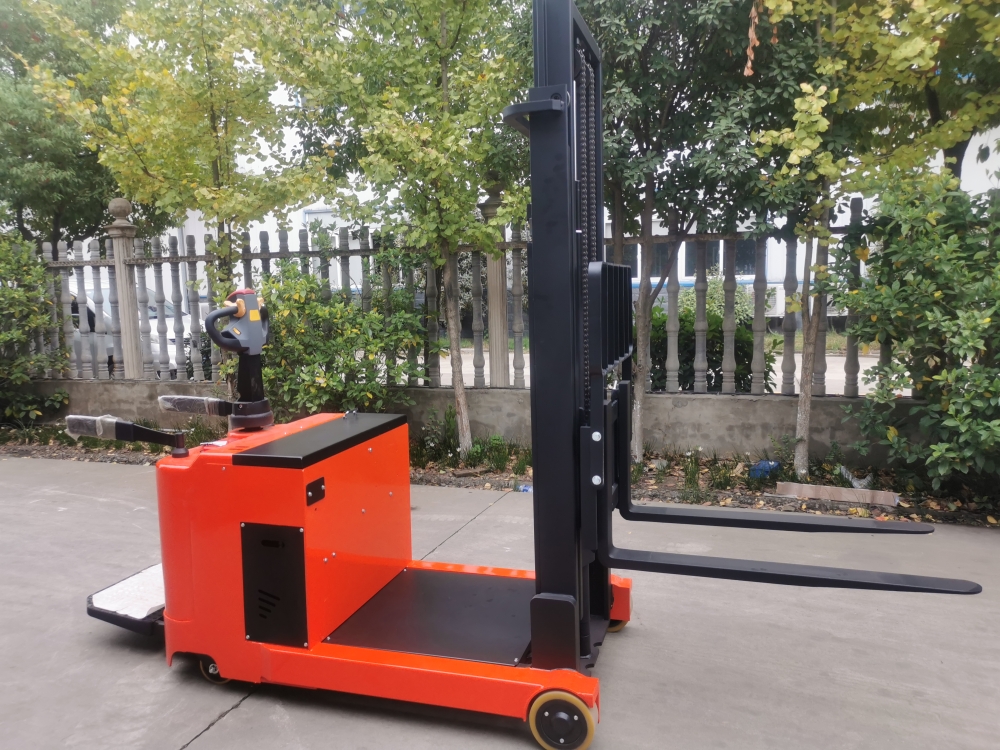

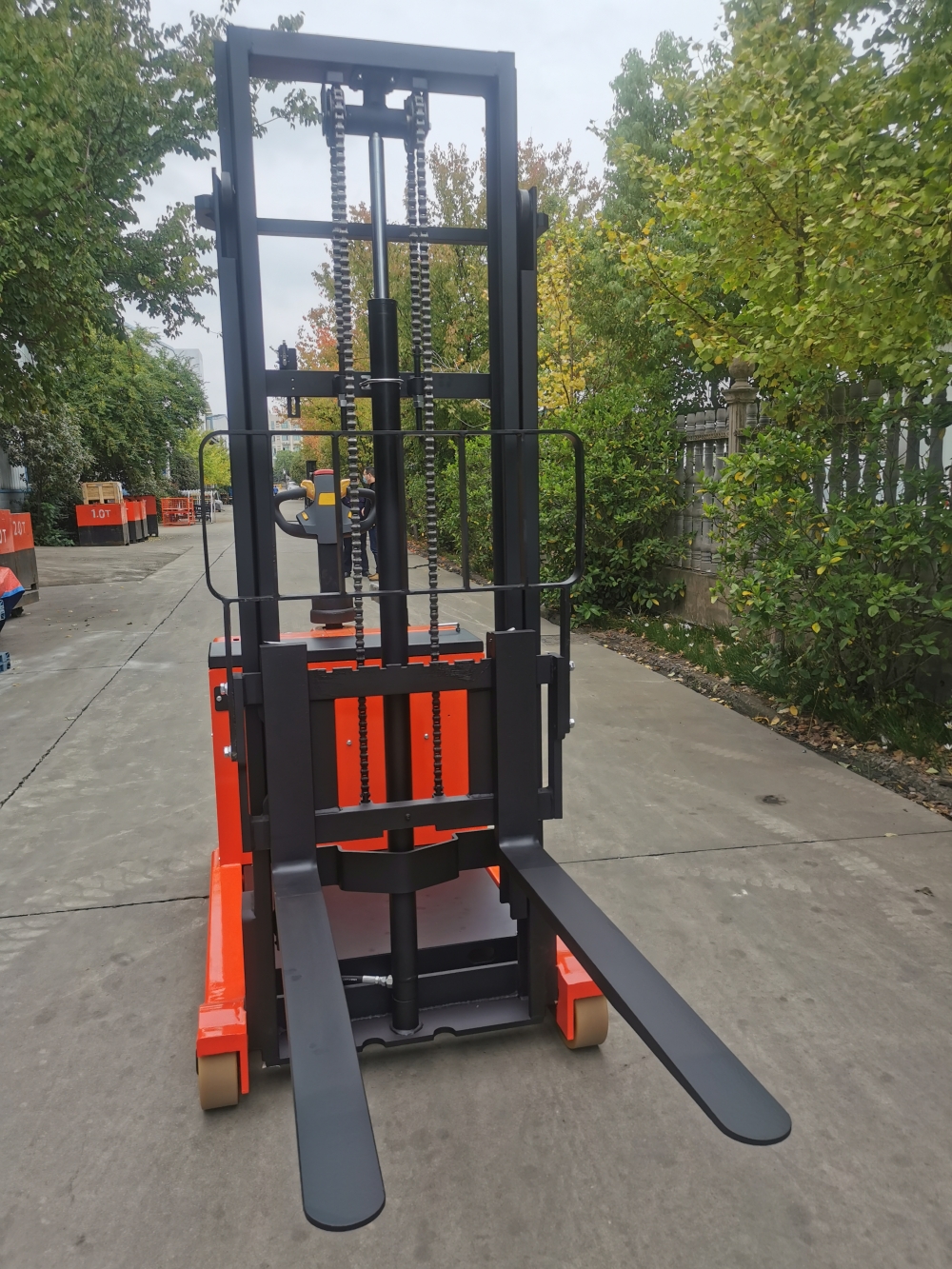

1) Pallet stacker(counterbalance type), with adjustable forged forks, various pallets available, easy access to goods;
2) Equipped with branded control system and multi-functional protection system, it offers higher level functional safety;
3) Equipped with vertical branded gear box, multi-functional solutions and flexible module construction system. Optimized gear meshing technology can reduce the noise and offer high performance and efficiency.

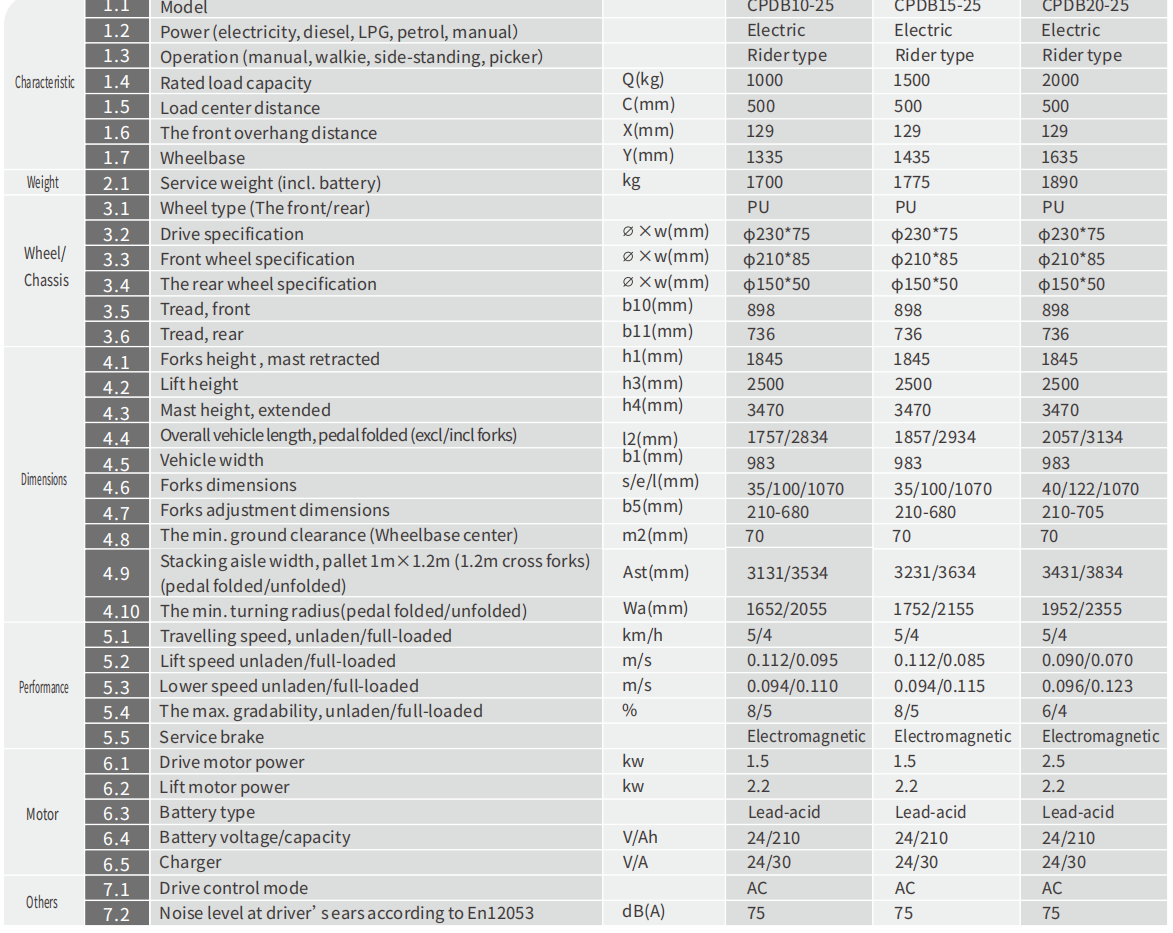

Characteristic | Model |
| CPDB10-25 | CPDB15-25 | CPDB20-25 |
Power(electricity,diesel,LPG,petrol,manual) |
| Electric | Electric | Electric |
Operation(manual,walkie,side-standing,picker) |
| Ridertype | Rider type | Rider type |
Rated load capacity | Q(kg) | 1000 | 1500 | 2000 |
Load center distance | C(mm) | 500 | 500 | 500 |
The front overhang distance | X(mm) | 129 | 129 | 129 |
Wheelbase | Y(mm) | 1335 | 1435 | 1635 |
Weight | Service weight(incl.battery) | kg | 1700 | 1775 | 1890 |
Wheel/
Chassis | Wheeltype(The front/rear) |
| PU | PU | PU |
Drive specification | ø×w(mm) | φ230*75 | φ230*75 | φ230*75 |
Front wheel specification | ø×w(mm) | φ210*85 | φ210*85 | φ210*85 |
The rearwheelspecification | ø×w(mm) | φ150*50 | φ150*50 | φ150*50 |
Tread,front | b10(mm) | 898 | 898 | 898 |
Tread,rear | b11(mm) | 736 | 736 | 736 |
Dimensions | Forks height,mast retracted | h1(mm) | 1845 | 1845 | 1845 |
Lift height | h3(mm) | 2500 | 2500 | 2500 |
Mast height,extended | h4(mm) | 3470 | 3470 | 3470 |
Overallvehiclelength,pedalfolded(excl/inclforks) | 12(mm) | 1757/2834 | 1857/2934 | 2057/3134 |
Vehicle width | bi(mm) | 983 | 983 | 983 |
Forks dimensions | s/e/l(mm) | 35/100/1070 | 40/122/1070 |
Forks adjustment dimensions | b5(mm) | 210-680 | 210-680 | 210-705 |
The min.ground clearance(Wheelbase center) | m2(mm) | 70 | 70 | 70 |
Stacking aisle width,pallet1m×1.2m(1.2m cross forks)
(pedalfolded/unfolded) | Ast(mm) | 3131/3534 | 3231/3634 | 3431/3834 |
The min.turning radius(pedalfolded/unfolded) | Wa(mm) | 1652/2055 | 1752/2155 | 1952/2355 |
Performance | Travelling speed,unladen/full-loaded | km/h | 5/4 | 5/4 | 5/4 |
Lift speed unladen/full-loaded | m/s | 0.112/0.095 | 0.112/0.085 | 0.090/0.070 |
Lower speedunladen/full-loaded | m/s | 0.094/0.110 | 0.094/0.115 | 0.096/0.123 |
The max.gradability,unladen/full-loaded | % | 8/5 | 8/5 | 6/4 |
Service brake |
| Electromagnetic |
Motor | Drive motor power | kw | 1.5 | 1.5 | 2.5 |
Lift motor power | kw | 2.2 | 2.2 | 2.2 |
Battery type |
| Lead-acid | Lead-acid | Lead-acid |
Battery voltage/capacity | V/Ah | 24/210 | 24/210 | 24/210 |
Charger | V/A | 24/30 | 24/30 | 24/30 |
Others | Drive controlmode |
| AC | AC | AC |
Noise level at driver'sears according to En12053 | dB(A) | 75 | 75 | 75 |
Q：What is the MOQ?
A： One set.
Q：Can I customize the equipment?
A：Yes, we offer customization service, including load capacity, lifting height, battery, color and others.
Q: Can I get spare parts or technical support after purchase?
A: Yes, we provide lifetime support and spare parts supply. We can ship parts globally and assist via video call.
Q：How long is the warranty time?
A： 12 months or 2000 hours whichever comes first.
Q：What is the payment terms?
A： T/T, 30% pre-payment in advance, and 70% balance before delivery.
